House Plan 638 Burlington Cove, Affordable House Plan

>

Floor plans

NDG 638

House Plan 638 Burlington Cove, Affordable House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 638
  • Total Living Space:1677Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 45
  • Width In.: N/A
  • Depth Ft.: 36
  • Depth In.: N/A

Description

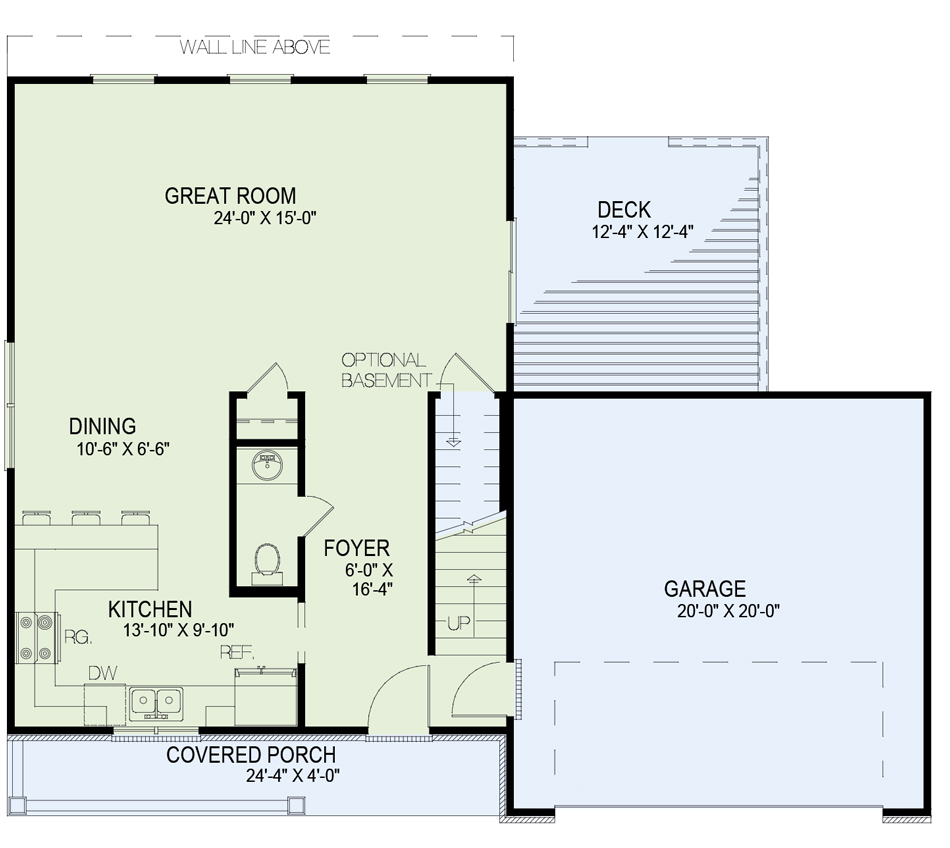

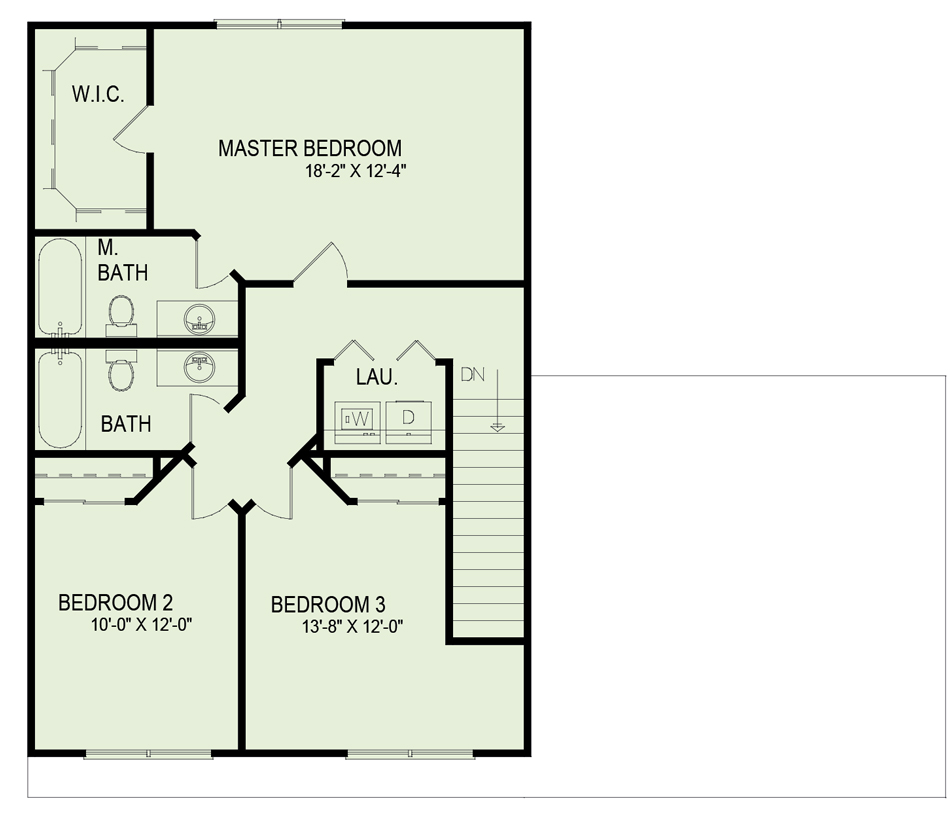

This newly designed Nelson Design Group home has everything a growing family needs. A wide foyer provides a half bath while leading to an enormous great room with sliding glass doors to the deck, perfect for grilling. A step-saver door is available to the kitchen as well as a bar for extra counter space and additional seating. The second story stairs are located in the entry foyer and leads to a massive master bedroom with private bath and large walk-in closet. Two additional bedrooms share a full bathroom and are located near the laundry room for added convenience.

Specifications

  • Total Living Space:1677Sq.Ft.
  • Main Floor: 789 Sq.Ft
  • Upper Floor (Sq.Ft.): 888 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 97 Sq.Ft.
  • Garage (Sq.Ft.): 421 Sq.Ft.
  • Total Square Feet: 2195 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 1
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
