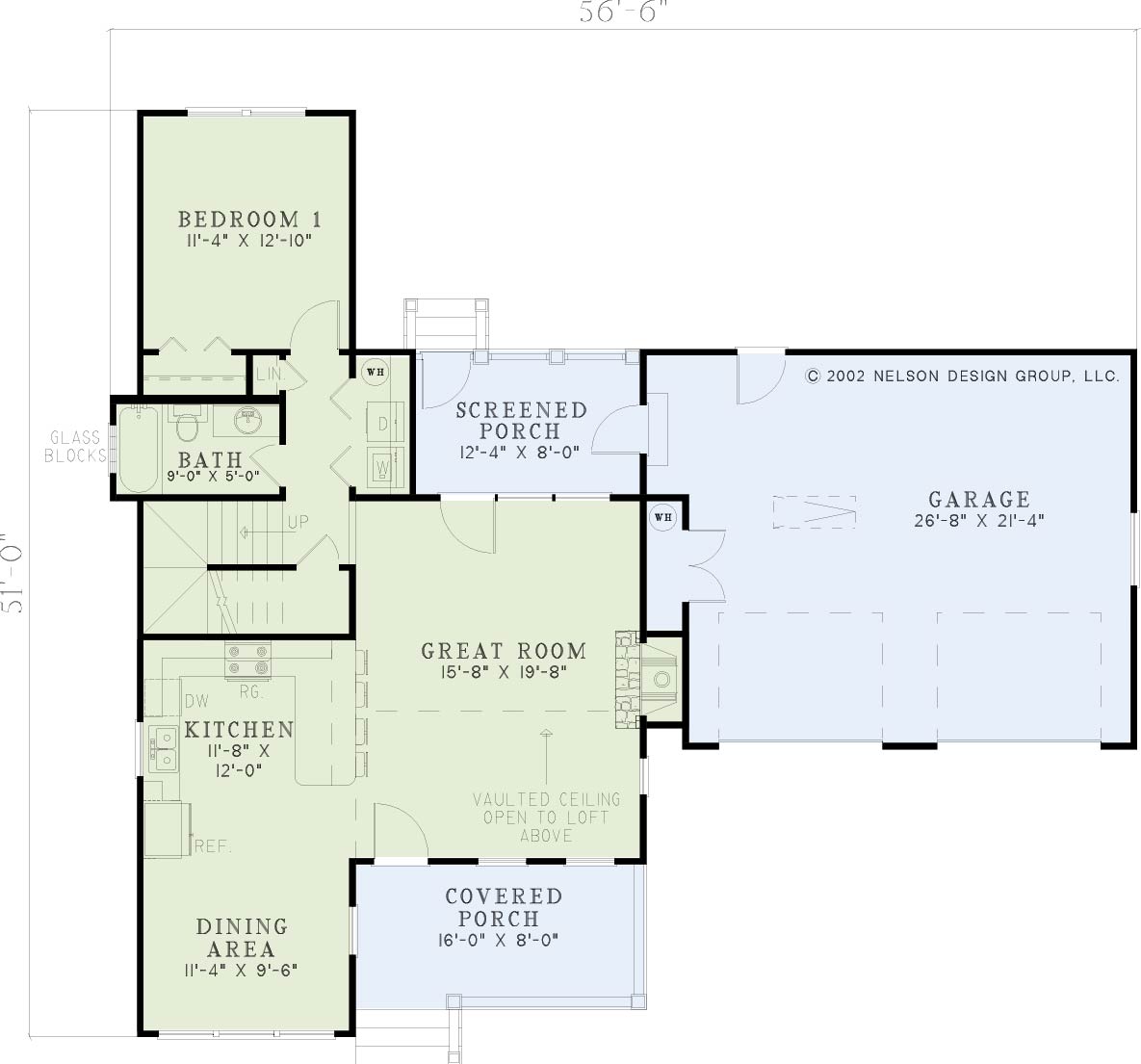

House Plan NDG 623 Main Floor

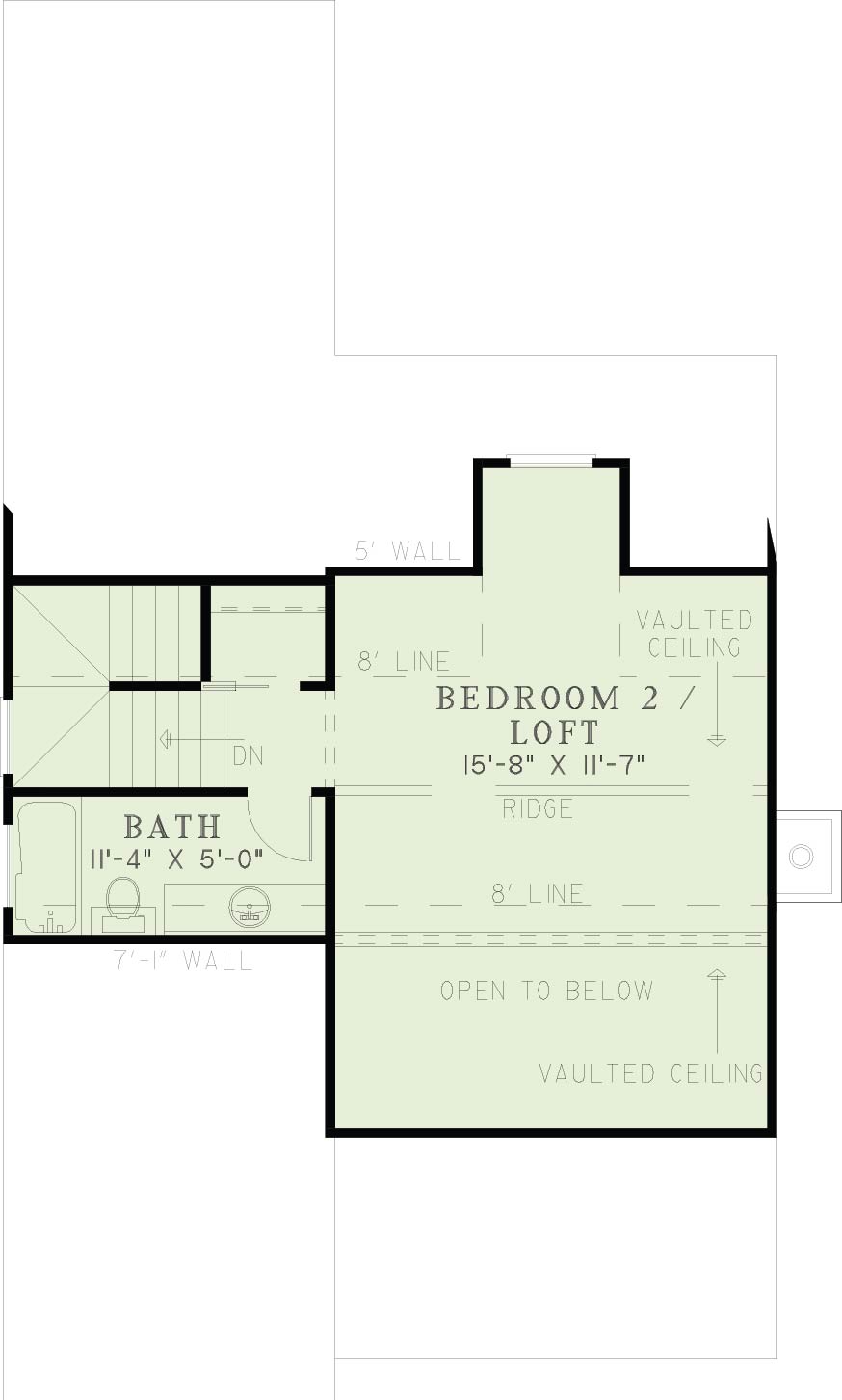

House Plan NDG 623 Upper Floor

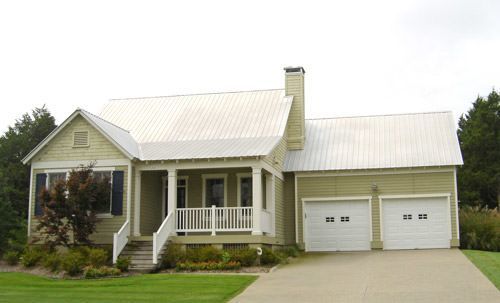

House Plan - 623front_1p Front View>
House Plan - 623front_3p Front View>

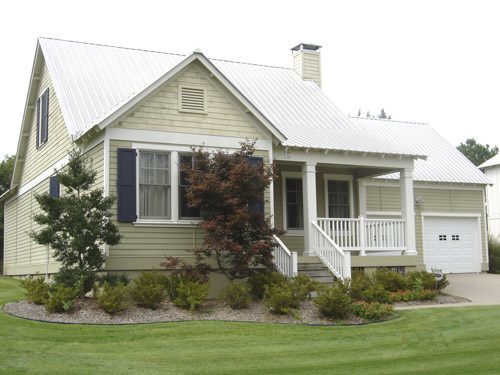

House Plan - 623front_4p Front Door>
House Plan NDG 623 Main Floor
House Plan NDG 623 Upper Floor
House Plan - 623front_1p Front View
House Plan - 623front_3p Front View
House Plan - 623front_4p Front Door

Floor plans

NDG 623

House Plan 623 Canyon Stream, Riverbend House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 623
  • Total Living Space:1294Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 56
  • Width In.: 6
  • Depth Ft.: 51
  • Depth In.: N/A

Description

This charming little cabin will bring back times of family trips to the lake. Step in to the Great Room where you can enjoy the cozy fire and vaulted ceiling, or make your way into the connected Kitchen and Dining Area to enjoy a meal with loved ones. There is a bedroom located at the back of the home and another located upstairs with its own bathroom.

Specifications

  • Total Living Space:1294Sq.Ft.
  • Main Floor: 972 Sq.Ft
  • Upper Floor (Sq.Ft.): 322 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 227 Sq.Ft.
  • Garage (Sq.Ft.): 579 Sq.Ft.
  • Total Square Feet: 2100 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
