House Plan 620 Emery Lane, Traditional House Plan

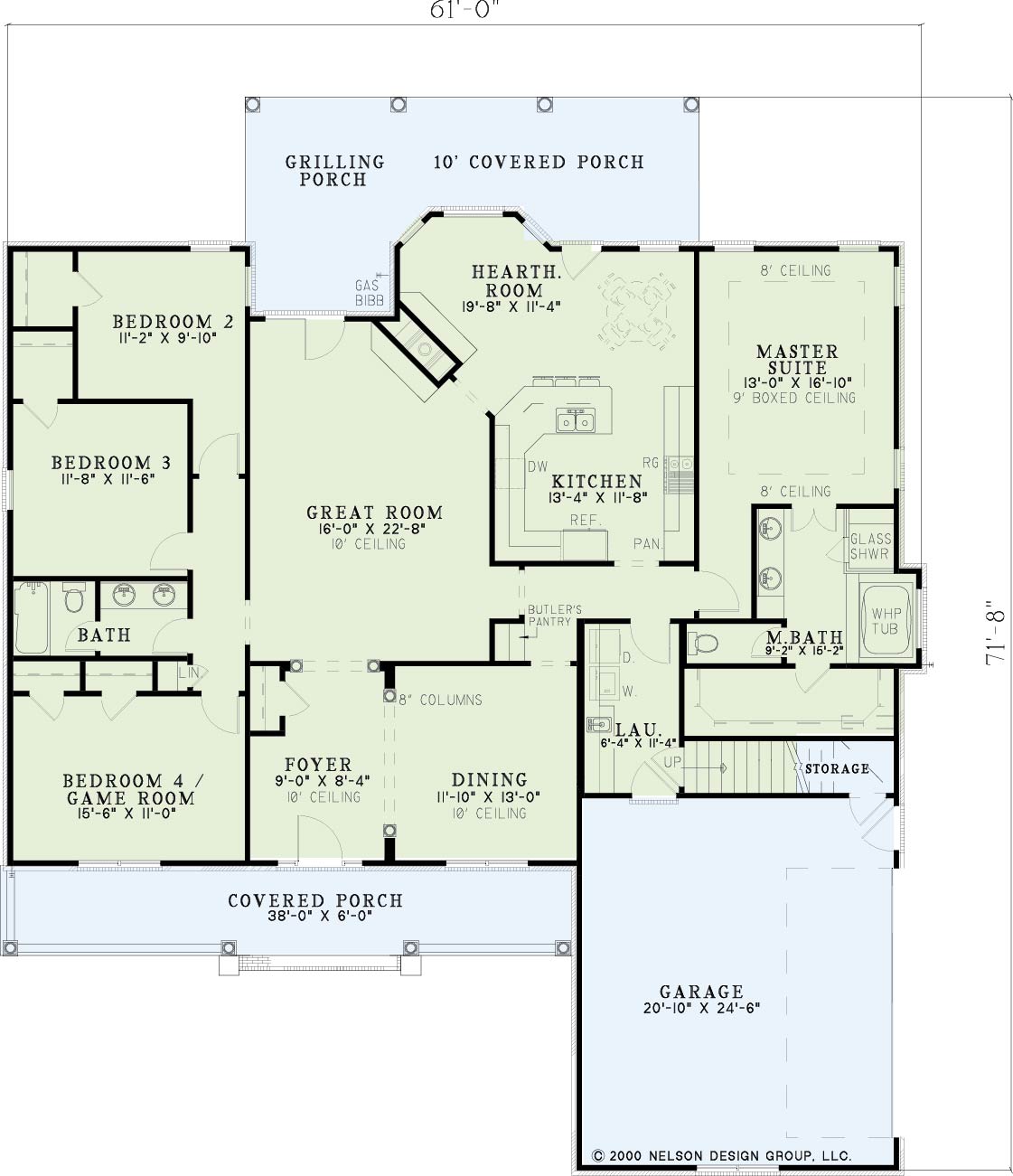

House Plan NDG 620 Main Floor

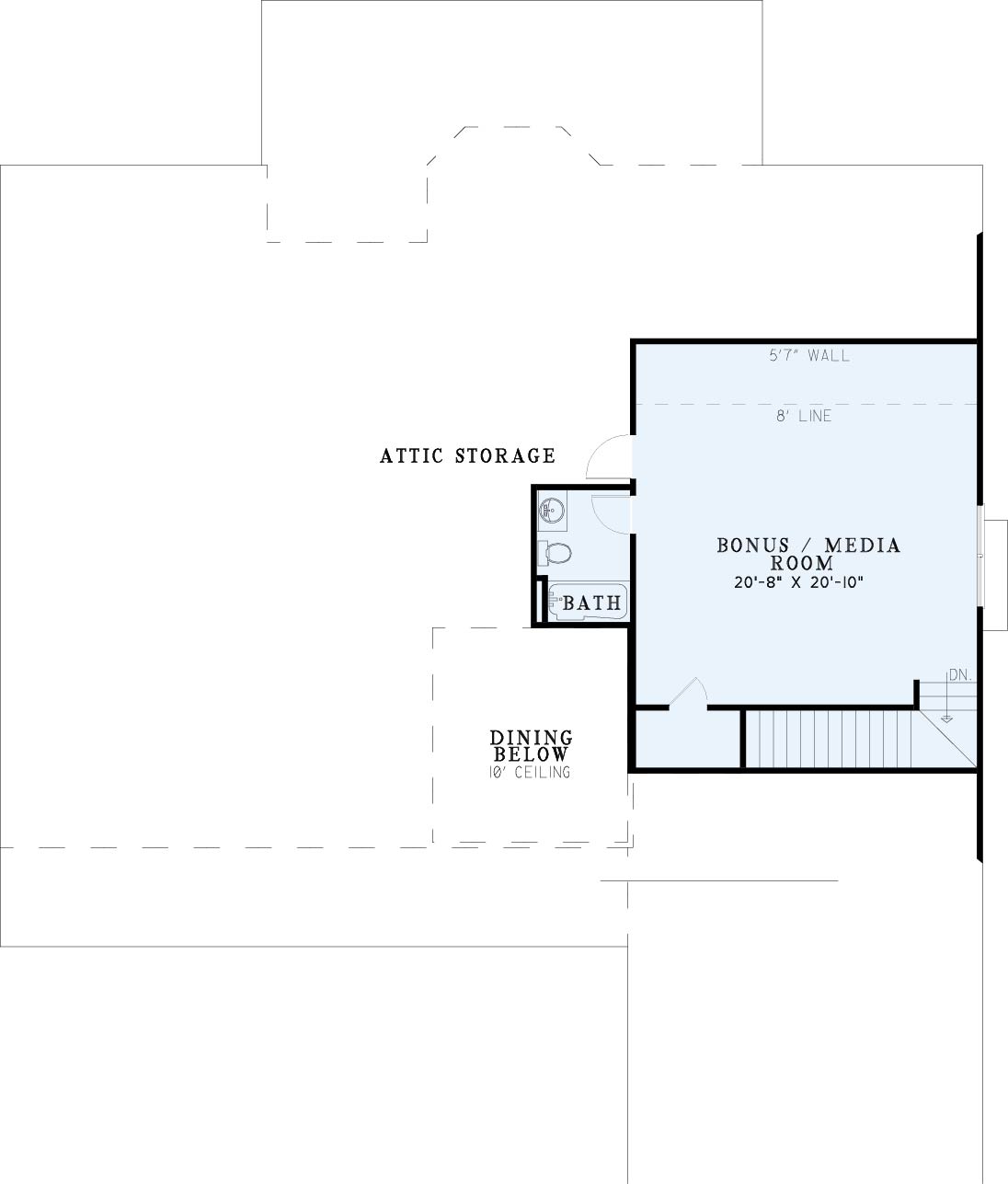

House Plan NDG 620 Upper Floor
House Plan NDG 620 Main Floor
House Plan NDG 620 Upper Floor

Floor plans

NDG 620

House Plan 620 Emery Lane, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 620
  • Total Living Space:2338Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 61
  • Width In.: N/A
  • Depth Ft.: 71
  • Depth In.: 8

Description

Round columns and ten-foot ceilings add elegance, while secluded bedrooms are pleasant retreats in this home. The formal dining room has access to the kitchen through a butler's pantry making hosting dinner parties much easier. After dinner enjoy coffee and conversation in front of the cozy double-sided hearth room fireplace or enjoy stargazing on the real grilling porch. Once the evening has ended, retreat to your master suite enhanced by a ten foot boxed ceiling and spacious private bathroom packed with amenities. Conveniently located nearby is a laundry room with sink and countertop. Upstairs you?ll find a full bathroom and a large bonus room.

Specifications

  • Total Living Space:2338Sq.Ft.
  • Main Floor: 2338 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 553 Sq.Ft.
  • Porch (Sq.Ft.): 628 Sq.Ft.
  • Garage (Sq.Ft.): 510 Sq.Ft.
  • Total Square Feet: 4029 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
