House Plan 617 Tyler Street, Affordable House Plan

>

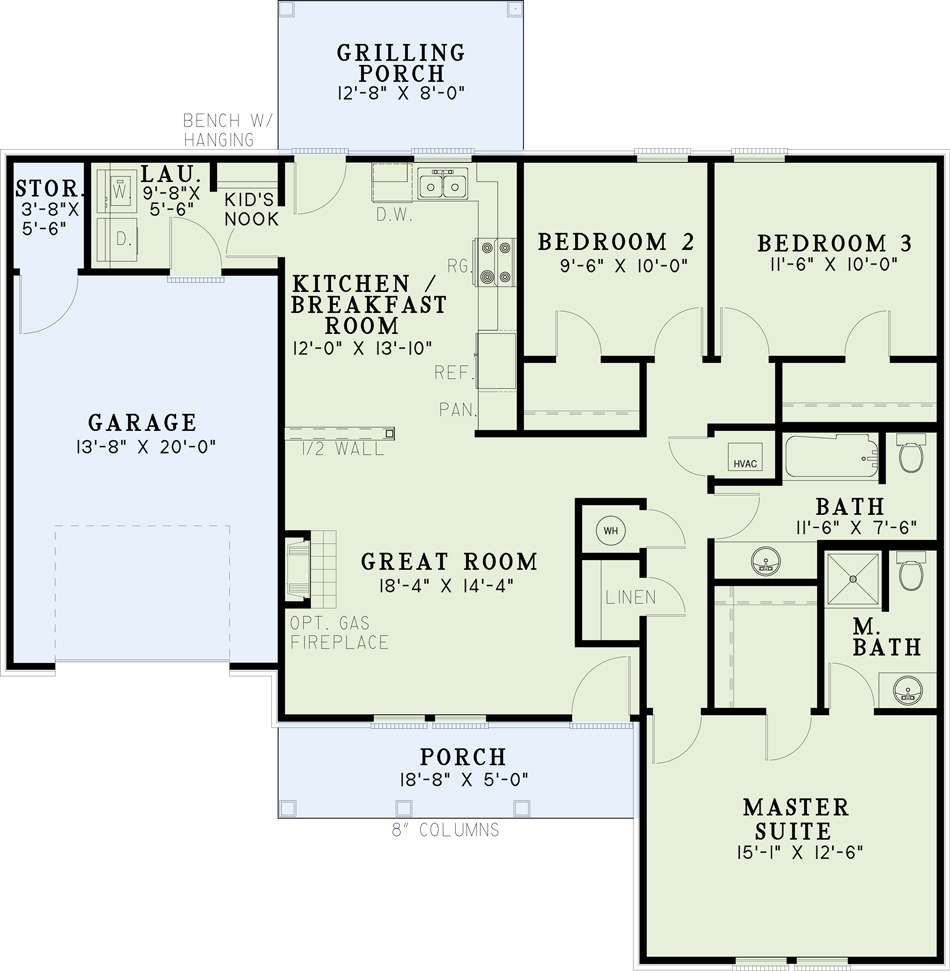

Floor plans

NDG 617

House Plan 617 Tyler Street, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 617
  • Total Living Space:1258Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 1 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 48
  • Width In.: 4
  • Depth Ft.: 49
  • Depth In.: 8

Description

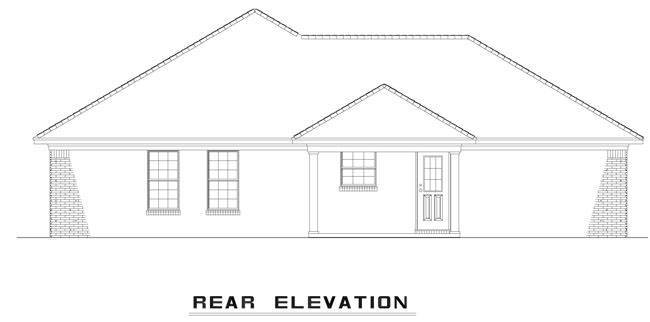

The sleek hip roof line and traditional exterior on this Nelson Design Group design will be a refreshing addition to any neighborhood. An entry porch with 8-inch columns will welcome guests into this well-designed three bedroom home. The spacious great room, with optional fireplace will host many evenings of popcorn, soda and your favorite family movies. A clever half-wall gives separation to the great room and kitchen allowing for just enough wall space to showcase your antique buffet or small computer center and breakfast room table, and a nearby grilling-porch is located just steps away. Two of the three bedrooms have large walk-in closets and share a spacious bathroom. The master bedroom contains a large walk-in closet and private bathroom. This great design is complete with a single garage with storage.

Specifications

  • Total Living Space:1258Sq.Ft.
  • Main Floor: 1258 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 195 Sq.Ft.
  • Garage (Sq.Ft.): 309 Sq.Ft.
  • Total Square Feet: 1762 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
