House Plan 613 William Court, Traditional House Plan

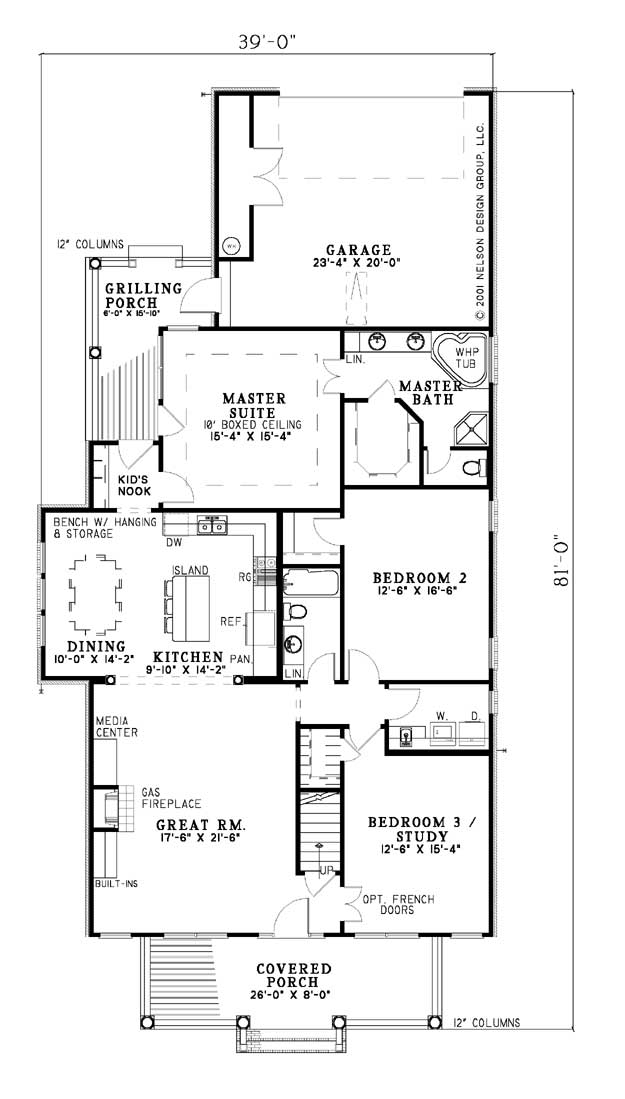

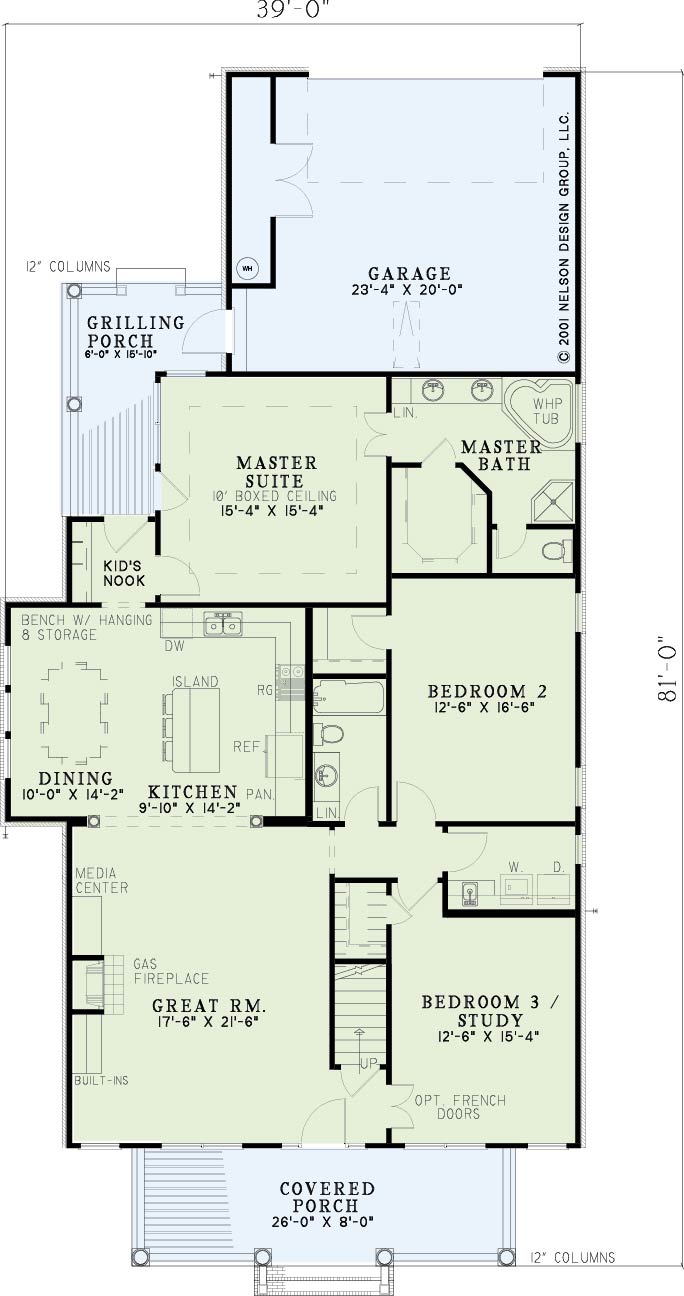

House Plan NDG 613 Main Floor

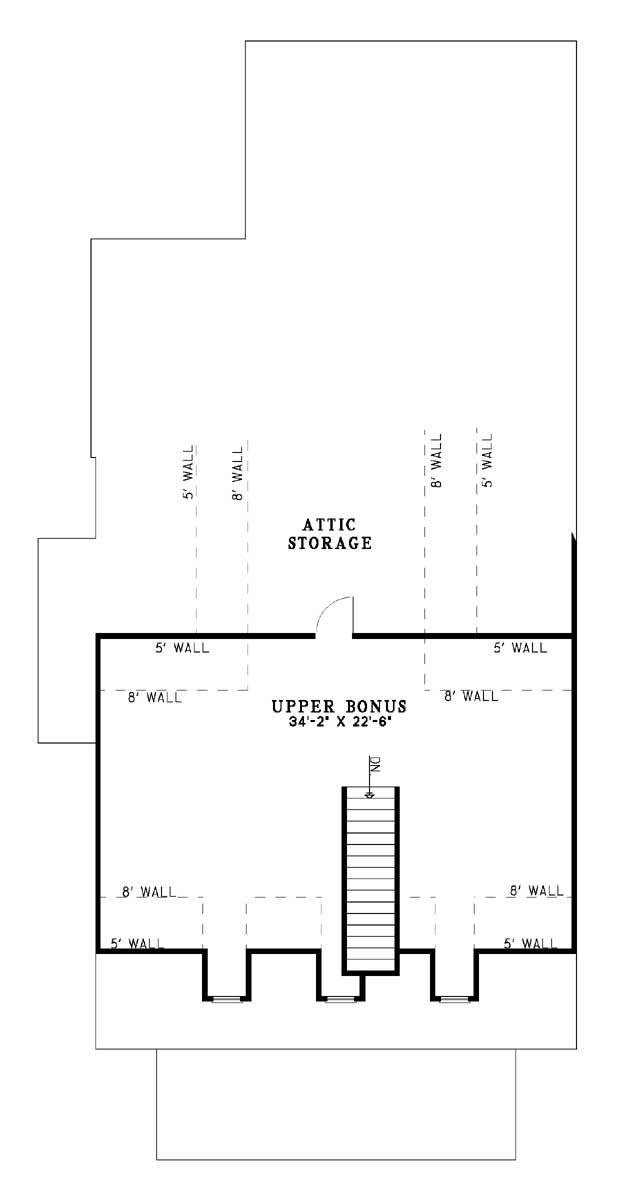

House Plan NDG 613 Bonus Room
House Plan NDG 613 Main Floor
House Plan NDG 613 Bonus Room

Floor plans

NDG 613

House Plan 613 William Court, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 613
  • Total Living Space:1837Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 81
  • Depth In.: N/A

Description

This plan has true southern flair, great street appeal and a cozy welcome to guests.
The main level has a large great room with a fireplace nestled between built-ins and views the kitchen through a cased opening with columns. This spacious kitchen adjoins the dining area and has a wall of windows for plenty of natural light. A kid's nook helps keep clutter at a minimum and leads to the grilling porch. Luxury, privacy and convenience best describe the Master Suite with French doors, a ten-foot boxed ceiling and an impressive private bathroom. Stairs lead to an upper bonus area with varied ceiling heights and a world of options, present or future.

Specifications

  • Total Living Space:1837Sq.Ft.
  • Main Floor: 1837 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 802 Sq.Ft.
  • Porch (Sq.Ft.): 323 Sq.Ft.
  • Garage (Sq.Ft.): 488 Sq.Ft.
  • Total Square Feet: 3450 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
