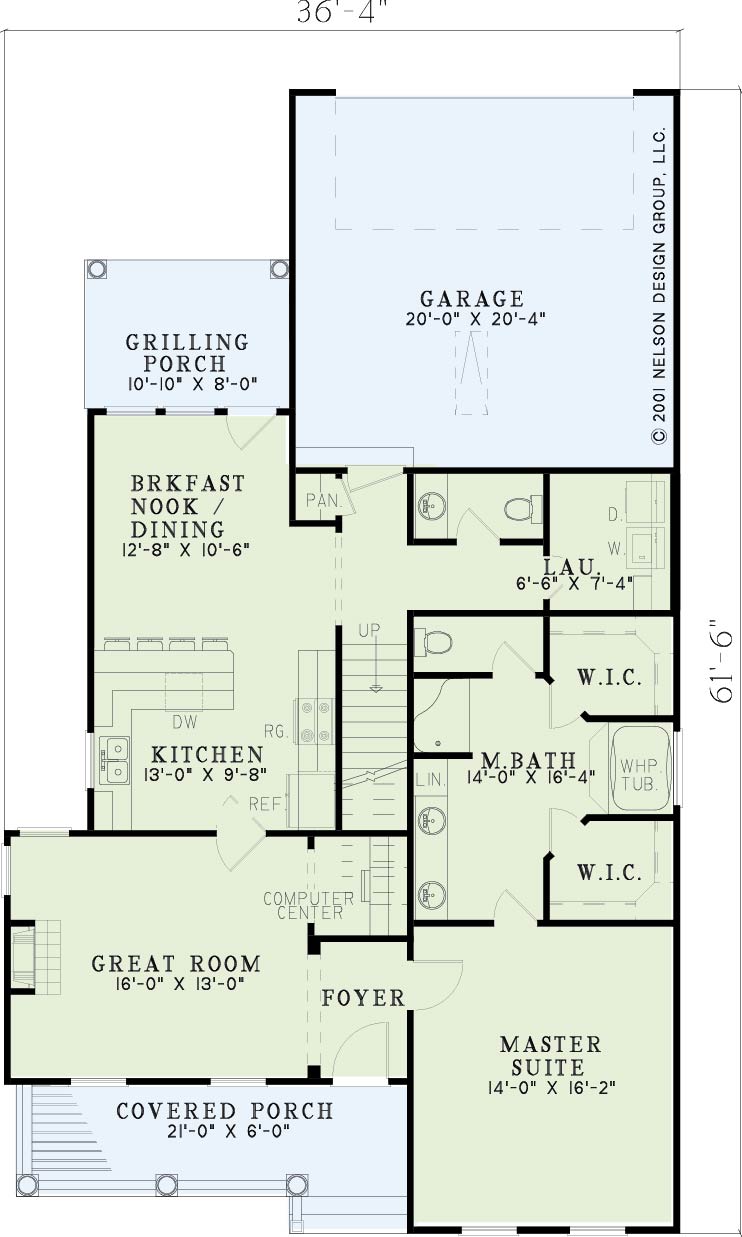

House Plan NDG 605 Main Floor

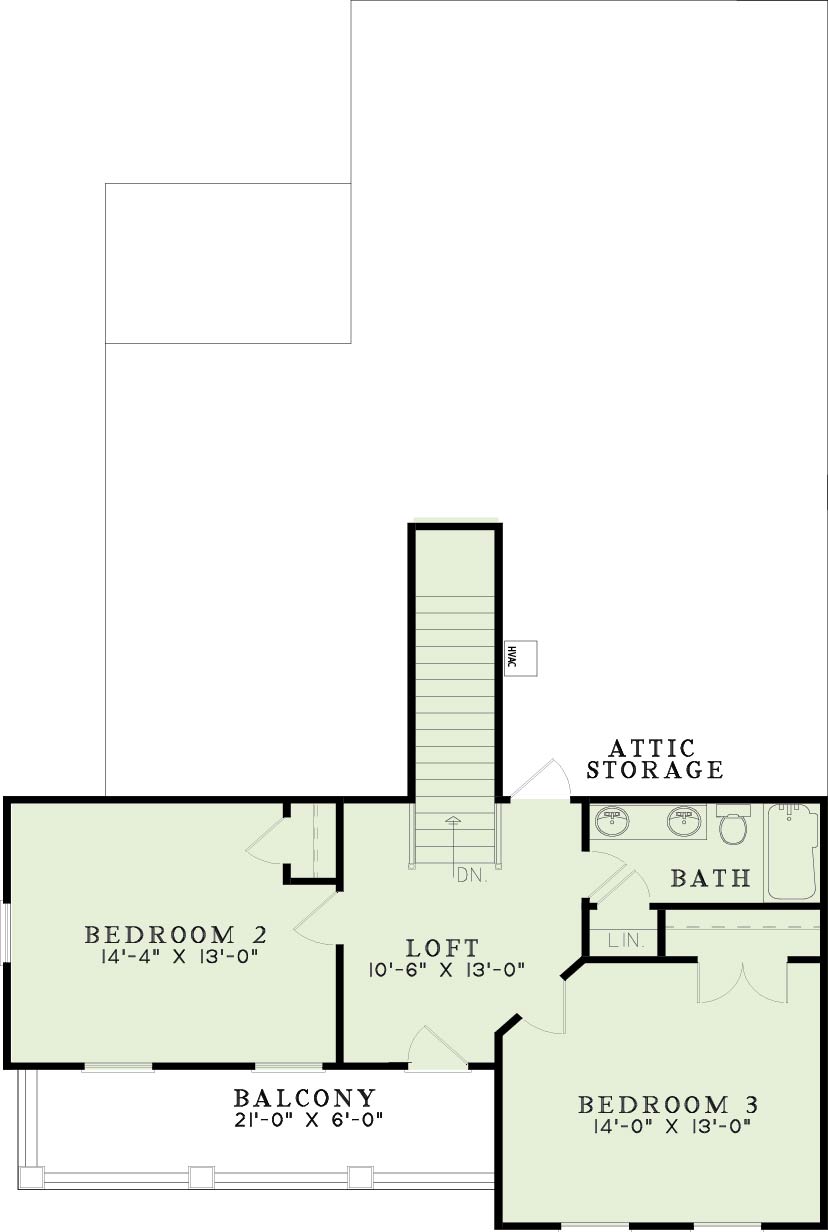

House Plan NDG 605 Upper Floor
House Plan - NDG 605>
House Plan - NDG 605
House Plan NDG 605 Main Floor
House Plan NDG 605 Upper Floor
House Plan - NDG 605

Floor plans

NDG 605

House Plan 605 William Drive, Village at Windstone I House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 605
  • Total Living Space:1870Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 36
  • Width In.: 4
  • Depth Ft.: 61
  • Depth In.: 6

Description

This split bedroom plan issues both privacy and convenience. The foyer leads into a cozy great room with fireplace and an optional built-in computer center. Nearby is a swinging door leading to the kitchen complete with bar seating, a spacious dining nook and accessing the rear grilling porch. This main level has a large Master suite with private bath including walk-in closets, whirlpool tub, separate shower and a double vanity. Upstairs are two additional bedrooms, full bath and a door leading to the front balcony for enjoying starlit evenings.

Specifications

  • Total Living Space:1870Sq.Ft.
  • Main Floor: 1268 Sq.Ft
  • Upper Floor (Sq.Ft.): 602 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 212 Sq.Ft.
  • Garage (Sq.Ft.): 427 Sq.Ft.
  • Total Square Feet: 2509 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 11:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
