House Plan 599 Windstone Place, Village at Windstone III House Plan

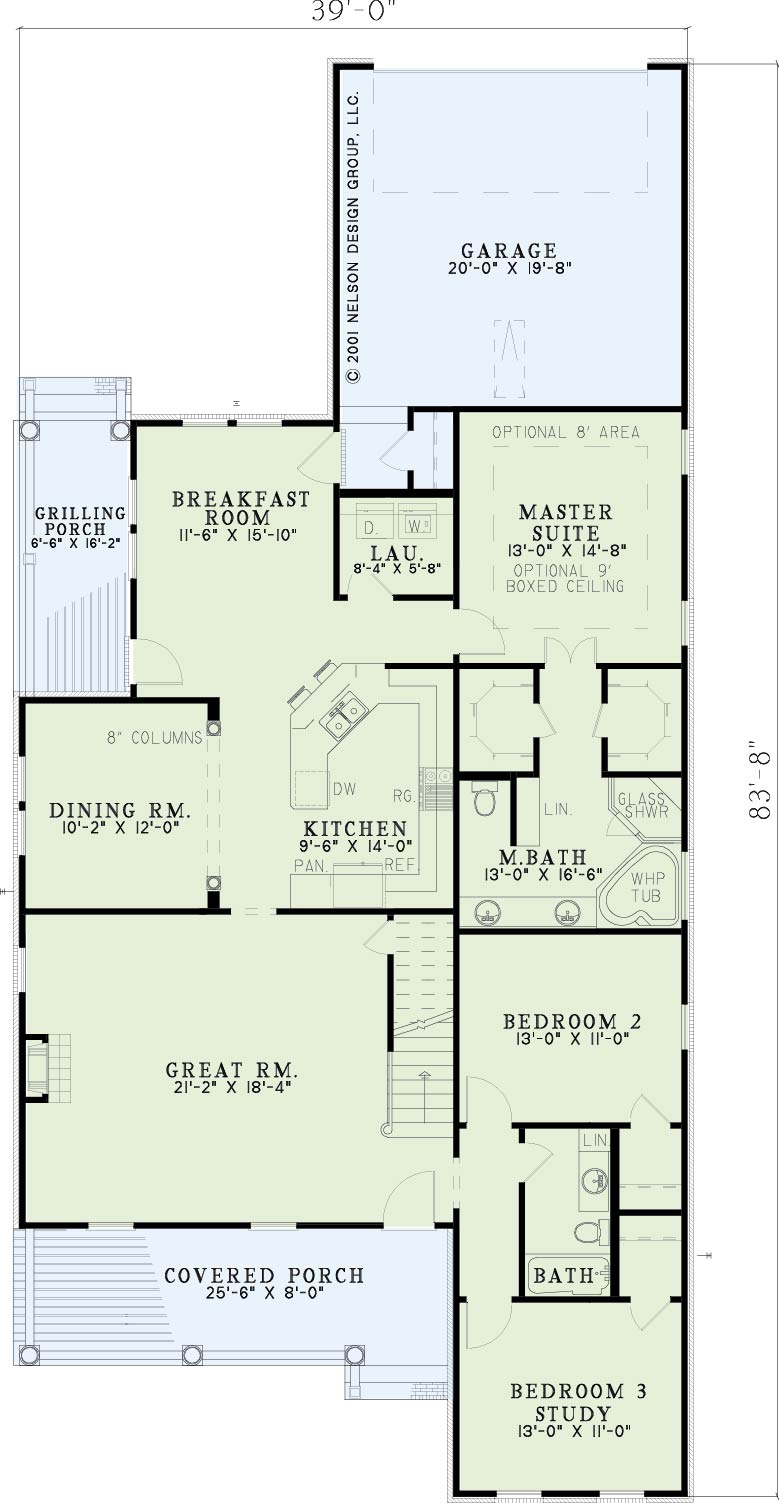

House Plan NDG 599 Main Floor

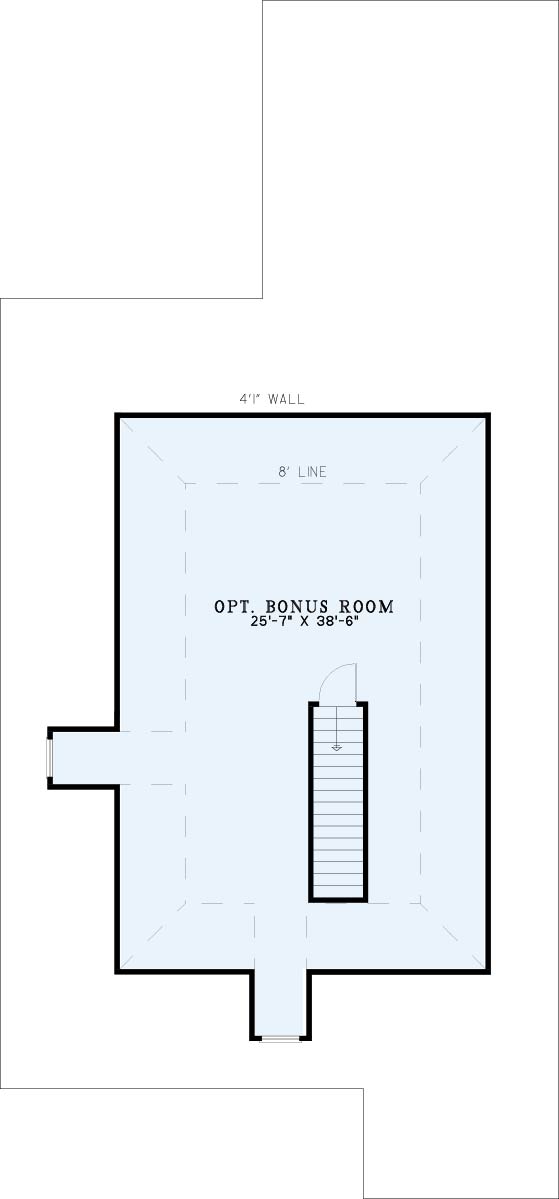

House Plan NDG 599 Bonus Room
House Plan NDG 599 Main Floor
House Plan NDG 599 Bonus Room

Floor plans

NDG 599

House Plan 599 Windstone Place, Village at Windstone III House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 599
  • Total Living Space:1928Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 83
  • Depth In.: 8

Description

We have created a new rendition of a home your parents might have grown up in. A spacious great room with fireplace and formal dining room with eight-inch columns opens to the kitchen and breakfast room combination. The family chef will appreciate a grilling porch conveniently located off the breakfast room while a large bonus room upstairs will keep children content until dinner is served. The luxurious Master suite is privately located at the rear of the home and features a nine foot boxed ceiling.

Specifications

  • Total Living Space:1928Sq.Ft.
  • Main Floor: 1928 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1168 Sq.Ft.
  • Porch (Sq.Ft.): 315 Sq.Ft.
  • Garage (Sq.Ft.): 450 Sq.Ft.
  • Total Square Feet: 3861 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
