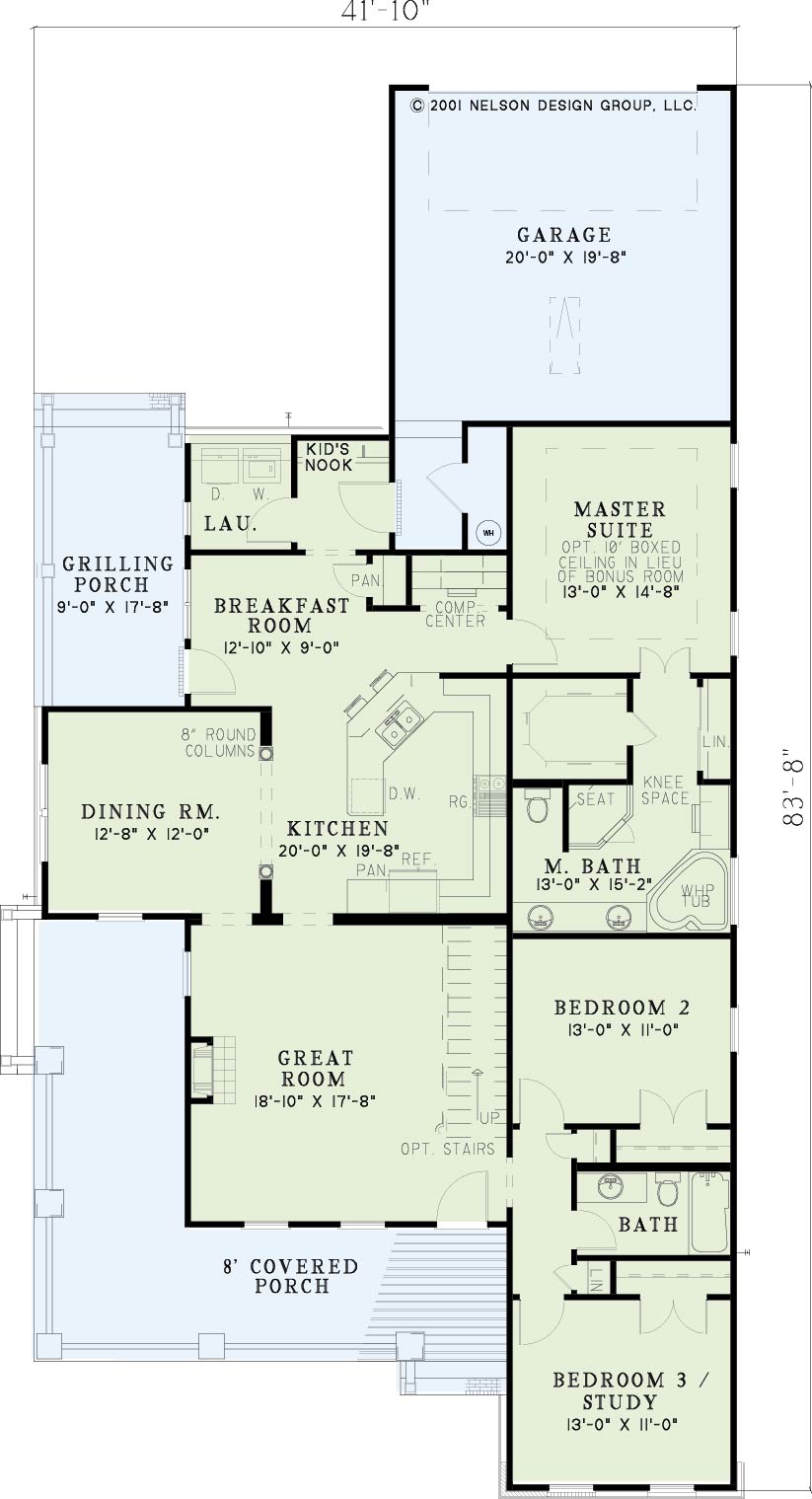

House Plan NDG 595 Main Floor

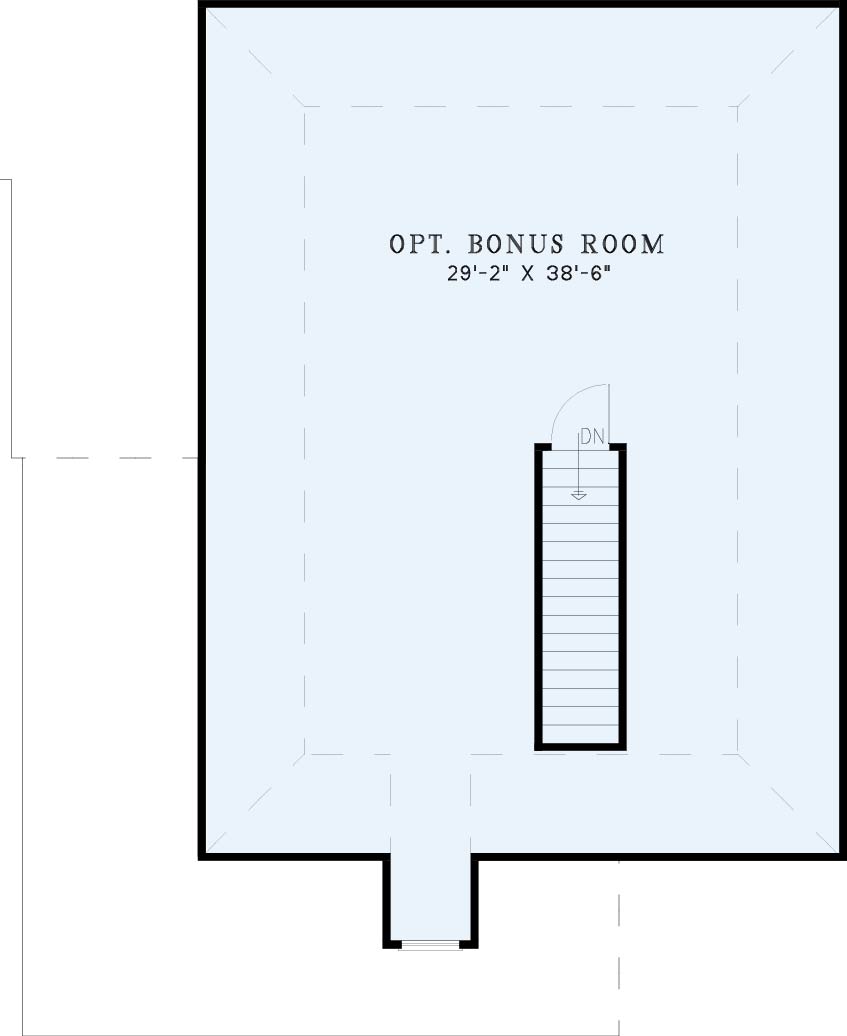

House Plan NDG 595 Bonus Room

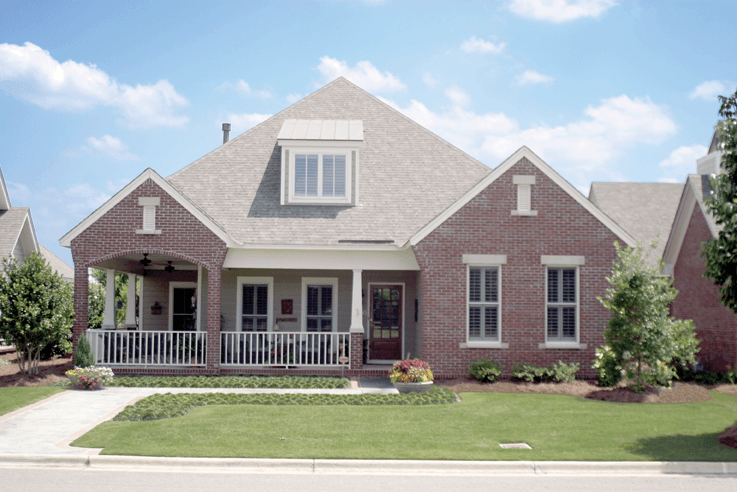

House Plan - NDG 595 Front View>
House Plan NDG 595 Main Floor
House Plan NDG 595 Bonus Room
House Plan - NDG 595 Front View

Floor plans

NDG 595

House Plan 595 Jasmine, Arts and Crafts House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 595
  • Total Living Space:1836Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 41
  • Width In.: 10
  • Depth Ft.: 83
  • Depth In.: 8

Description

We have created a cozy historical home with a corner wrapped wooden porch and large brick columns with railing. This split bedroom plan has a great room immediately upon entry with access to the two bedrooms and full bathroom. An efficient kitchen with an angled bar counter allows for additional seating and adjoins a large breakfast room with a built-in computer center and access to a side grilling porch. Also nearby is a convenient kid's nook located near the rear load garage entry. The luxurious master suite bedroom is enhanced with an optional ten-foot boxed ceiling and has French door access to the master bathroom packed with amenities. An optional bonus room is available upstairs for future needs.

Specifications

  • Total Living Space:1836Sq.Ft.
  • Main Floor: 1836 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1116 Sq.Ft.
  • Porch (Sq.Ft.): 540 Sq.Ft.
  • Garage (Sq.Ft.): 466 Sq.Ft.
  • Total Square Feet: 3958 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
