House Plan 589 Magnolia, Arts and Crafts House Plan

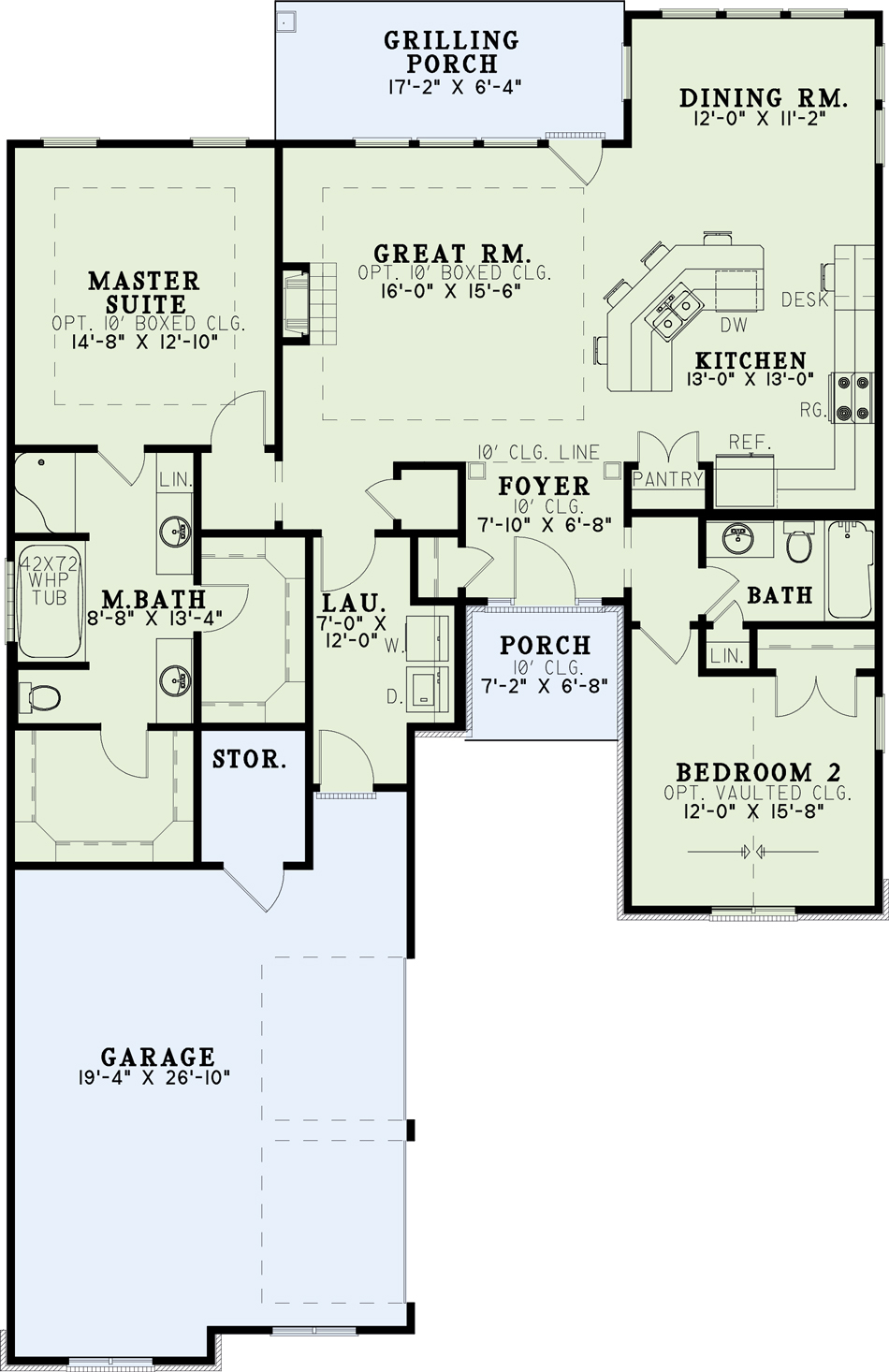

House Plan NDG 589 Main Floor

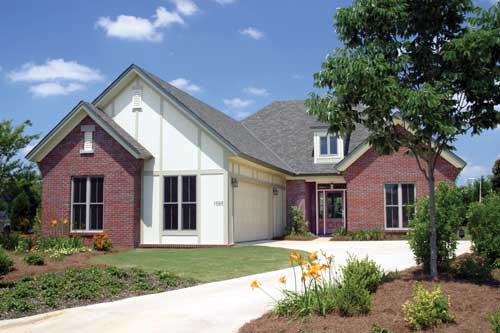

House Plan - 589p Front View
House Plan NDG 589 Main Floor
House Plan - 589p Front View

Floor plans

House Plan NDG 589 Main Floor
NDG 589

House Plan 589 Magnolia, Arts and Crafts House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 589
  • Total Living Space:1474 Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 43
  • Width In.: N/A
  • Depth Ft.: 66
  • Depth In.: 6

Description

We have created an elegant design reflective of the Arts and Crafts era. Copper roofing and carriage style garage doors warmly welcome guests into this split bedroom plan. Ten-foot ceilings and an abundance of windows allow natural light to flow throughout. An elegant Master suite is fully suited as a private hideaway while the opposite side of the home includes a large kitchen and dining room with large bar island for additional seating. A courtyard entry garage allows for the utmost in security and convenience.

Specifications

  • Total Living Space:1474 Sq.Ft.
  • Main Floor: 1474 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 226 Sq.Ft.
  • Garage (Sq.Ft.): 457 Sq.Ft.
  • Total Square Feet: 2157 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
