House Plan 588 Cypress, Arts and Crafts House Plan

House Plan 588 Cypress, Arts and Crafts House Plan

House Plan NDG 588
House Plan NDG 588

Floor plans

NDG 588

House Plan 588 Cypress, Arts and Crafts House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 588
  • Total Living Space:1747Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 41
  • Width In.: 4
  • Depth Ft.: 84
  • Depth In.: 2

Description

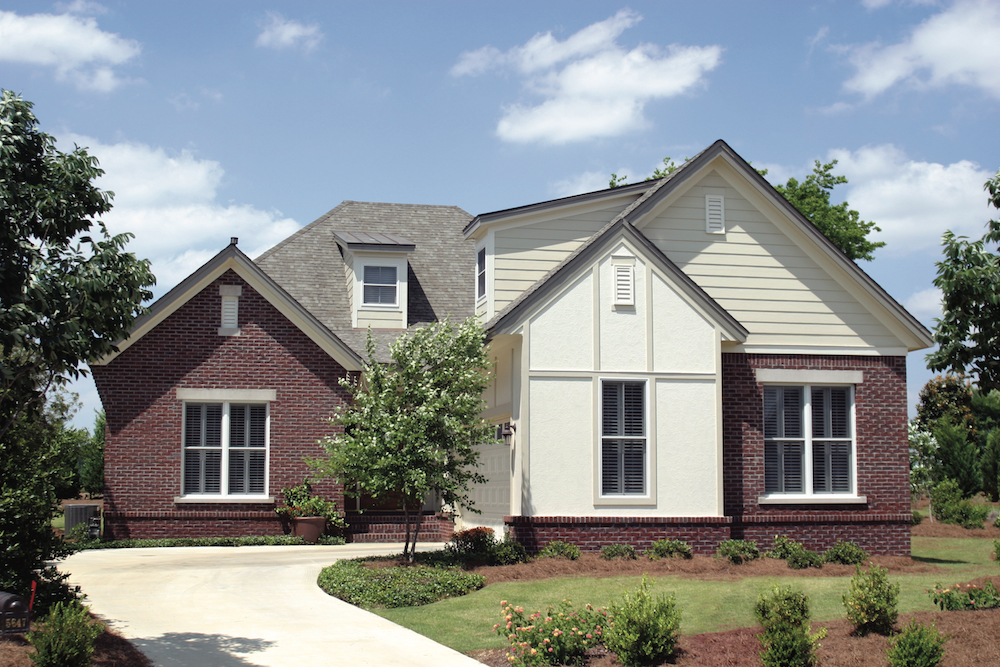

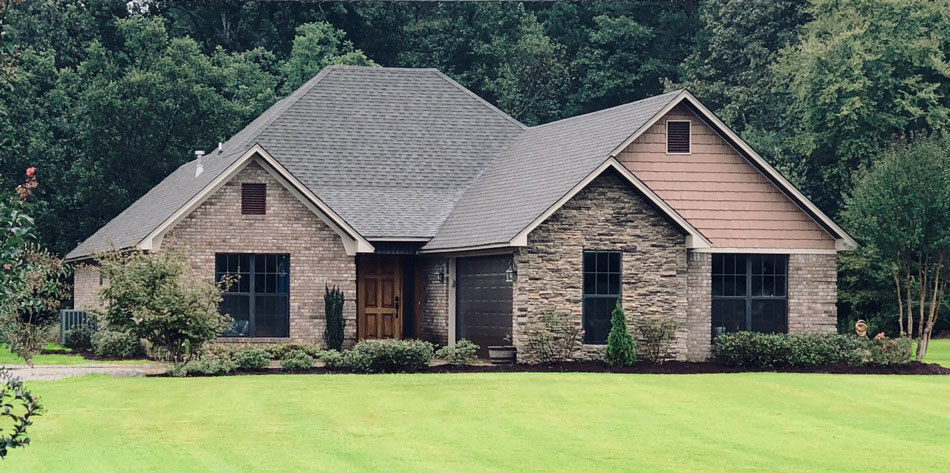

This crafty design combines a rustic exterior with an elegant interior. Ten-foot ceilings and an abundance of windows enhance the family areas for plenty of natural lighting. The Breakfast Room and Kitchen are combined and enjoy a bar counter for additional seating. A large laundry room with pantry is located between the kitchen and garage access for convenience. On the opposite side of the home are two bedrooms, a full bath and a luxurious Master Suite with 10' boxed ceiling, his and her walk in closets and large bathroom with glass shower, whirlpool tub and double vanity.

Specifications

  • Total Living Space:1747Sq.Ft.
  • Main Floor: 1747 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 111 Sq.Ft.
  • Garage (Sq.Ft.): 649 Sq.Ft.
  • Total Square Feet: 2507 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($800.00)
    • CAD ($1,600.00)
    • Five Set ($900.00)
    • PDF ($800.00)
    • PDF + Unlimited Build ($1,500.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
