House Plan 580 Spruce Street, Traditional House Plan

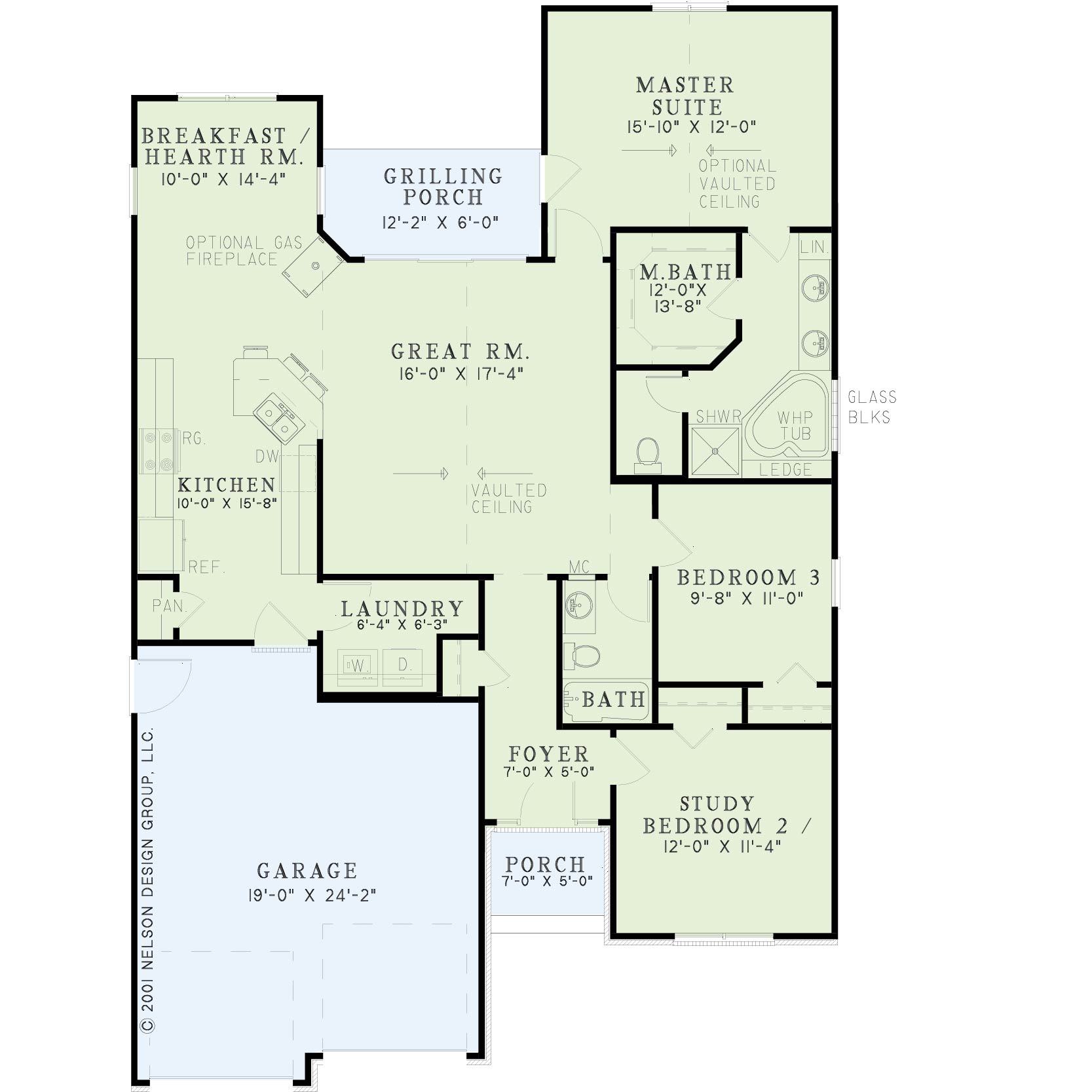

House Plan NDG 580 Main Floor
House Plan NDG 580 Main Floor

Floor plans

NDG 580

House Plan 580 Spruce Street, Traditional House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 580
  • Total Living Space:1489Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: 4
  • Depth Ft.: 60
  • Depth In.: 2


This welcoming design puts a lot of comfortable living space into a smaller footprint with two bathrooms and three bedrooms. Your guests will be impressed by your centrally located great room’s vaulted ceiling as you serve them treats hot from the adjacent grilling porch. When the day is done, retire to your secluded master suite with an optional beamed ceiling. Indulge yourself in a warm soak in your whirlpool bath. In the morning invigorate yourself with the separate shower that finishes out your master suite.


  • Total Living Space:1489Sq.Ft.
  • Main Floor: 1489 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 106 Sq.Ft.
  • Garage (Sq.Ft.): 435 Sq.Ft.
  • Total Square Feet: 2030 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
