House Plan 575 Linden Avenue, Traditional House Plan

>

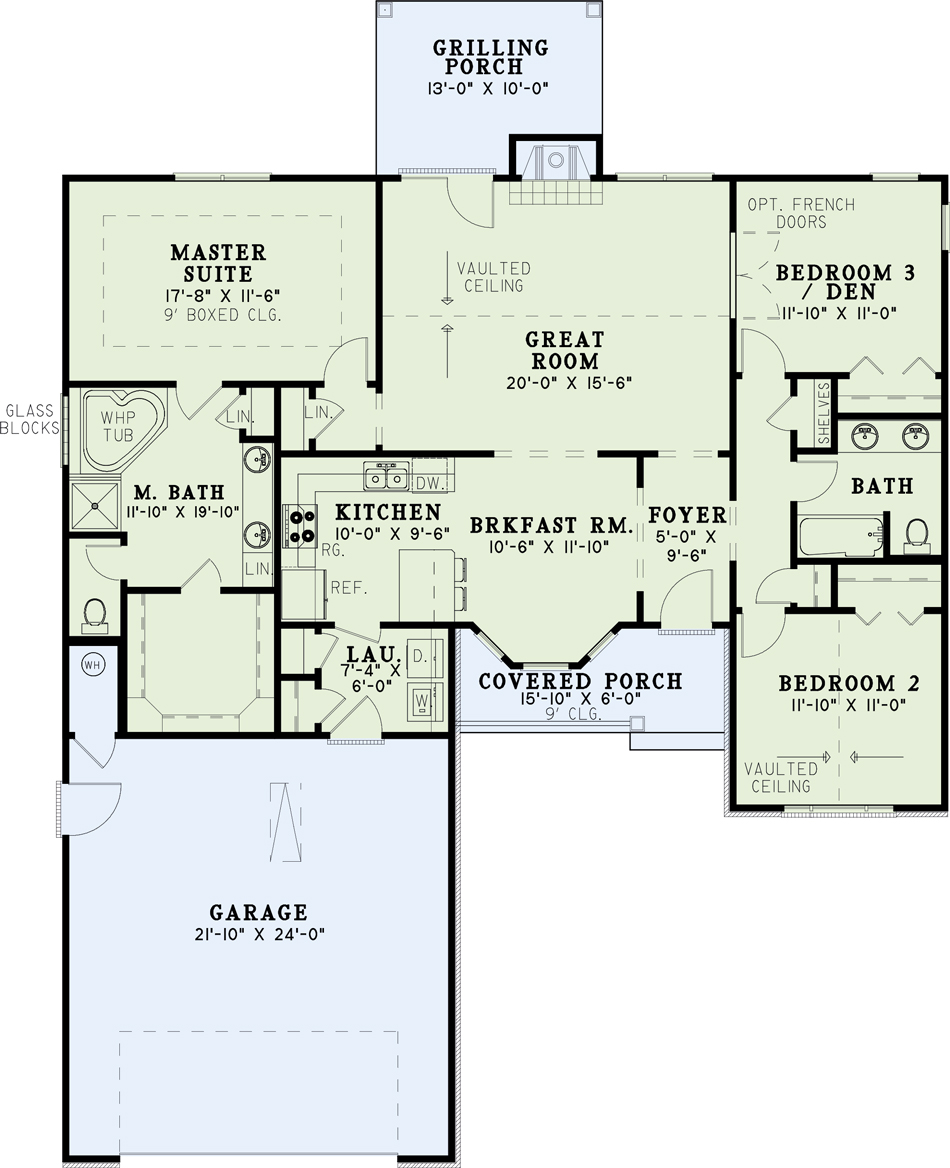

Floor plans

NDG 575

House Plan 575 Linden Avenue, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 575
  • Total Living Space:1605Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 50
  • Width In.: 10
  • Depth Ft.: 66
  • Depth In.: 8

Description

Family gatherings are a must in this home plan. A quaint foyer leads to a large Breakfast room with bay window and view of the Great Room fireplace. Just off the Great Room is a bedroom with optional French doors that can easily be used as a Den or Study. This split bedroom plan allows the Master Suite great privacy to enjoy the spacious bedroom with boxed ceiling, private bath including a corner whirlpool tub, separate shower and enormous walk-in-closet. The laundry room has extra storage and is conveniently located between the garage entry and Kitchen. The rear Grilling porch is a wonderful accent to the back yard and perfect for entertaining friends.

Specifications

  • Total Living Space:1605Sq.Ft.
  • Main Floor: 1605 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 197 Sq.Ft.
  • Garage (Sq.Ft.): 566 Sq.Ft.
  • Total Square Feet: 2368 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 8:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
