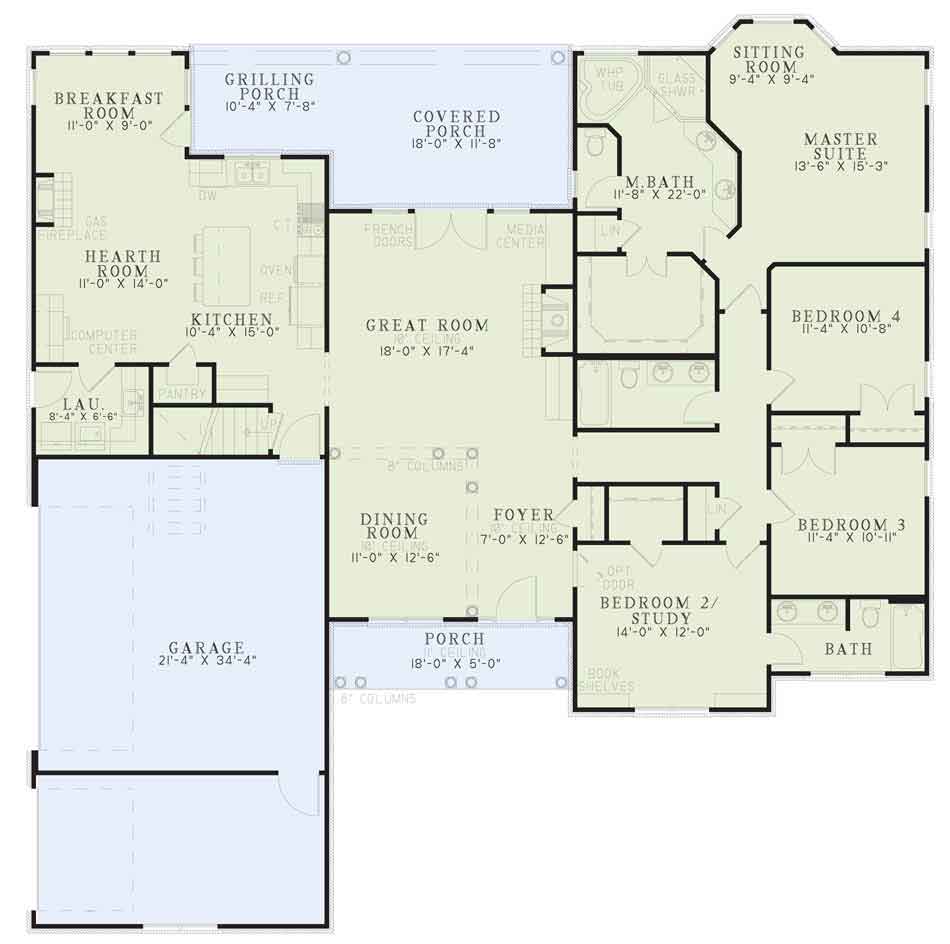

House Plan NDG 563 Main Floor

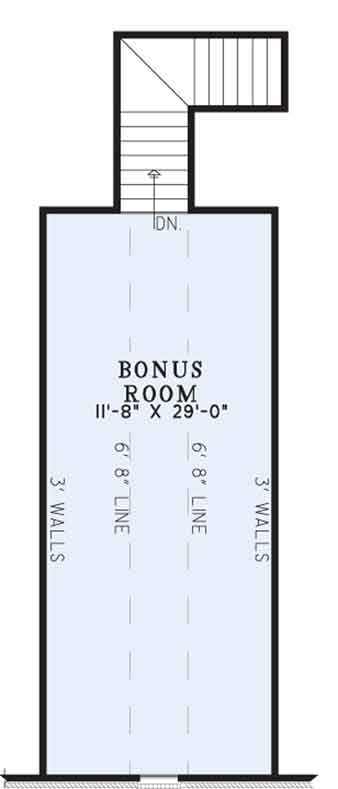

House Plan NDG 563 Bonus Room

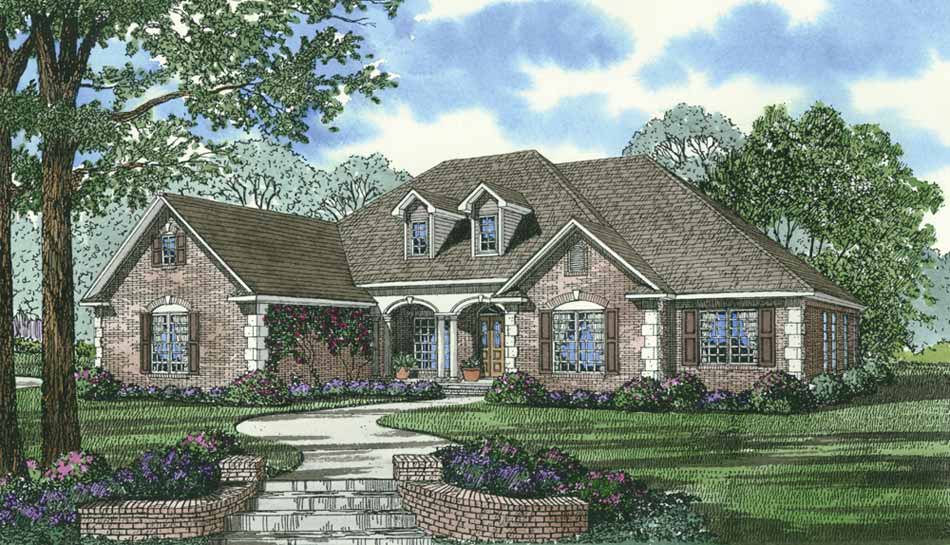

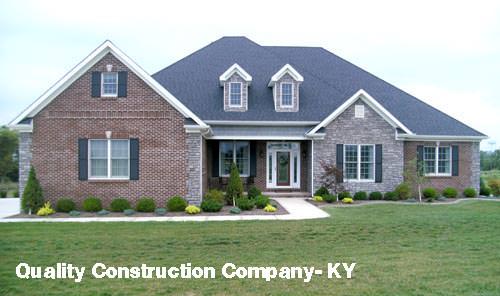

House Plan - Tara Lane house Front View

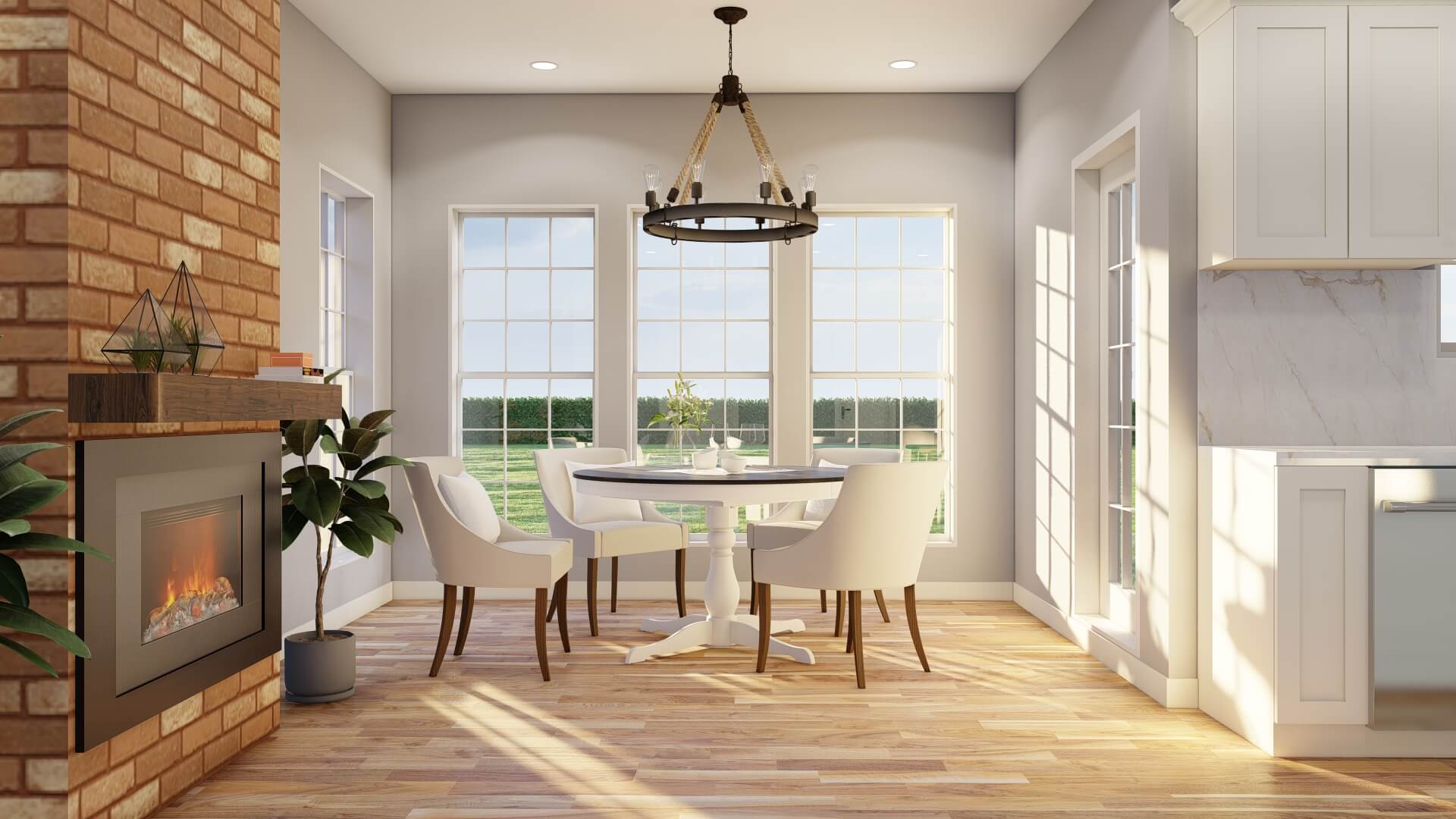

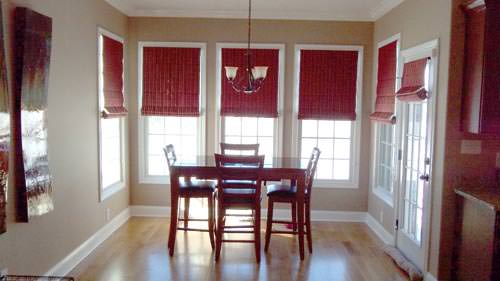

House Plan - Tara Lane house Breakfast Room

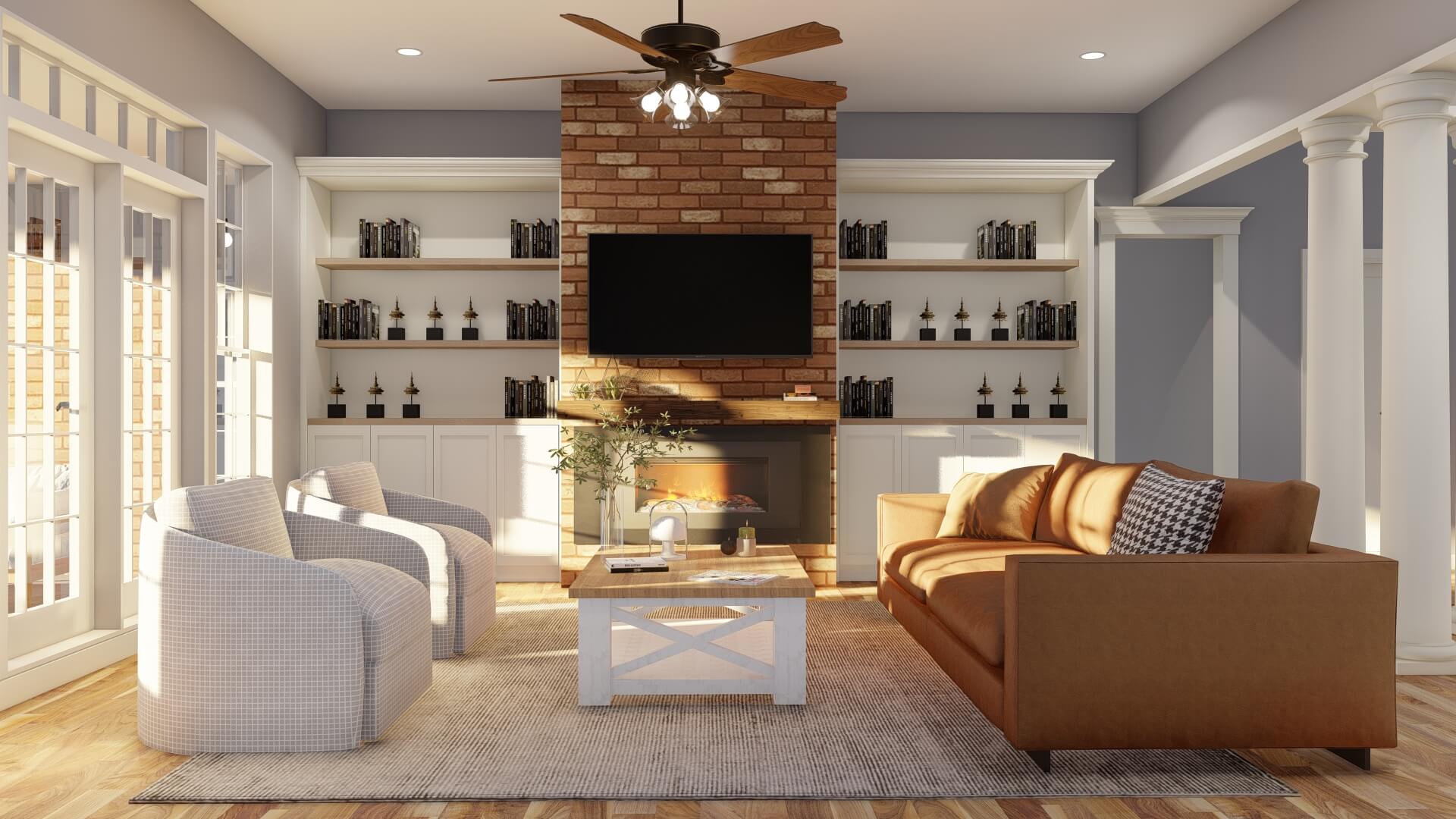

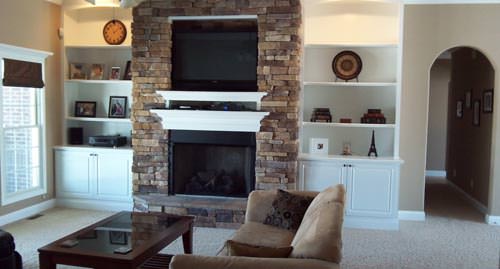

House Plan - Tara Lane house Great Room
House Plan NDG 563 Main Floor
House Plan NDG 563 Bonus Room
House Plan - Tara Lane house Front View
House Plan - Tara Lane house Breakfast Room
House Plan - Tara Lane house Great Room

Floor plans

NDG 563

House Plan 563 Country Club Drive, French Traditional House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 563
  • Total Living Space:2405Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 66
  • Width In.: 4
  • Depth Ft.: 67
  • Depth In.: 2

Description

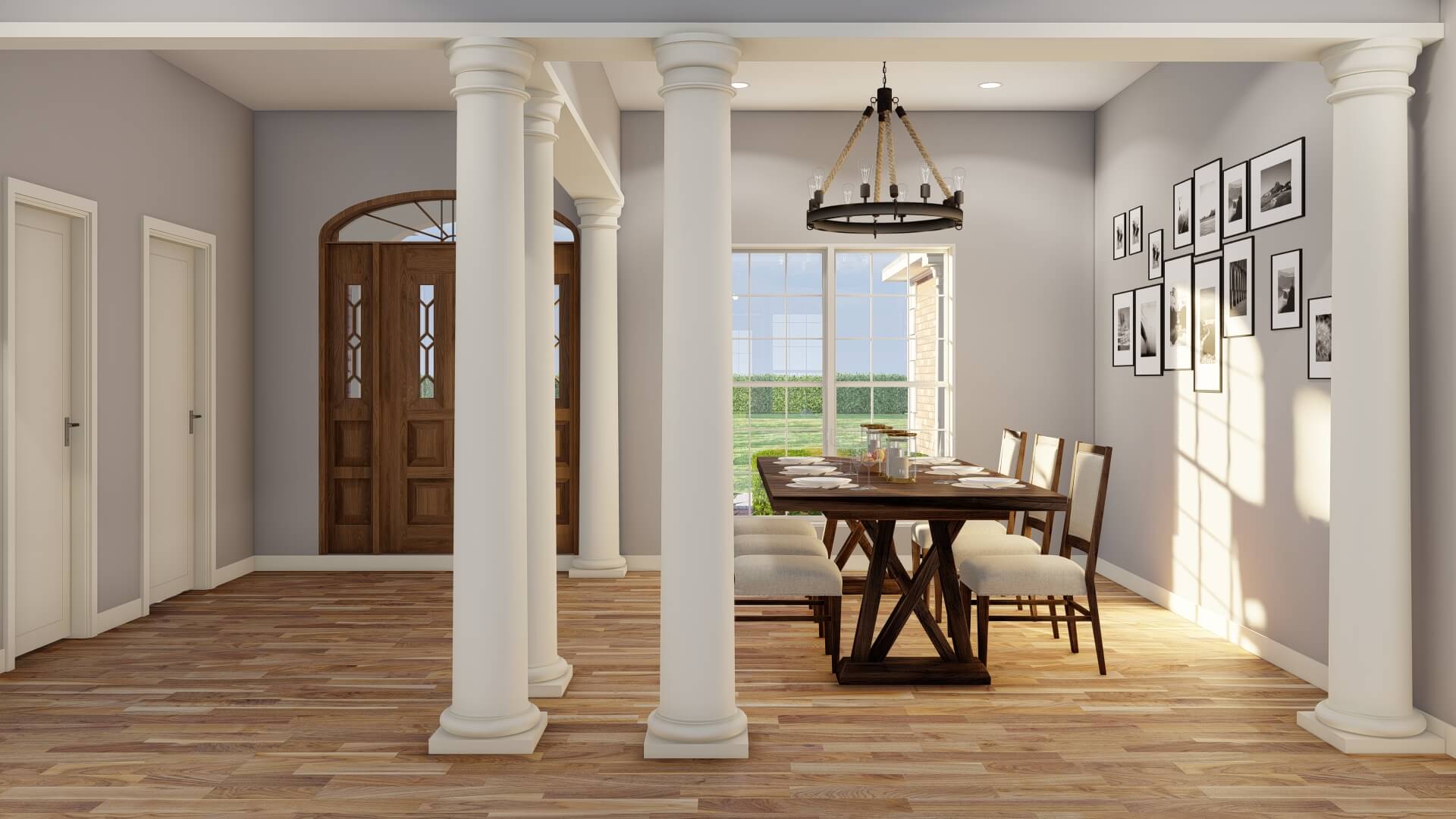

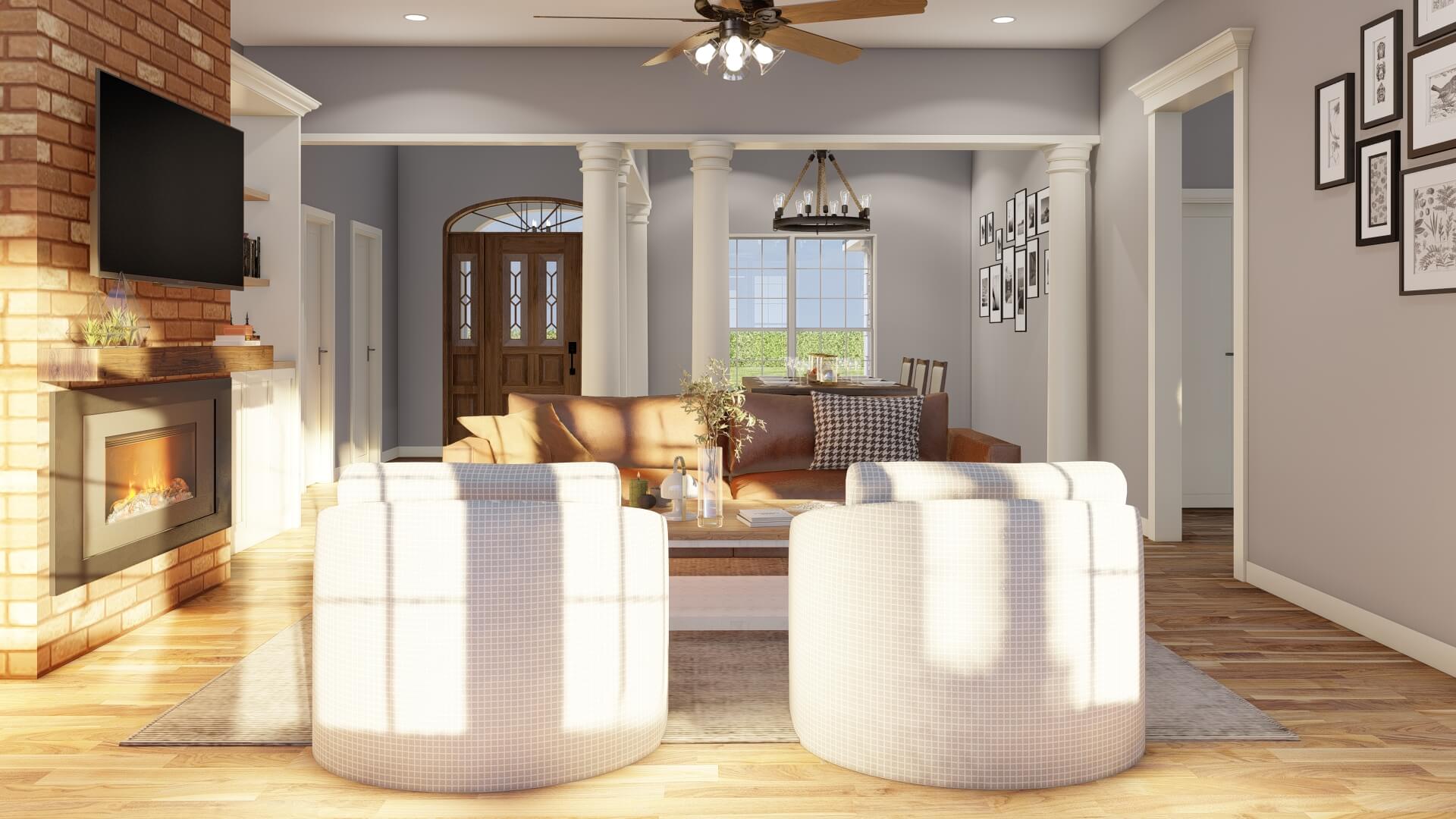

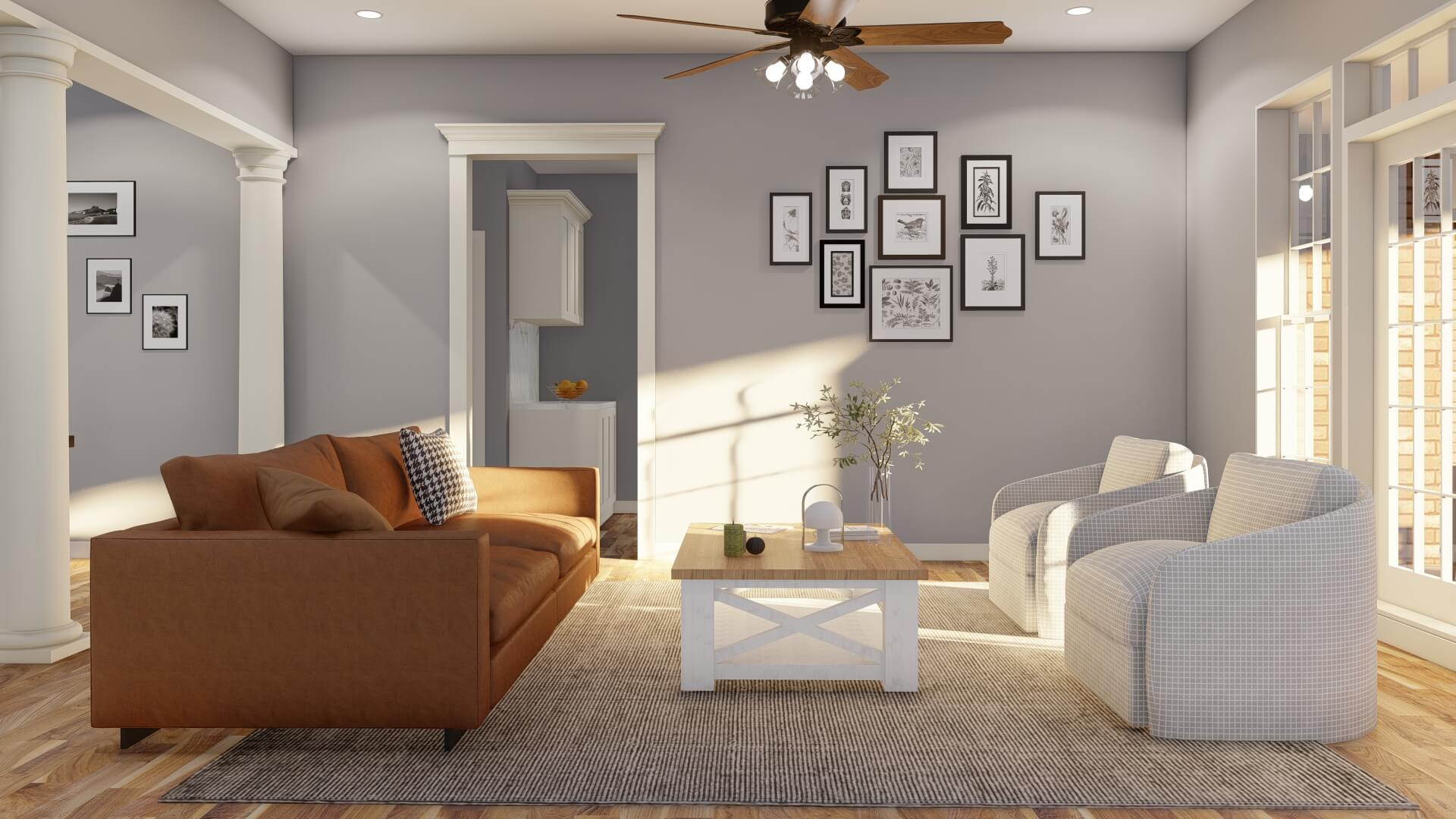

Upon entering the foyer, you’ll notice elegant columns that gently define the dining room. The great room complete with media center and fireplace has a French door access to the rear porch for entertaining guests during the warm seasons. A cozy hearth room will become the favorite gathering room for the family with a computer center nearby. Upstairs, you’ll discover a bonus room that can be converted into a playroom for the kids when company drops by.

Specifications

  • Total Living Space:2405Sq.Ft.
  • Main Floor: 2405 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 358 Sq.Ft.
  • Porch (Sq.Ft.): 393 Sq.Ft.
  • Garage (Sq.Ft.): 762 Sq.Ft.
  • Total Square Feet: 3918 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
