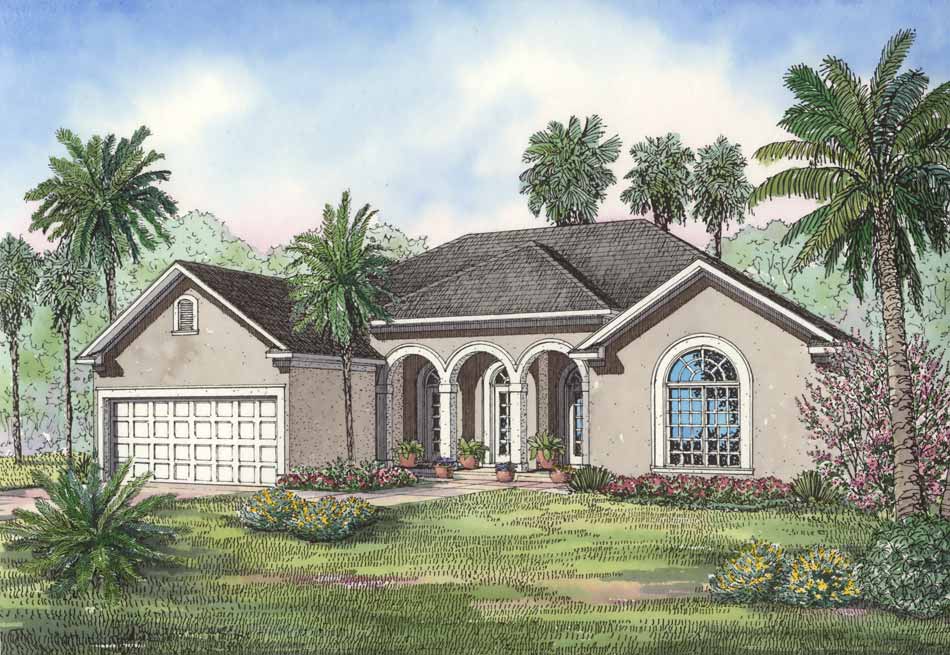

House Plan 561 The Clarion, Florida House Plan

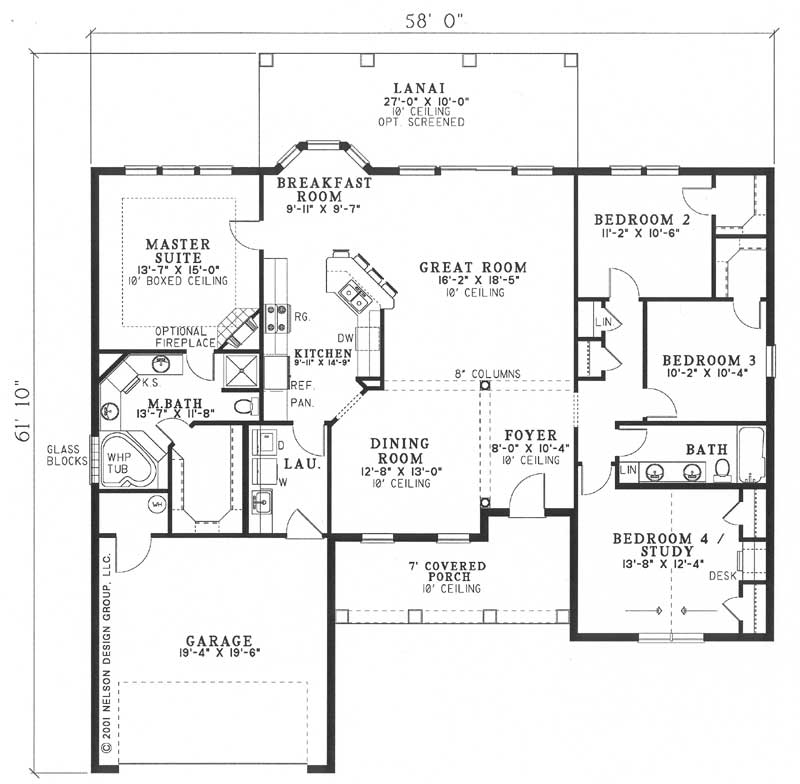

House Plan NDG 561 Main Floor
House Plan NDG 561 Main Floor

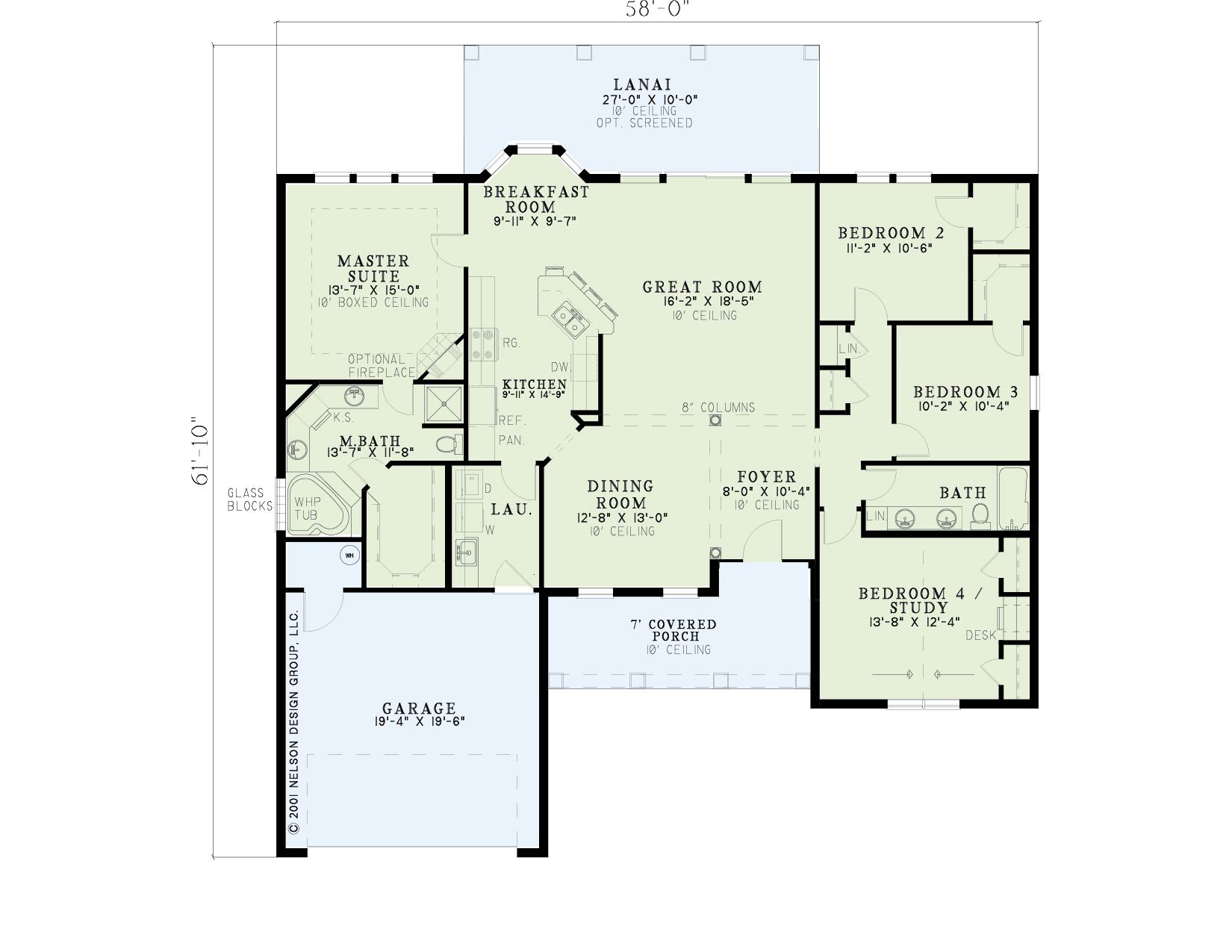

Floor plans

House Plan NDG 561 Main Floor
NDG 561

House Plan 561 The Clarion, Florida House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 561
  • Total Living Space:1976 Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 58
  • Width In.: N/A
  • Depth Ft.: 61
  • Depth In.: 10

Description

Note: 8-inch concrete wall construction and tile roofing. See NDG-544 for a standard wood-framed version.

This exciting combination of functional floor plan and stunning detail make this split-bedroom home a popular choice. The open design of the formal dining room and spacious great room promotes a smooth transition from meal time to casual conversation. The bay-windowed breakfast room and angled eat-at bar offer optional casual dining. The fourth bedroom can double as a study with its built-in desk. A romantic corner fireplace warms the elaborate master suite.

Specifications

  • Total Living Space:1976 Sq.Ft.
  • Main Floor: 1976 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 407 Sq.Ft.
  • Garage (Sq.Ft.): 441 Sq.Ft.
  • Total Square Feet: 2824 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: Concrete
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 4
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
