House Plan 550 The Downing, Florida House Plan

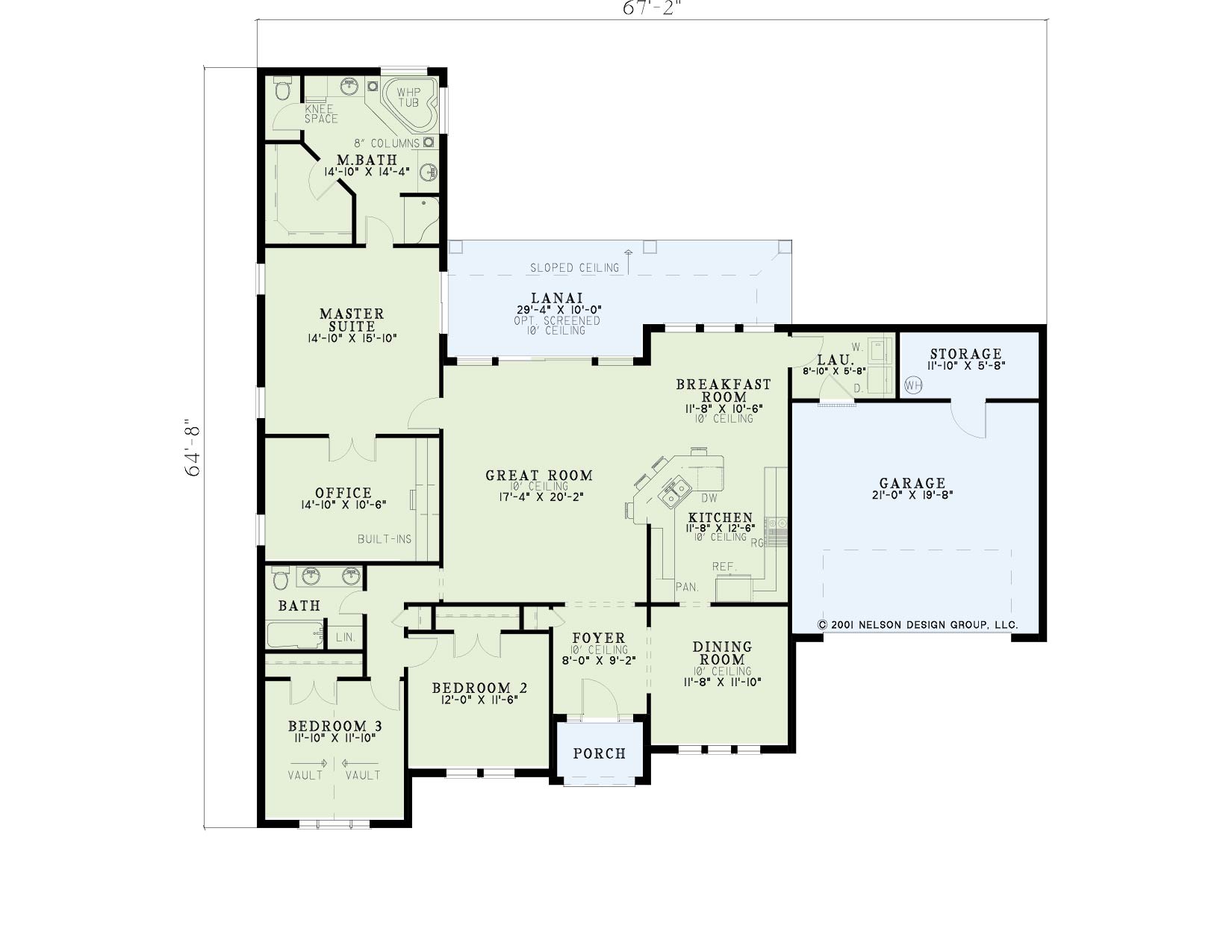

House Plan NDG 550 Main Floor
House Plan NDG 550 Main Floor

Floor plans

NDG 550

House Plan 550 The Downing, Florida House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 550
  • Total Living Space:2121Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 67
  • Width In.: 2
  • Depth Ft.: 64
  • Depth In.: 8

Description

Note: 8-inch concrete wall construction and tile roofing. See NDG-381 for a standard wood-framed version.

A convenient private office with French door entry and built-ins adjoining the extravagant master suite highlights this home. The expansive great room features sliding glass doors leading to the lanai. A functional eat-at bar helps the kitchen provide quick service to the convenient breakfast room and formal dining room. The generous master bath showcases a raised corner whirlpool tub with columned-entry.

Specifications

  • Total Living Space:2121Sq.Ft.
  • Main Floor: 2121 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 298 Sq.Ft.
  • Garage (Sq.Ft.): 523 Sq.Ft.
  • Total Square Feet: 2942 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: Concrete
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Tile
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 10
  • Insulation Exterior: N/A
  • Insulation Floor Minimum: N/A
  • Insulation Ceiling Minimum: N/A
  • Lower Bonus Space (Sq.Ft.): N/A
