House Plan 5448 Jackson Hole Farms II, Modern Farmhouse Plan

Floor plans

MEN 5448

House Plan 5448 Jackson Hole Farms II, Modern Farmhouse Plan

PDF: $1,000.00

Plan Details

  • Plan Number: MEN 5448
  • Total Living Space:2631Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 4 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 116
  • Width In.: 10
  • Depth Ft.: 71
  • Depth In.: N/A

Description

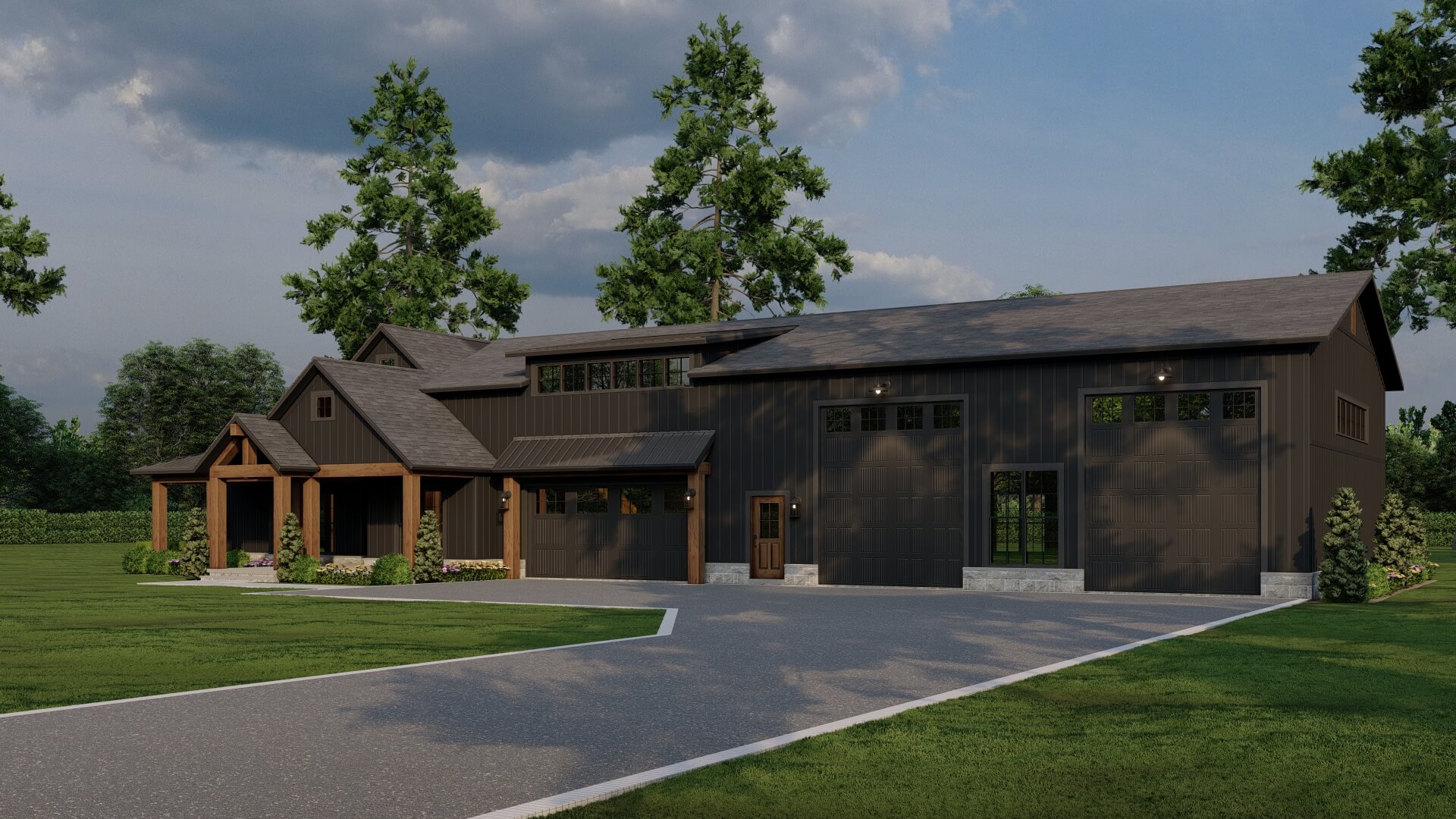

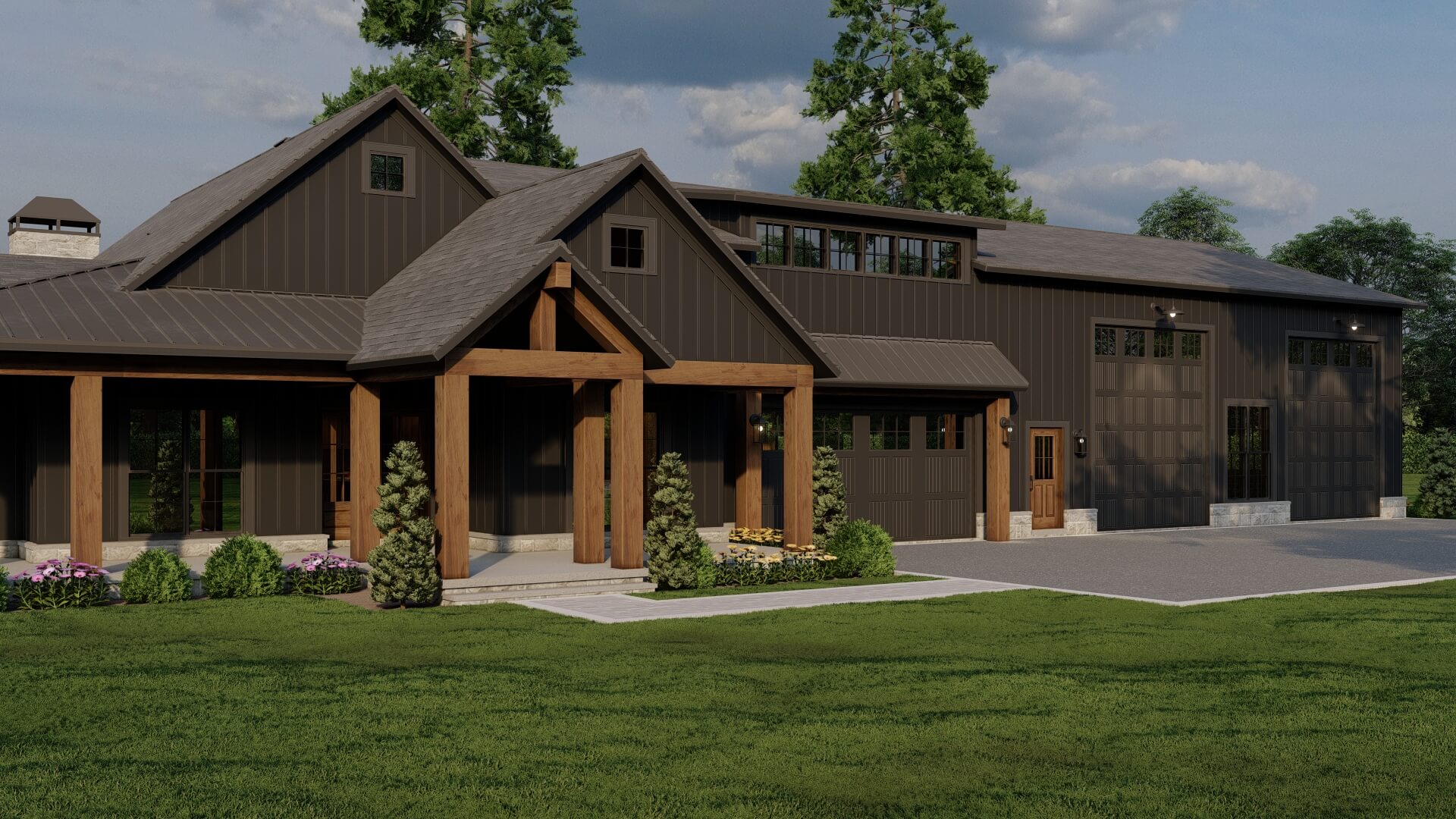

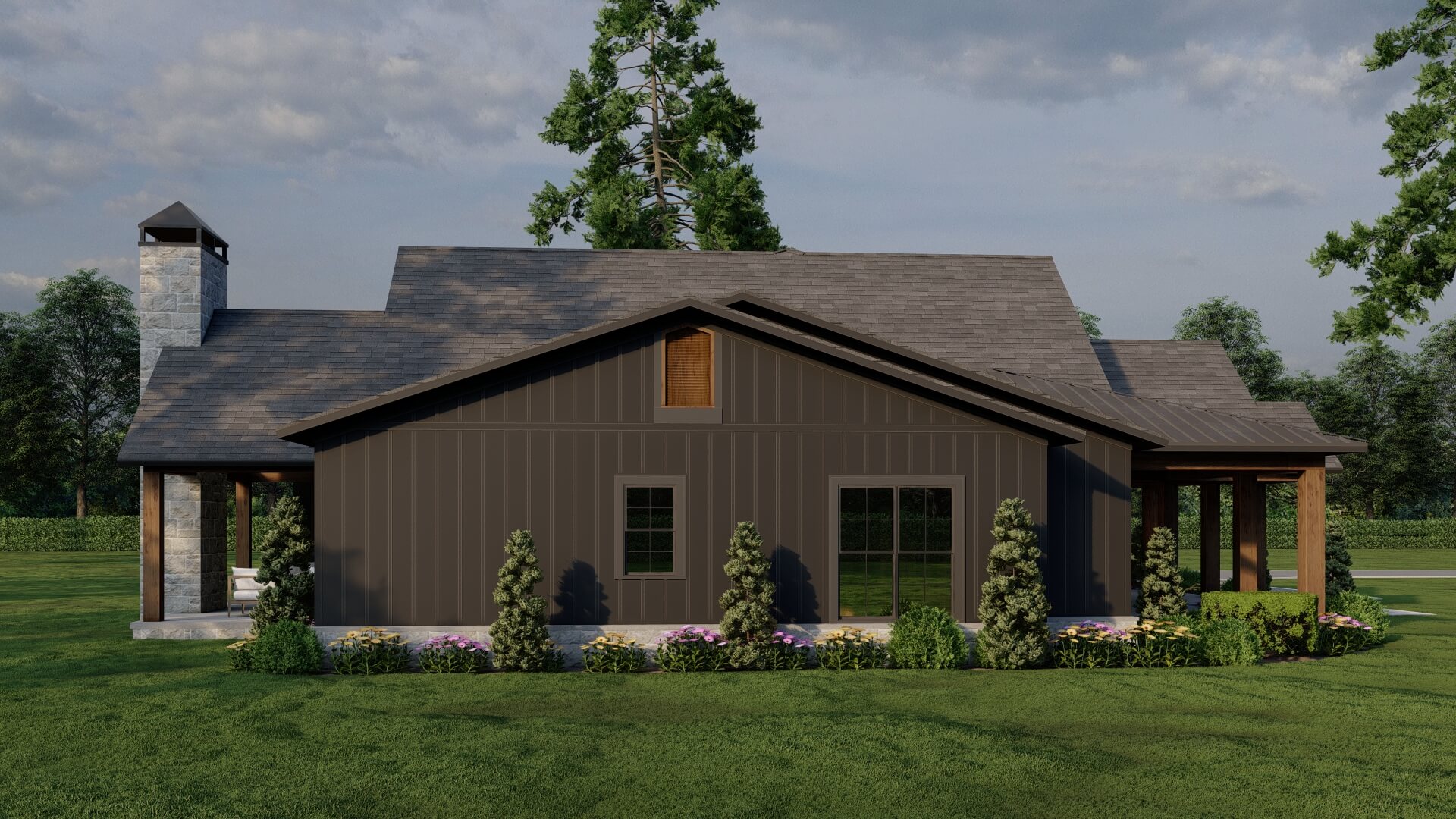

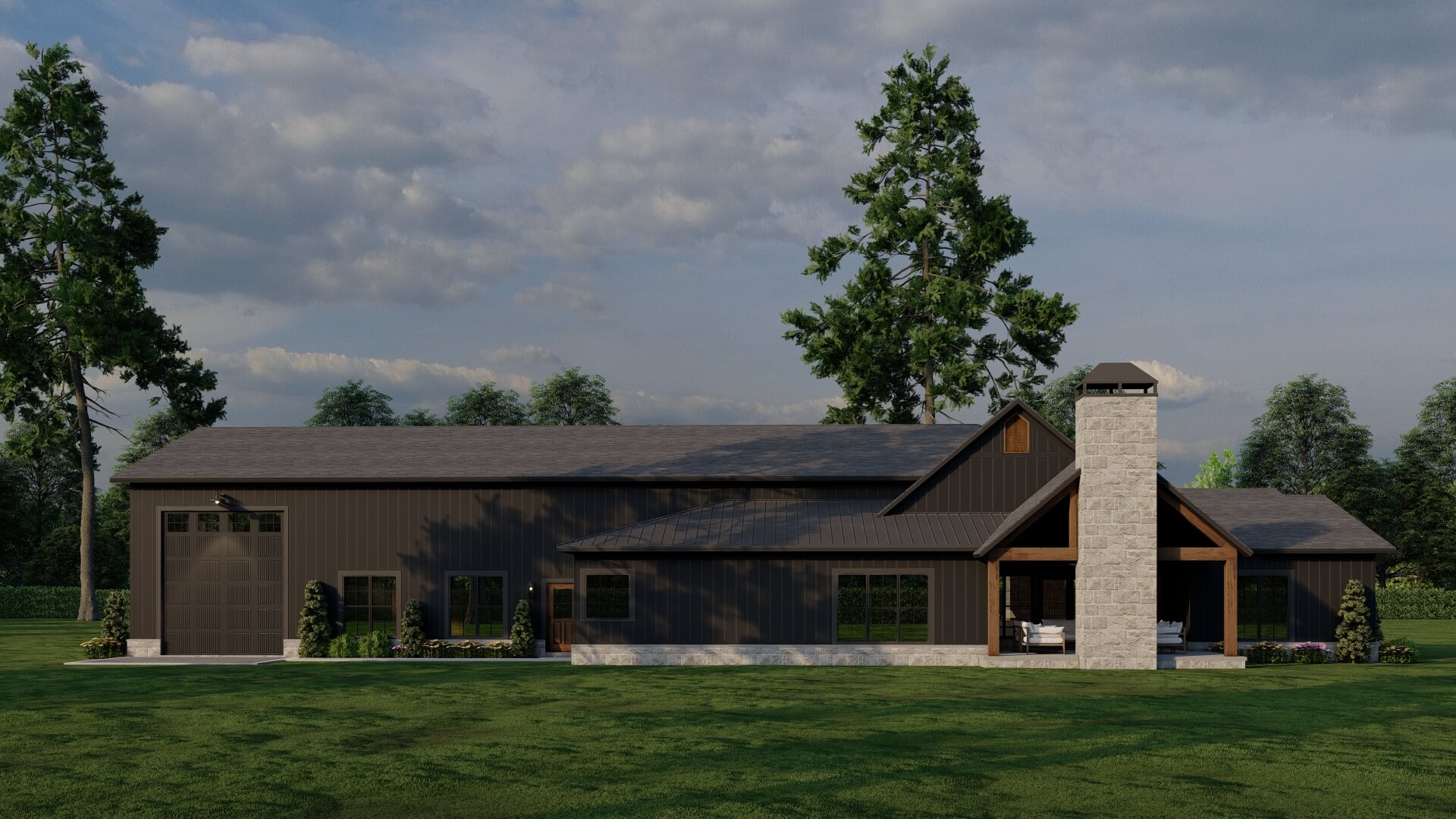

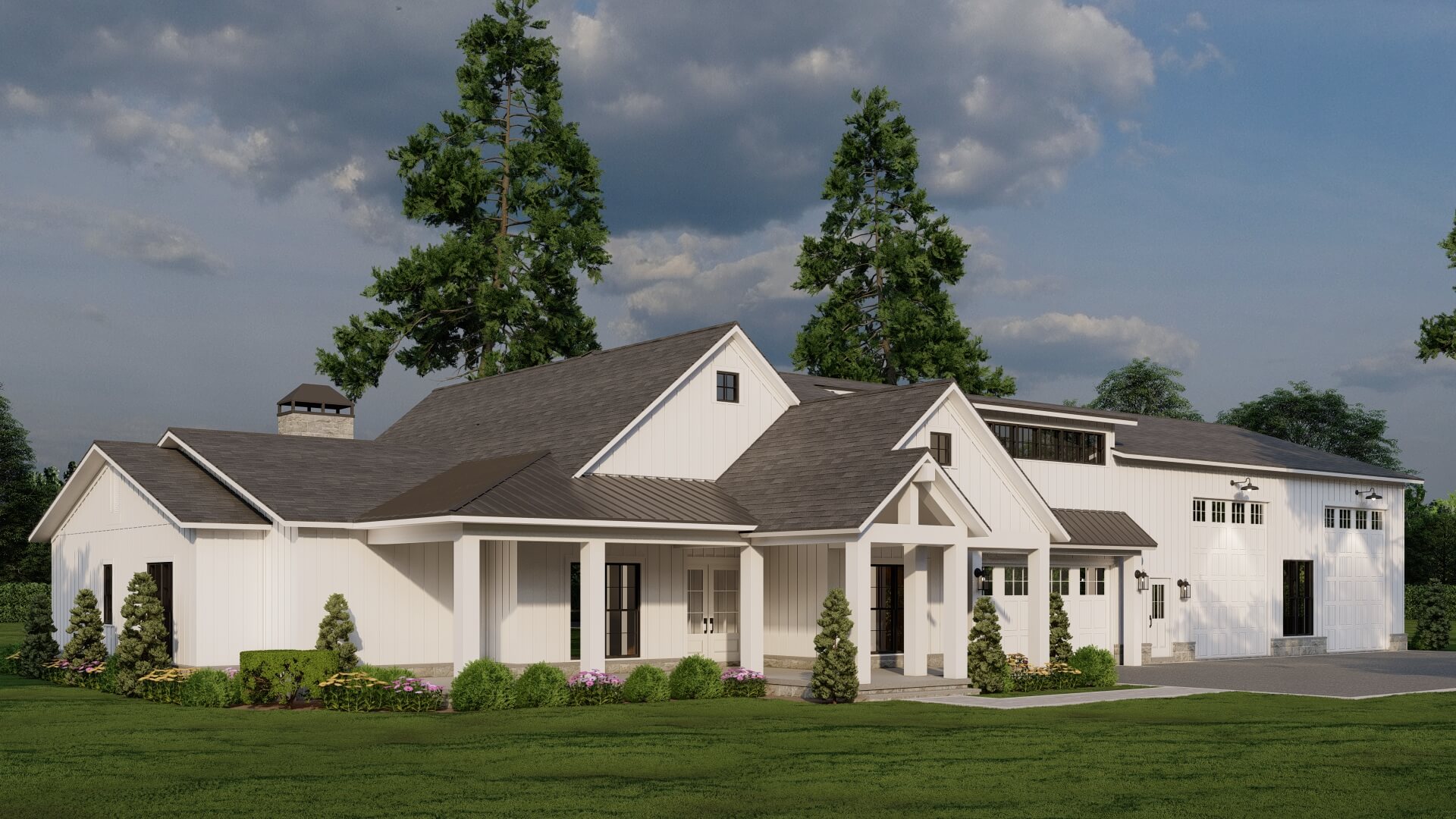

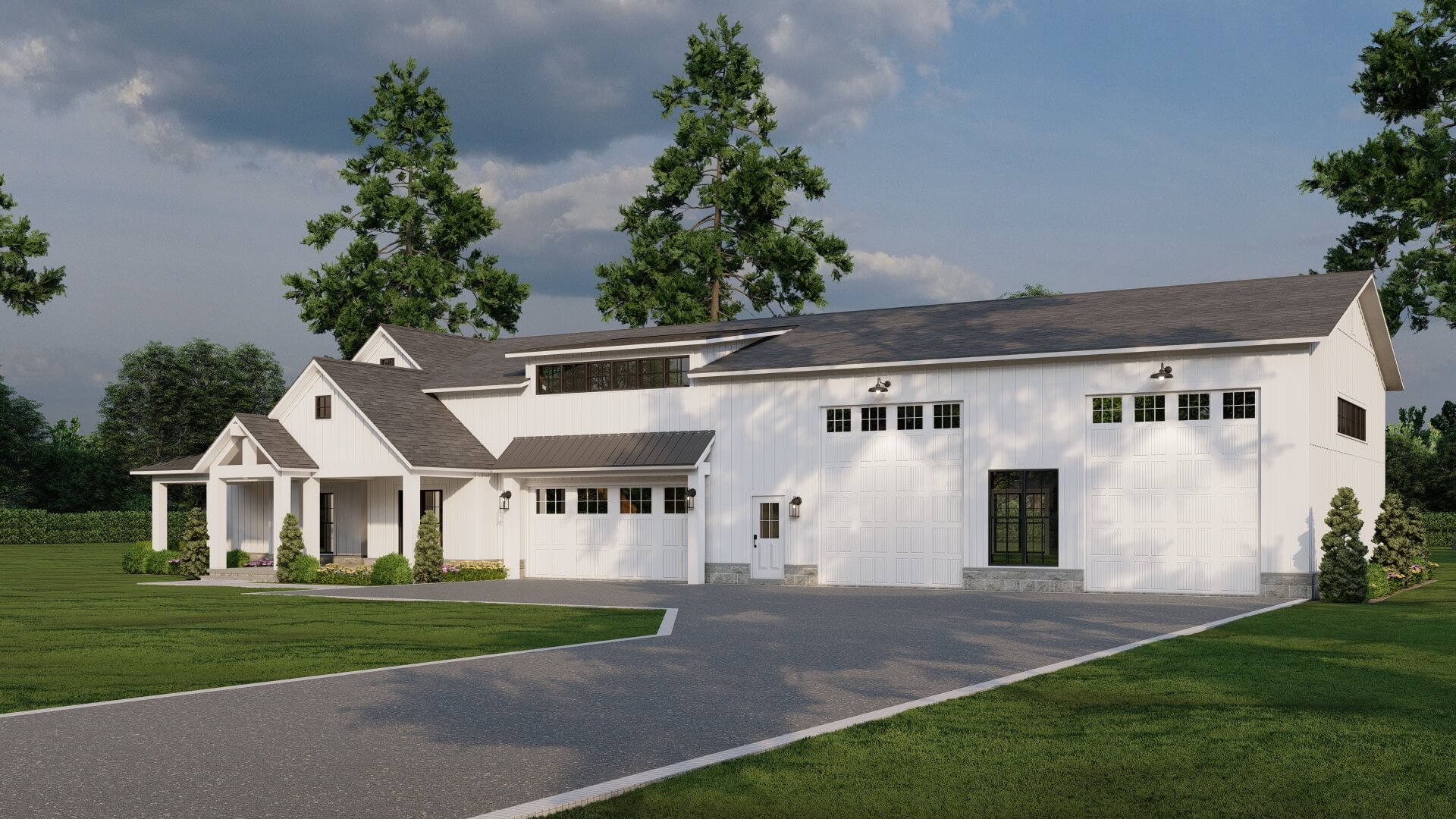

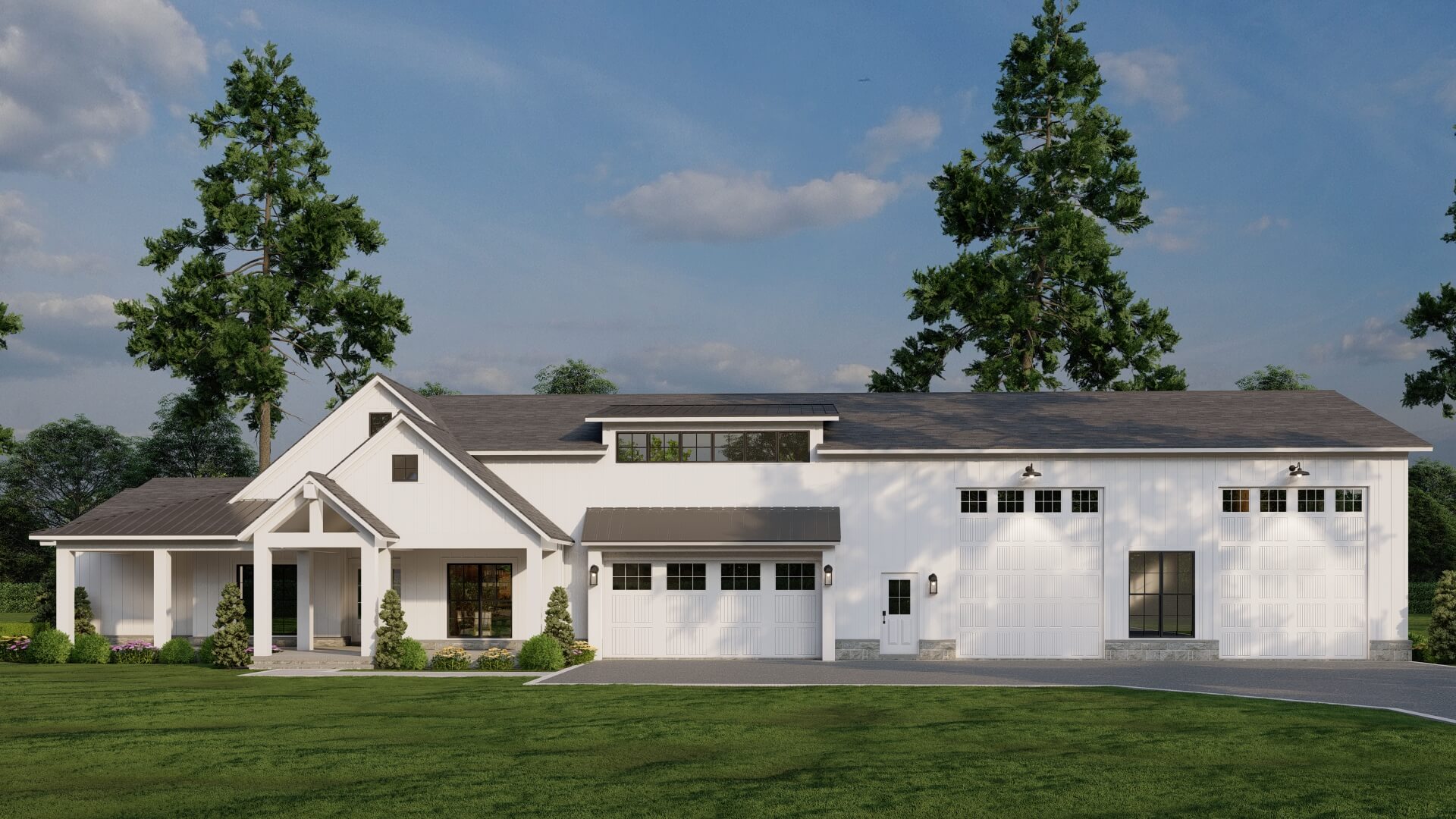

MEN 5448 Jacon Hole Farms II is an incredible Farmhouse with a dark, moody, and natural look on the outside. This eye-catching home offers beautiful windows and arts and crafts features on the exterior.

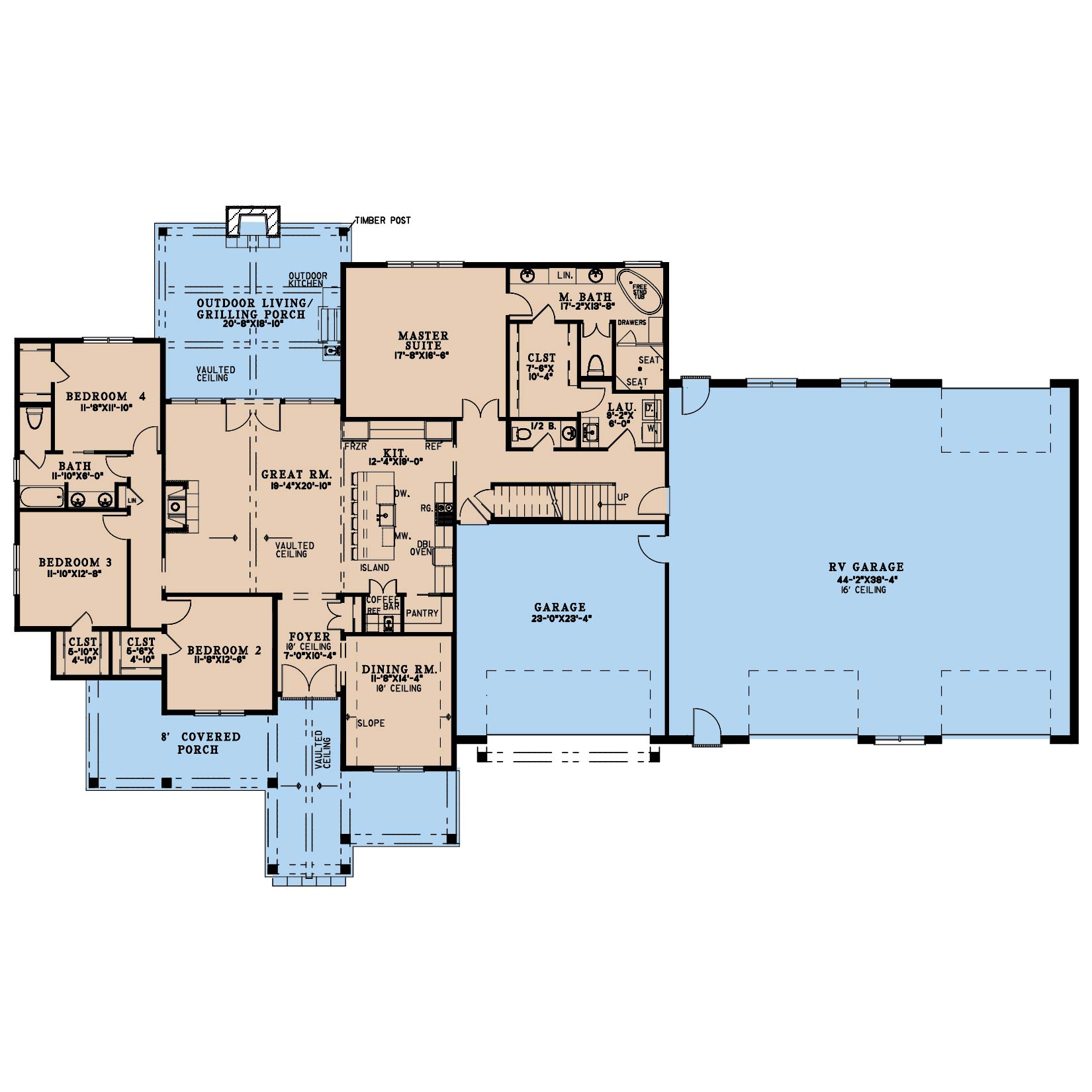

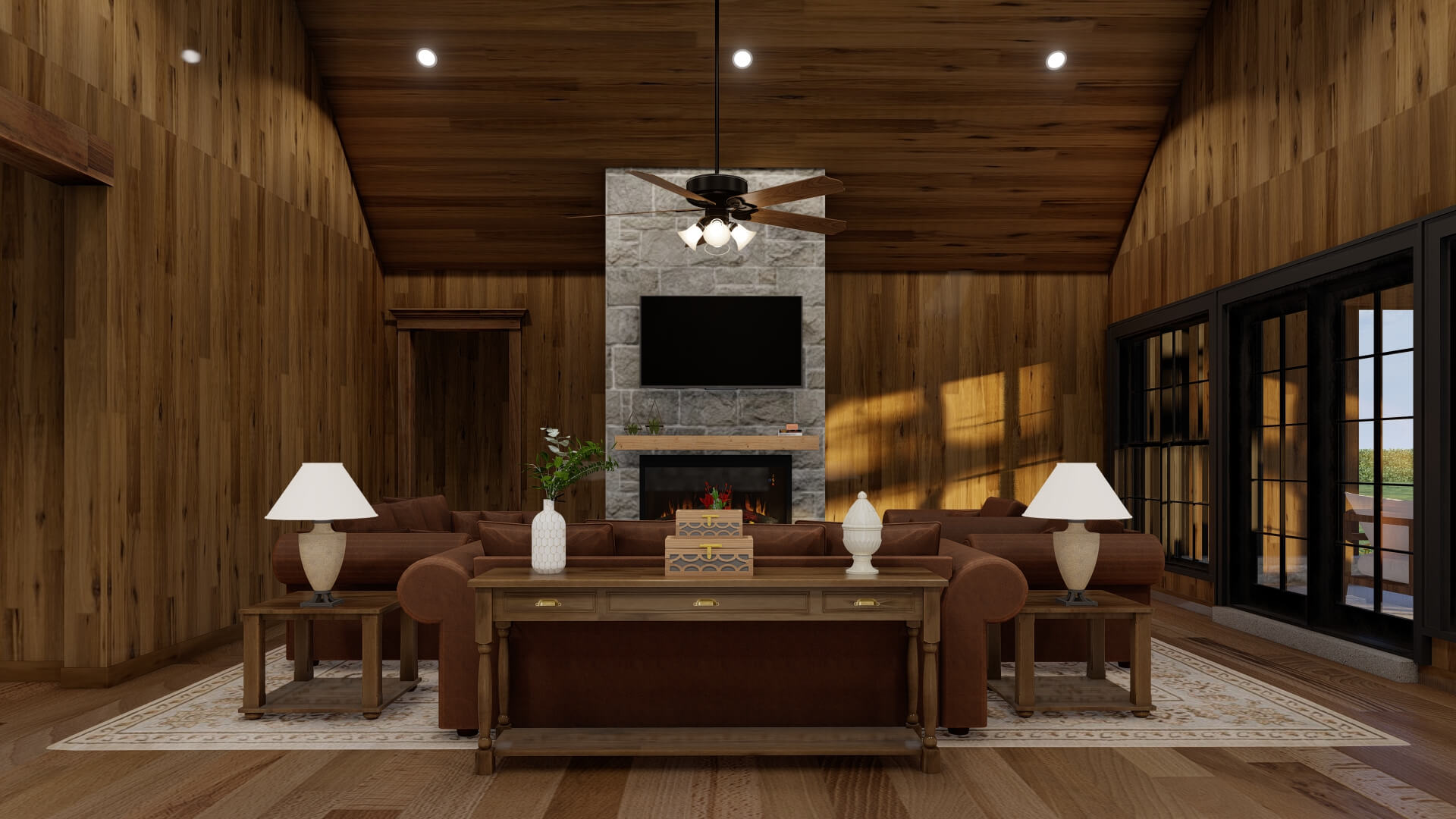

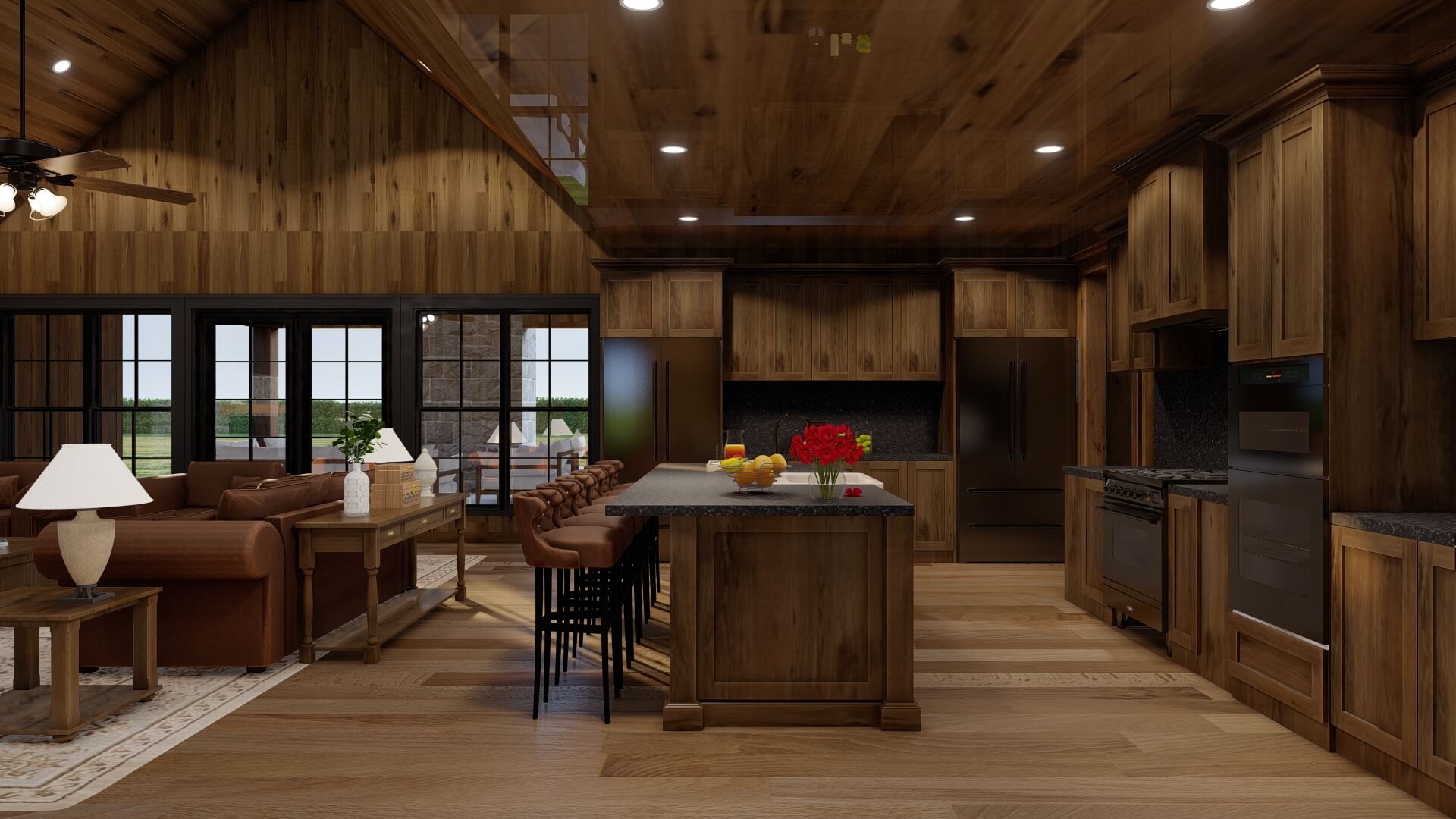

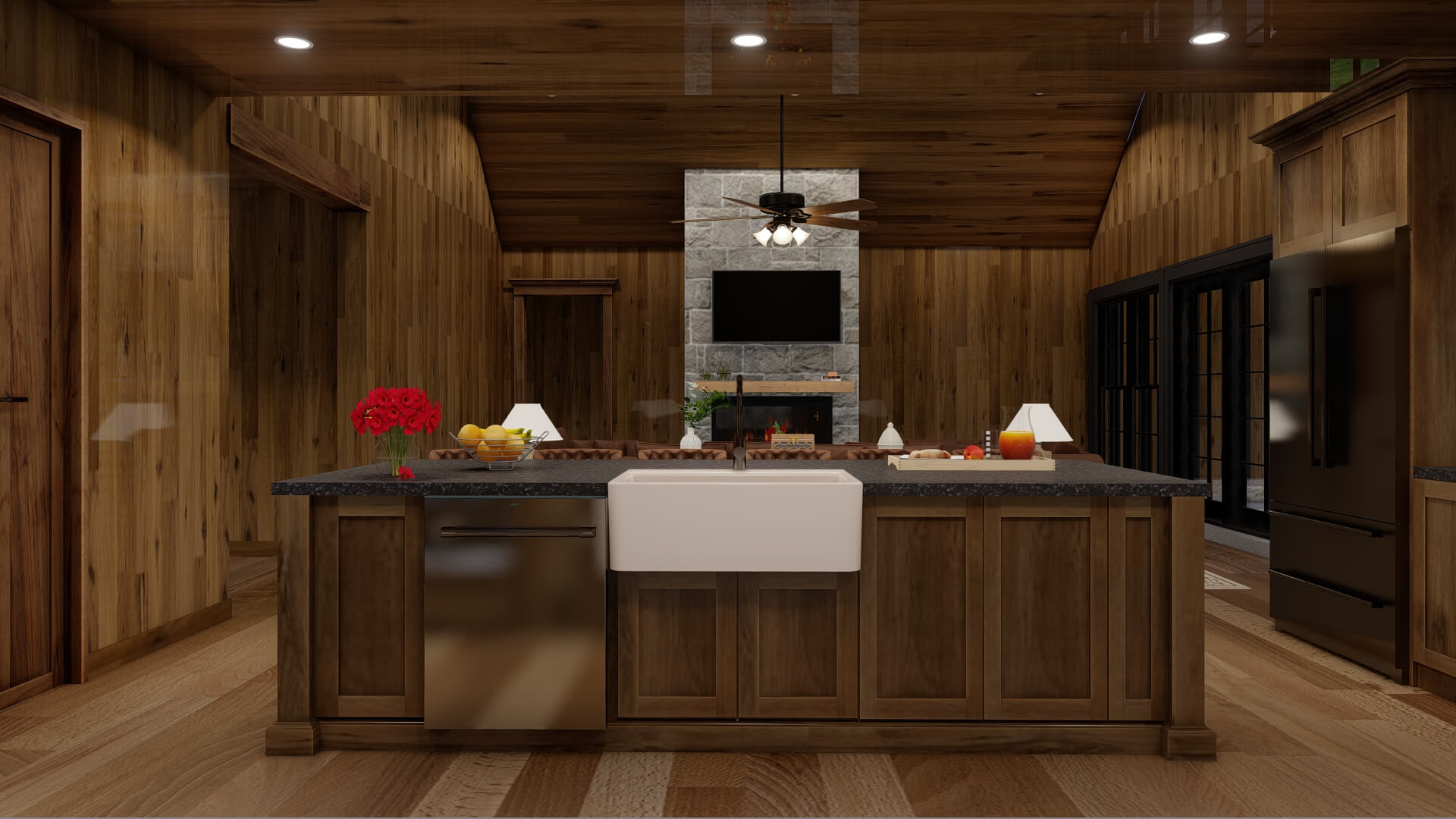

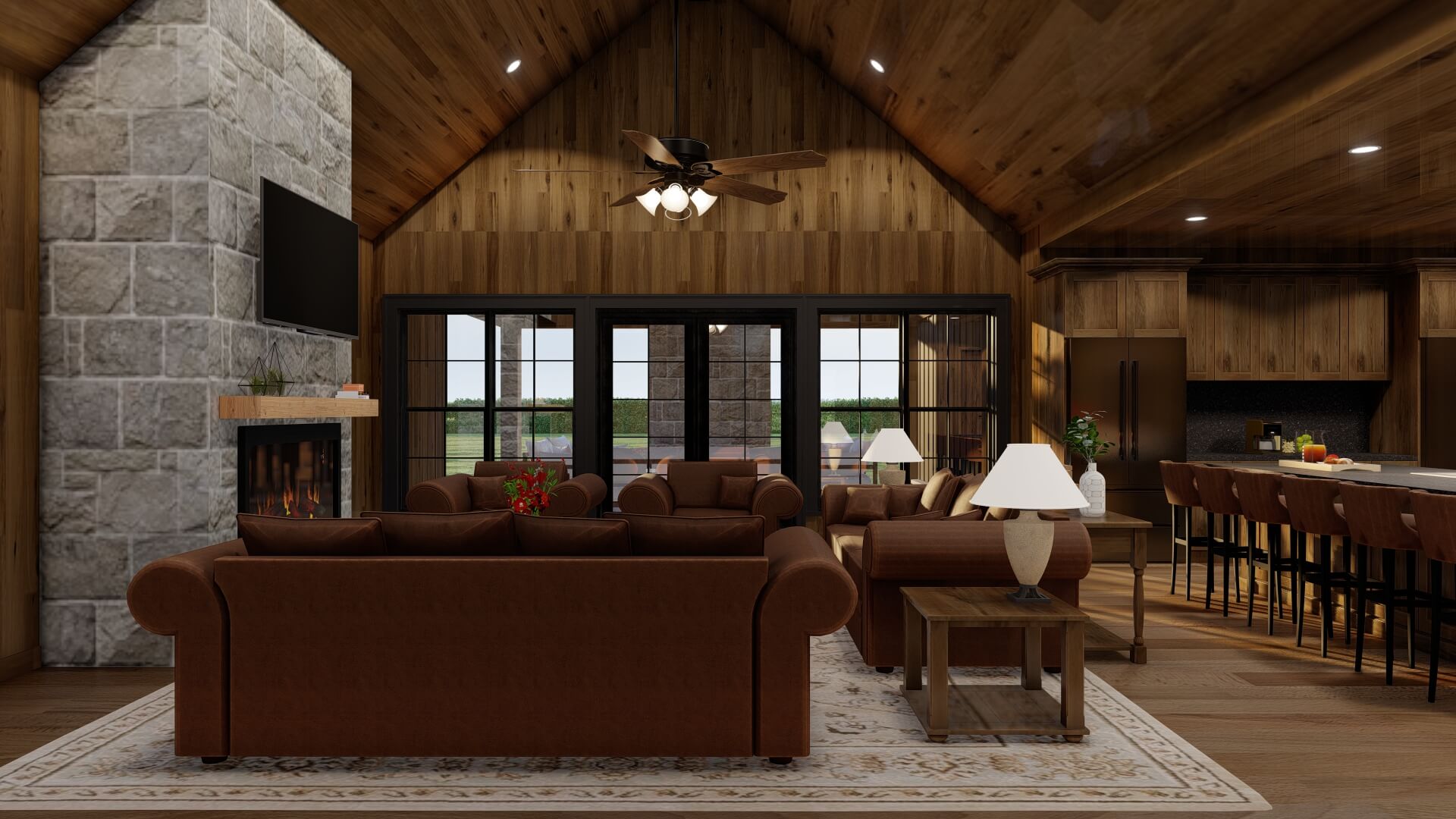

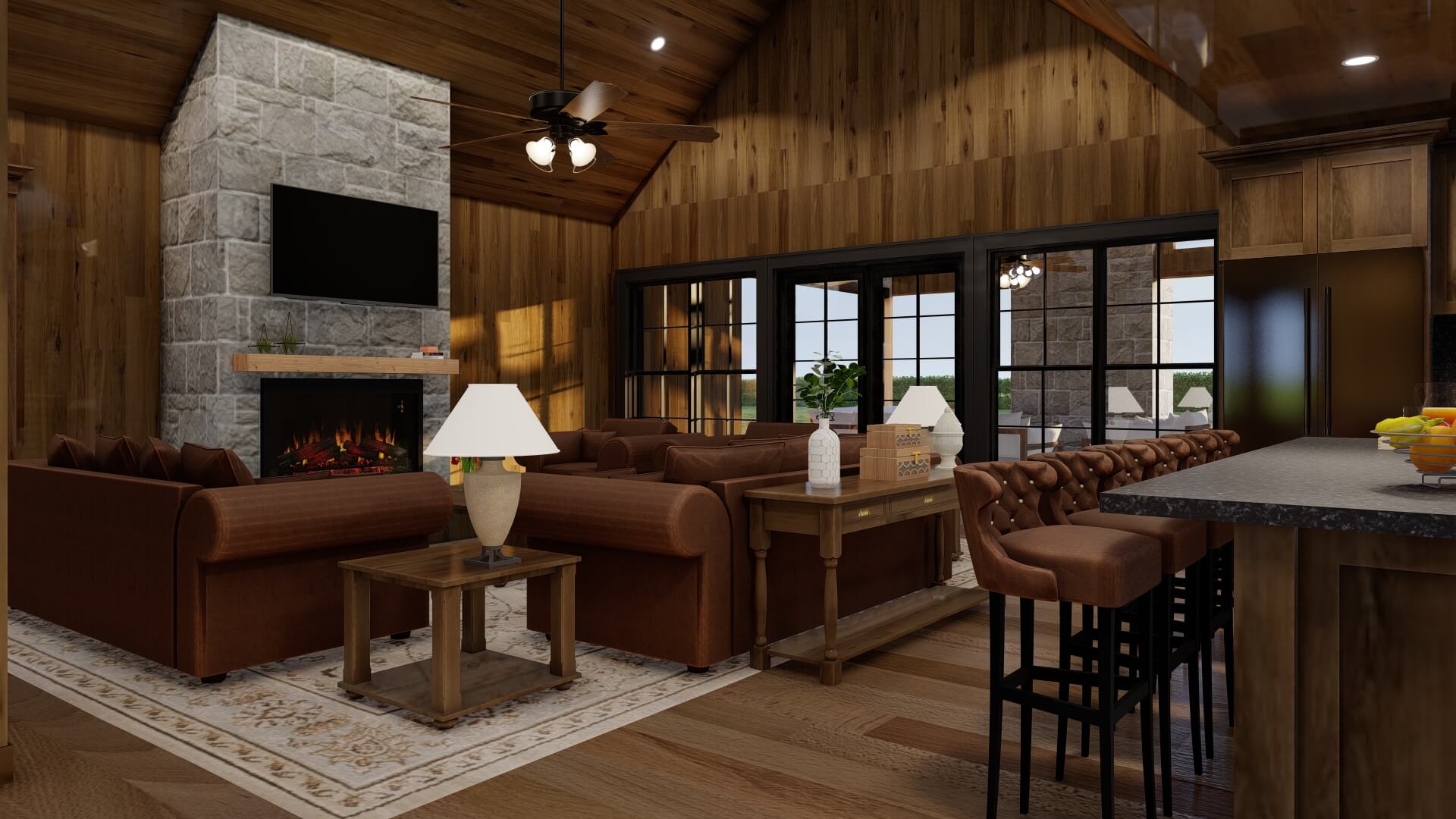

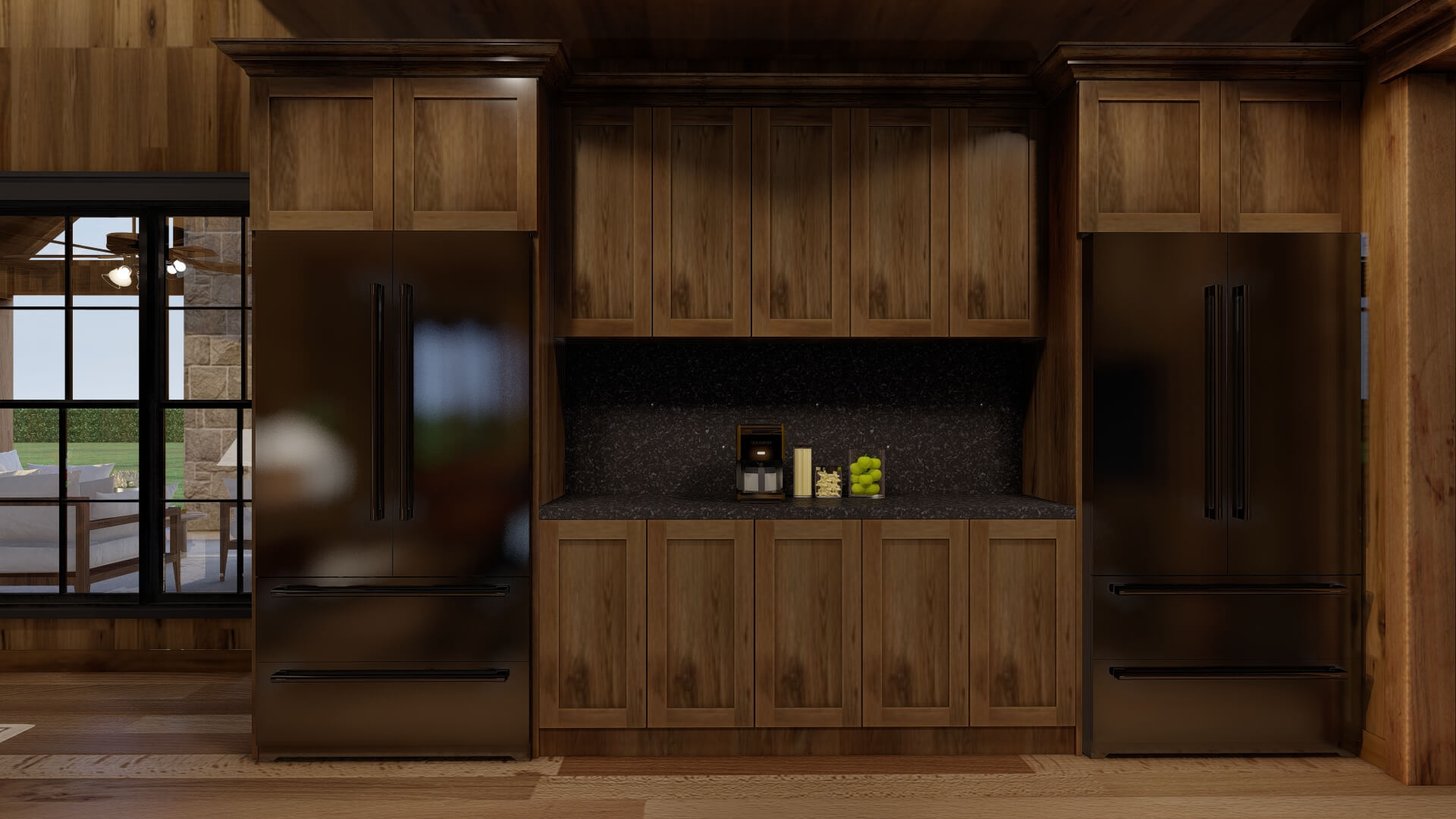

Get ready to step into your luxurious open-floor plan house plan. Through the foyer, you can either enter the formal dining room or the open great room/kitchen. In the great room, you won't be able to stop gazing up at the high cathedral-vaulted ceiling. Sit cozy in front of the fireplace or cook a delicious meal in the very large kitchen.

Access the outdoor living space/grilling porch from the great room. When you're ready to head to bed find the master suite when you pass through the kitchen to the gorgeous hallway. You'll enjoy the spacious bedroom complete with a private master bath. In the master bath soak in the tub or step into the shower with two seats. Hang your clothes in the very large closet or enter through this closet to a laundry room you'll never want to leave.

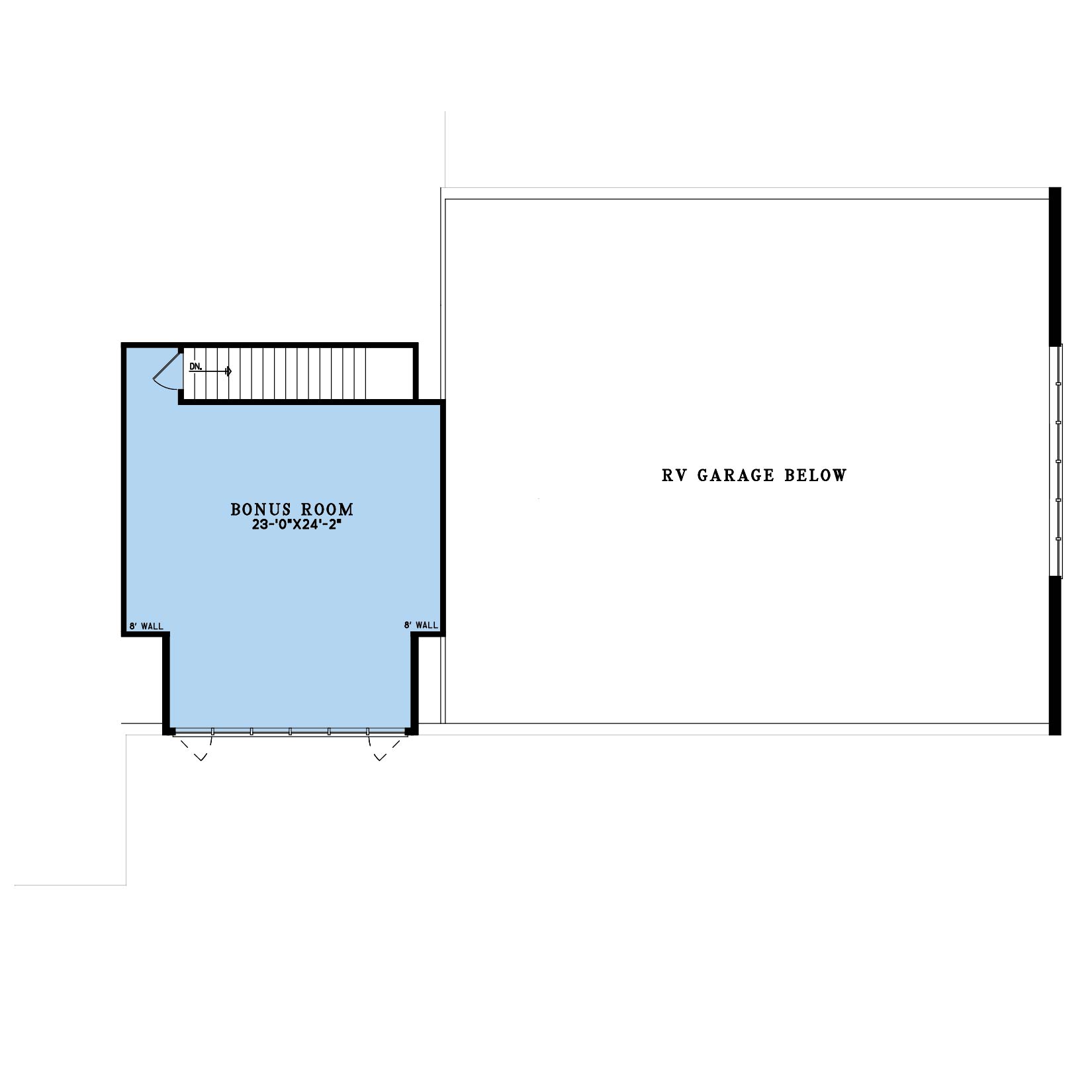

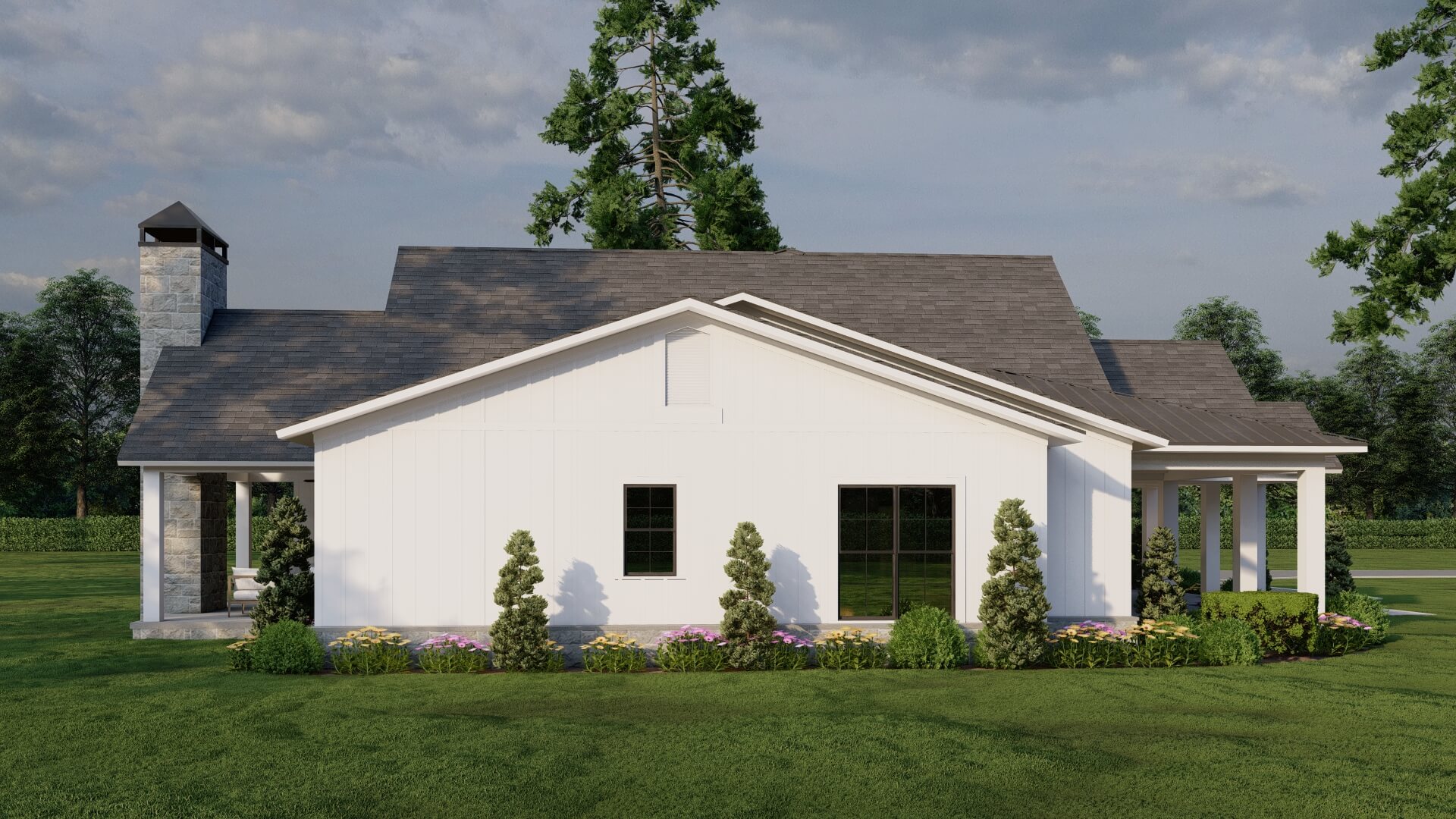

On the left side of the home, there are bedrooms 2, 3, & 4 perfectly placed for kids, guests, or even a home office. This home also includes an optional upstairs bonus room and an oversized garage.

Specifications

  • Total Living Space:2631Sq.Ft.
  • Main Floor: 2631 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 562 Sq.Ft.
  • Porch (Sq.Ft.): 820 Sq.Ft.
  • Garage (Sq.Ft.): 2364 Sq.Ft.
  • Total Square Feet: 6377 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 2
  • Insulation Exterior: R19
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
