House Plan 538 Windstone Place, Village at Windstone III House Plan
Floor plans
NDG 538
House Plan 538 Windstone Place, Village at Windstone III House Plan
PDF: $1,100.00
Plan Details
- Plan Number: NDG 538
- Total Living Space:2635Sq.Ft.
- Bedrooms: 4
- Full Baths: 3
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Court Yard
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 58
- Width In.: 6
- Depth Ft.: 71
- Depth In.: 10
Description

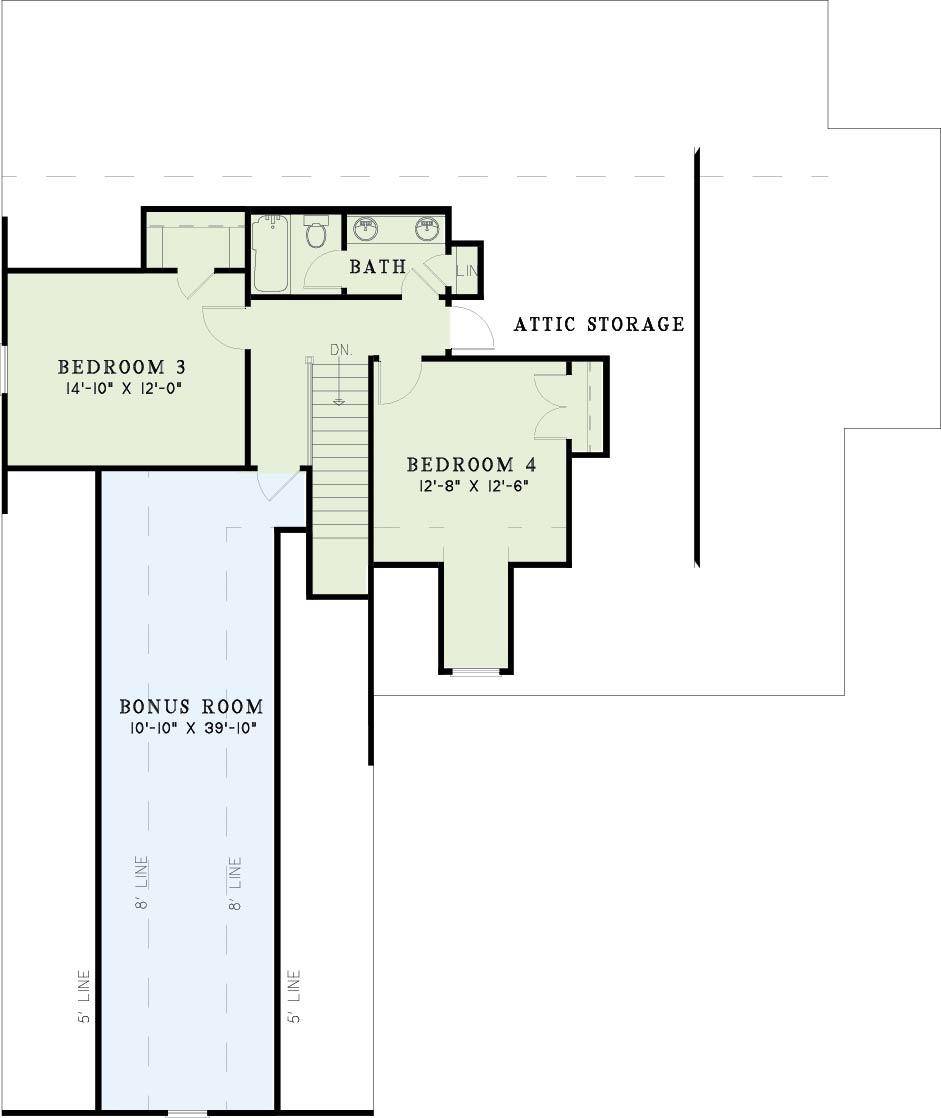

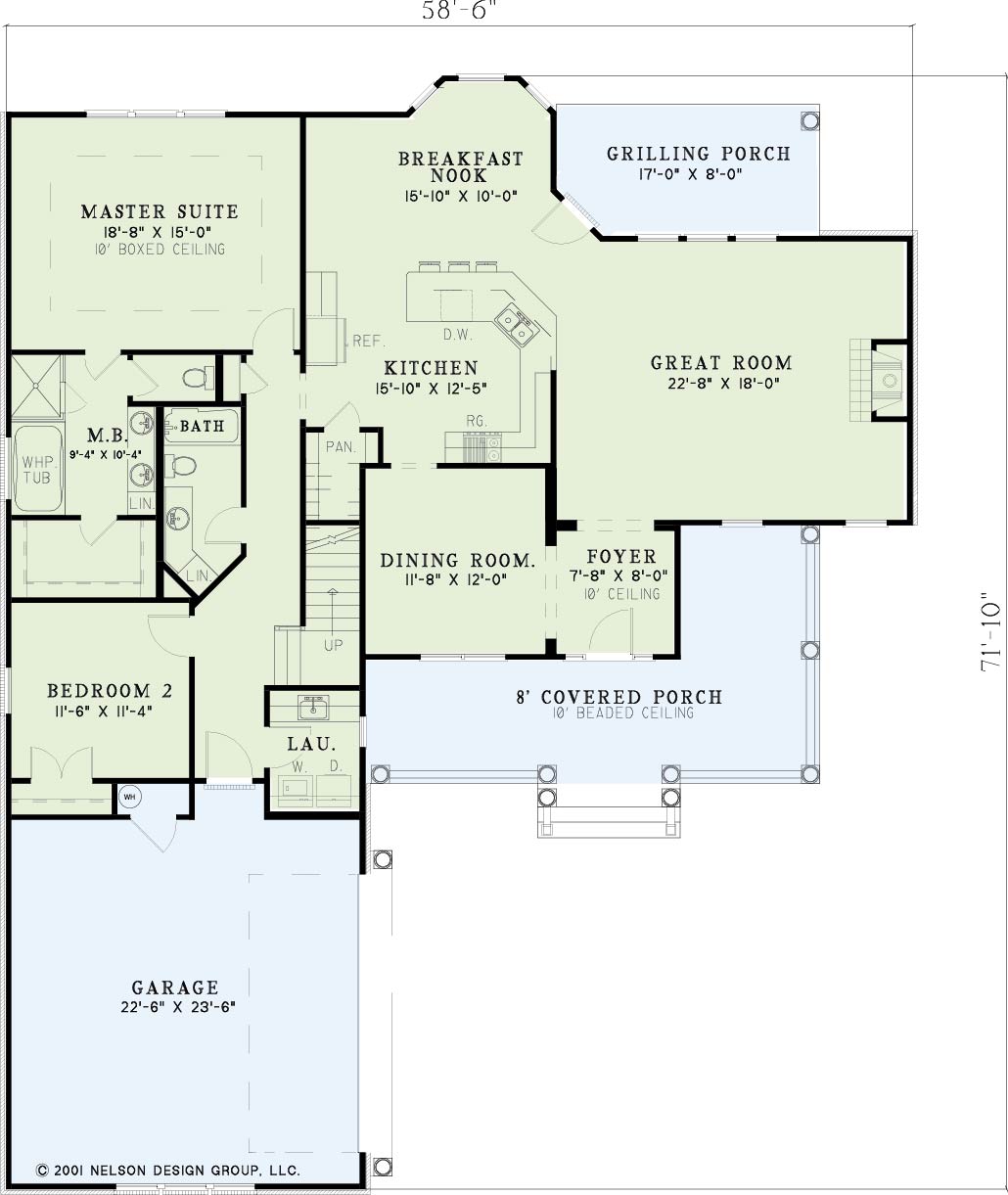

A wrap around porch with a ten foot beaded ceiling, round columns and gentle arches welcome you into this home. The foyer also carries a ten foot ceiling and leads into a great room with fireplace and a view overlooking the grilling porch. A wide walkway leads you into a breakfast bay adjoining the kitchen and through to the formal dining room. Entertaining will be enjoyable for both you and guests with this easy flowing floor plan. The master suite adorned with boxed ceiling, as well as one bedroom and full bath are on the main floor. Upstairs has two additional bedrooms, a full bath and a large bonus room located over the garage.
Specifications
- Total Living Space:2635Sq.Ft.
- Main Floor: 1992 Sq.Ft
- Upper Floor (Sq.Ft.): 643 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): 468 Sq.Ft.
- Porch (Sq.Ft.): 467 Sq.Ft.
- Garage (Sq.Ft.): 572 Sq.Ft.
- Total Square Feet: 4142 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: 10:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 28
- Ridge Height (In.): 6
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
