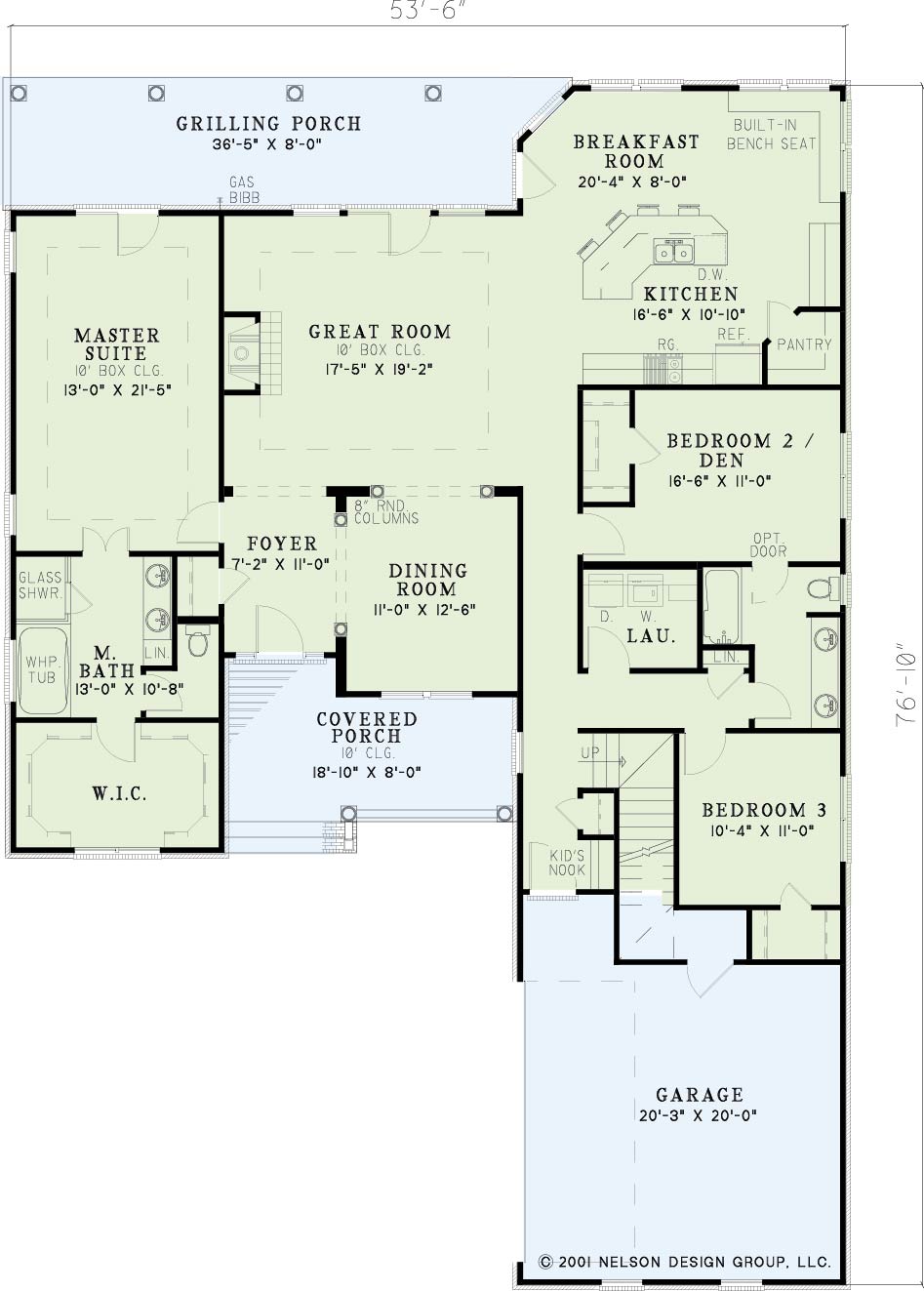

House Plan NDG 537 Main Floor

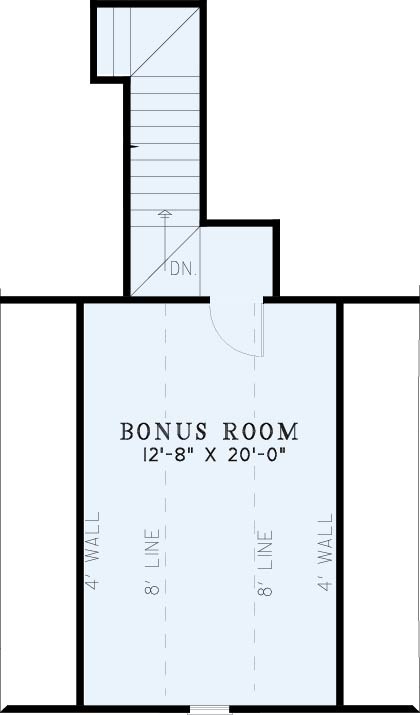

House Plan NDG 537 Bonus Room

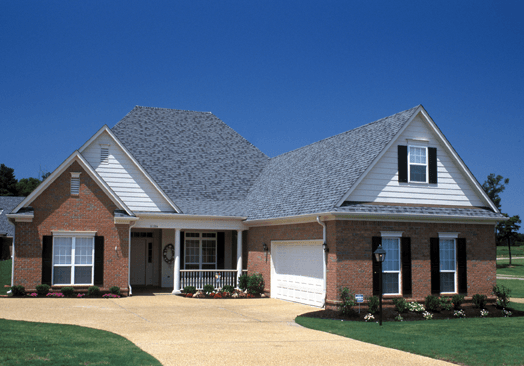

House Plan - NDG537 Front View>
House Plan NDG 537 Main Floor
House Plan NDG 537 Bonus Room

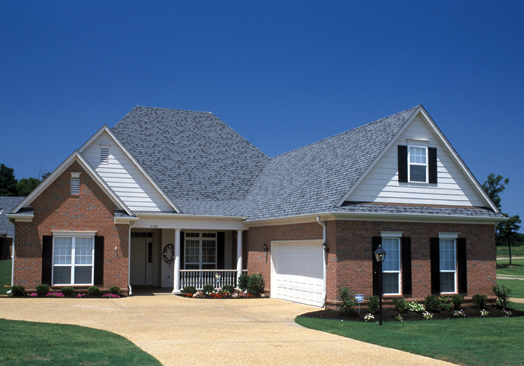

House Plan - NDG537 Front View

Floor plans

NDG 537

House Plan 537 Windstone Place, Village at Windstone III House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 537
  • Total Living Space:2211Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 54
  • Width In.: N/A
  • Depth Ft.: 76
  • Depth In.: 10

Description

A courtyard entry garage for privacy and a deep covered porch adorn this design. One of our Traditional Neighborhood designs perfect for narrow lot incorporating ten foot boxed ceilings and eight inch round columns. The dining room is centrally located and looks through to the great room which accesses a rear grilling porch. This split bedroom plan gives you the ultimate in privacy for the master suite complete with large walk-in closet and bathroom amenities galore. At the other end of the house is the kitchen breakfast room combo with island seating and a built-in bench seat and walk-in pantry. Down the hall is a den or extra bedroom with private access to the full bathroom making it great for guests. Upstairs allows for a bonus room if needed.

Specifications

  • Total Living Space:2211Sq.Ft.
  • Main Floor: 2211 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 278 Sq.Ft.
  • Porch (Sq.Ft.): 434 Sq.Ft.
  • Garage (Sq.Ft.): 459 Sq.Ft.
  • Total Square Feet: 3382 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
