House Plan 530 Wellington Lane, Village at Wellington House Plan

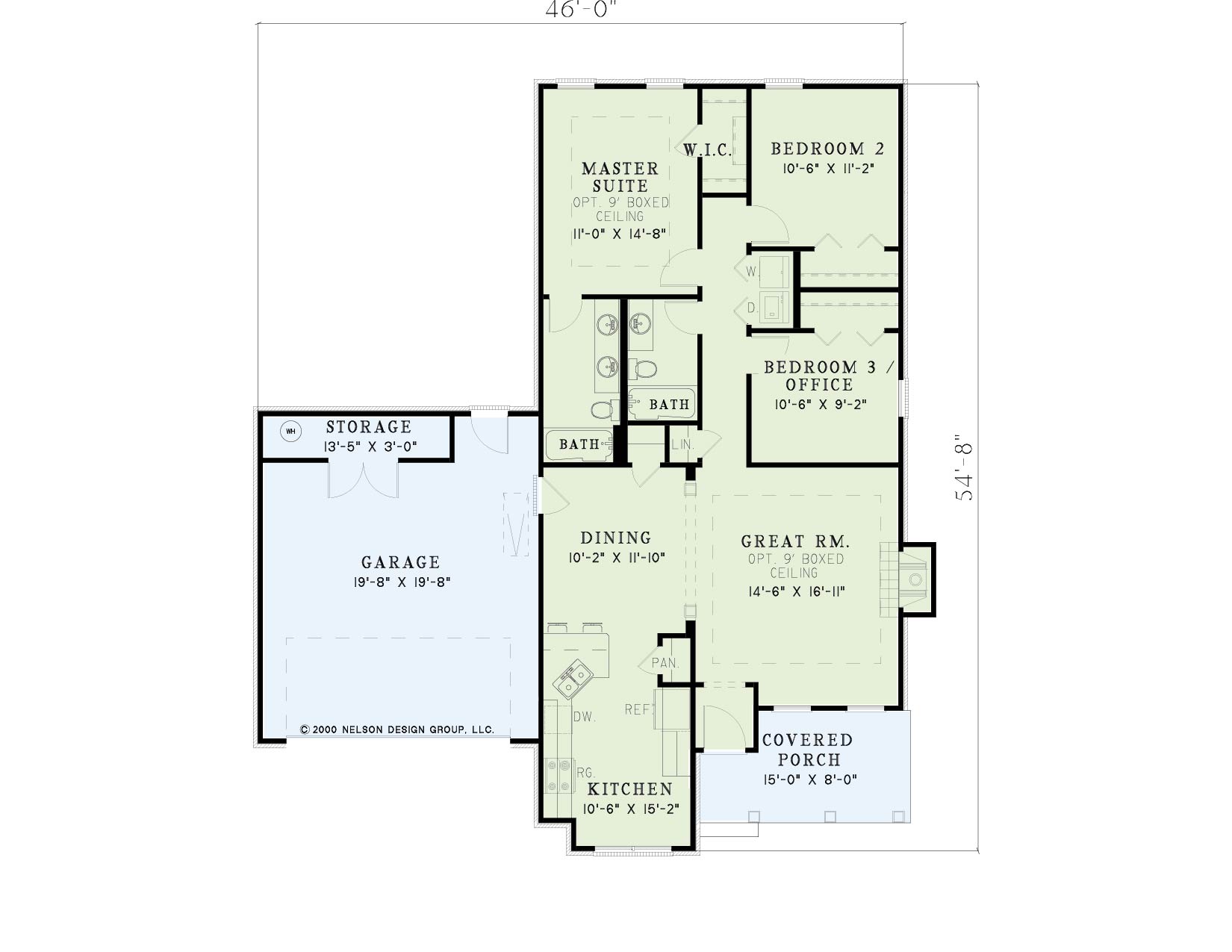

House Plan NDG 530 Main Floor
House Plan NDG 530 Main Floor

Floor plans

NDG 530

House Plan 530 Wellington Lane, Village at Wellington House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 530
  • Total Living Space:1294Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 46
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: 8


Beautiful ferns and boxed columns embellish the front porch of this home. Upon entering the foyer, you’ll be welcomed into the great room with a cozy fireplace and nine foot boxed ceiling. Across and through a column cased opening is the formal dining room directly accessing the kitchen for ease in entertaining. Down the hall is the master suite also enhanced by a nine foot ceiling, large walk-in closet with built-ins and a full bathroom with double vanity. The second and third bedrooms or study share a full bathroom located in the hall. This Traditional Country design offers you and your family an array of amenities you’ve come to look for in your future home.


  • Total Living Space:1294Sq.Ft.
  • Main Floor: 1294 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 106 Sq.Ft.
  • Garage (Sq.Ft.): 476 Sq.Ft.
  • Total Square Feet: 1876 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
