House Plan 529 Windstone Place, Village at Windstone III House Plan

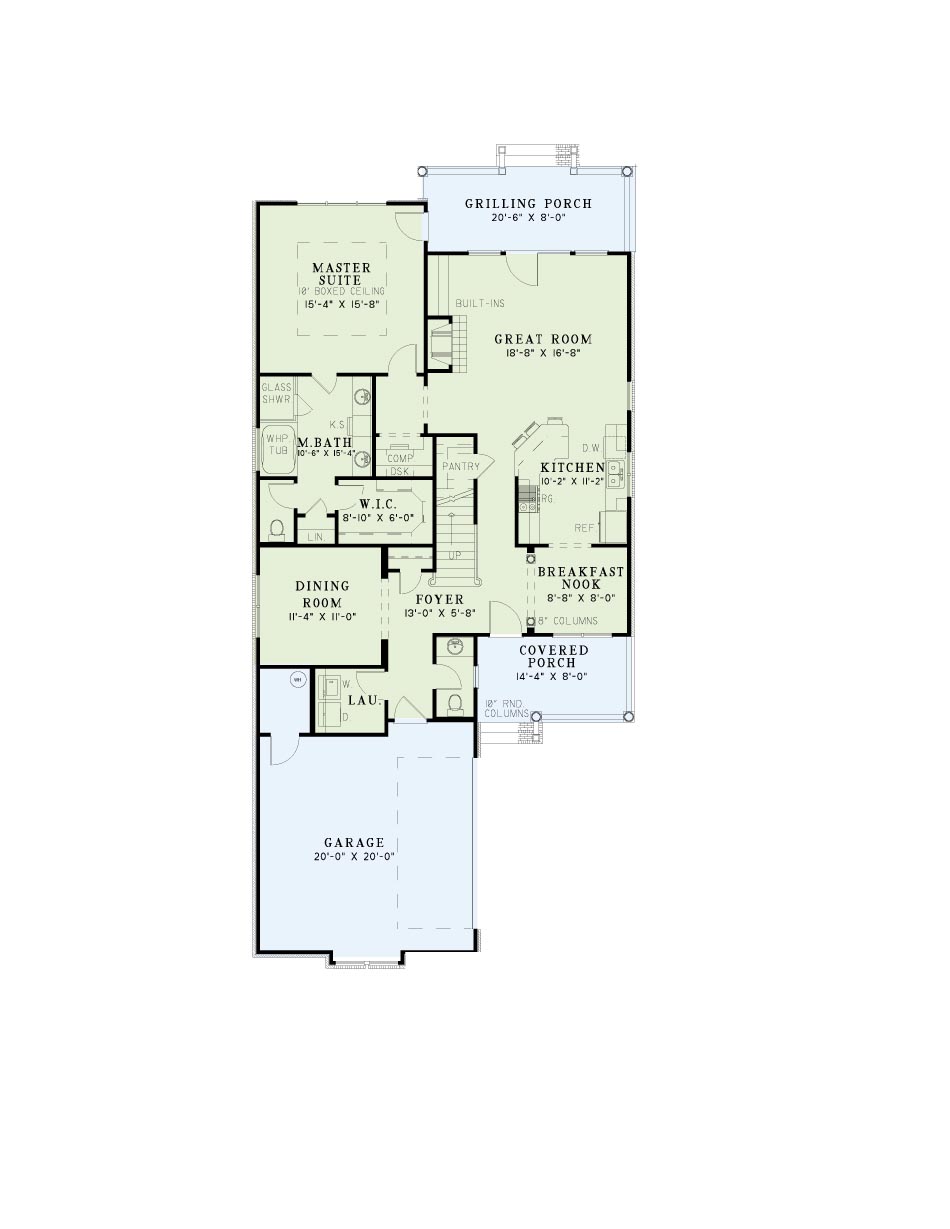

House Plan NDG 529 Main Floor

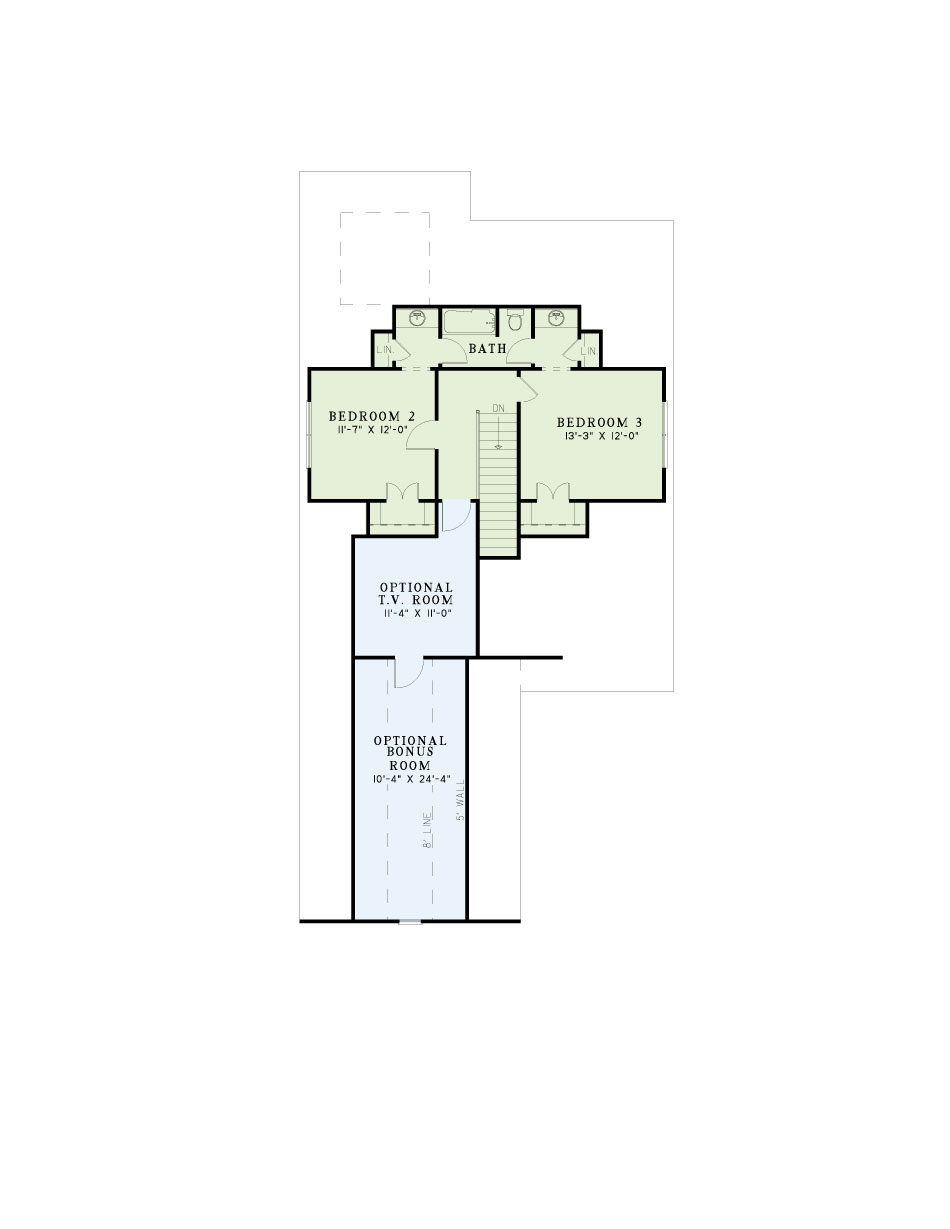

House Plan NDG 529 Upper Floor
House Plan NDG 529 Main Floor
House Plan NDG 529 Upper Floor

Floor plans

NDG 529

House Plan 529 Windstone Place, Village at Windstone III House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 529
  • Total Living Space:2016Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 35
  • Width In.: 6
  • Depth Ft.: 74
  • Depth In.: 8

Description

This design offers the utmost living environment. Enter the front door and begin a journey of truly inspired family areas. The breakfast nook, a room of its own, adjoins the kitchen complete with extra bar seating and an open view of the great room. For a central location, the computer desk is conveniently placed in a hall nook outside of the great room. The master suite located on the main floor, has a ten foot boxed ceiling and bathroom filled with amenities and a large walk-in closet. This split bedroom plan has two bedrooms upstairs, each with a private access vanity and share a tub/toilet room. An optional media/TV room is available as is a huge bonus room located above the garage.

Specifications

  • Total Living Space:2016Sq.Ft.
  • Main Floor: 1485 Sq.Ft
  • Upper Floor (Sq.Ft.): 531 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 426 Sq.Ft.
  • Porch (Sq.Ft.): 270 Sq.Ft.
  • Garage (Sq.Ft.): 470 Sq.Ft.
  • Total Square Feet: 3182 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 12:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
