House Plan 521 Windstone Place, Village at Windstone III House Plan

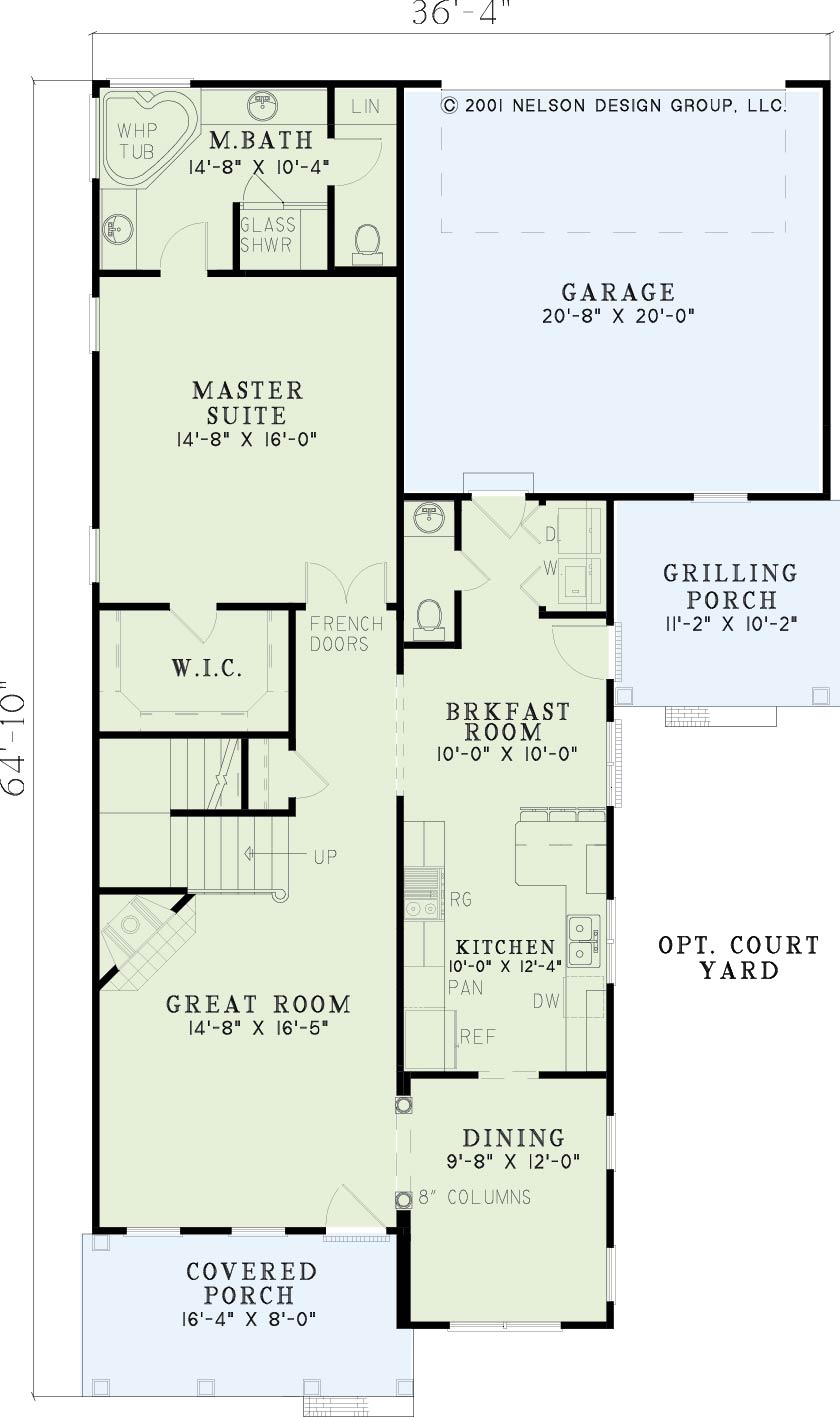

House Plan NDG 521 Main Floor

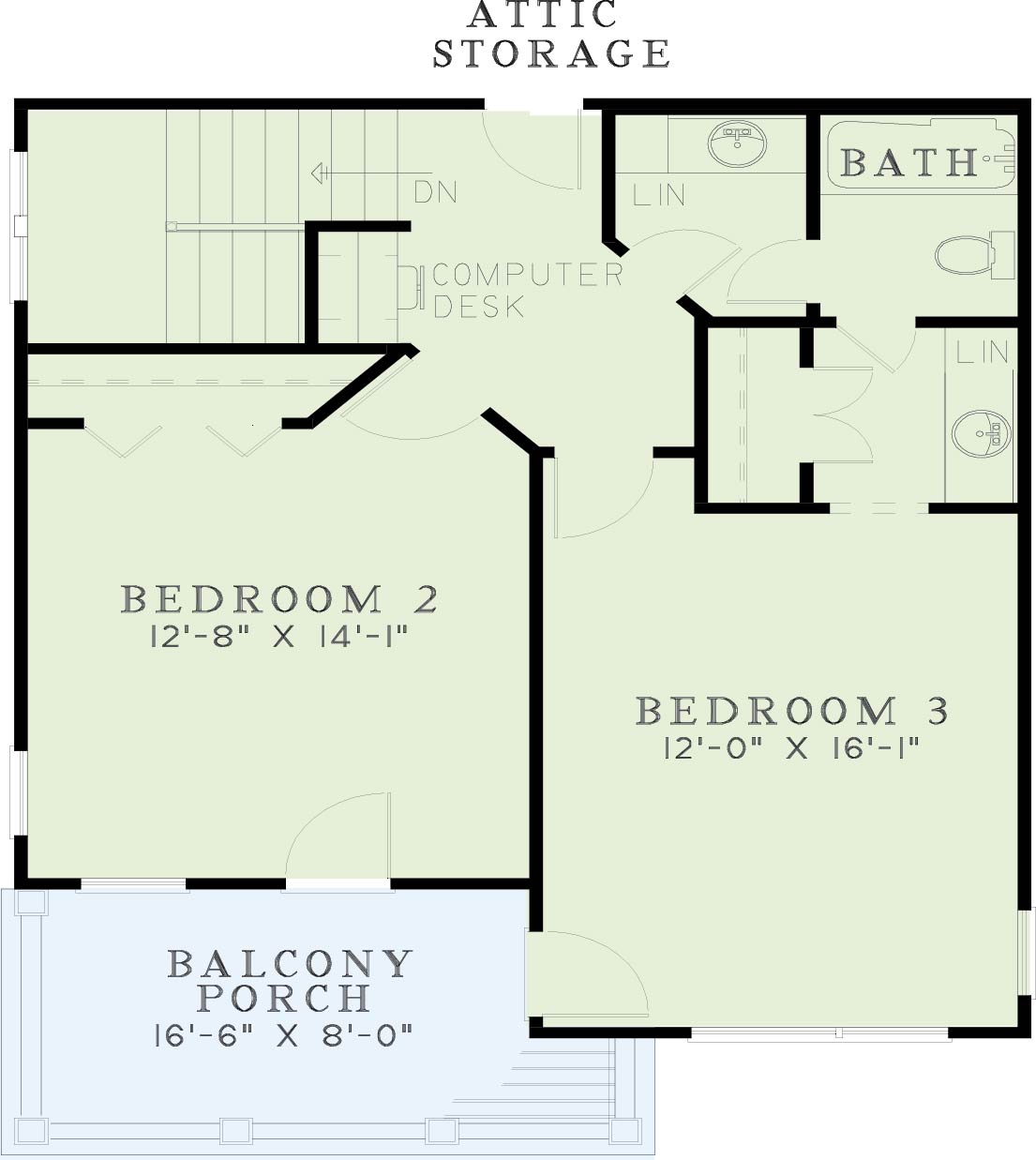

House Plan NDG 521 Upper Floor
House Plan NDG 521 Main Floor
House Plan NDG 521 Upper Floor

Floor plans

NDG 521

House Plan 521 Windstone Place, Village at Windstone III House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 521
  • Total Living Space:1922Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 36
  • Width In.: 4
  • Depth Ft.: 64
  • Depth In.: 10

Description

History repeats itself in this design. This Traditional Neighborhood Design is perfect for a narrow lot and is packed with amenities. A covered porch with a balcony above and grilling porch on the side is wonderful for afternoon relaxation. The Great room has a corner fireplace and opens to a column enhanced dining room. The kitchen is efficiently arranged and adjoins a roomy breakfast room. French doors lead you into the Master Bedroom Suite where privacy awaits. The master bathroom is loaded with a whirlpool tub, glass shower, and double lavatories. This split bedroom plan has a full bathroom and two additional bedrooms that both access the balcony. A computer desk is centrally located above the stairs.

Specifications

  • Total Living Space:1922Sq.Ft.
  • Main Floor: 1298 Sq.Ft
  • Upper Floor (Sq.Ft.): 624 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 353 Sq.Ft.
  • Garage (Sq.Ft.): 431 Sq.Ft.
  • Total Square Feet: 2706 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 9:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
