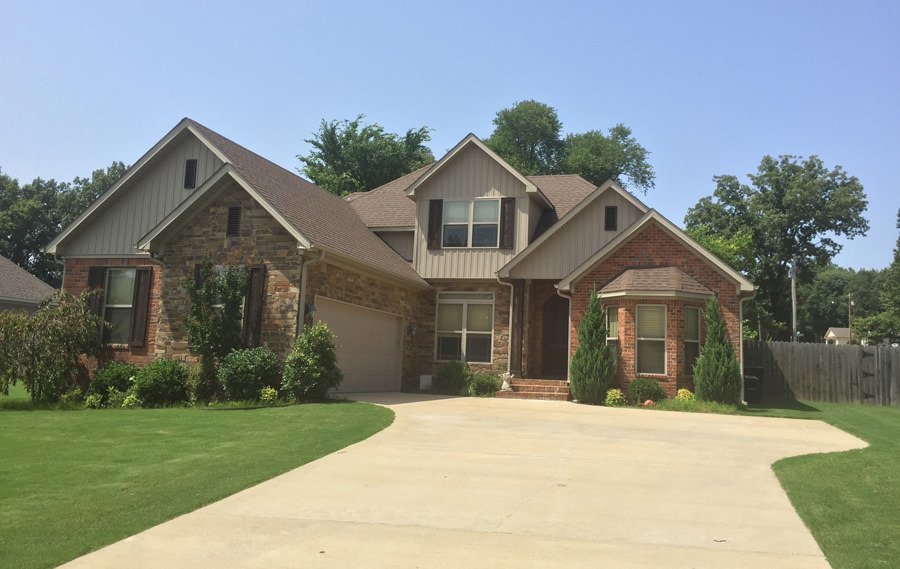

House Plan - NDG520 Front Exterior Web Front View

Floor plans

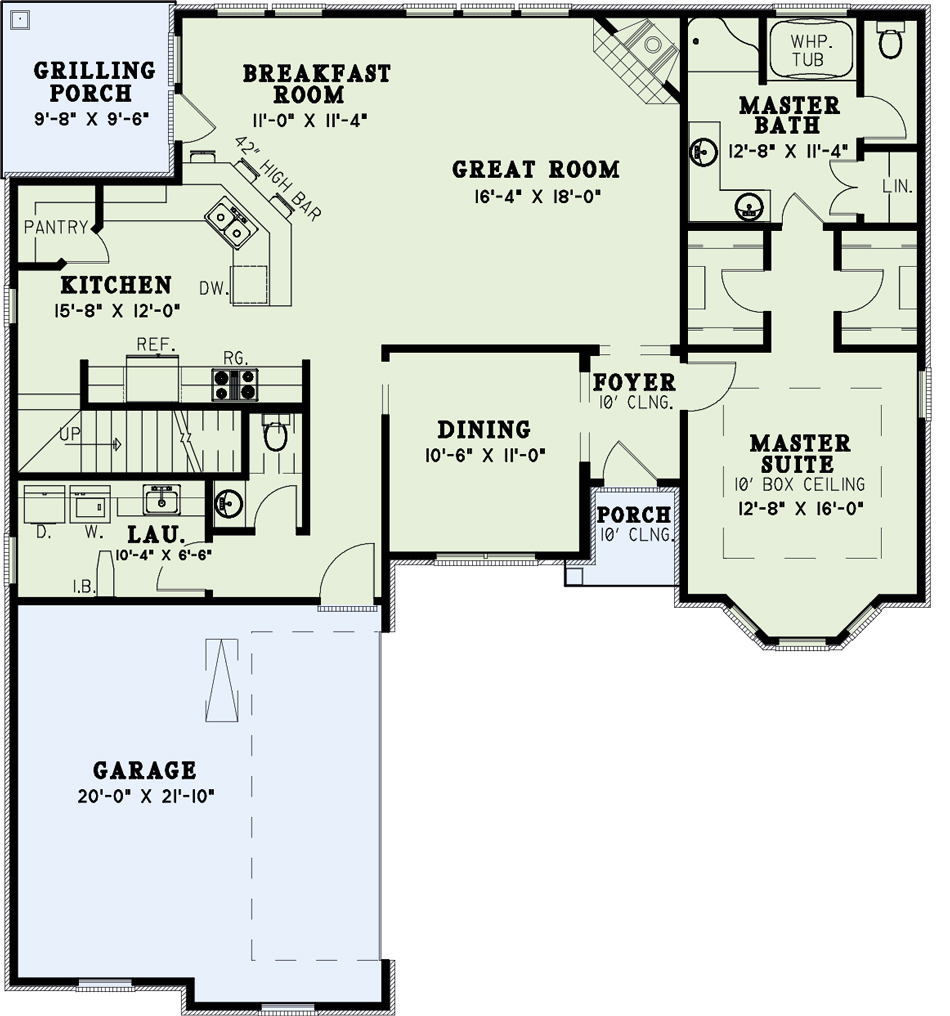

House Plan NDG 520 Main Floor

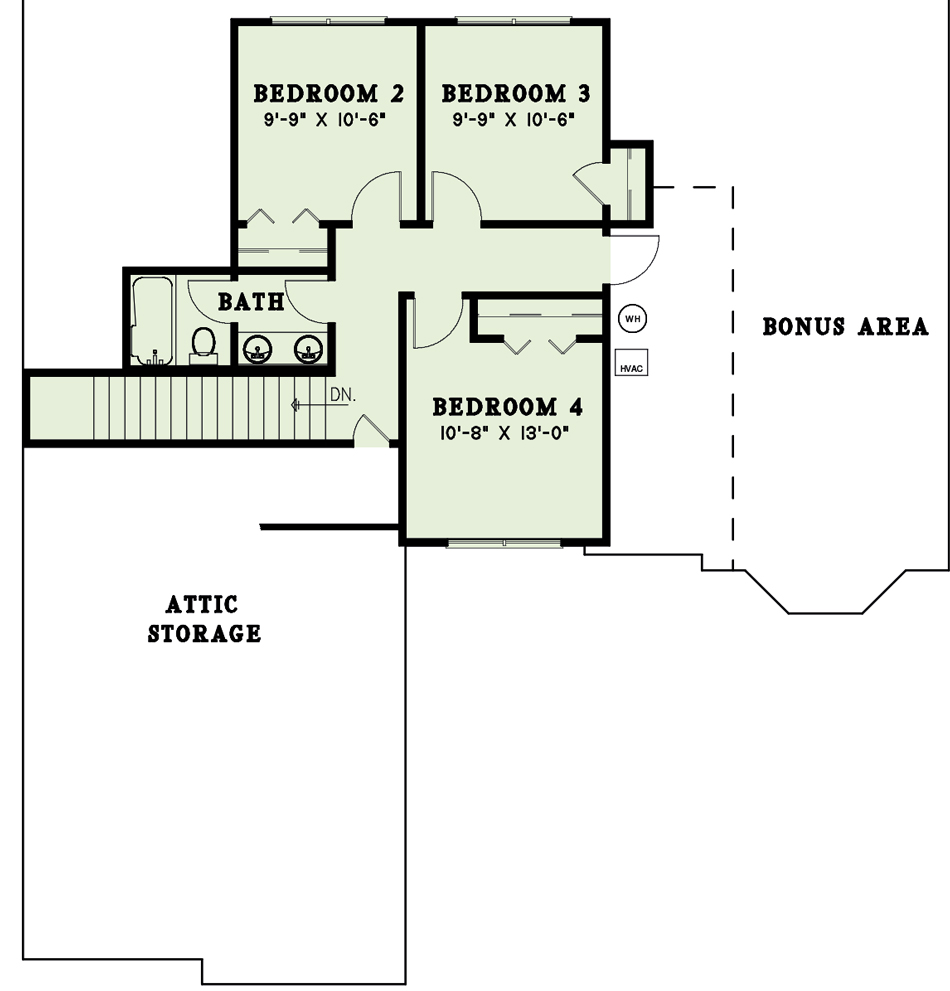

House Plan NDG 520 Upper Floor
NDG 520

House Plan 520 Fontenay Drive, Renaissance House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 520
  • Total Living Space:2041 Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 50
  • Width In.: N/A
  • Depth Ft.: 54
  • Depth In.: 8

Description

This home has a ten-foot ceiling in the entry foyer that leads into a massive great room. The adjoining kitchen accesses the breakfast room and grilling porch and has a bar area for extra seating. The main level master suite has a ten-foot ceiling, two large closets which lead to a private bath- full of amenities. Upstairs you’ll find three bedrooms and full bath with optional bonus area.

Specifications

  • Total Living Space:2041 Sq.Ft.
  • Main Floor: 1495 Sq.Ft
  • Upper Floor (Sq.Ft.): 546 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 157 Sq.Ft.
  • Garage (Sq.Ft.): 419 Sq.Ft.
  • Total Square Feet: 2617 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
