House Plan 517 Belmont Avenue, French Traditional House Plan

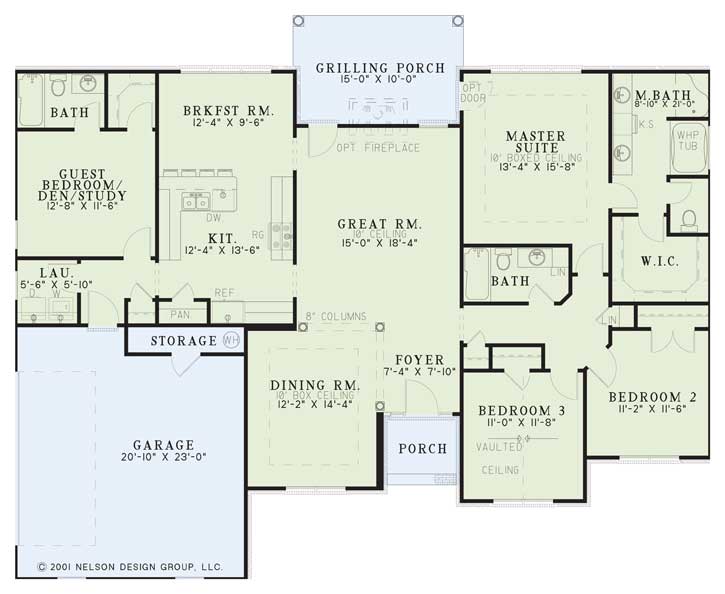

Floor plans
NDG 517
House Plan 517 Belmont Avenue, French Traditional House Plan
Plan Details
- Plan Number: NDG 517
- Total Living Space:2022Sq.Ft.
- Bedrooms: 4
- Full Baths: 3
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 64
- Width In.: 2
- Depth Ft.: 52
- Depth In.: N/A
Description
This impressive home offers you two different exterior finishes. Full brick or siding will enable you to determine the overall style you want. High ceilings and a rear-grilling porch will be focal points when entertaining. The master suite has a ten foot boxed ceiling and lovely private bathroom with a whirlpool tub and large walk-in closet. If a study or home office is desired, consider the fourth bedroom, which is conveniently located next to the kitchen and breakfast room.
Specifications
- Total Living Space:2022Sq.Ft.
- Main Floor: 2022 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 191 Sq.Ft.
- Garage (Sq.Ft.): 497 Sq.Ft.
- Total Square Feet: 2710 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 8:12
- Porch Roof Pitch: 8:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 23
- Ridge Height (In.): 2
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
