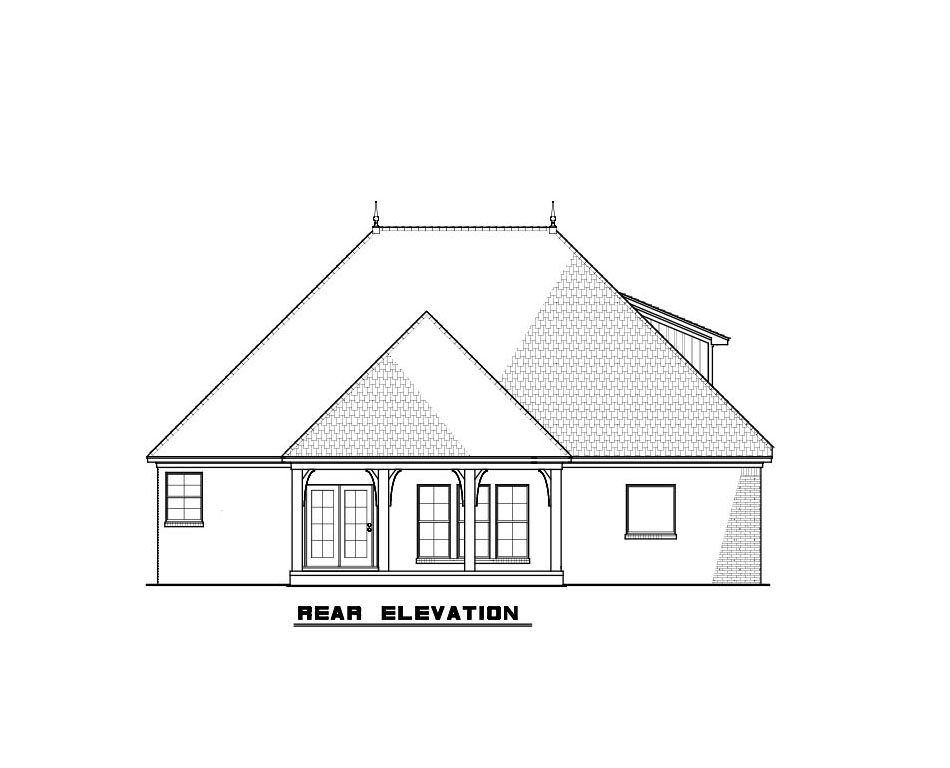

House Plan MEN 5148 Rear Exterior
House Plan MEN 5148 Bedroom 2
House Plan MEN 5148 Bedroom 3
House Plan MEN 5148 Hall Bathroom
House Plan MEN 5148 Laundry
House Plan MEN 5148 Master Suite
House Plan MEN 5148 Master Bathroom
House Plan MEN 5148 Master Bathroom
House Plan MEN 5148 Bonus Room
House Plan MEN 5148 Upstairs Bathroom
House Plan MEN 5148 Main Floor
House Plan MEN 5148 Upper Floor/Bonus Room
House Plan MEN 5148 Front Exterior
House Plan MEN 5148 Front Exterior
House Plan MEN 5148 Foyer
House Plan MEN 5148 Great Room
House Plan MEN 5148 Kitchen
House Plan MEN 5148 Rear Exterior
House Plan MEN 5148 Bedroom 2
House Plan MEN 5148 Bedroom 3
House Plan MEN 5148 Hall Bathroom
House Plan MEN 5148 Laundry
House Plan MEN 5148 Master Suite
House Plan MEN 5148 Master Bathroom
House Plan MEN 5148 Master Bathroom
House Plan MEN 5148 Bonus Room
House Plan MEN 5148 Upstairs Bathroom

Floor plans

MEN 5148

House Plan 5148 Aberdeen Place, Craftsman Bungalow House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: MEN 5148
  • Total Living Space:1786Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 49
  • Width In.: 4
  • Depth Ft.: 64
  • Depth In.: 4

Description

This simple yet elegant house plan gives you wonderful curb appeal while still keeping your overall square footage under 1,800SqFt. The foyer leads you to the large great room that flows into the dining room and kitchen allowing for the perfect space to entertain friends and family. This kitchen features an abundance of cabinet and counter space along with an eat at island. The split bedroom design of this home allows privacy for the master suite from the two spacious kids/guest rooms. No amenity was left out in the master bath which features 2 walk-in closets, private toilet room, double vanity, free standing tub and separate shower. Need another bedroom or extra living space? Finish out the optional bonus room above the garage which features an optional full bath and closet.


***Photos depict a large single garage door. House Plan calls for two single garage doors.

Specifications

  • Total Living Space:1786Sq.Ft.
  • Main Floor: 1786 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 371 Sq.Ft.
  • Porch (Sq.Ft.): 215 Sq.Ft.
  • Garage (Sq.Ft.): 627 Sq.Ft.
  • Total Square Feet: 2999 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: N/A
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
