House Plan 511 Magnolia Drive, Heritage House Plan
Floor plans
NDG 511
House Plan 511 Magnolia Drive, Heritage House Plan
PDF: $1,000.00
Plan Details
- Plan Number: NDG 511
- Total Living Space:2360Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Garage: 2 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 56
- Width In.: 8
- Depth Ft.: 57
- Depth In.: 4
Description

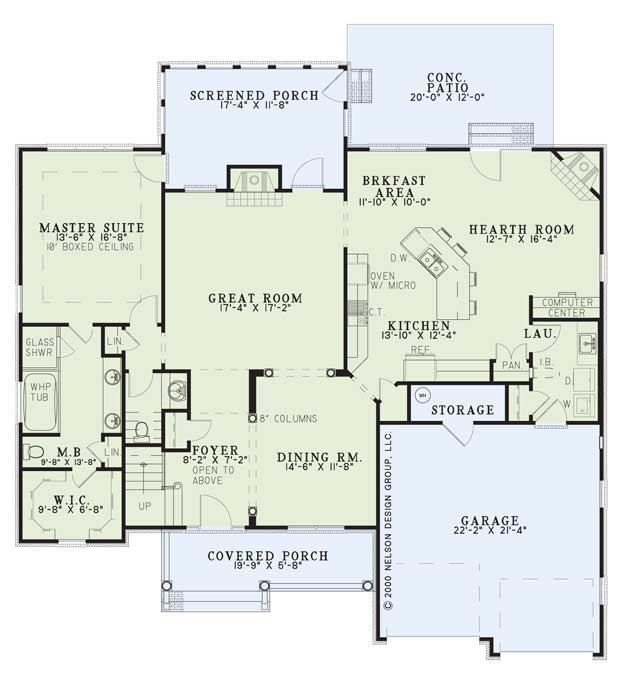

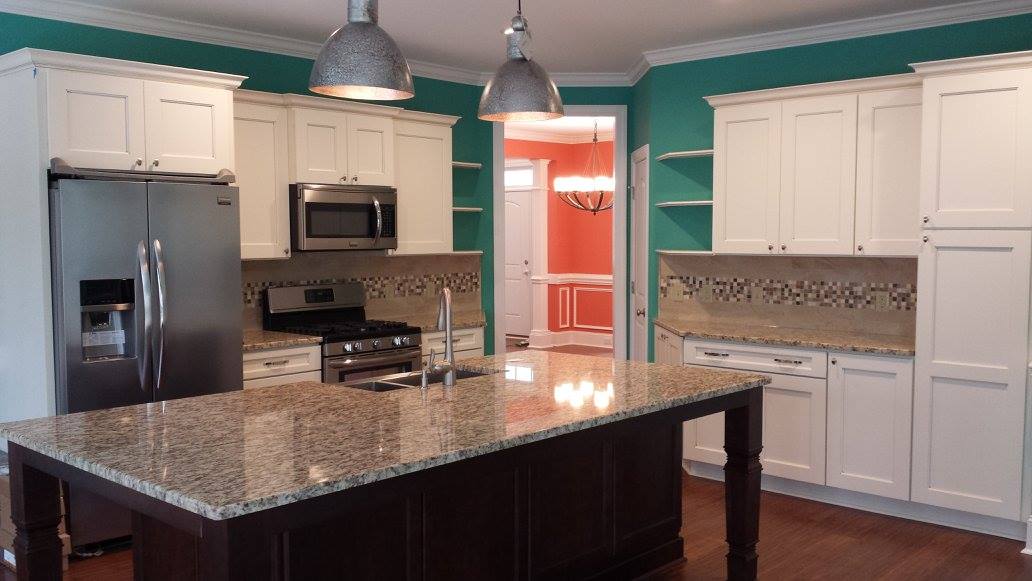

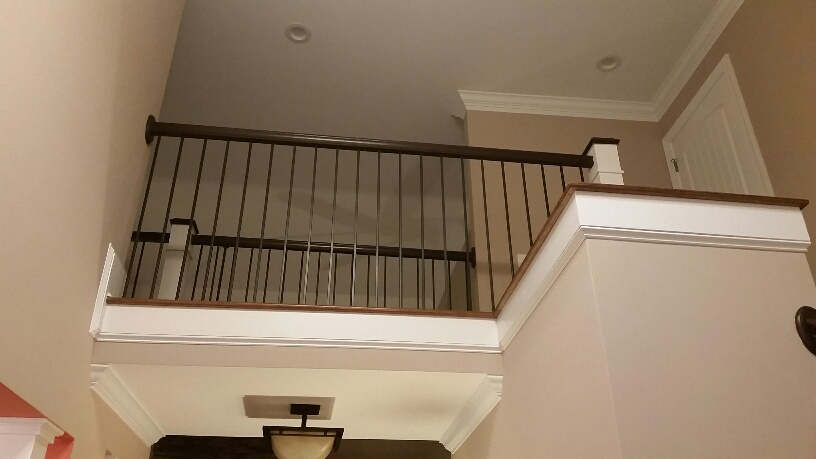

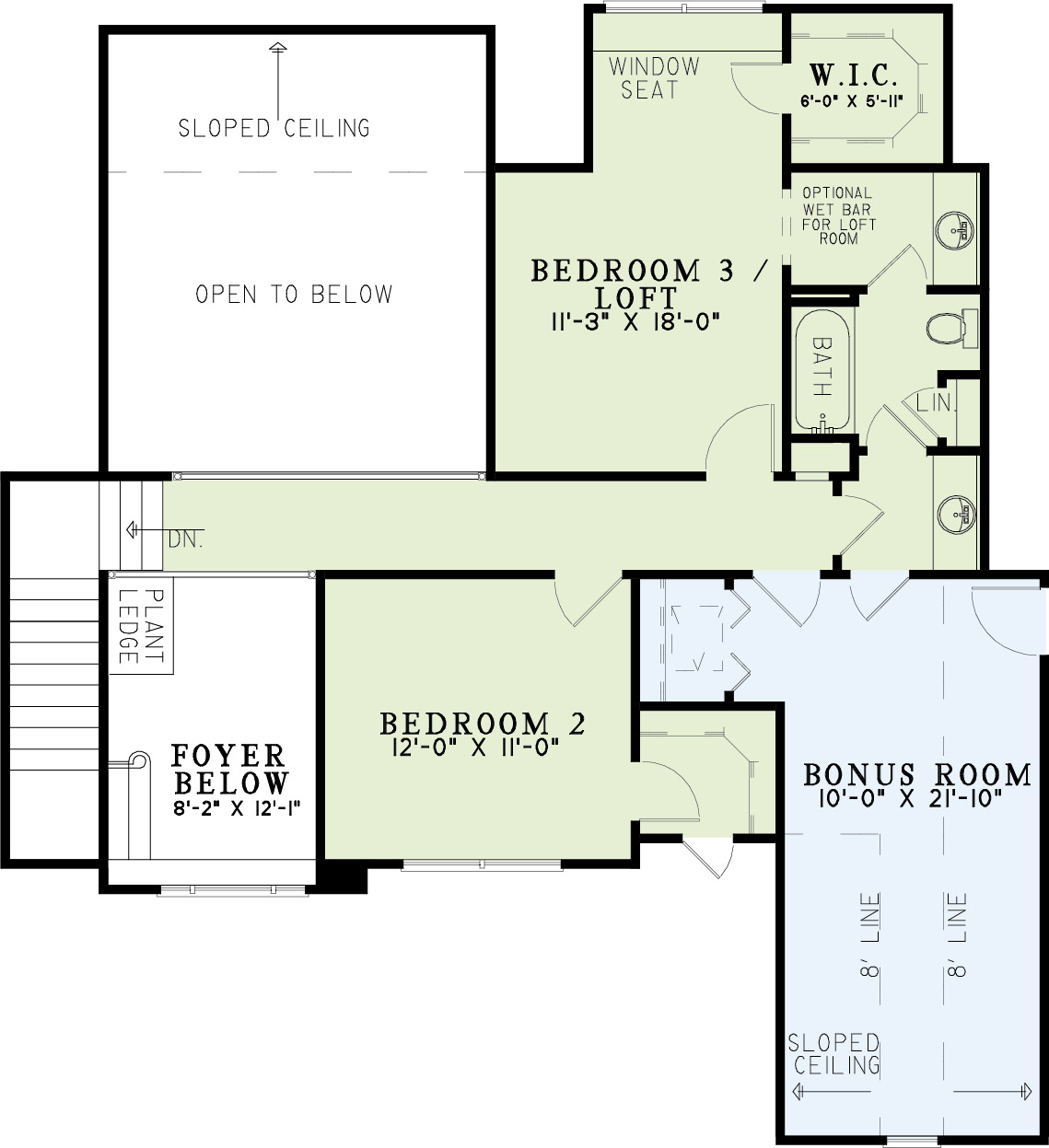

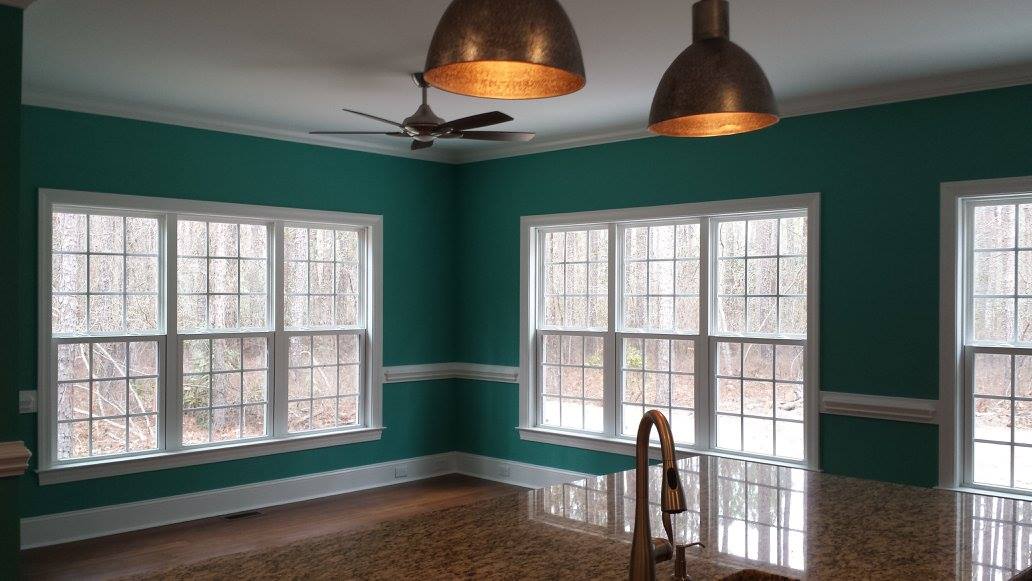

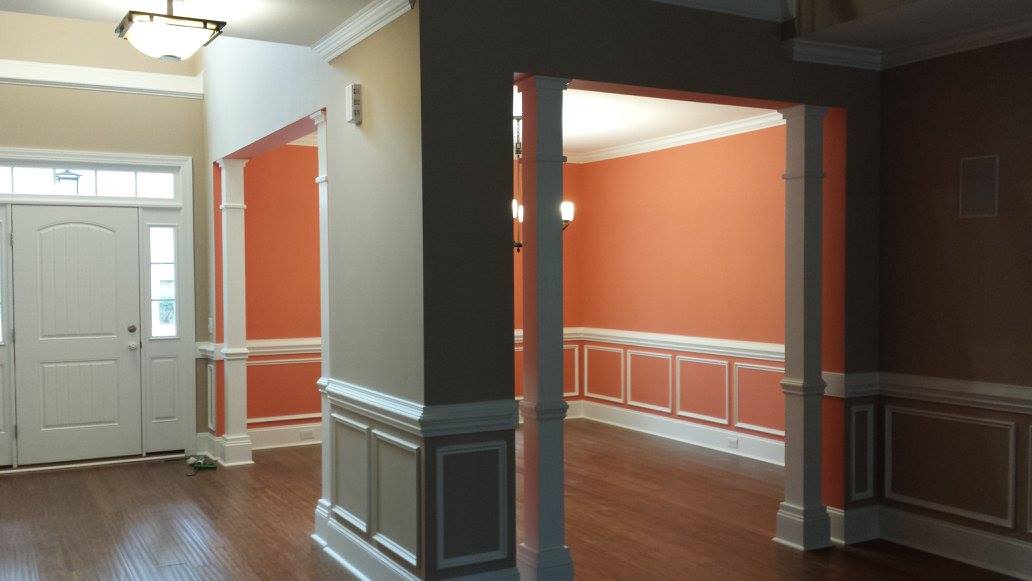

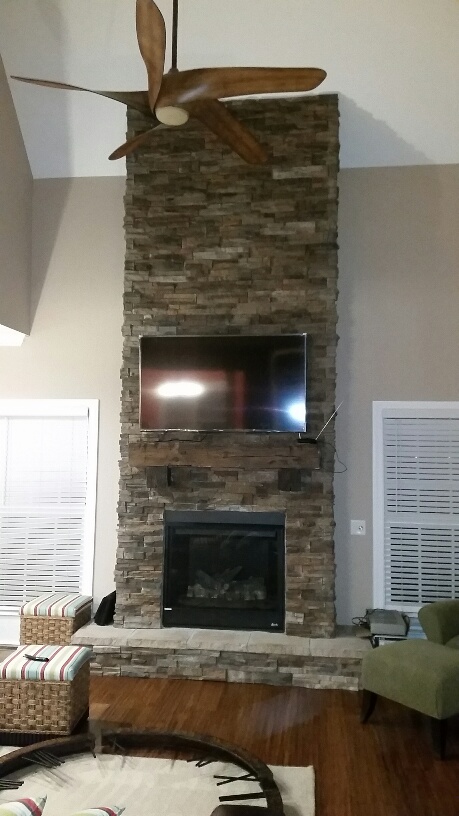

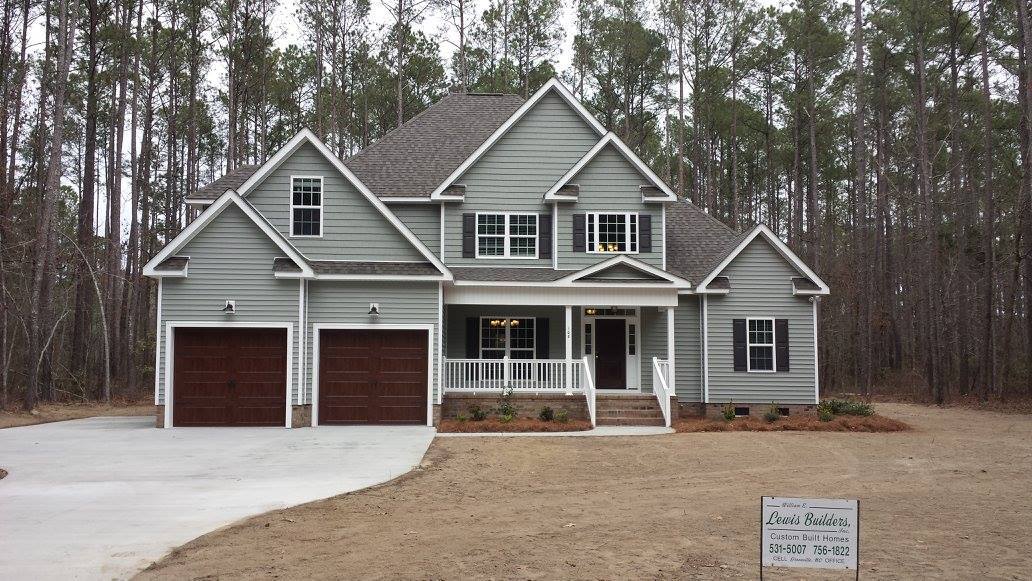

Neighbors will surely envy the elegant exterior of this charming home with its welcoming porch and gabled-roof line. Inside, the two-story foyer blends wonderfully with the column-accented formal dining room and opens into the vast great room anchored by a stately fireplace. Enjoy casual meals by the fireplace as the hearth room flows barrier-free into the breakfast area and kitchen. Upstairs the loft bedroom steals the show with its extra-wide window seat, walk-in closet and private entrance to the upstairs bath.
Specifications
- Total Living Space:2360Sq.Ft.
- Main Floor: 1776 Sq.Ft
- Upper Floor (Sq.Ft.): 584 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): 262 Sq.Ft.
- Porch (Sq.Ft.): 347 Sq.Ft.
- Garage (Sq.Ft.): 485 Sq.Ft.
- Total Square Feet: 3454 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 12:12
- Porch Roof Pitch: 6:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 32
- Ridge Height (In.): 8
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
Customize This Plan
Need to make changes? We will get you a free price quote!
Modify This Plan
