House Plan 5092 River Front Retreat, Rustic House Plan

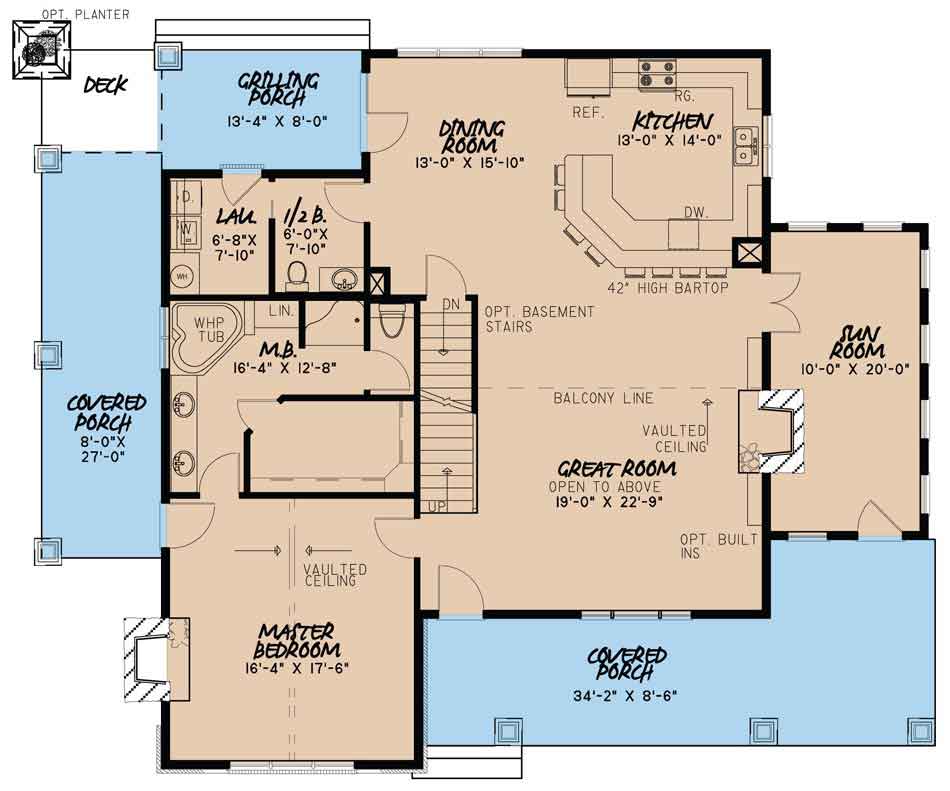

House Plan MEN 5092 Main Floor

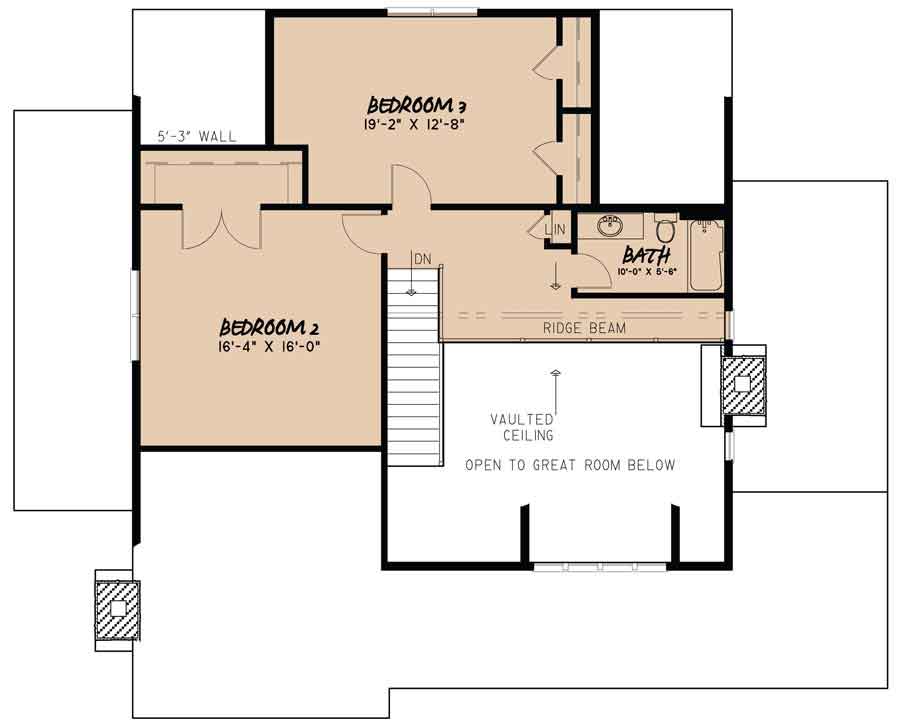

House Plan MEN 5092 Upper Floor
House Plan MEN 5092 Main Floor
House Plan MEN 5092 Upper Floor

Floor plans

MEN 5092

House Plan 5092 River Front Retreat, Rustic House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: MEN 5092
  • Total Living Space:2637Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 59
  • Width In.: N/A
  • Depth Ft.: 49
  • Depth In.: 4

Description

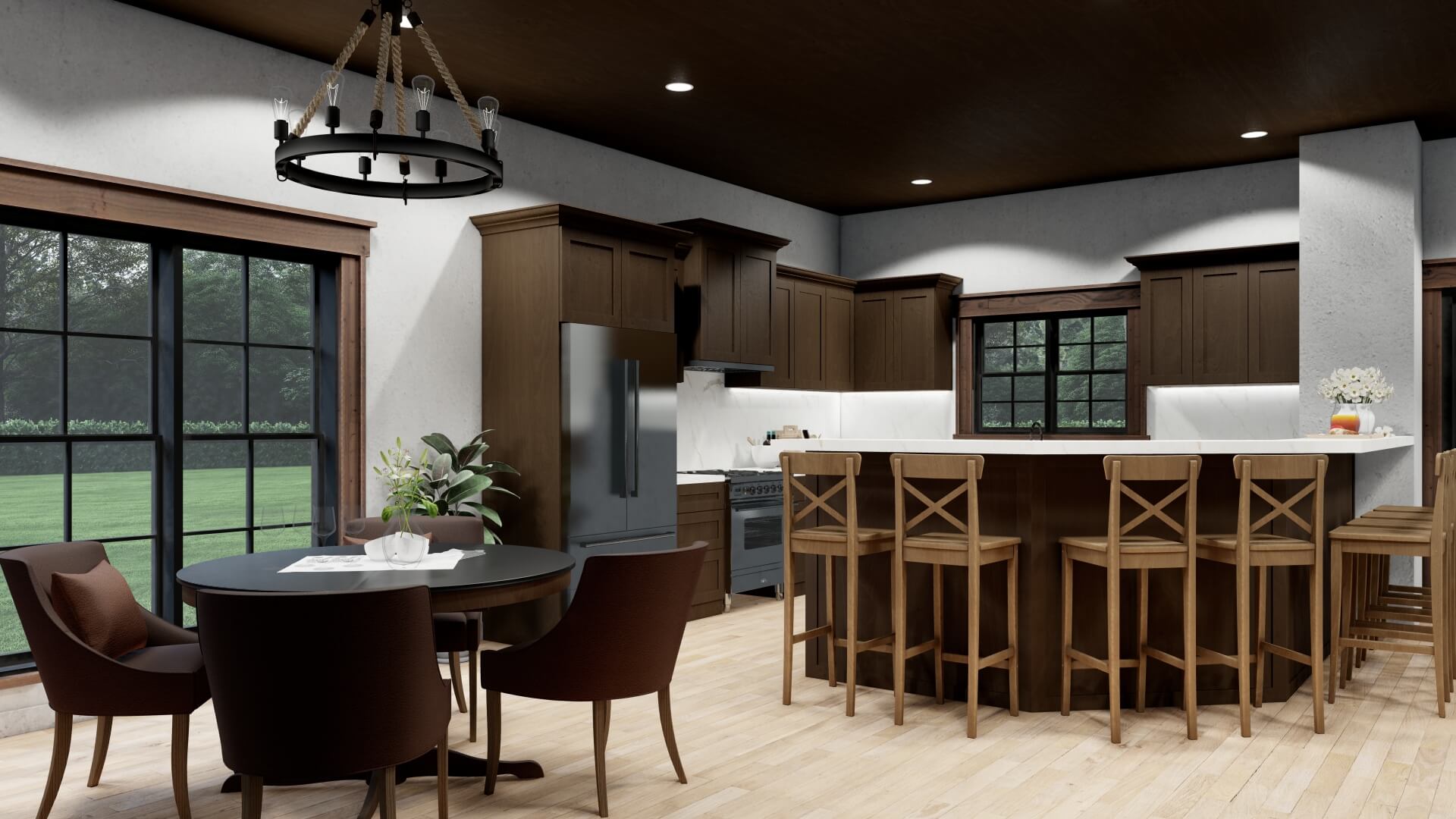

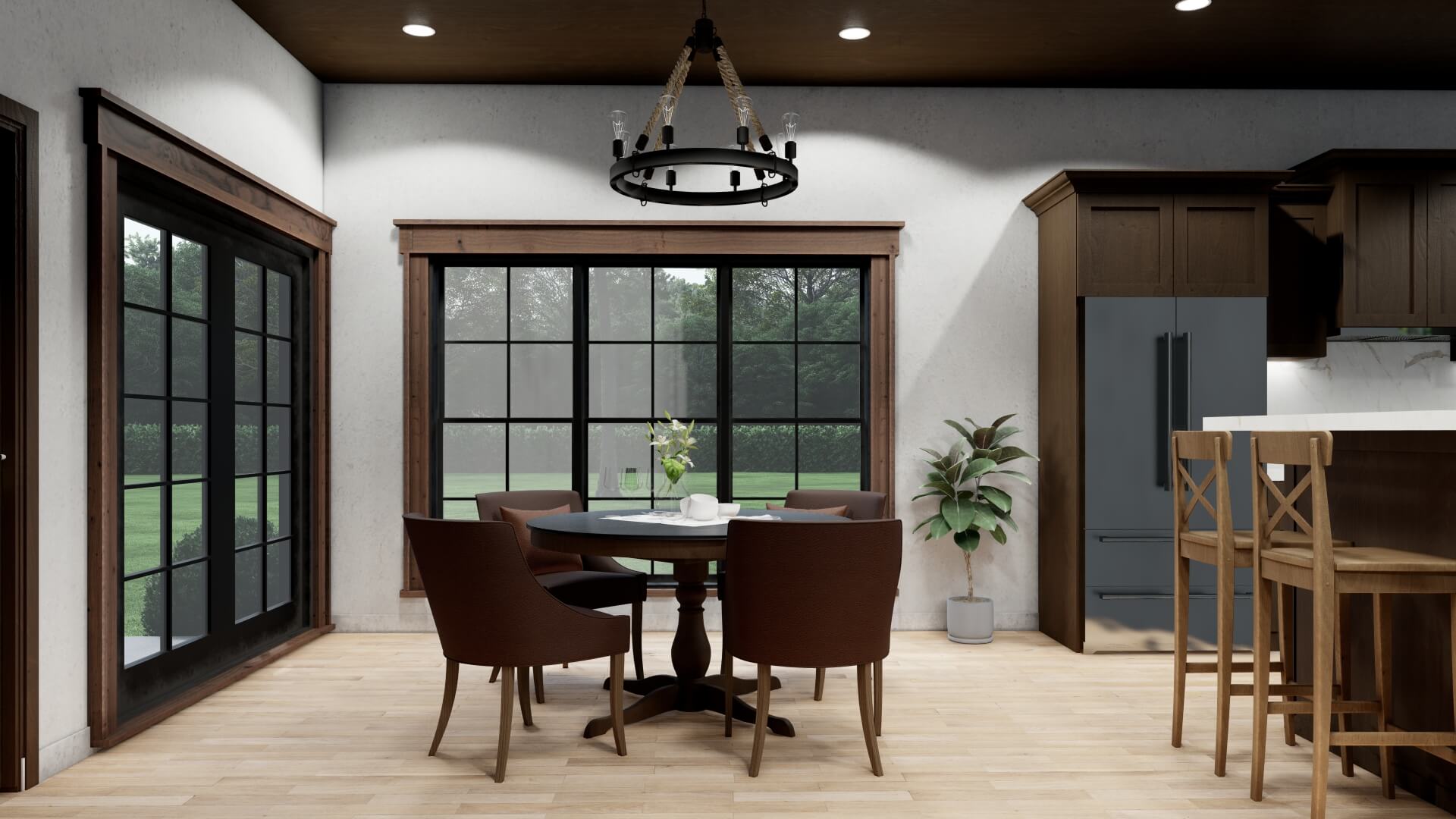

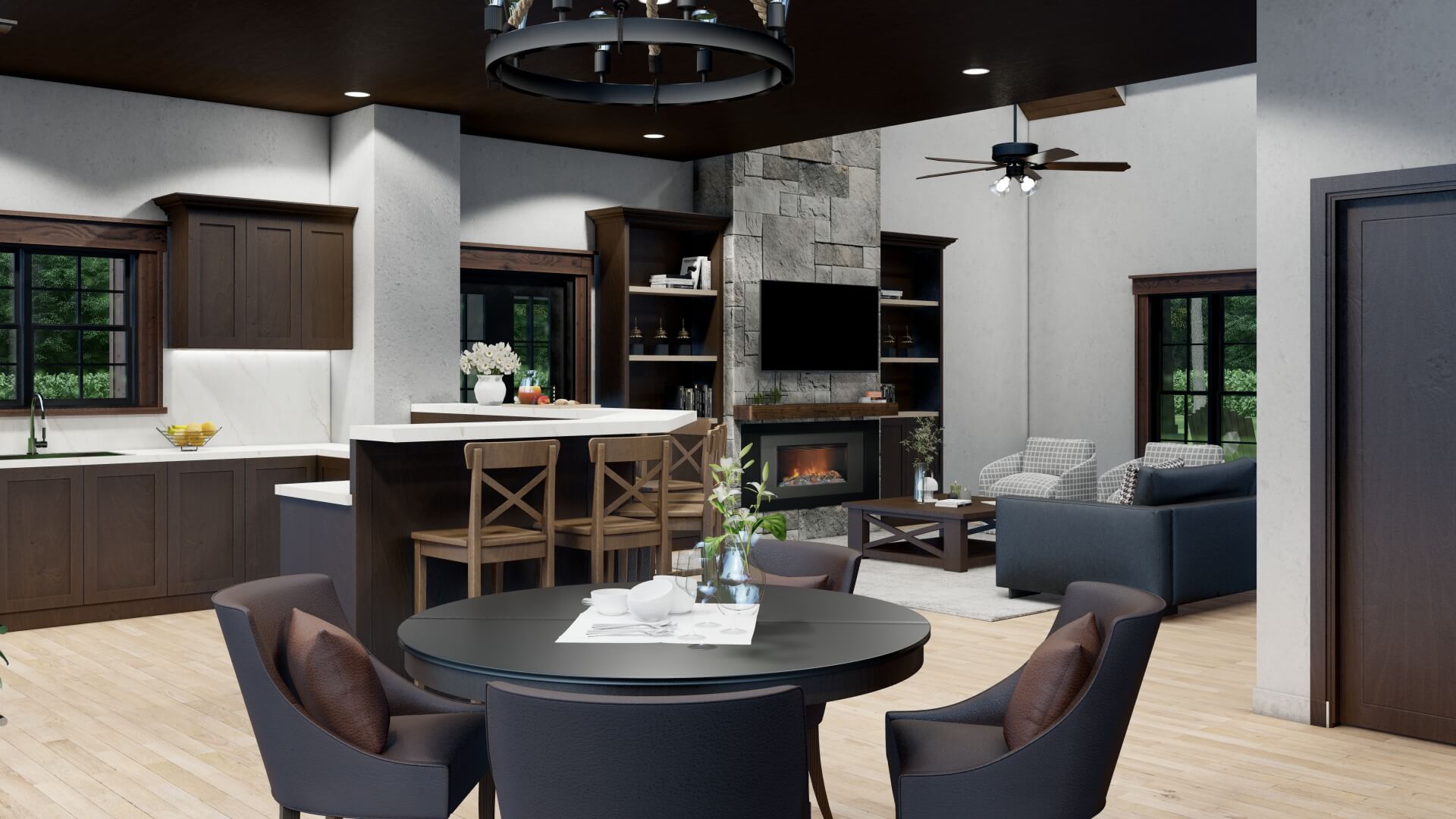

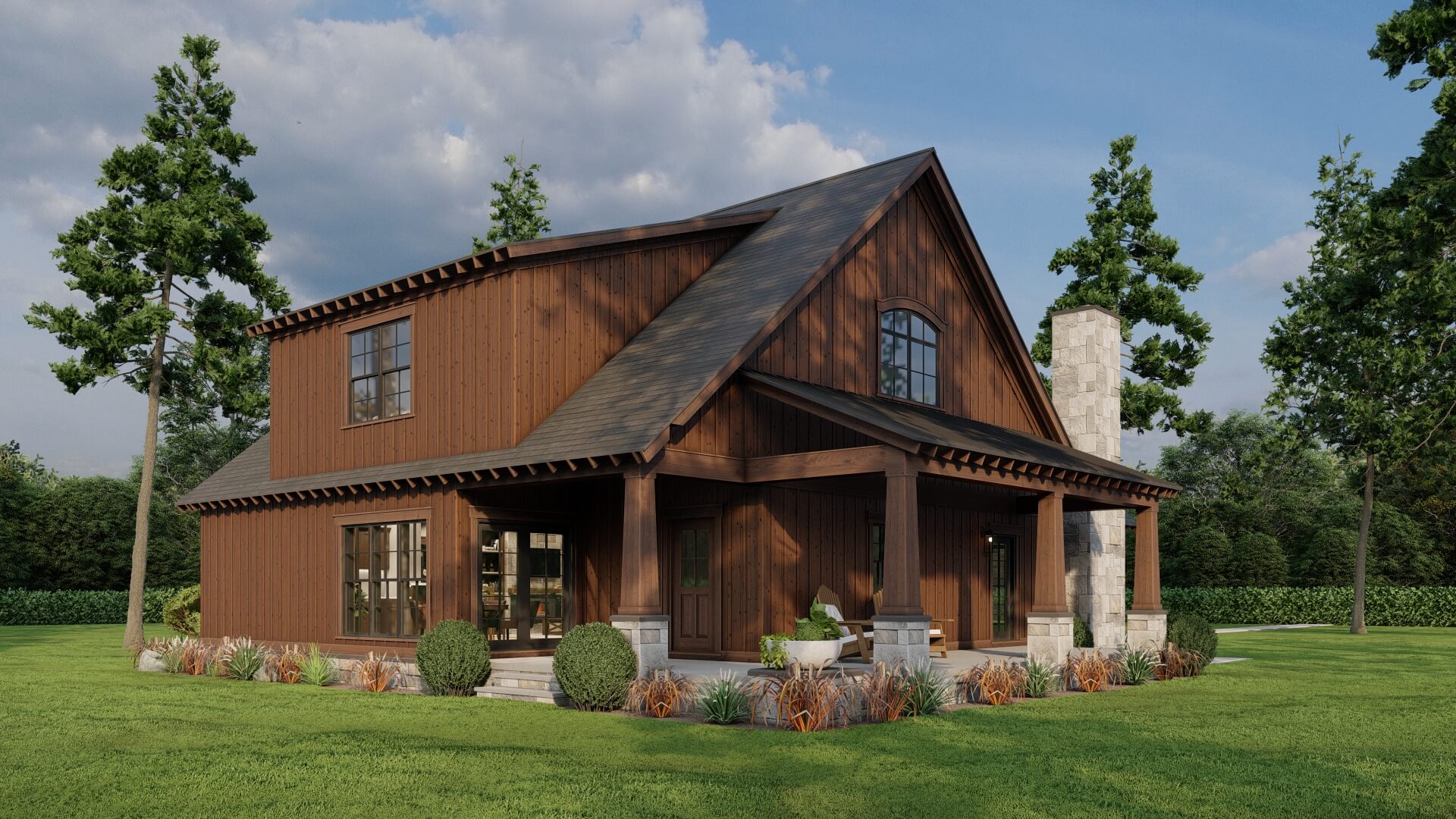

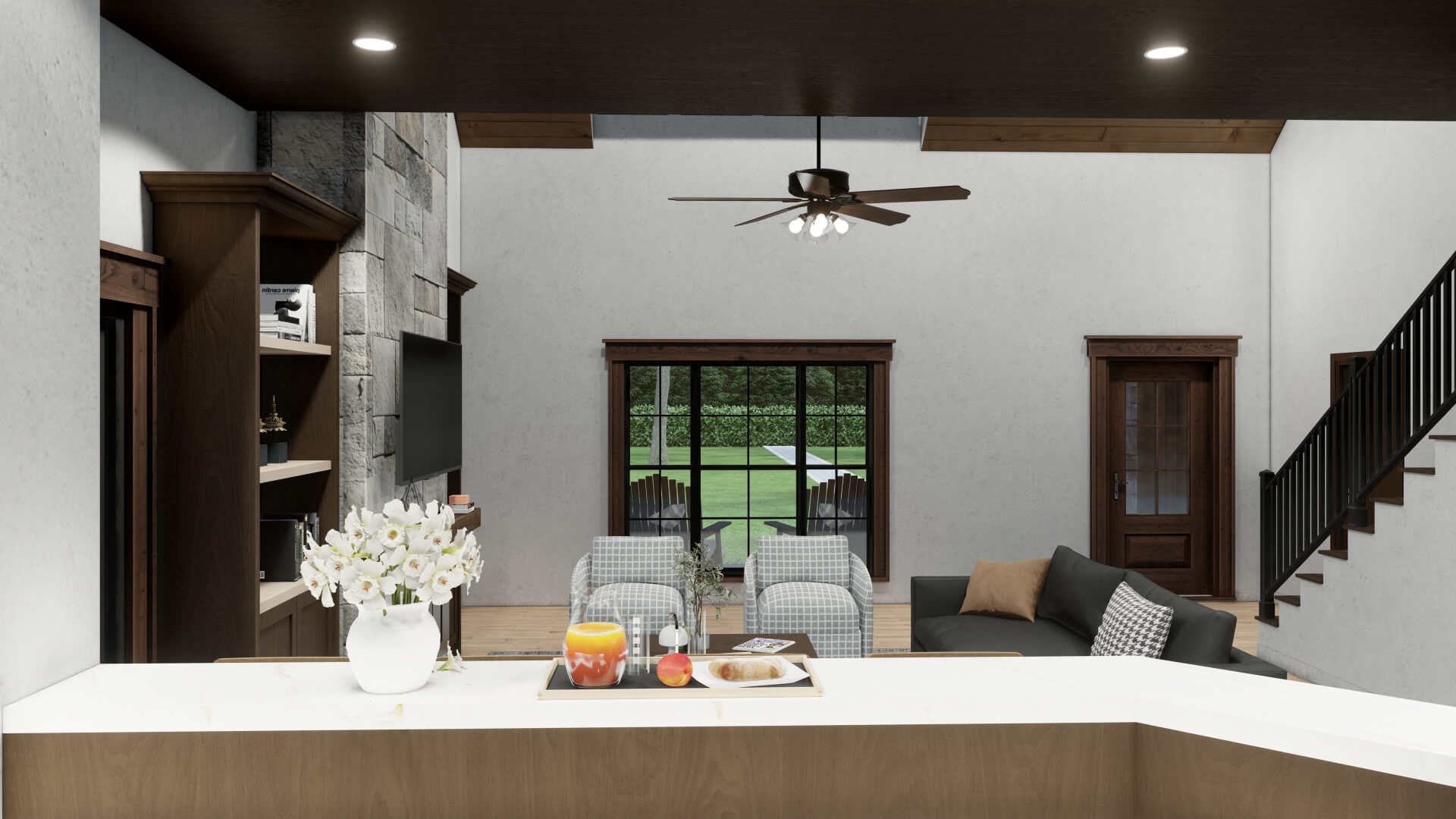

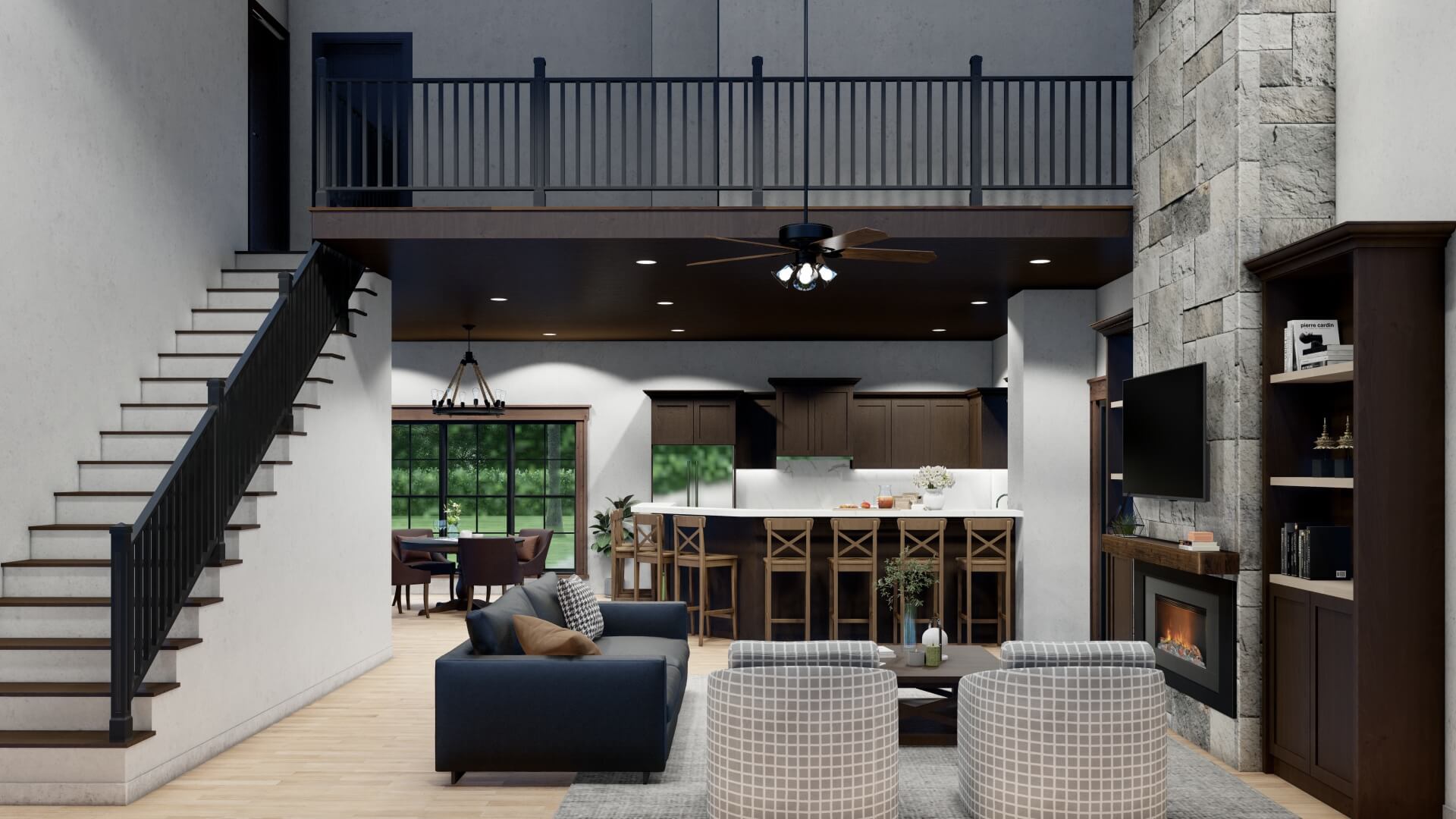

A large front porch with a tin roof accent will welcome you home each day in the charming rustic house plan. The open floor plan gives an abundance of space while allowing for conversations to flow from the Great Room into the Kitchen and Dining Room. The huge eat at high bar will be a hot spot for quick meals or just visiting with the cook. from the Great Room you can also access the Sun Room where you can spend your afternoons cuddled up with a blanket and a good book. The Master Suite boasts a vaulted ceiling and a bathroom complete with a whirlpool tub, separate shower, and a spacious walk-in closet. Upstairs you'll find Bedrooms 2 and 3 along with a full bath.

Specifications

  • Total Living Space:2637Sq.Ft.
  • Main Floor: 1819 Sq.Ft
  • Upper Floor (Sq.Ft.): 818 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 647 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 3284 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 7
  • Insulation Exterior: R19
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
