House Plan 5077 Kalie's Place, Traditional House Plan

House Plan MEN 5077 Main Floor
House Plan MEN 5077 Main Floor

Floor plans

MEN 5077

House Plan 5077 Kalie's Place, Traditional House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: MEN 5077
  • Total Living Space:1417Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 48
  • Width In.: 2
  • Depth Ft.: 52
  • Depth In.: 6

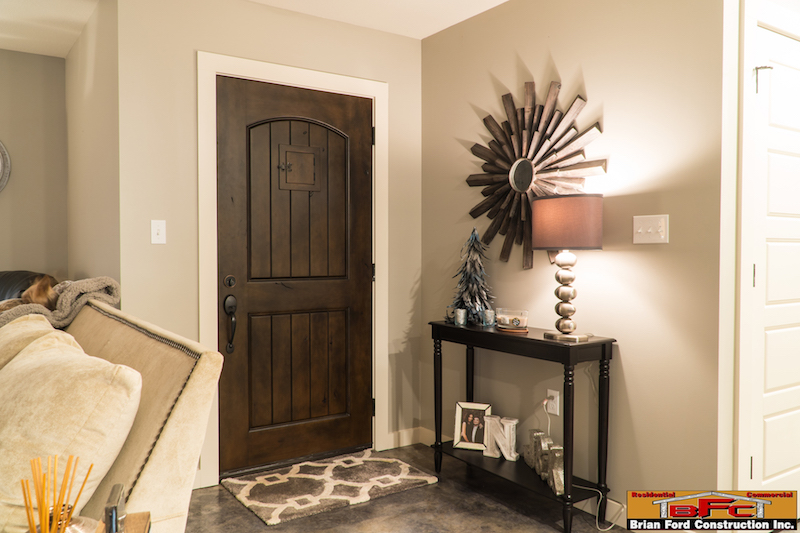

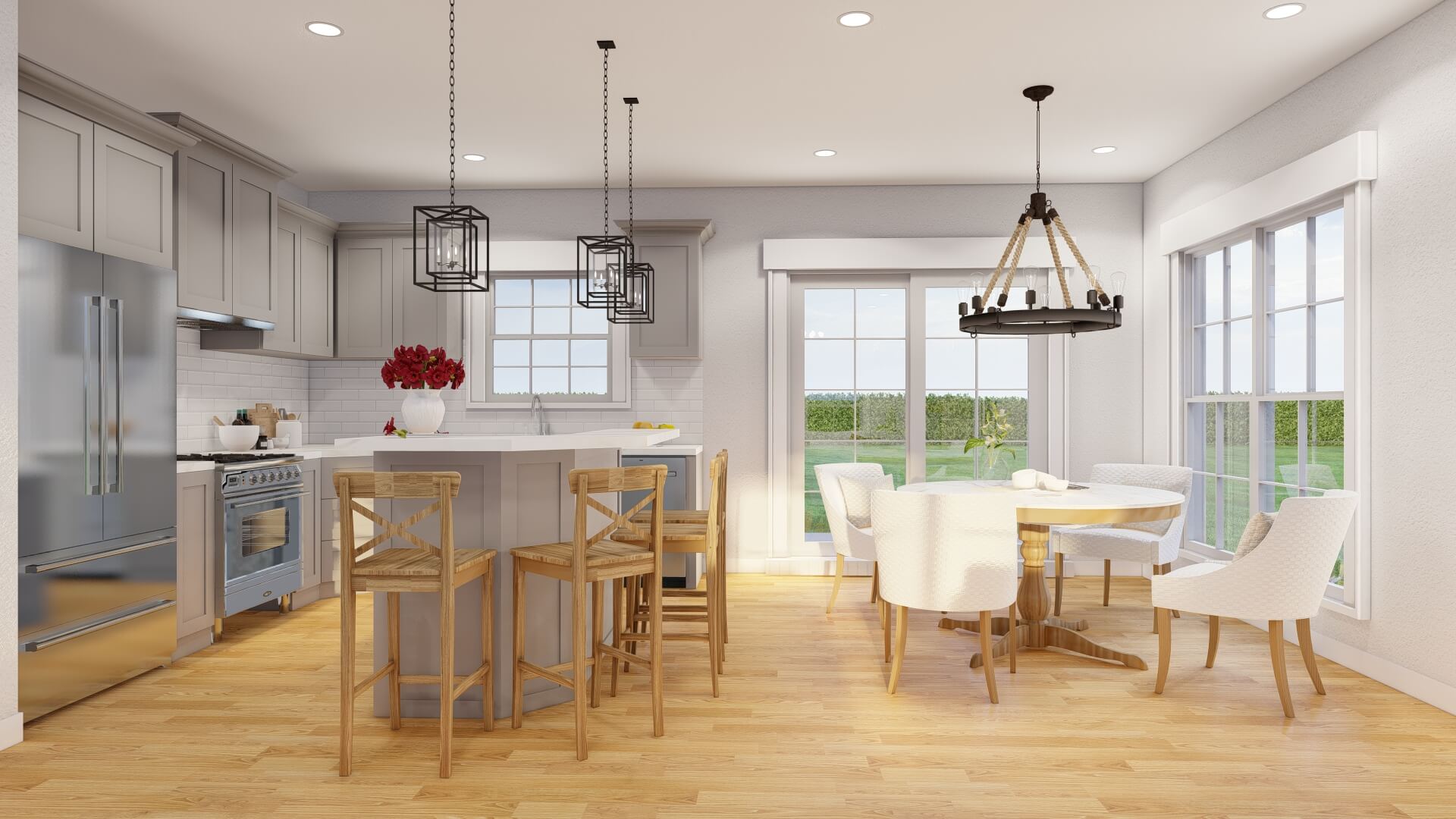

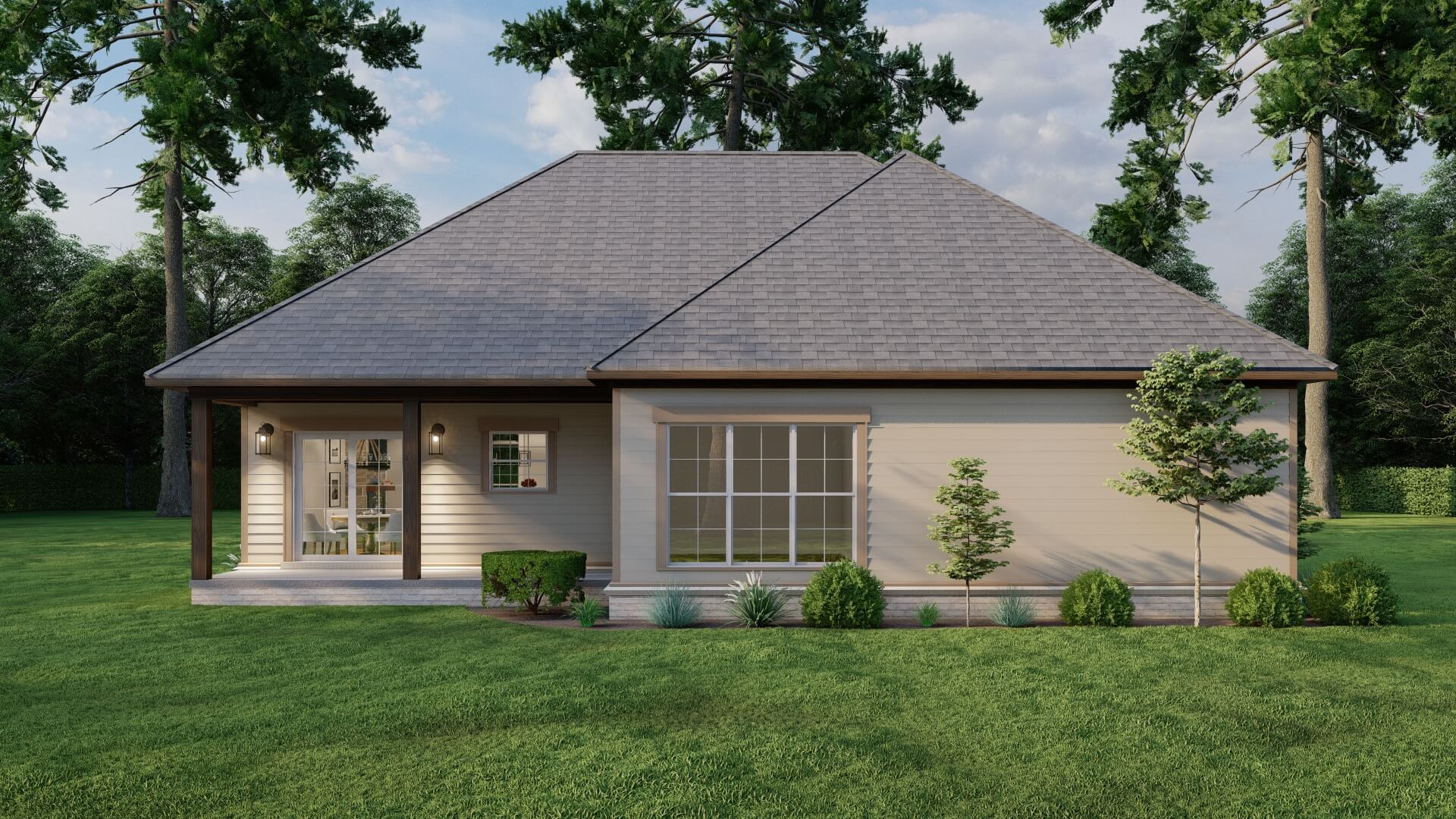

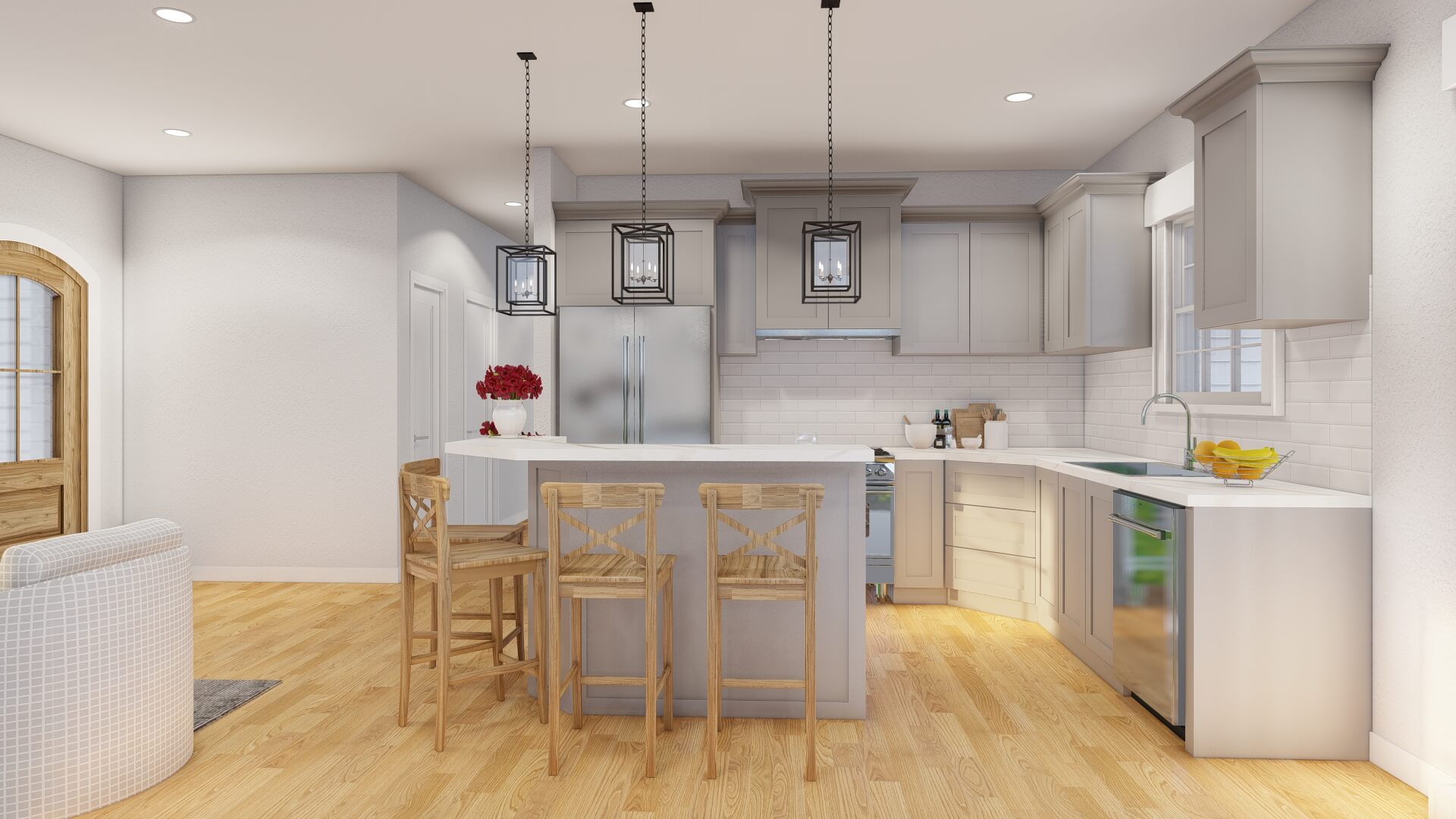

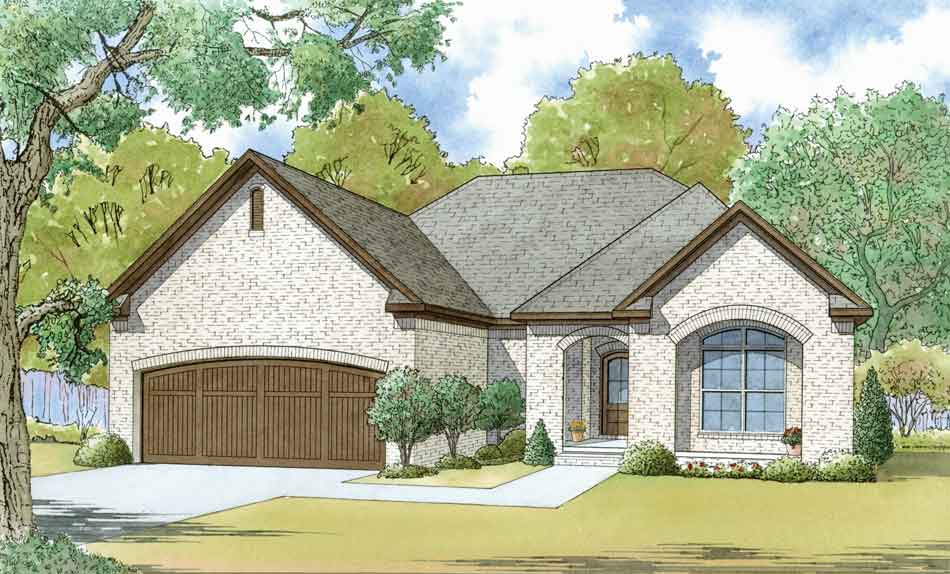

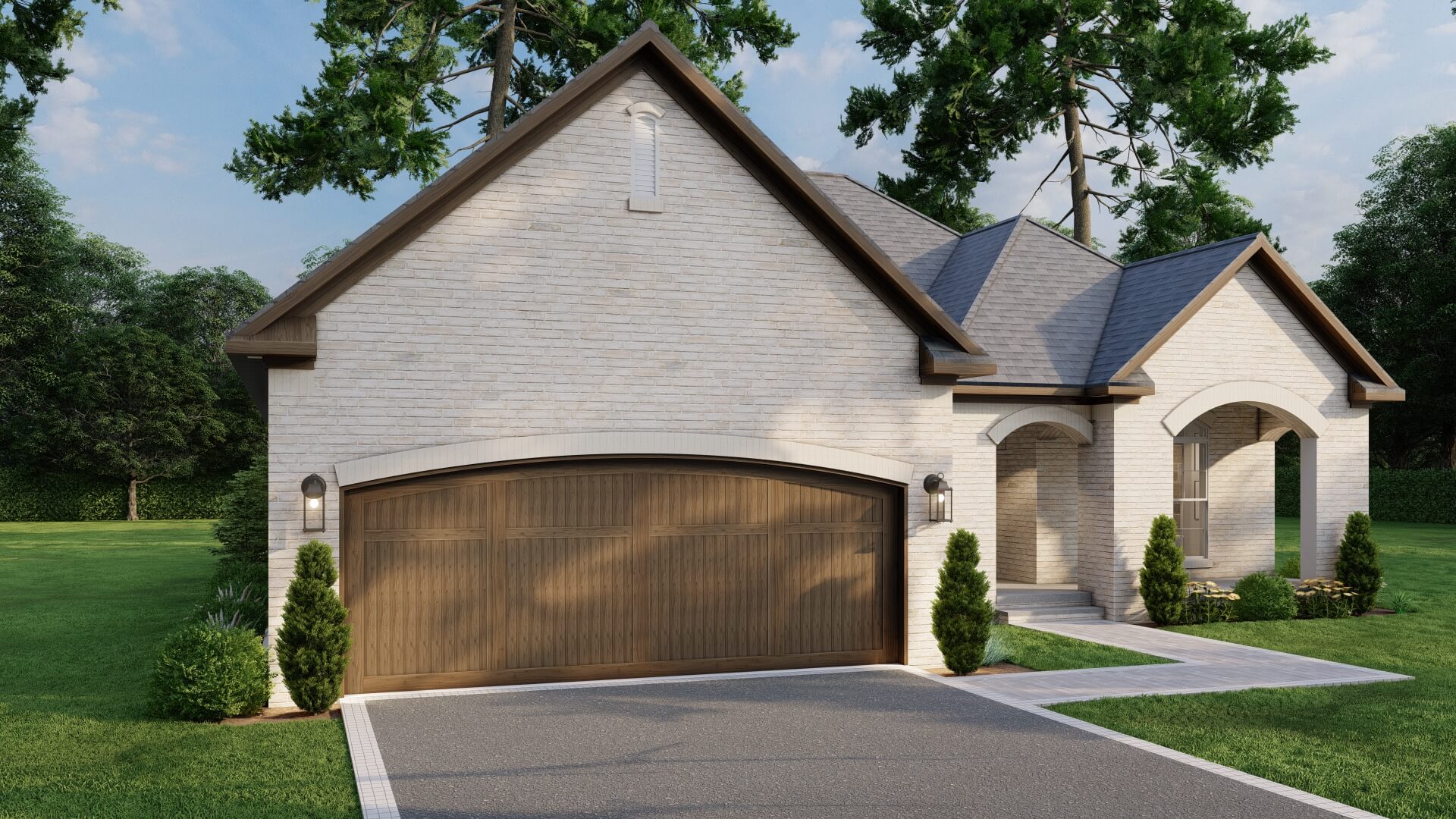

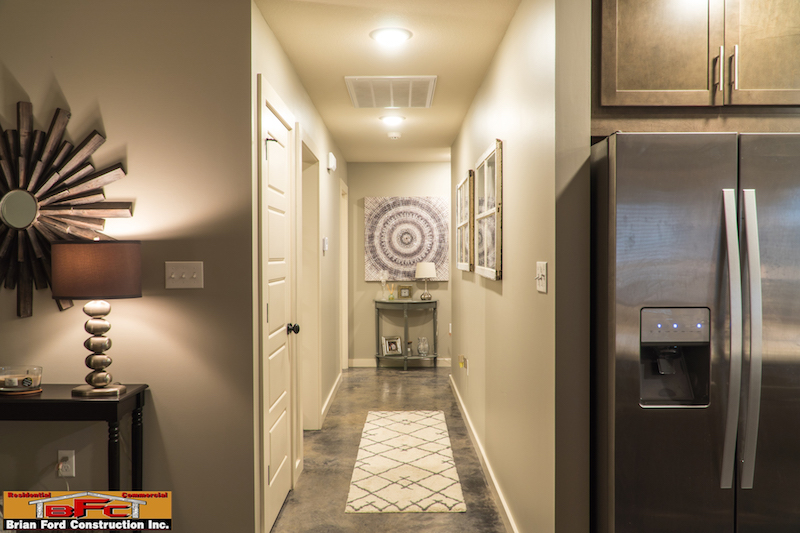

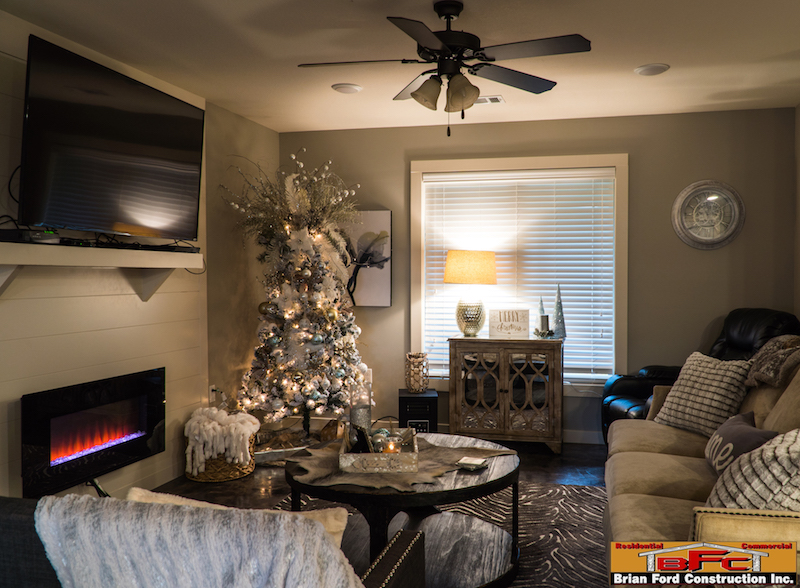

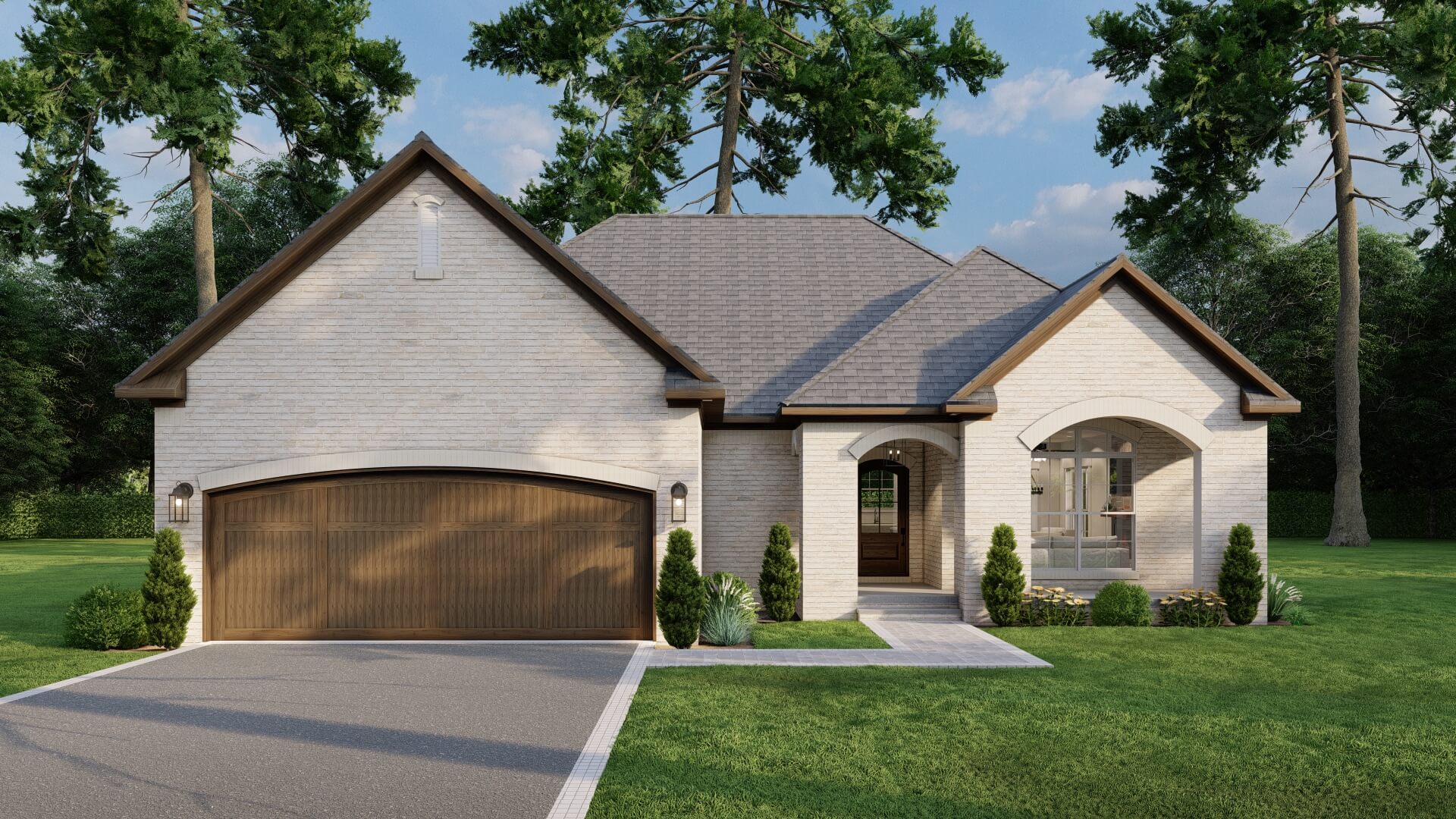

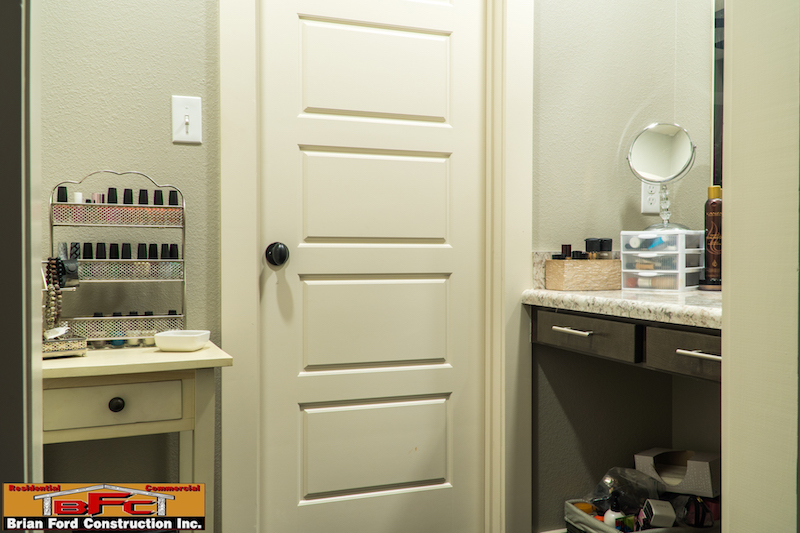

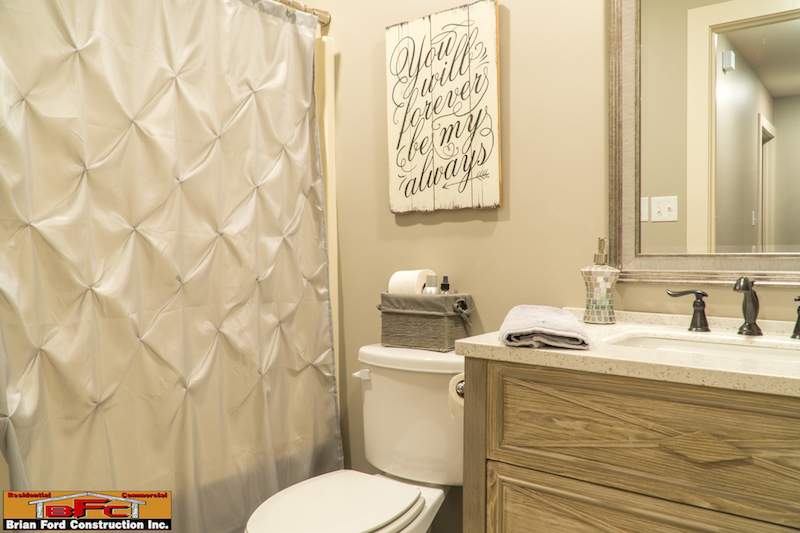

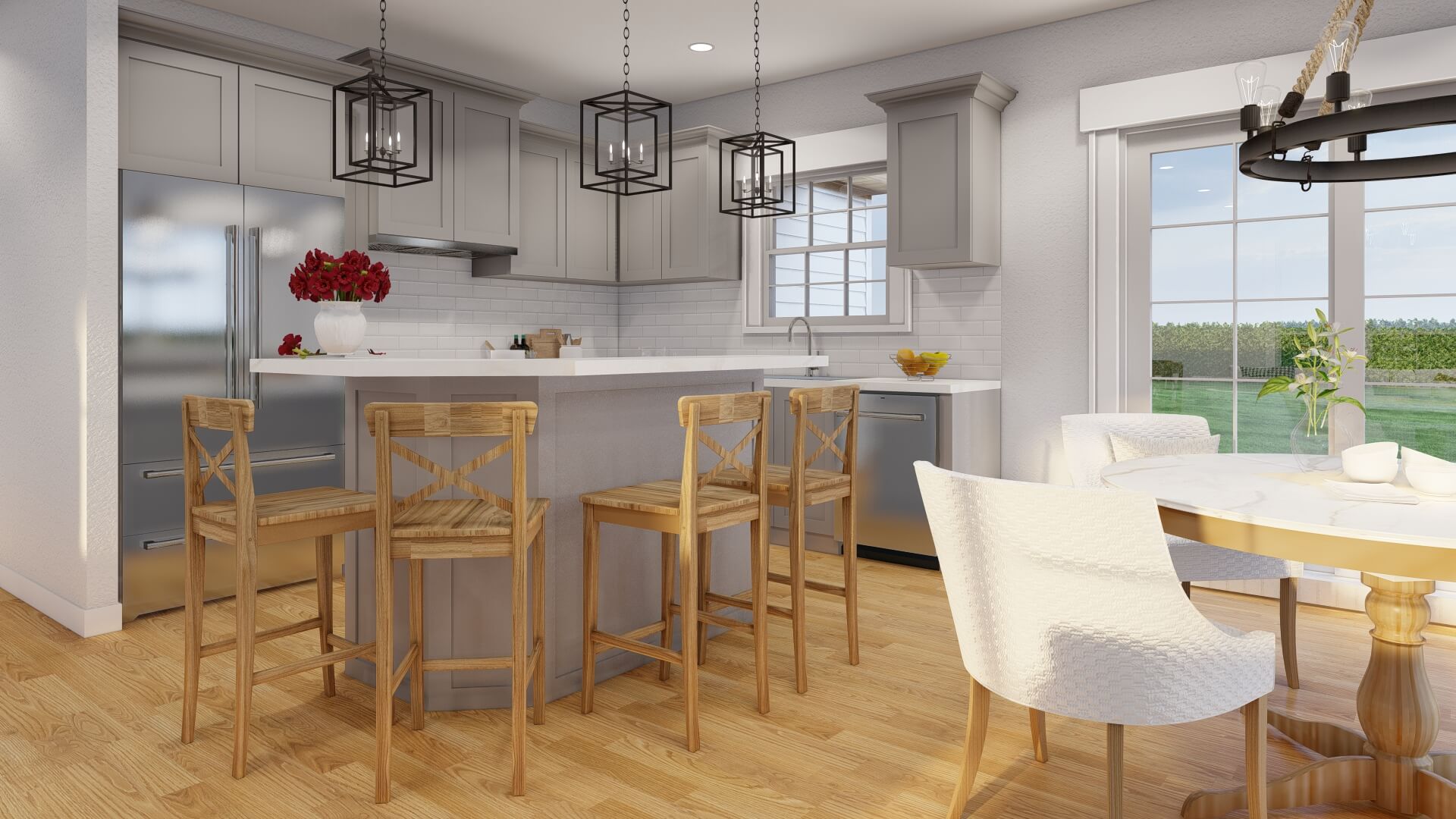

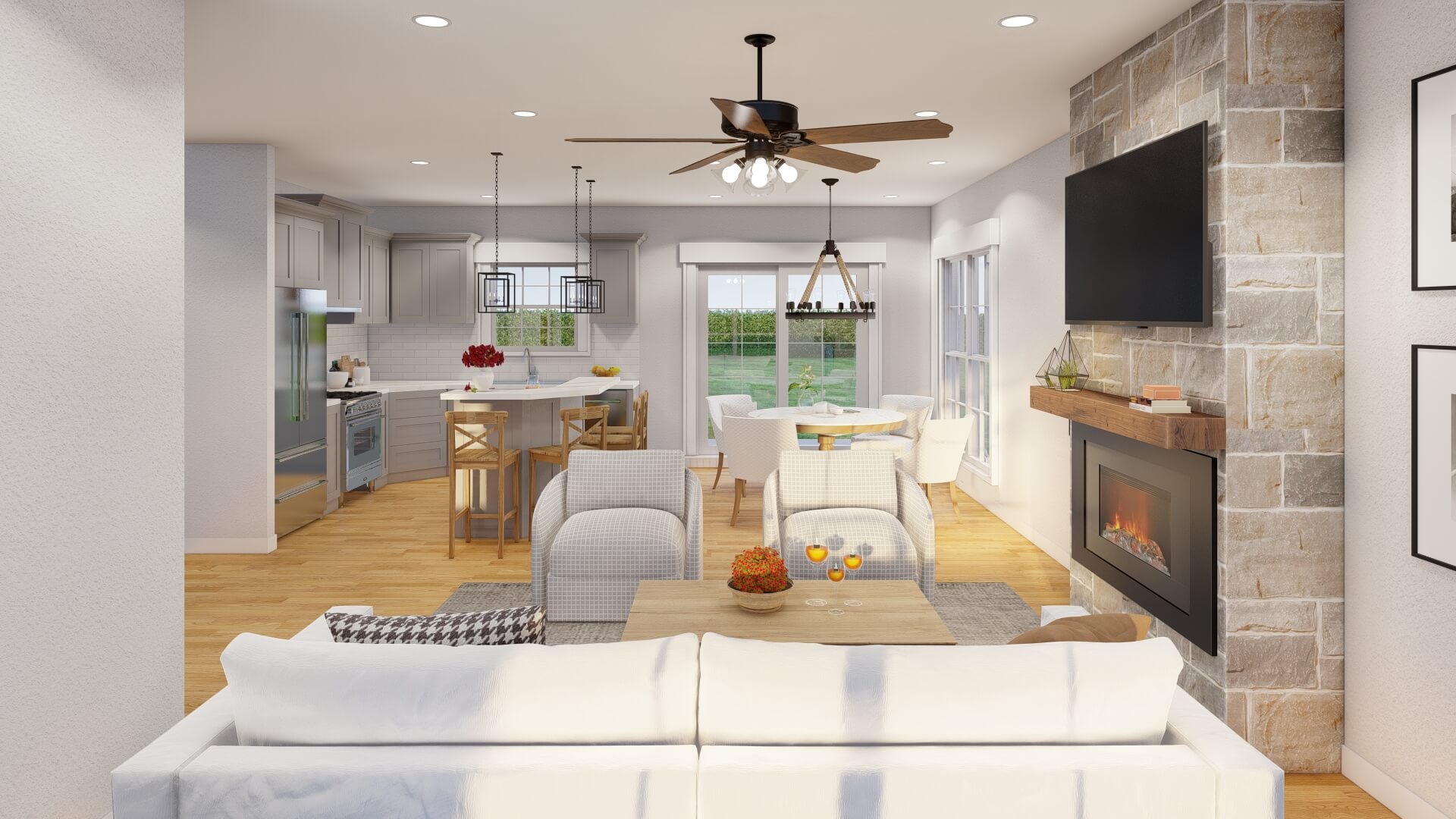

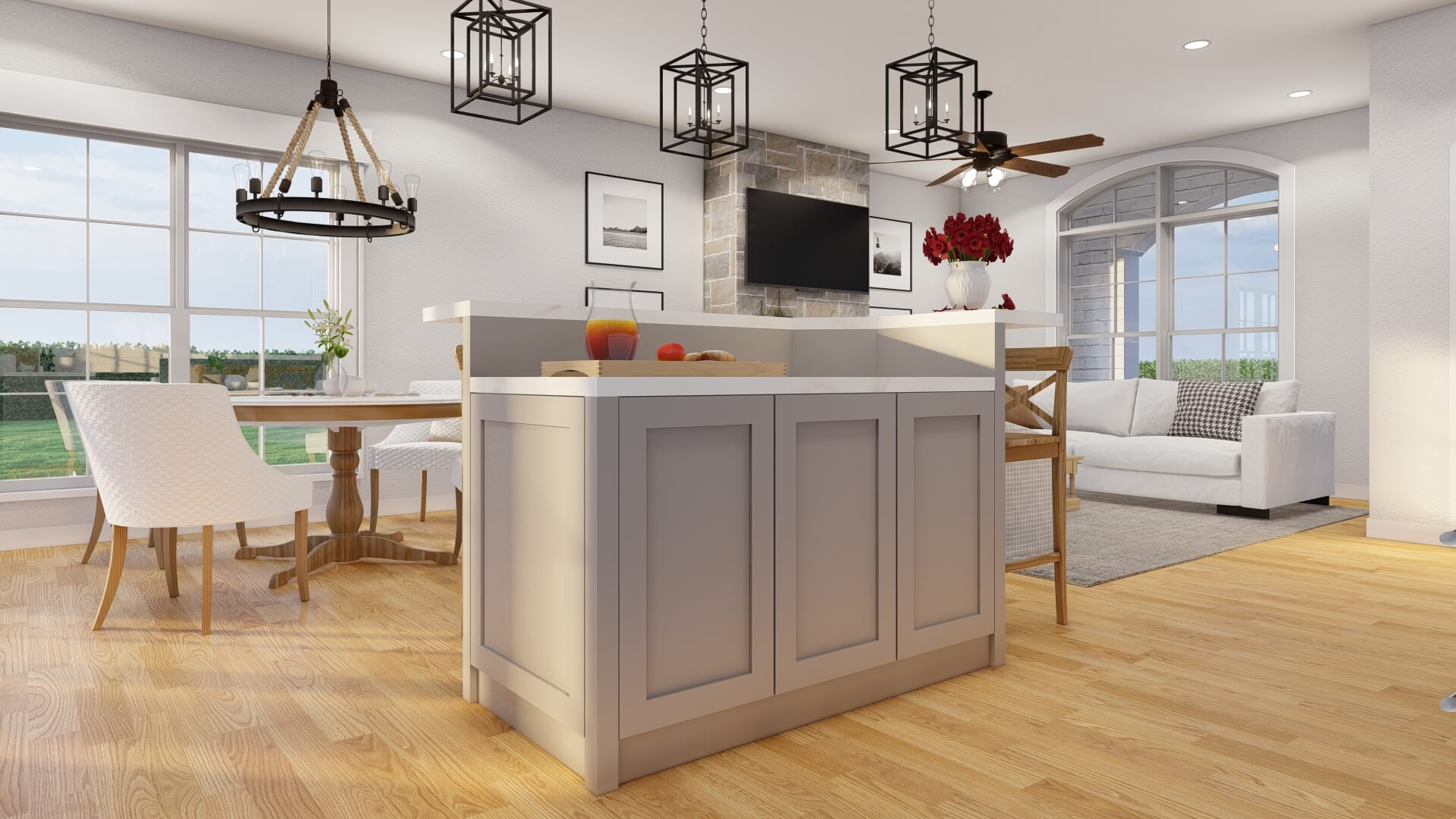

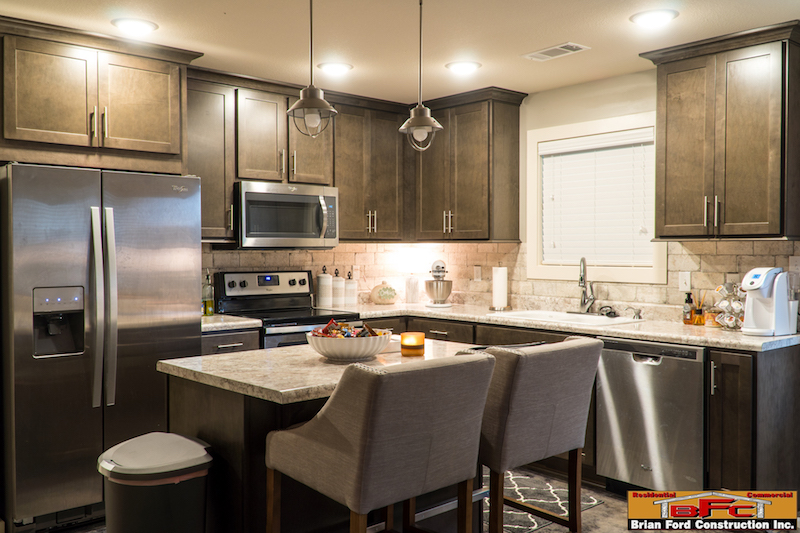

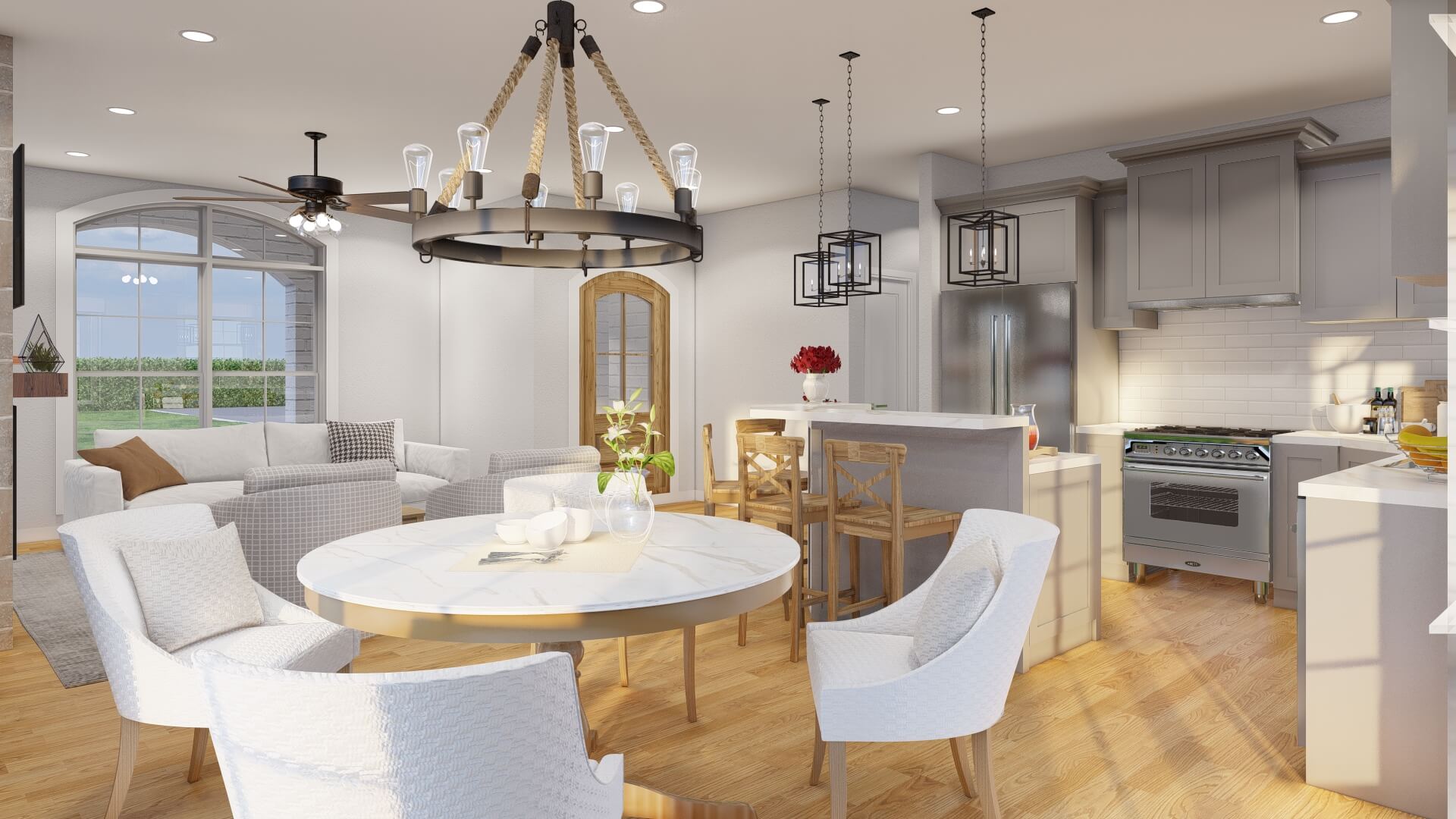

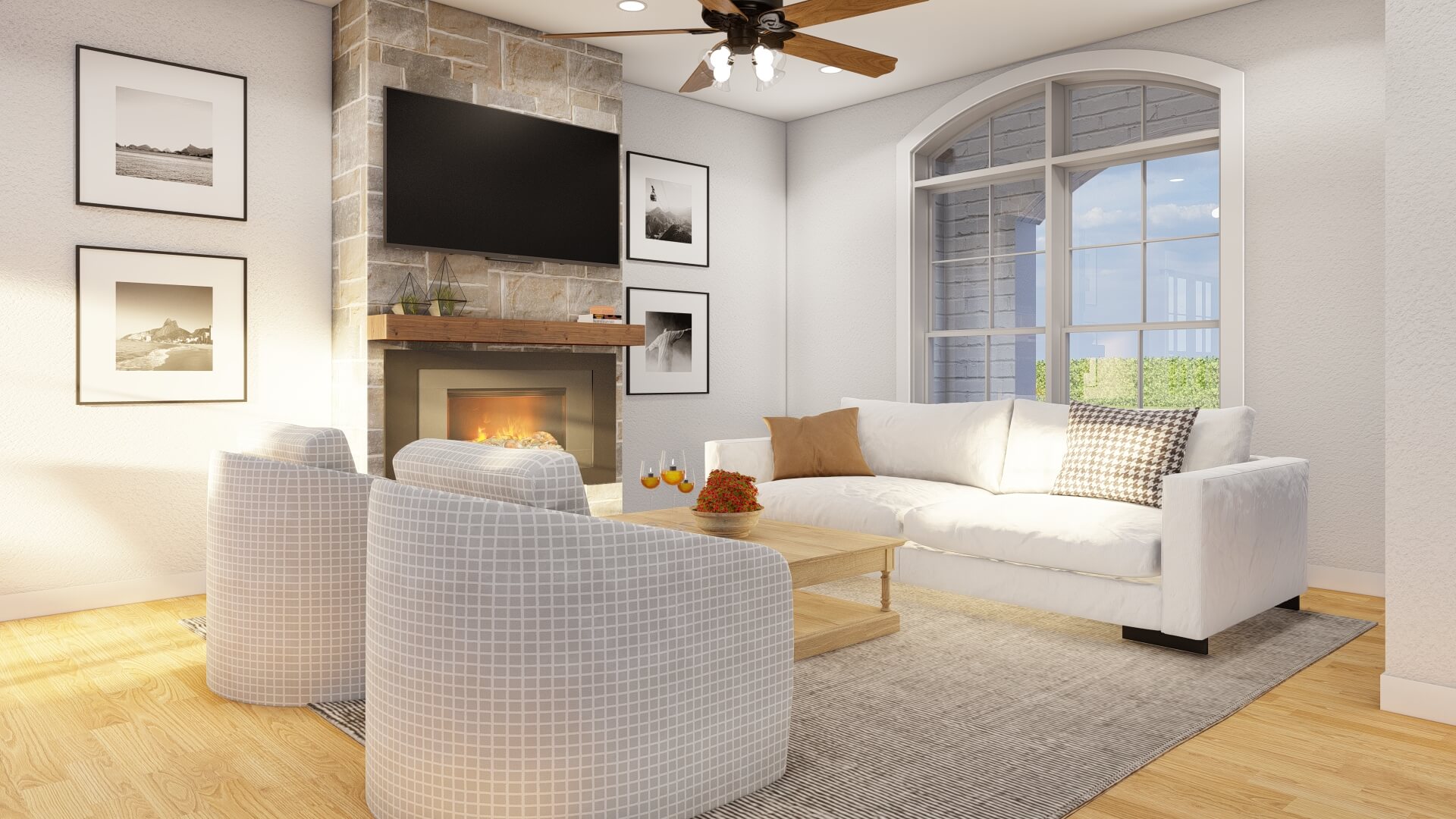

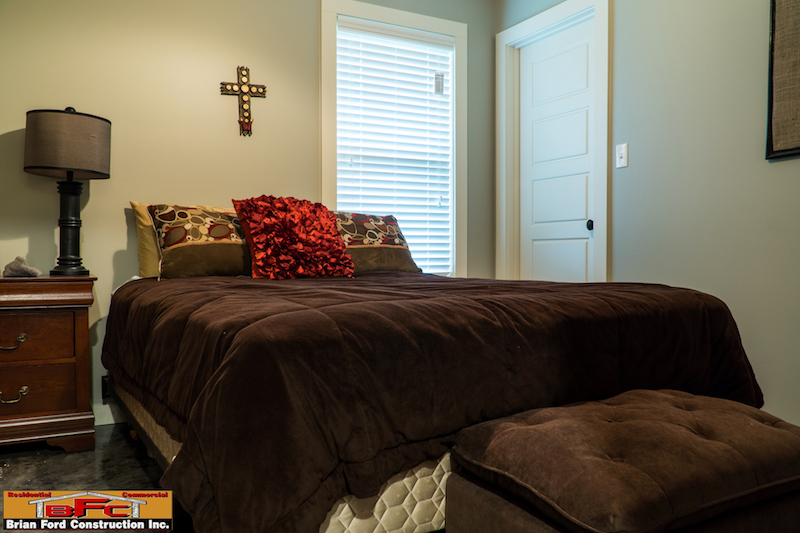

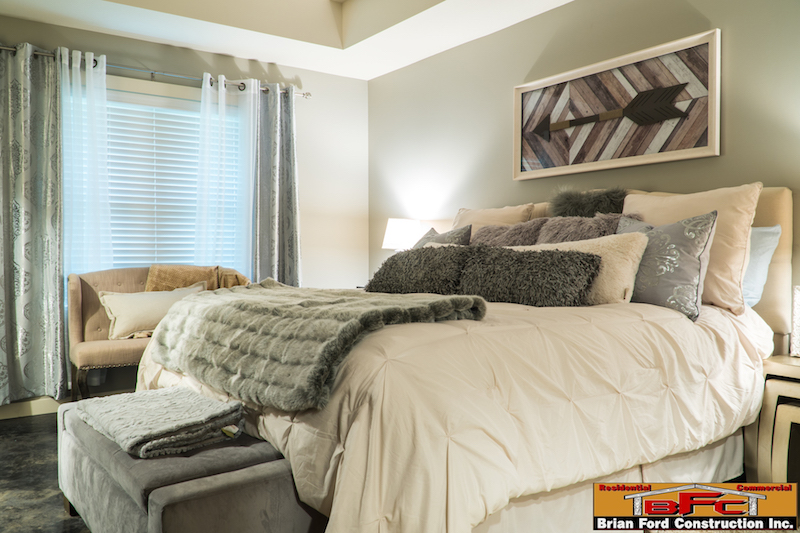

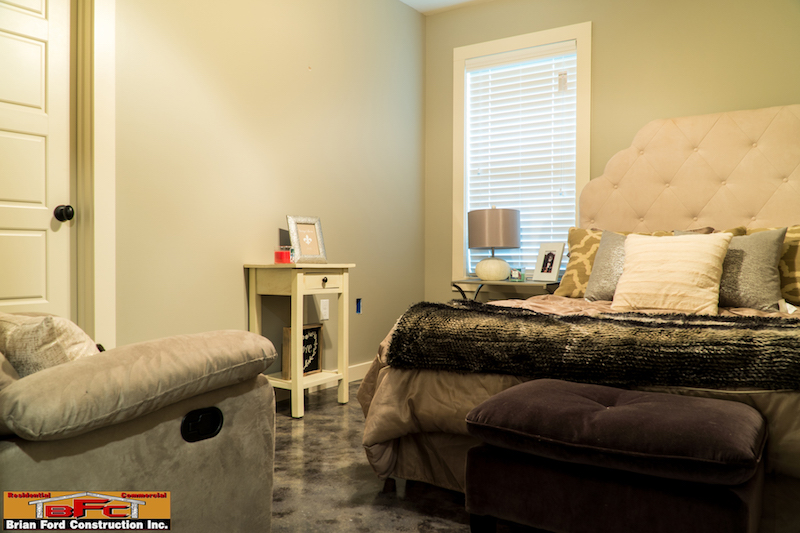

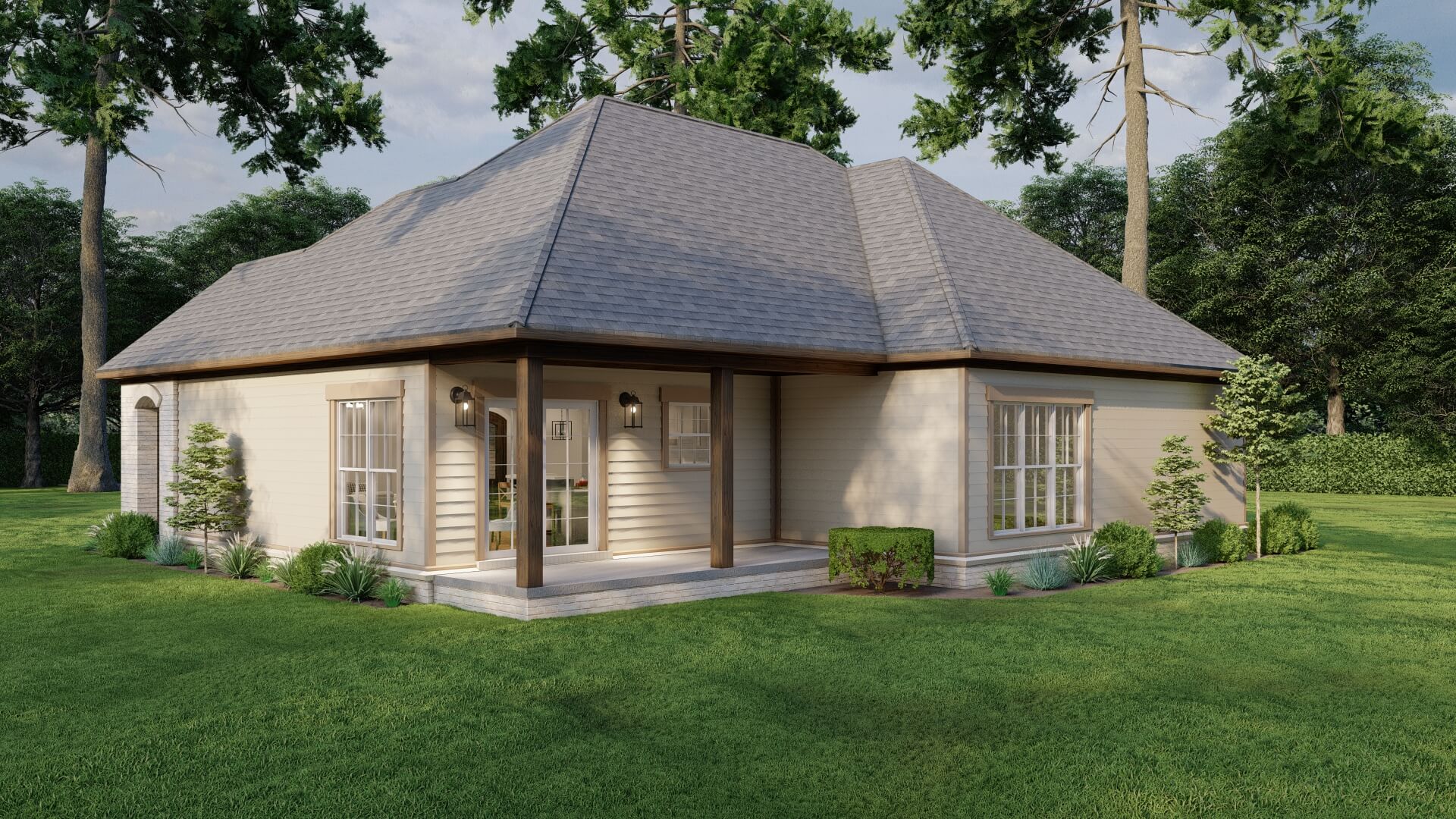

This charming house plan displays beautiful arched design over the garage, front door and the window looking into the great room. Step into this home and you'll love the open floor plan design that allows the Foyer, Great Room, Kitchen and Dining Room to flow together. Bedrooms 2 and 3 each have their own walk in closet and share the bath located in the hall. Relax in the Master Suite where you can enjoy the elegant boxed ceiling, or take the relaxation outside to enjoy some fresh air out on the Grilling Porch.


  • Total Living Space:1417Sq.Ft.
  • Main Floor: 1417 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 276 Sq.Ft.
  • Garage (Sq.Ft.): 467 Sq.Ft.
  • Total Square Feet: 2160 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
