House Plan 5065 St. Martin Place, French Country House Plan

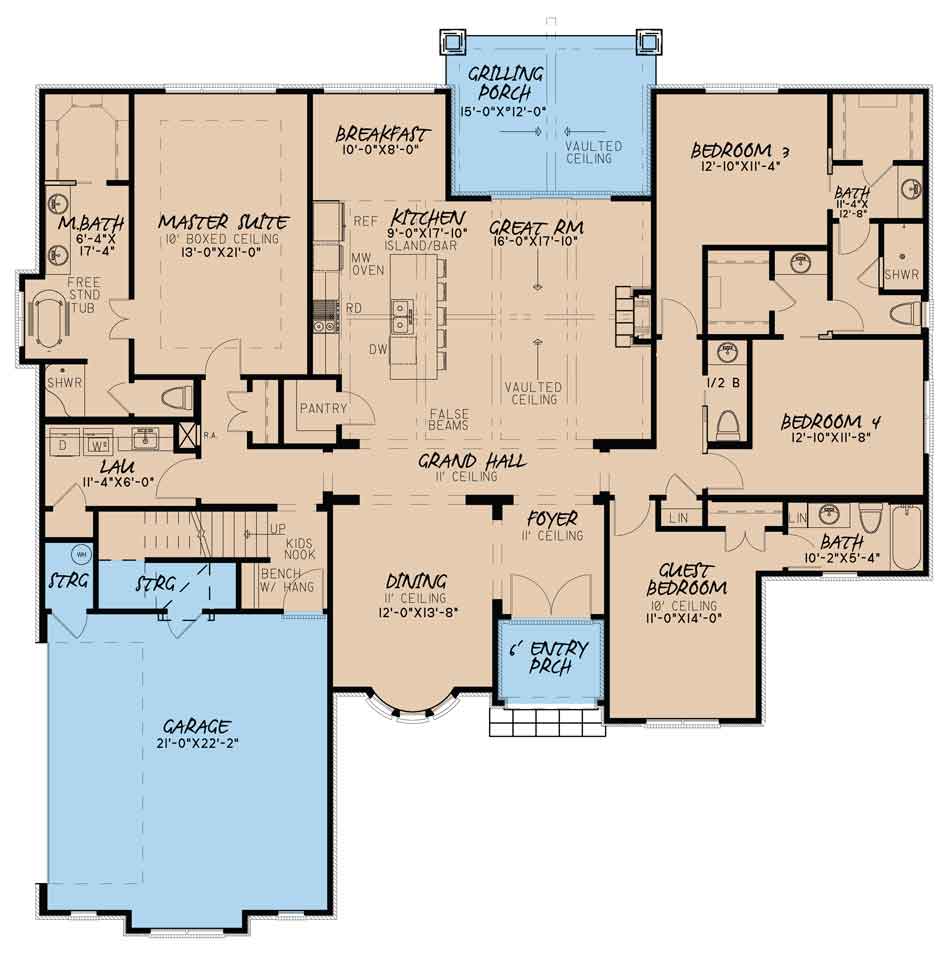

House Plan MEN 5065 Main Floor

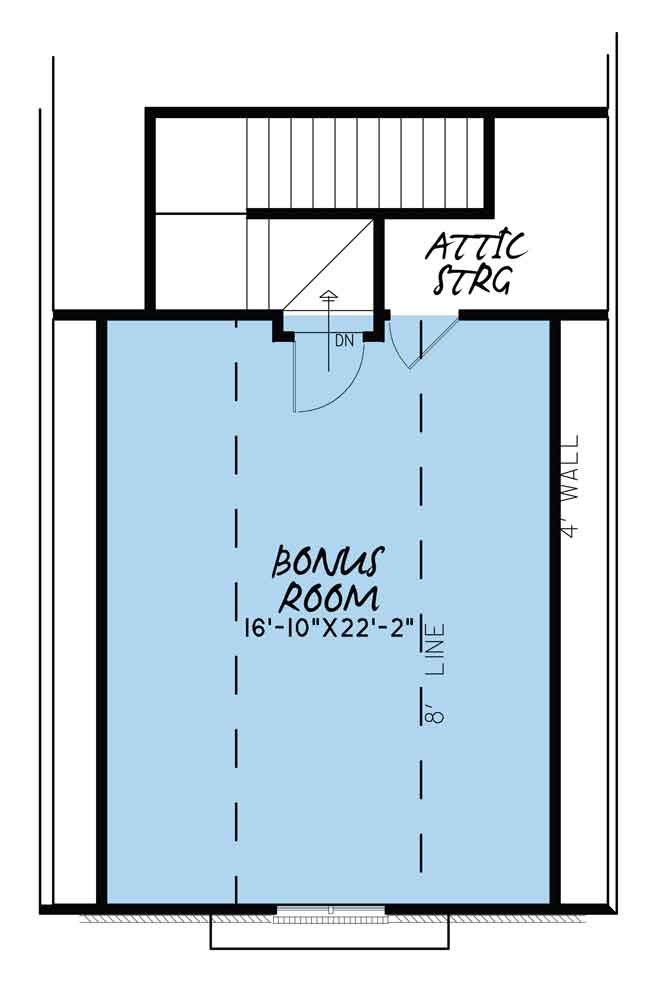

House Plan MEN 5065 Bonus Room
House Plan MEN 5065 Main Floor
House Plan MEN 5065 Bonus Room

Floor plans

MEN 5065

House Plan 5065 St. Martin Place, French Country House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: MEN 5065
  • Total Living Space:2538Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 67
  • Width In.: 10
  • Depth Ft.: 67
  • Depth In.: N/A

Description

Beautiful stone and brick are complimented by wood shutters and finials in this stunning house plan. The Foyer flows into the Dining Room and Grand Hall. The open floor plan allows laughter and conversation to flow from the Great Room into the Kitchen and connected Breakfast Room. The large Kitchen Island give you plenty of counter space and a 5 person eat at bar. The split bedroom design allows for privacy in the spacious Master Suite located on the left side of the home. Here you'll also find the Laundry room, side load Garage and access to the Bonus Room above. On the other side of house is the guest room with its own private bath, 2 additional Bedrooms with a Jack and Jill style bathroom between and 1/2 bath located in the Hallway.

Specifications

  • Total Living Space:2538Sq.Ft.
  • Main Floor: 2538 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 399 Sq.Ft.
  • Porch (Sq.Ft.): 233 Sq.Ft.
  • Garage (Sq.Ft.): 596 Sq.Ft.
  • Total Square Feet: 3766 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
