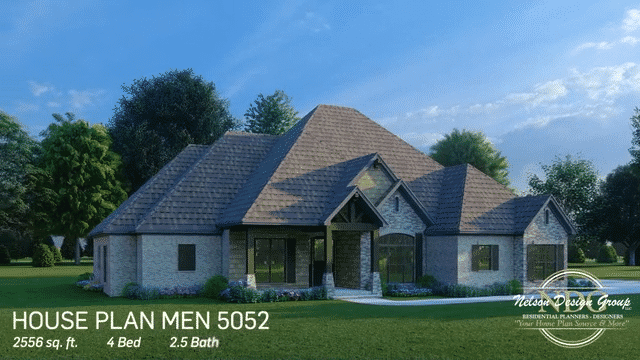

House Plan 5052 Hampshire Heights, Craftsman Bungalow House Plan

House Plan MEN 5052 Main Floor
House Plan MEN 5052 Upper Floor/Bonus Room
House Plan MEN 5052 Main Floor
House Plan MEN 5052 Upper Floor/Bonus Room

Floor plans

MEN 5052

House Plan 5052 Hampshire Heights, Craftsman Bungalow House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: MEN 5052
  • Total Living Space:2556Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 71
  • Width In.: 10
  • Depth Ft.: 71
  • Depth In.: 8


MEN 5052

From award-winning designer Michael E. Nelson comes a stunning addition to our Craftsman Bungalow House Collection. Beautiful traditional design is complimented by rustic touches in Hampshire Heights. Stepping into the foyer you will be led into the open living space shared by the great room and kitchen. The kitchen displays a large island as well as a coffee bar and walk-in pantry. Privately tucked away in the back right corner is the large master suite, complete with a walk-in closet and a spacious master bath, which includes a whirlpool tub, walk-in shower, and drawers for your convenience. On this side of Hampshire Heights, you will also find the laundry room, as well as a half bath for guests. On the left side of the home are Bedrooms 2,3 and 4, each with a walk in closet, and a hall bath with private access from Bedroom 4. Above the 3-car garage is an optional bonus room with its own walk-in closet and full bath. You certainly can't forget about the Outdoor Living area, complete with an outdoor kitchen and fireplace. How would you customize this amazing house plan?

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.


  • Total Living Space:2556Sq.Ft.
  • Main Floor: 2556 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 601 Sq.Ft.
  • Porch (Sq.Ft.): 562 Sq.Ft.
  • Garage (Sq.Ft.): 914 Sq.Ft.
  • Total Square Feet: 4633 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 35
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
