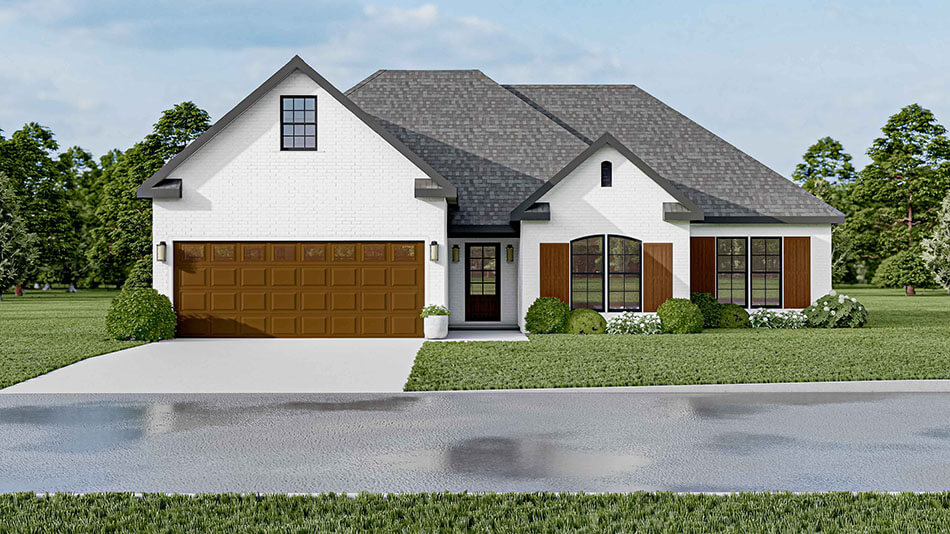

House Plan 5040 Austin Place, Traditional House Plan

House Plan MEN 5040 Main Floor
House Plan MEN 5040 Bonus Room
House Plan MEN 5040 Main Floor
House Plan MEN 5040 Bonus Room

Floor plans

House Plan MEN 5040 Main Floor

House Plan MEN 5040 Bonus Room
MEN 5040

House Plan 5040 Austin Place, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: MEN 5040
  • Total Living Space:1640 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 52
  • Width In.: 6
  • Depth Ft.: 57
  • Depth In.: 10

Description

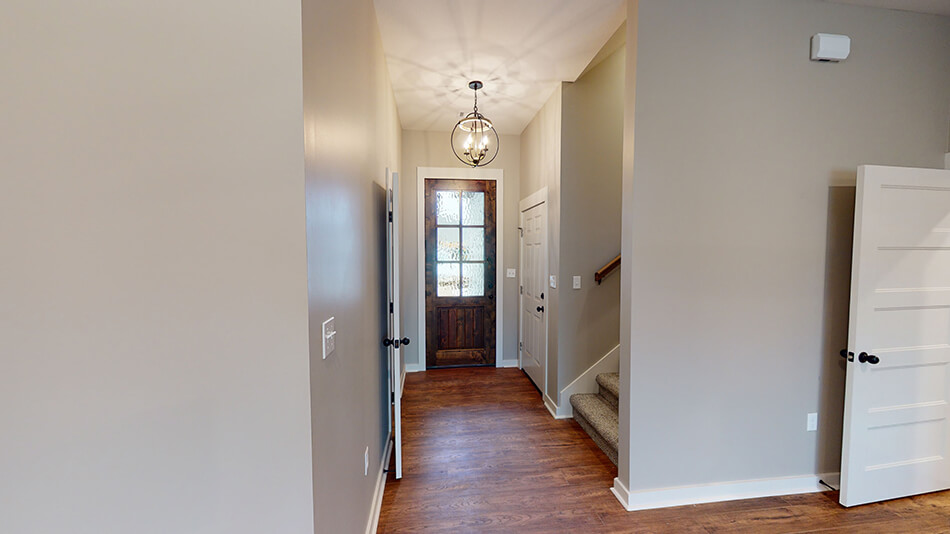

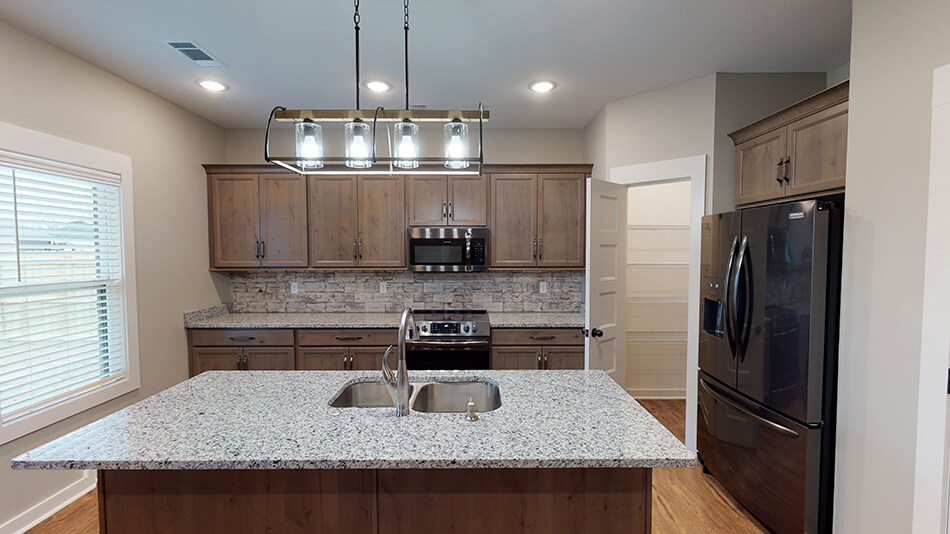

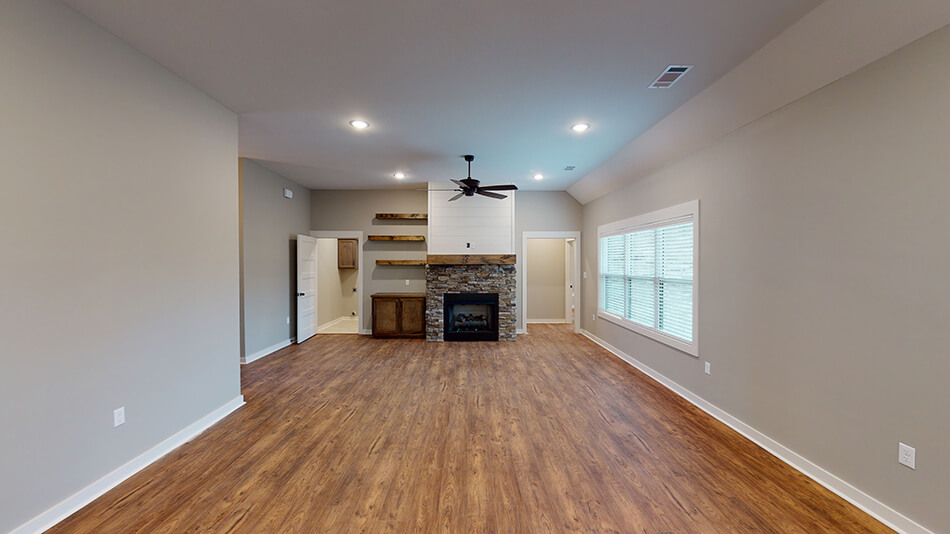

Step inside this beautiful home and into the foyer leading to the great room with a cozy fire place and open floor plan into the kitchen, perfect for family get-togethers. The spacious master suite is tucked away by itself in the left of the house. Both Bedrooms 2 and 3 have large closets perfect for all the kids' toys or all the teenagers' clothes. Head upstairs to the bonus room which makes a perfect place for the kids to hangout while the adults visit down stairs.

Specifications

  • Total Living Space:1640 Sq.Ft.
  • Main Floor: 1640 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 281 Sq.Ft.
  • Porch (Sq.Ft.): 417 Sq.Ft.
  • Garage (Sq.Ft.): 450 Sq.Ft.
  • Total Square Feet: 2788 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
