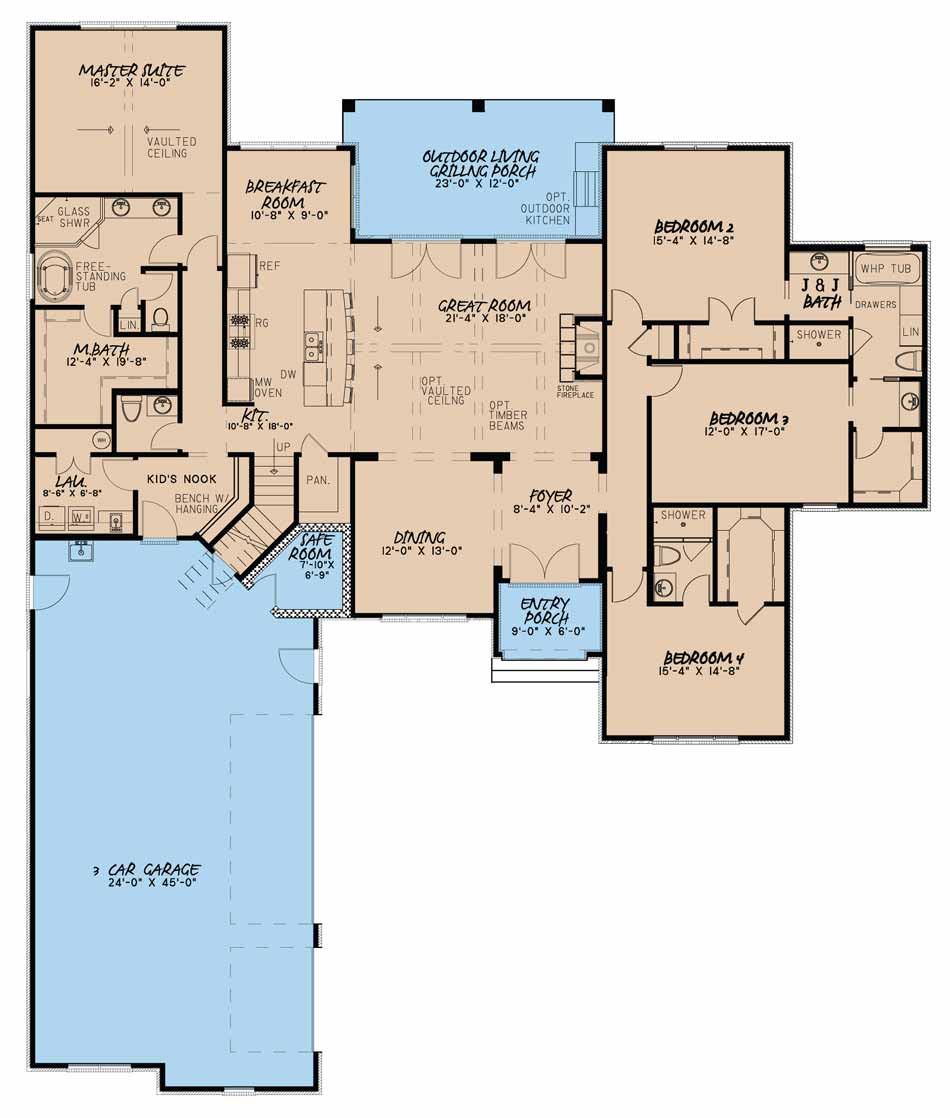

House Plan MEN 5032 Main Floor

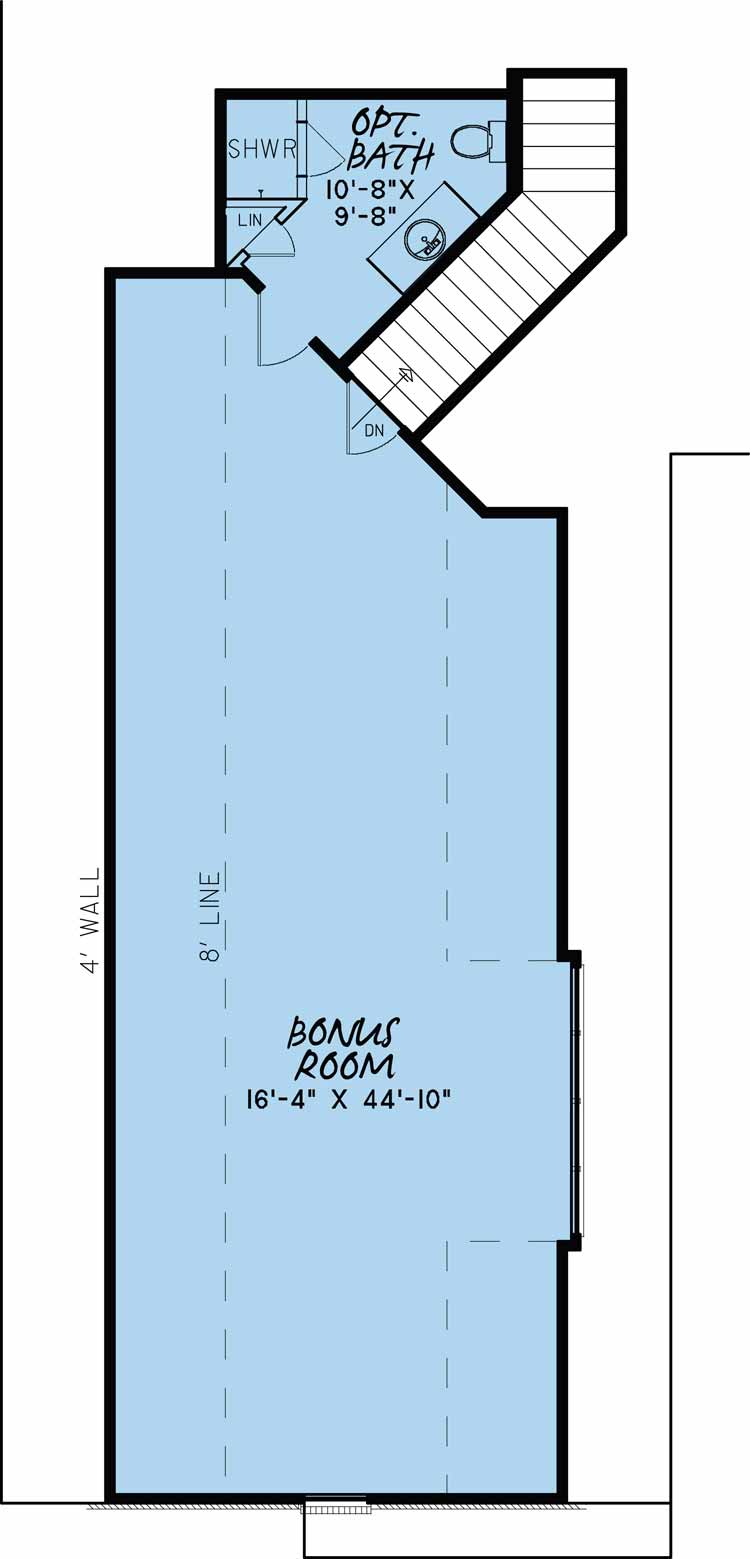

House Plan MEN 5032 Upper Floor/Bonus Room
>
House Plan MEN 5032 Main Floor
House Plan MEN 5032 Upper Floor/Bonus Room

Floor plans

MEN 5032

House Plan 5032 Saddler Cottage, French Country House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: MEN 5032
  • Total Living Space:2849Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 77
  • Width In.: N/A
  • Depth Ft.: 91
  • Depth In.: 6

Description

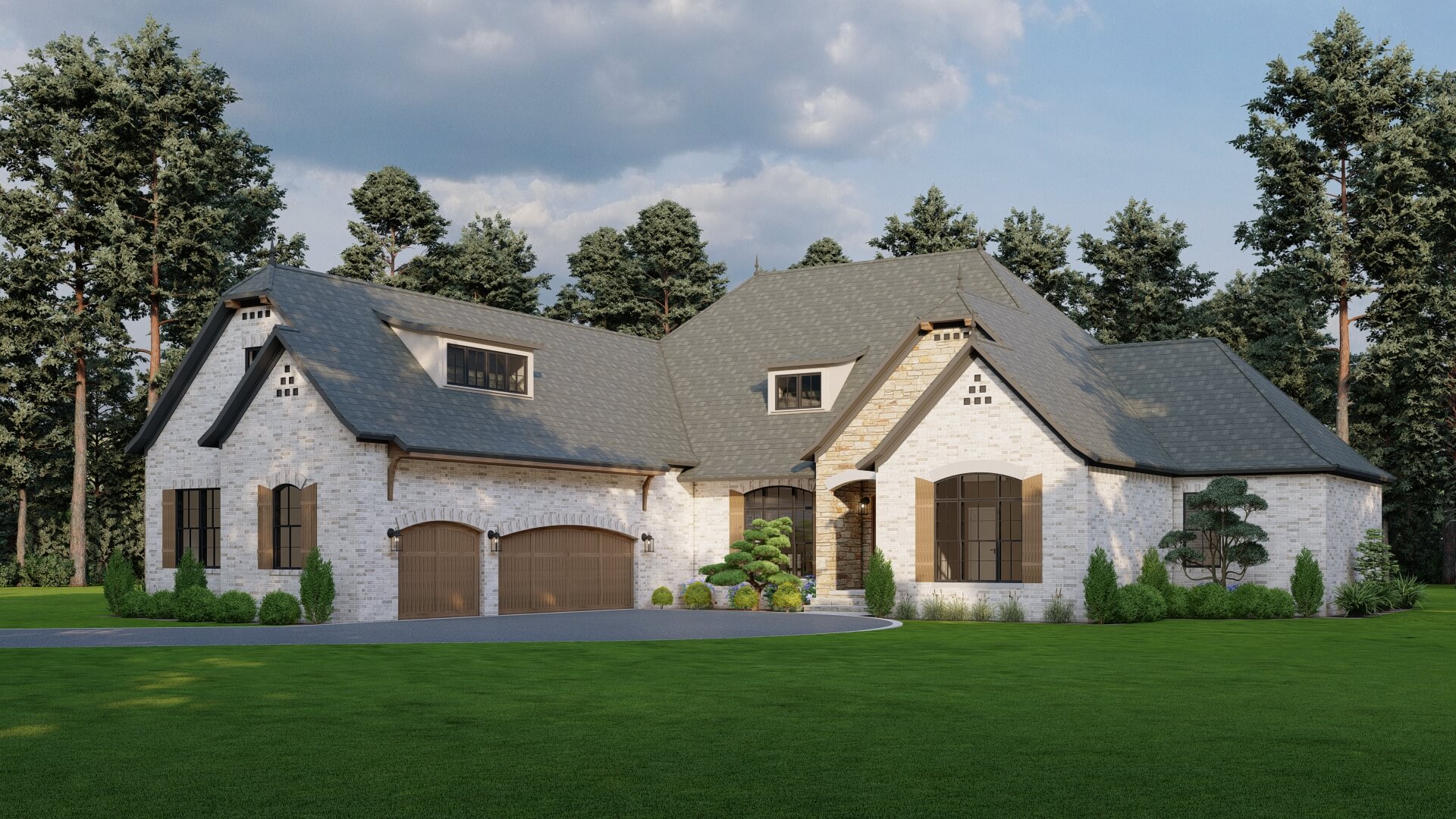

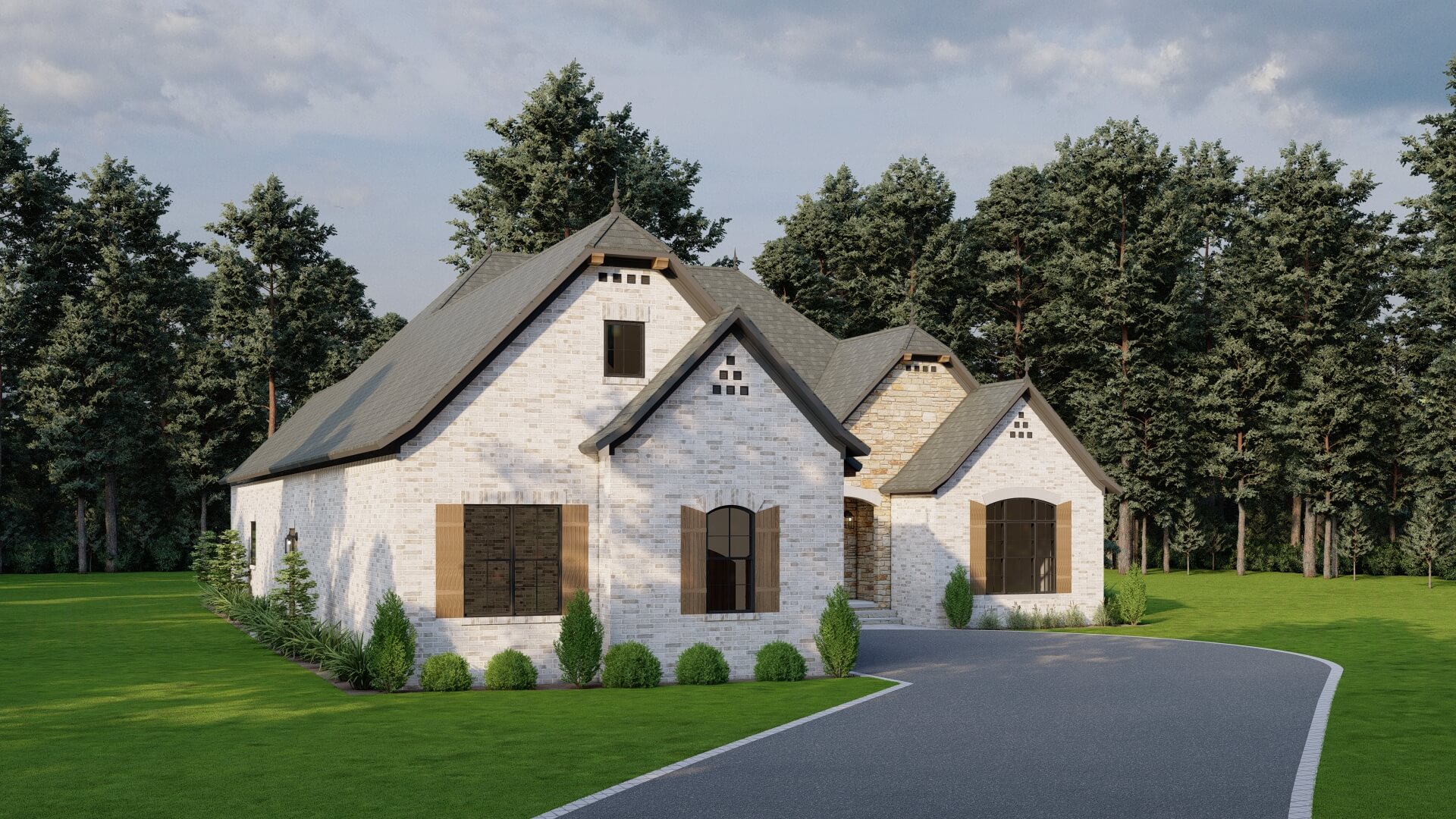

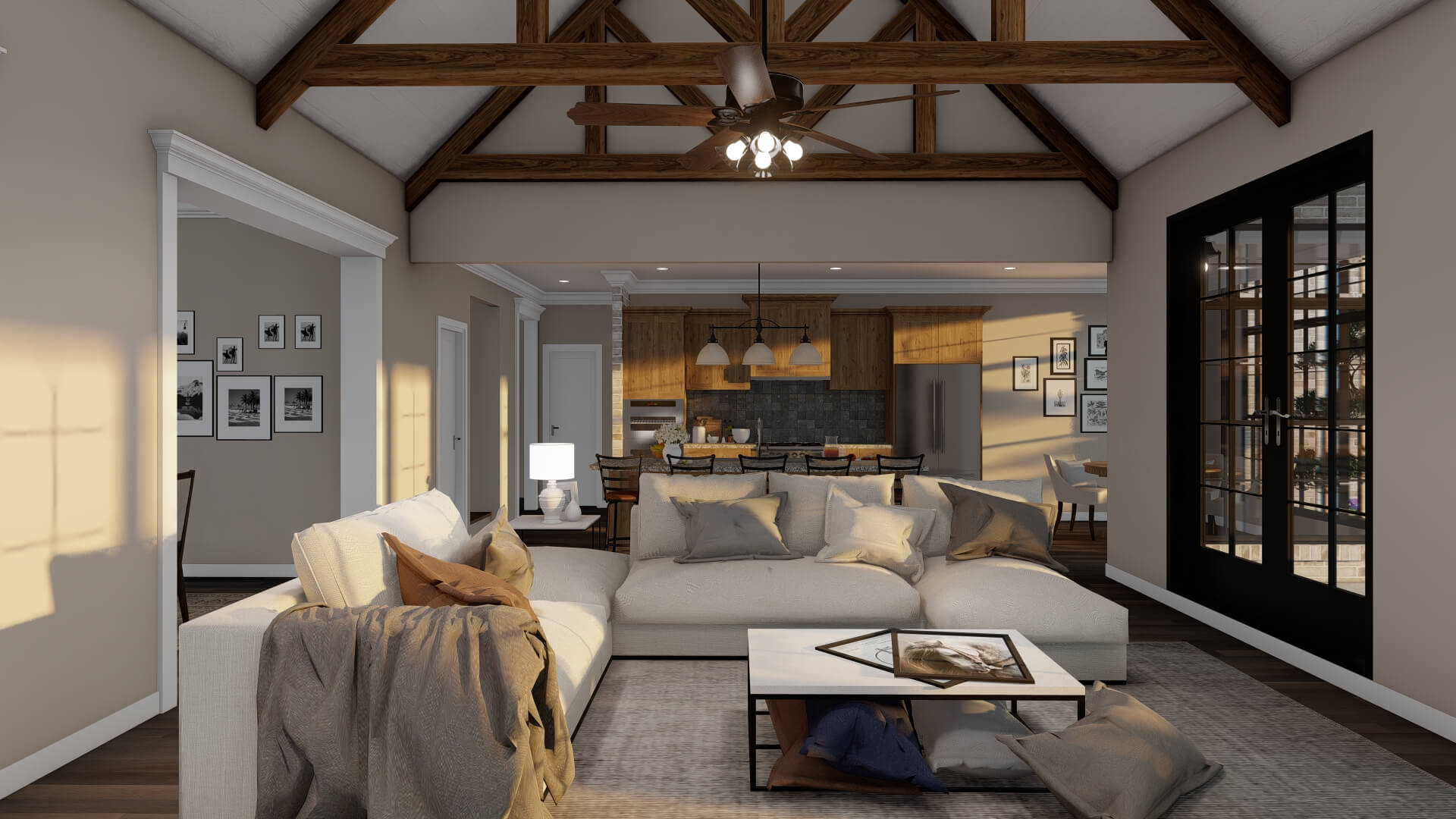

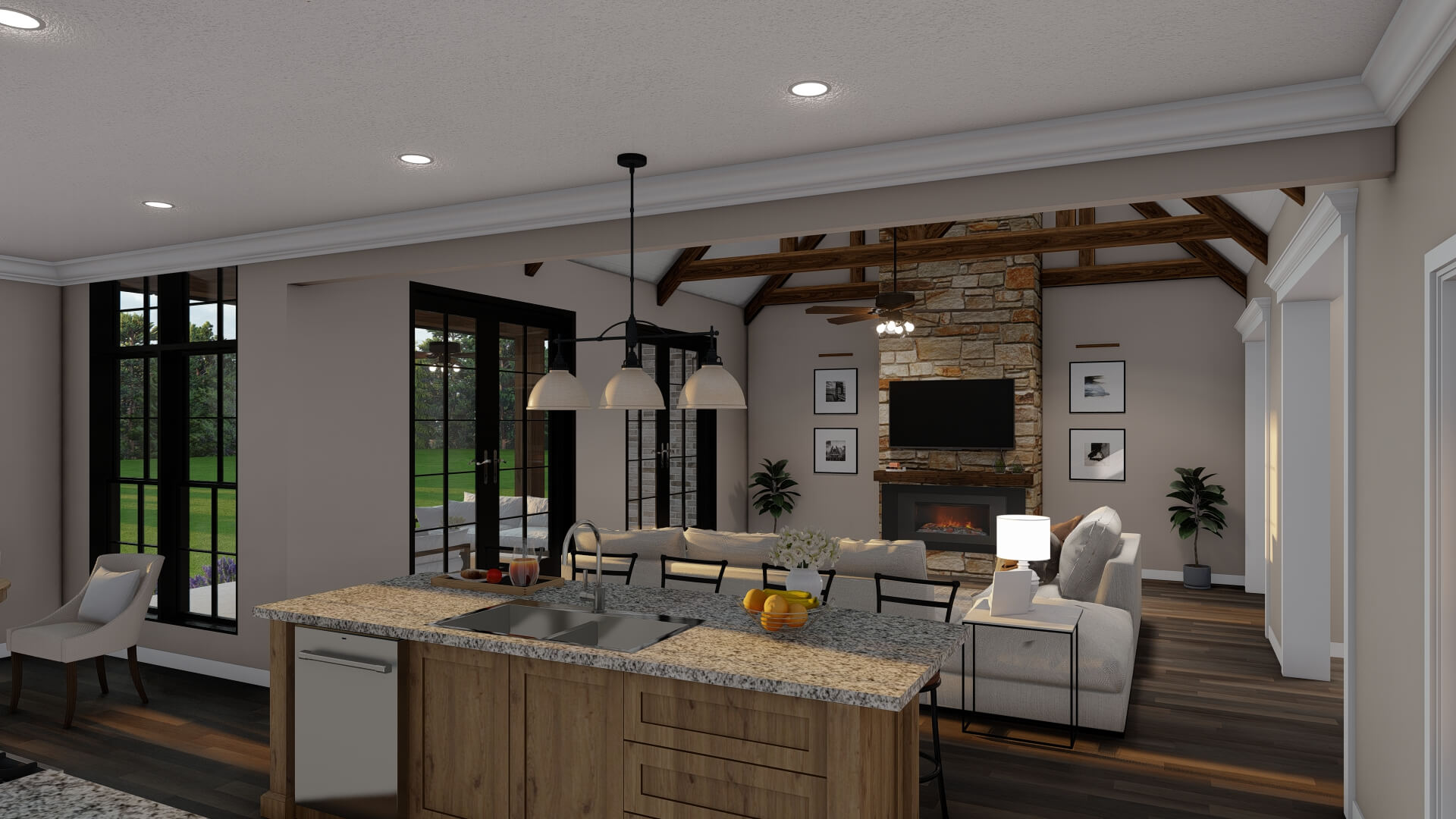

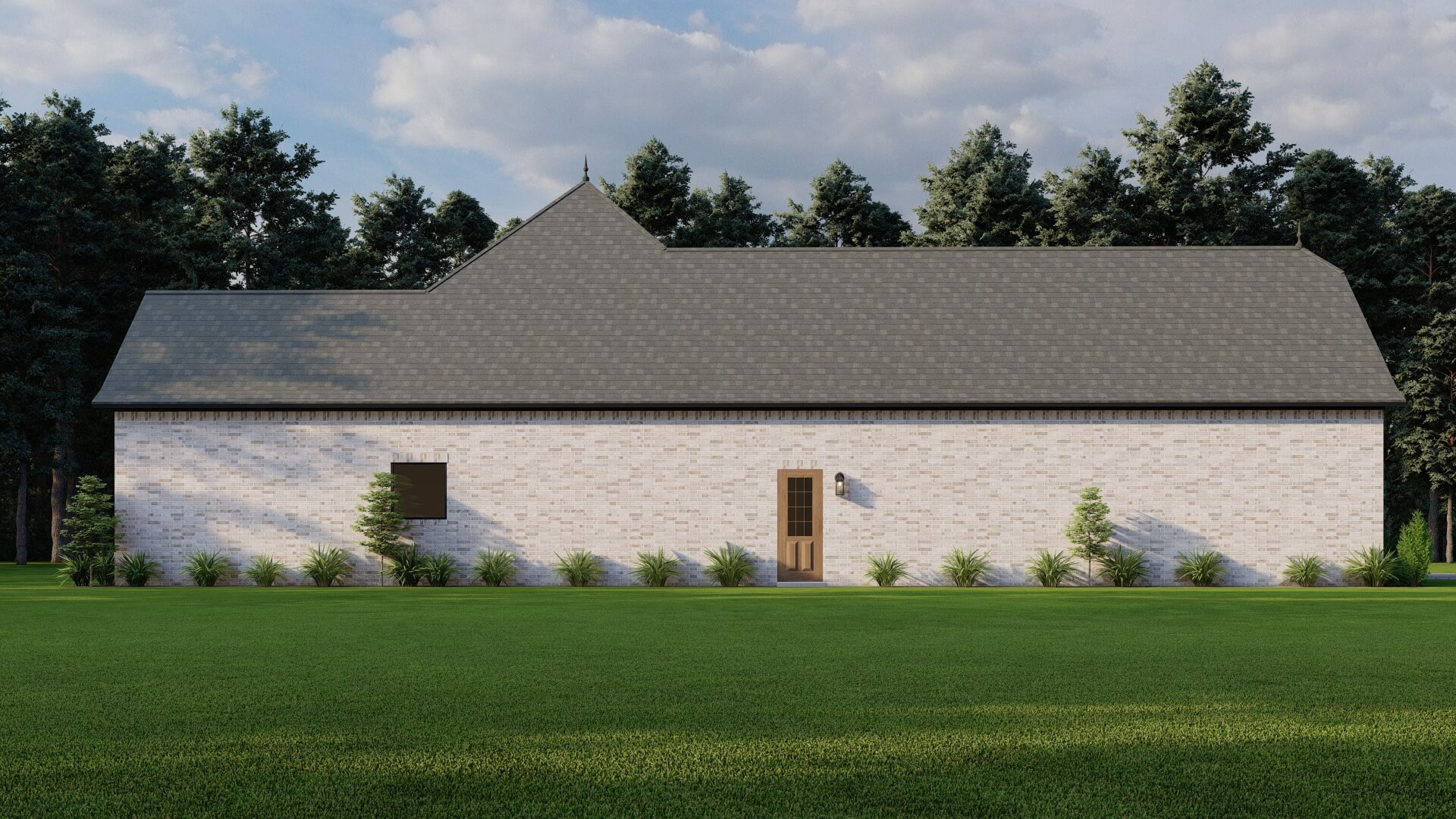

Brick and stone, arched entry, and a courtyard garage give this Michael E. Nelson design a stunning exterior. Inside you will find an open layout and split bedroom design. The master suite is privately located at the rear of the home and features a vaulted ceiling, over-sized walk-in closet, and luxurious bath with a large glass shower and free standing tub. On the opposite side of the home is three additional bedrooms each with generous sized closets, a Jack & Jill bath between bedrooms 2 and 3, and a private bath for bedroom 4. A safe room in the garage and an optional bonus room with bath upstairs are also features of this home plan.

Specifications

  • Total Living Space:2849Sq.Ft.
  • Main Floor: 2849 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 797 Sq.Ft.
  • Porch (Sq.Ft.): 322 Sq.Ft.
  • Garage (Sq.Ft.): 1099 Sq.Ft.
  • Total Square Feet: 5067 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
