House Plan 502 Willow Lane, Traditional House Plan

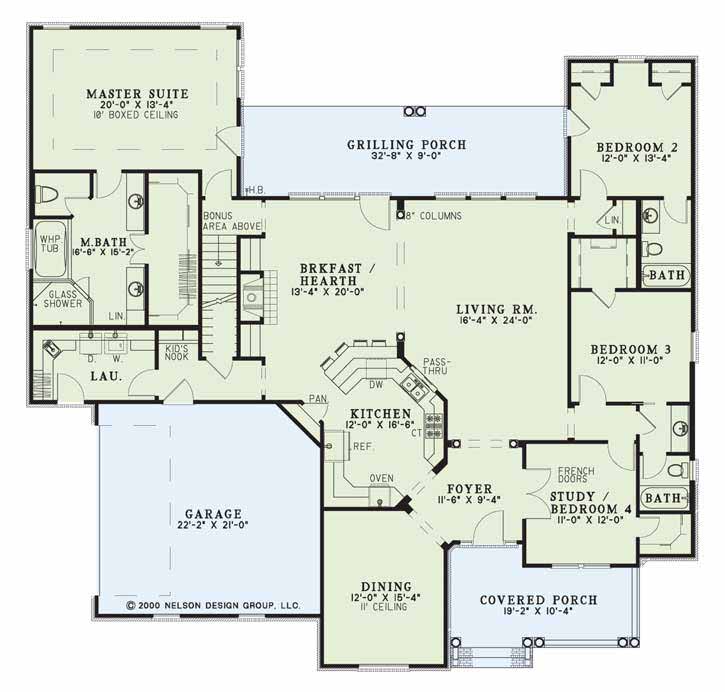

House Plan NDG 502 Main Floor

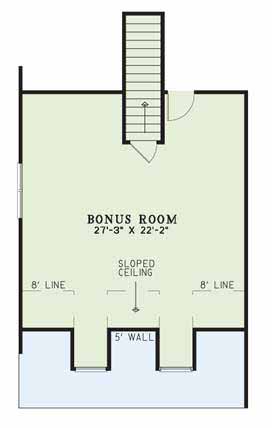

House Plan NDG 502 Bonus Room
>
>
>
>
House Plan NDG 502 Main Floor
House Plan NDG 502 Bonus Room

Floor plans

NDG 502

House Plan 502 Willow Lane, Traditional House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 502
  • Total Living Space:2624Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 66
  • Width In.: 4
  • Depth Ft.: 64
  • Depth In.: N/A

Description

Don't be fooled by the traditional country appearance of this home. Inside you'll find exciting angles, a unique use of available space and enough open area to host the little league team dinner. Coming in from the garage, the kids have their very own nook to keep track of their stuff. The uniquely-designed kitchen is capable of serving any living area in the house is centrally located so it also warms the living room. Walk-in closets accompany all four bedrooms while two of the three secondary bedrooms boast private entrances as well.

Specifications

  • Total Living Space:2624Sq.Ft.
  • Main Floor: 2624 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 561 Sq.Ft.
  • Porch (Sq.Ft.): 467 Sq.Ft.
  • Garage (Sq.Ft.): 470 Sq.Ft.
  • Total Square Feet: 4122 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
