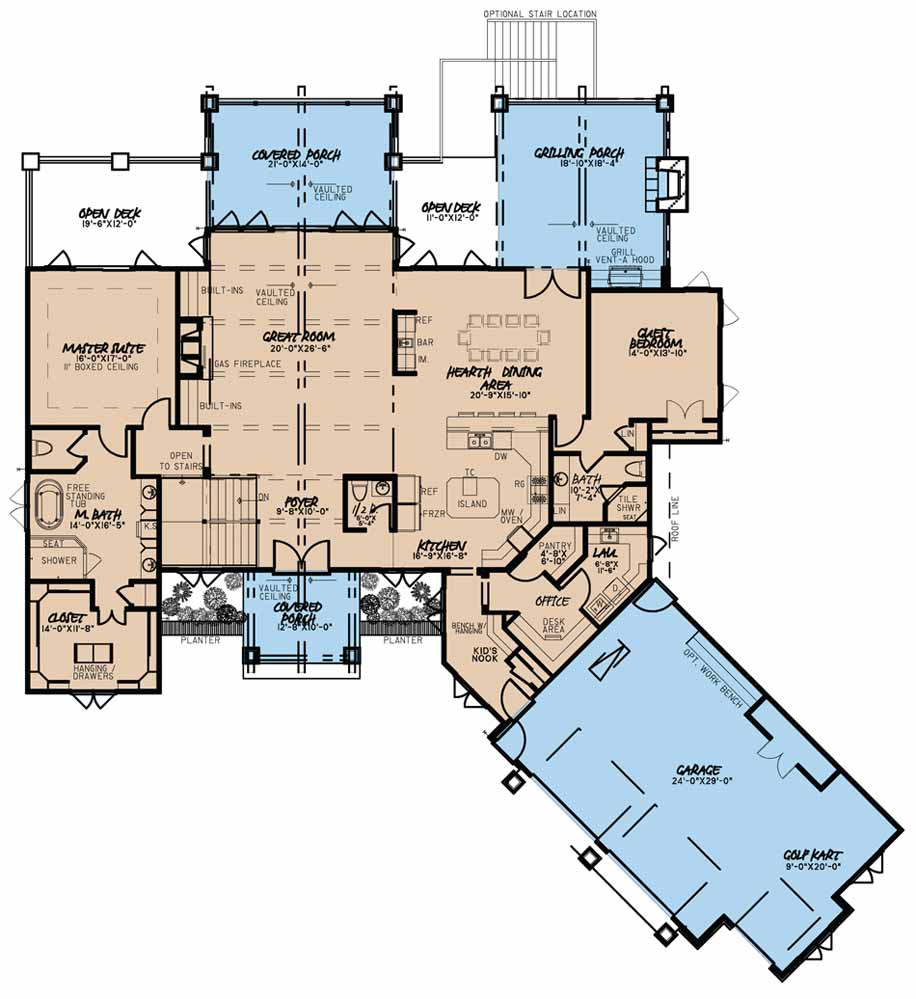

House Plan MEN 5016 Main Floor

House Plan MEN 5016 Basement
MEN 5016

House Plan 5016 Timberline Ridge, Rustic House Plan

PDF: $2,850.00

Plan Details

  • Plan Number: MEN 5016
  • Total Living Space:5054 Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 2 Bay
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 95
  • Width In.: 7
  • Depth Ft.: 95
  • Depth In.: 8

Description

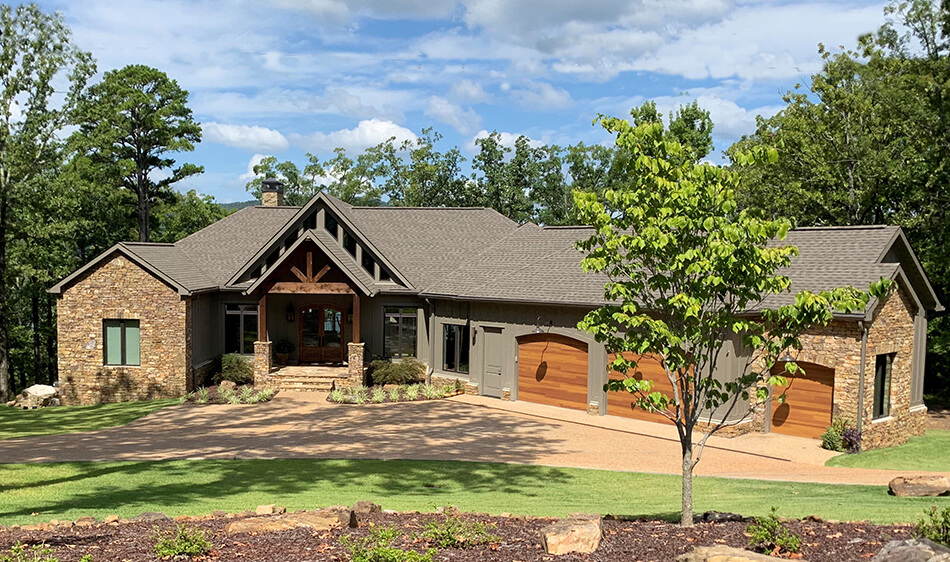

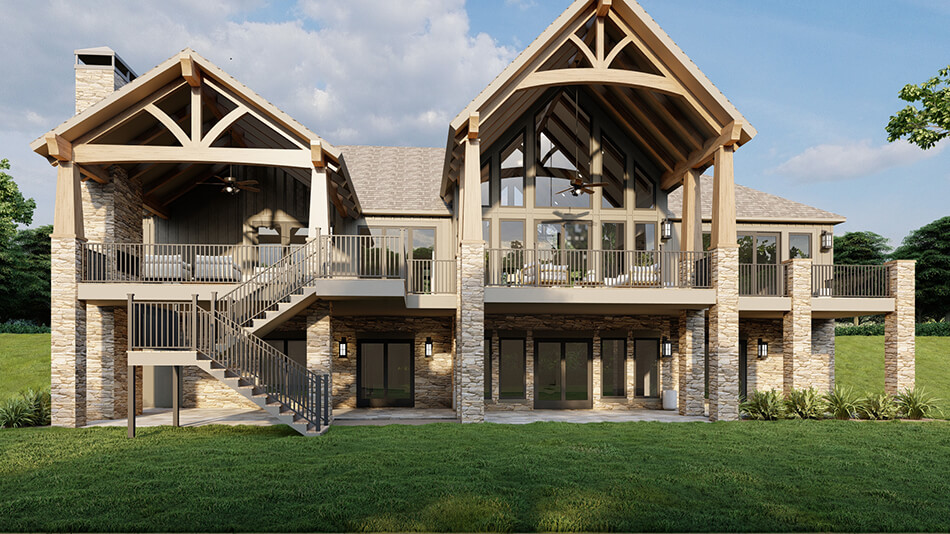

Michael E. Nelson adds rustic flair to this luxury house plan in his exclusive collection. The front exterior is elegant and rustic. However, the rear exterior will blow you away. The use of large windows, stone, siding, and timber posts combine to create a striking appearance. Inside you will find over 5000 square feet including 4 bedrooms, 4 and half baths, a bunk room for additional guest quarters, a spacious game room, and a hobby room. Outdoor living space is equally abundant with this house plan, too, with space available both on the main and walkout basement levels.

Specifications

  • Total Living Space:5054 Sq.Ft.
  • Main Floor: 2889 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): 2165 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 790 Sq.Ft.
  • Garage (Sq.Ft.): 945 Sq.Ft.
  • Total Square Feet: 6789 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 12:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
