House Plan 501 Brittany Lane, Traditional House Plan

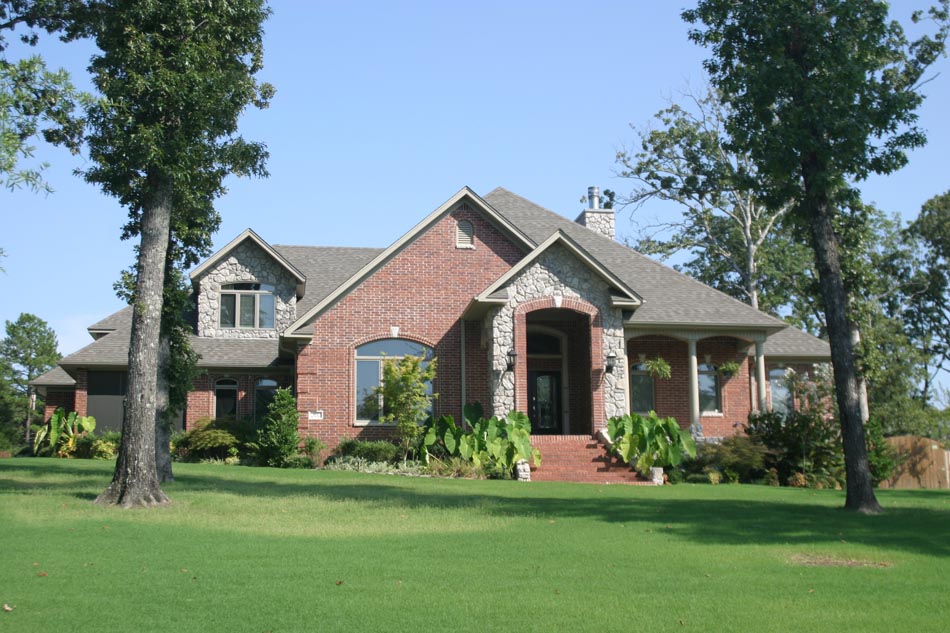

House Plan - 501p Front View>

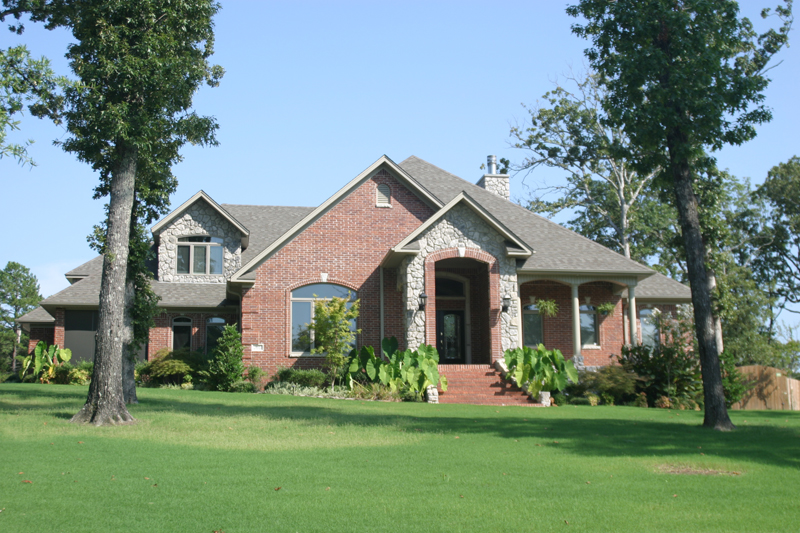

House Plan - 501p Front View

Floor plans

NDG 501

House Plan 501 Brittany Lane, Traditional House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 501
  • Total Living Space:4049Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 79
  • Width In.: 10
  • Depth Ft.: 86
  • Depth In.: 8


A lovely stone entry, arched windows and covered porches welcome you into this enchanting home. Special ceiling designs and arches are carried throughout the home adding elegance to this extraordinary home. A family oriented kitchen and breakfast room accesses the side grilling porch perfect for large family gatherings. The master suite is a spectacular world of its own and has features including French doors, columns, vaulted ceilings as well as a safe room and is placed away from the three additional bedrooms. You must study this plan to fully appreciate the ultimate amenities within.


  • Total Living Space:4049Sq.Ft.

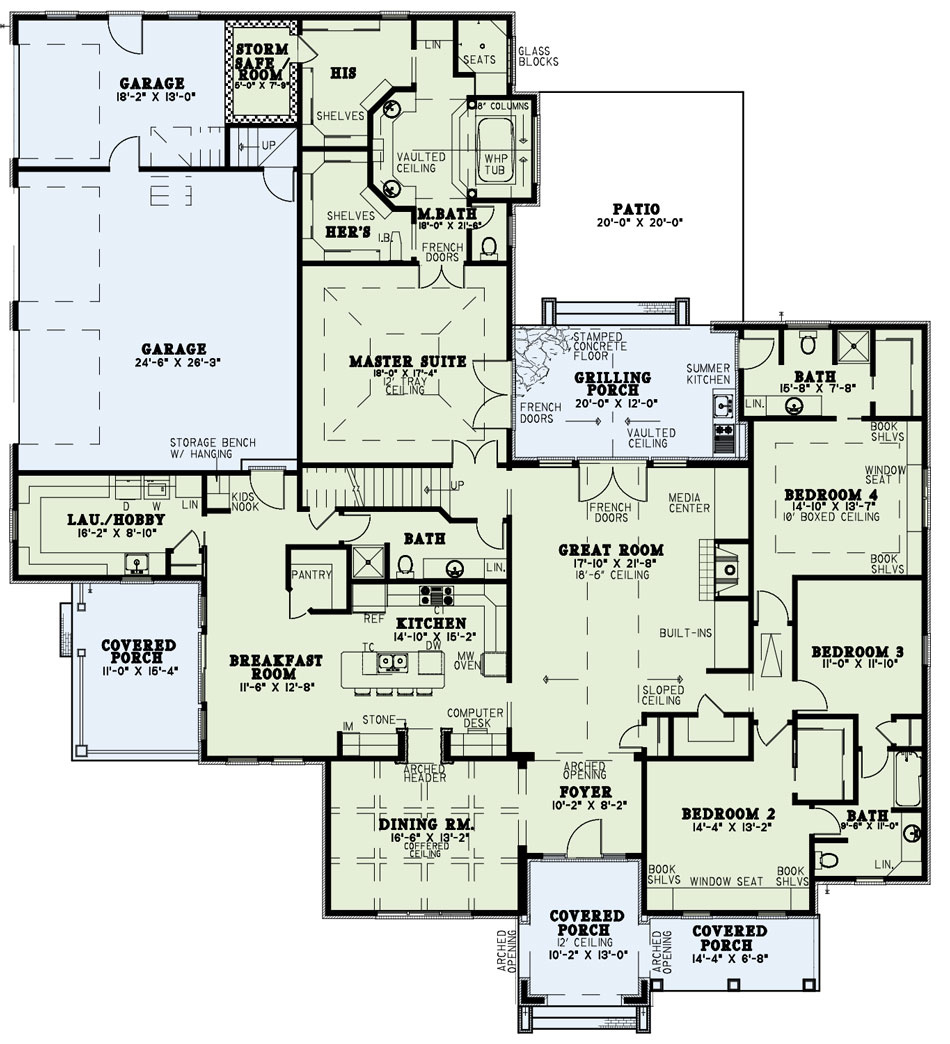

  • Main Floor: 3415 Sq.Ft

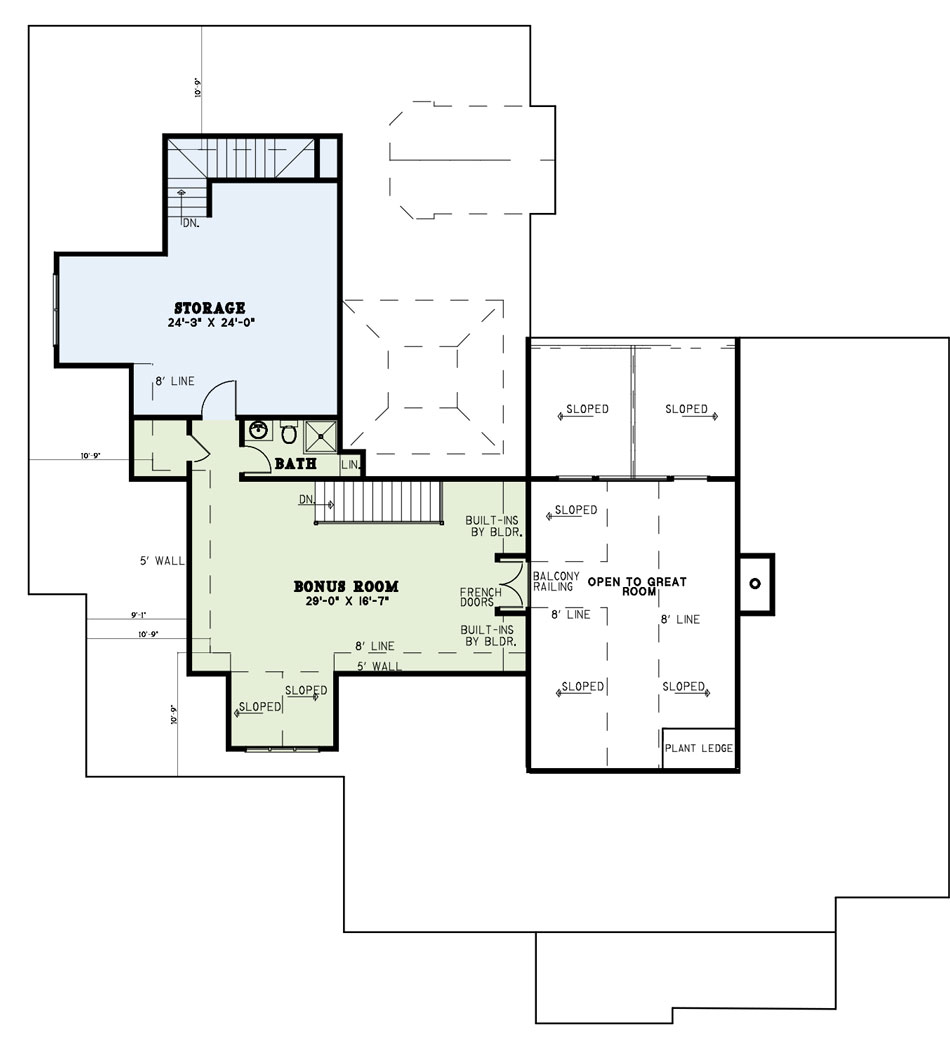

  • Upper Floor (Sq.Ft.): 634 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 403 Sq.Ft.
  • Porch (Sq.Ft.): 670 Sq.Ft.
  • Garage (Sq.Ft.): 930 Sq.Ft.
  • Total Square Feet: 6052 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
