House Plan 499 Fir Street, Traditional House Plan

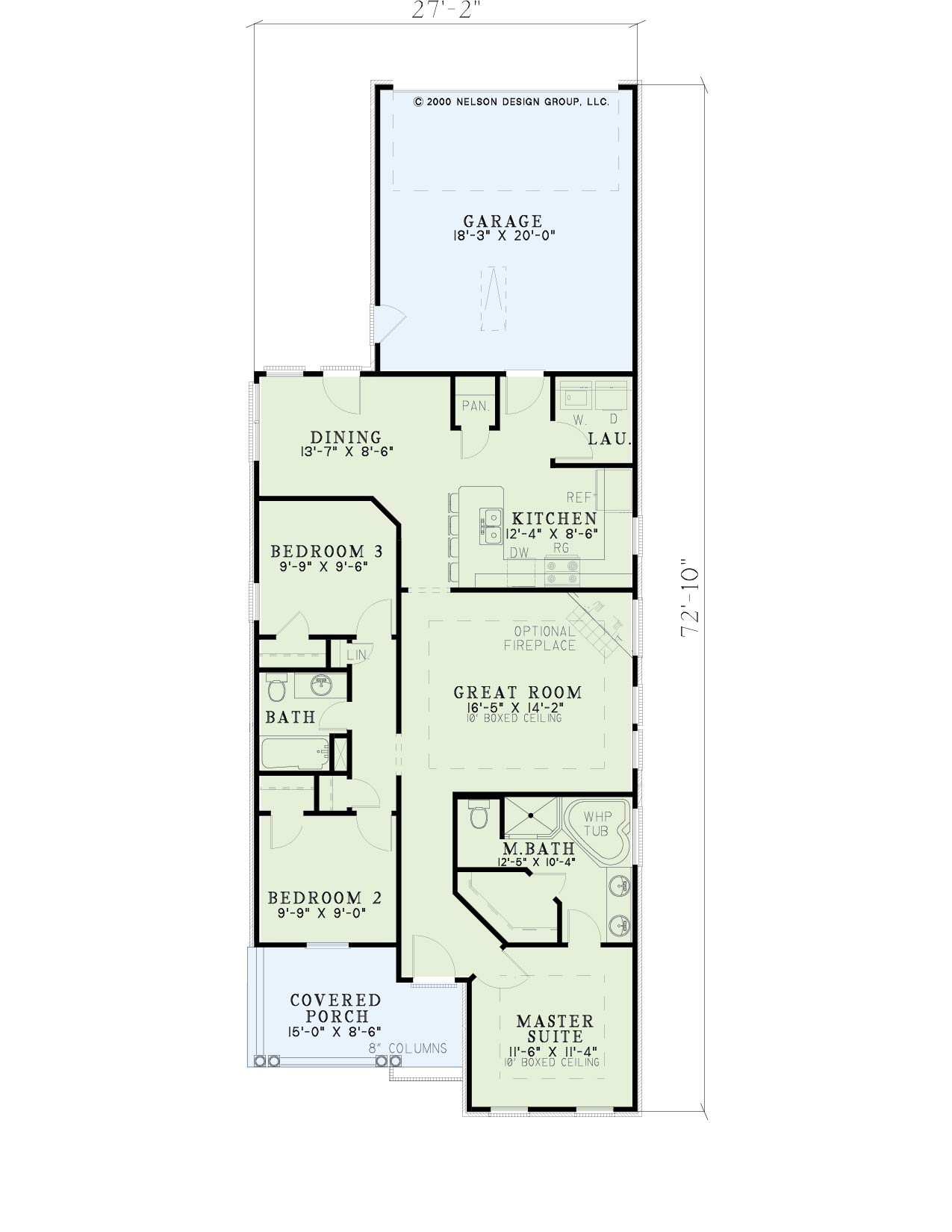

House Plan NDG 499 Main Floor
House Plan NDG 499 Main Floor

Floor plans

NDG 499

House Plan 499 Fir Street, Traditional House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 499
  • Total Living Space:1263Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 27
  • Width In.: 2
  • Depth Ft.: 72
  • Depth In.: 10

Description

This delightful home plan has a roomy interior but well suited for a narrow lot. A cozy covered porch with columns is the perfect place to enjoy a cup of tea and visit with neighbors. Separate from the other bedrooms is the Master Suite enhanced with a ten foot boxed ceiling and a private bath including a corner whirlpool tub, separate shower, double vanity and walk-in closet. Centrally located is the great room with an angled fireplace, boxed ceiling plenty of wall space. Follow through to a wonderfully designed kitchen with bar seating, a dining area with access to the rear patio and a convenient laundry room.

Specifications

  • Total Living Space:1263Sq.Ft.
  • Main Floor: 1263 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 112 Sq.Ft.
  • Garage (Sq.Ft.): 382 Sq.Ft.
  • Total Square Feet: 1757 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 8:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
