House Plan 497 Cottonwood Drive, Traditional House Plan
Floor plans
NDG 497
House Plan 497 Cottonwood Drive, Traditional House Plan
Plan Details
- Plan Number: NDG 497
- Total Living Space:1543Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Rear Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 29
- Width In.: N/A
- Depth Ft.: 68
- Depth In.: 8
Description

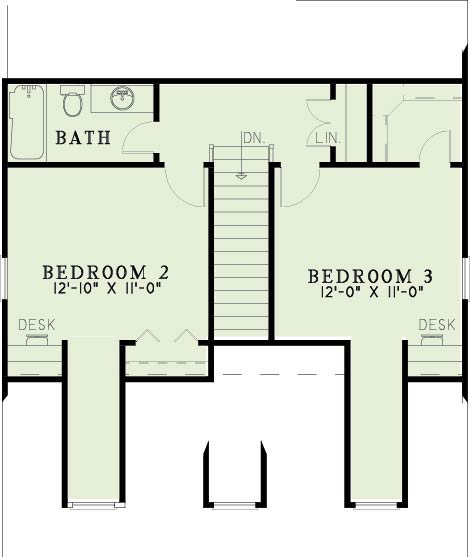

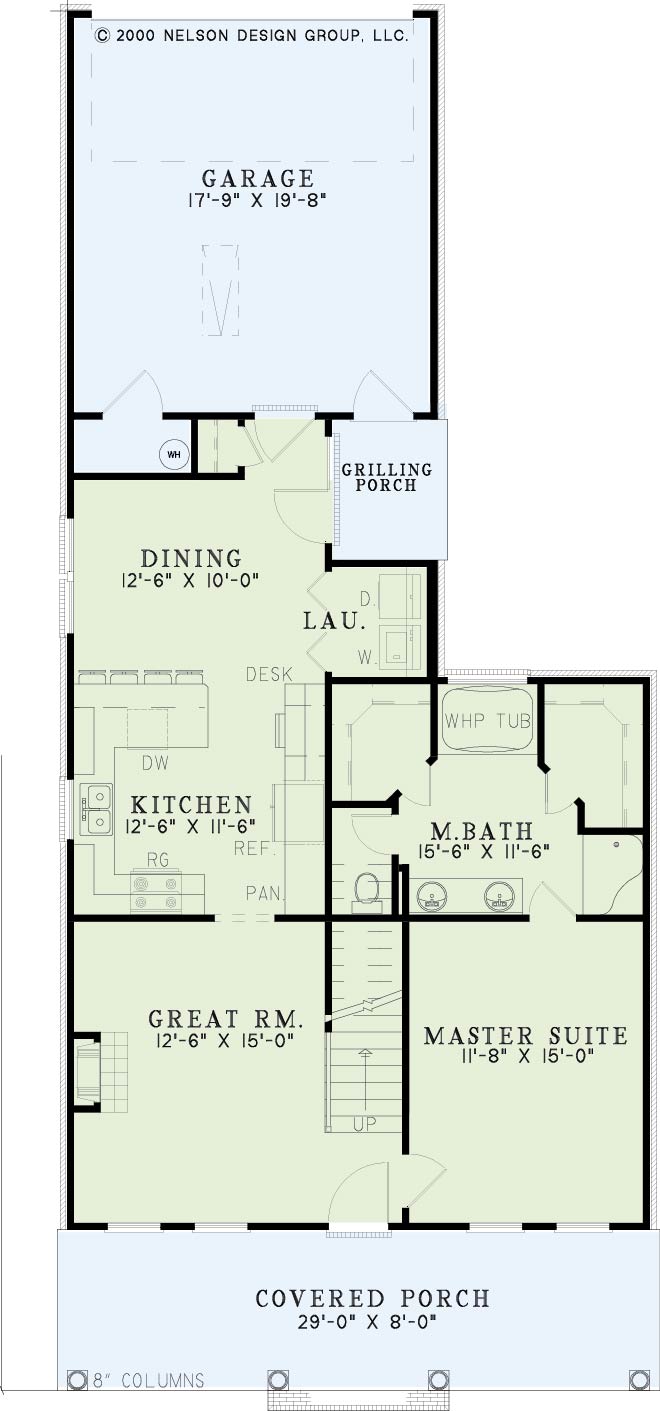

Round columns on a lovely covered porch enhance this old-fashioned plan. An expansive great room with fireplace and staircase separate the family quarters from a glorious Master Suite. A family oriented kitchen is centrally located and has a dining area, laundry room and grilling porch. The large master suite has a private bath with his and her walk-in closets separated by a whirlpool tub, separate shower and private toilet area. A full bath, two additional bedrooms both with dormer windows and built-in study desks are on the second level allowing family their own space.
Specifications
- Total Living Space:1543Sq.Ft.
- Main Floor: 982 Sq.Ft
- Upper Floor (Sq.Ft.): 561 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 261 Sq.Ft.
- Garage (Sq.Ft.): 377 Sq.Ft.
- Total Square Feet: 2181 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: 10:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 26
- Ridge Height (In.): 7
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
