House Plan 490 Hidden Hill Cove, Multi-Family House Plan

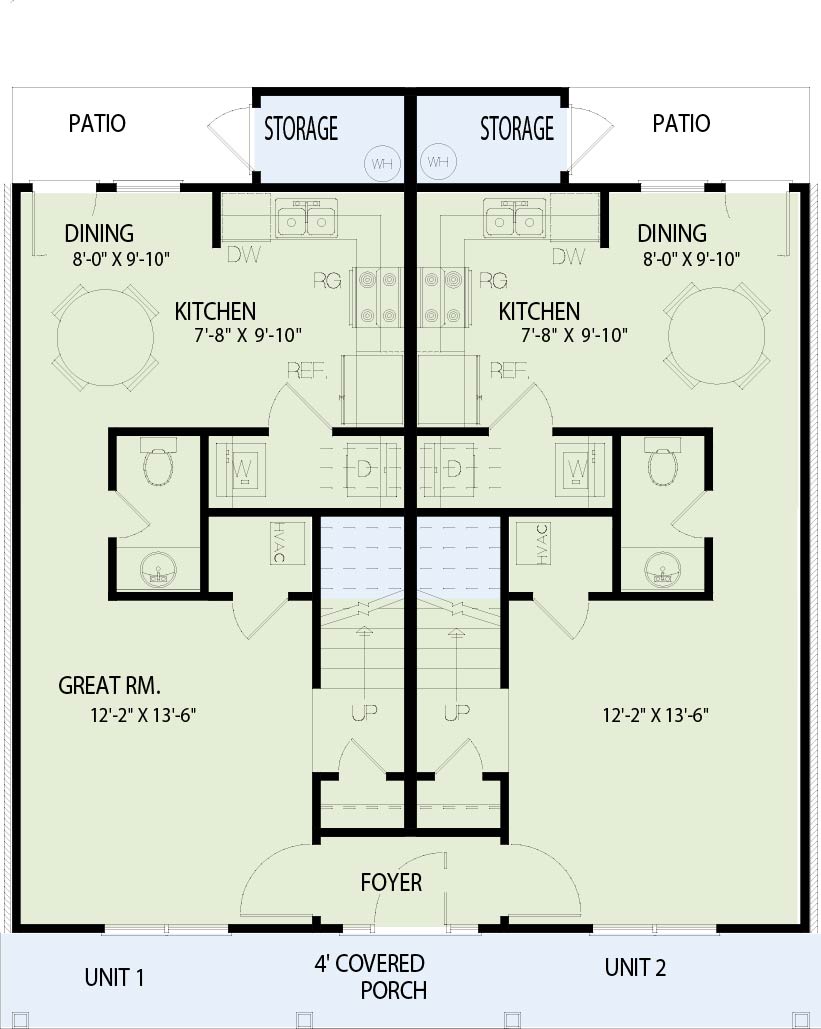

House Plan NDG 490 Main Floor

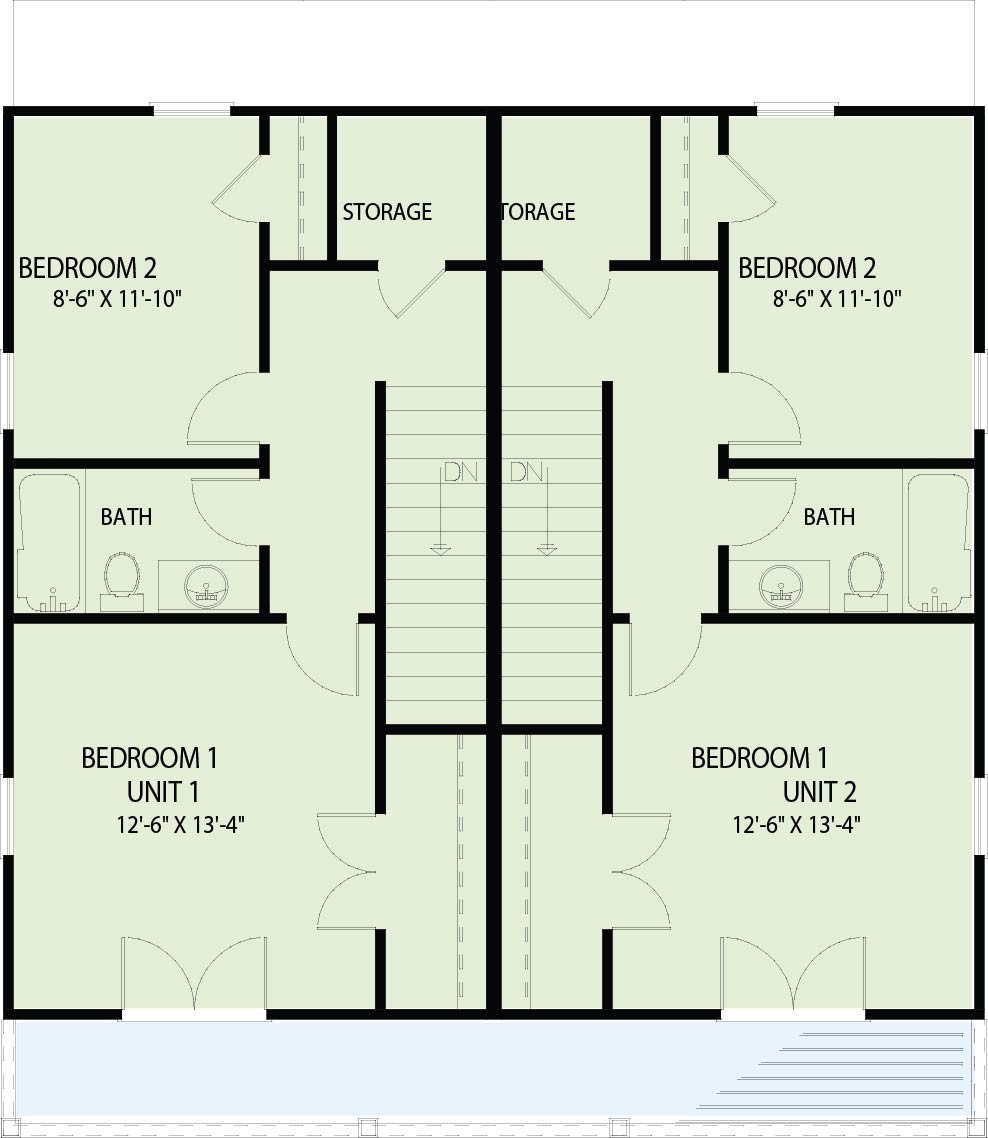

House Plan NDG 490 Upper Floor
House Plan NDG 490 Main Floor
House Plan NDG 490 Upper Floor

Floor plans

NDG 490

House Plan 490 Hidden Hill Cove, Multi-Family House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 490
  • Total Living Space:1005Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 1
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 33
  • Width In.: 2
  • Depth Ft.: 39
  • Depth In.: 2

Description

Nelson Design Group has created a southern traditional duplex plan with the appearance of a two story single family home. The front door leads to a foyer concealing two separate living quarters. Each living quarter has a great room with large closet that can be used as a computer nook, a spacious kitchen with dining area, and a rear access to a patio with storage room. Travel upstairs and find a full bath, large storage closet and two bedrooms – one with a walk-in closet and French doors to the balcony.

Specifications

  • Total Living Space:1005Sq.Ft.
  • Main Floor: 516 Sq.Ft
  • Upper Floor (Sq.Ft.): 489 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 132 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1189 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 38
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
