House Plan 489 Carriage Hill, Multi-Family House Plan

>

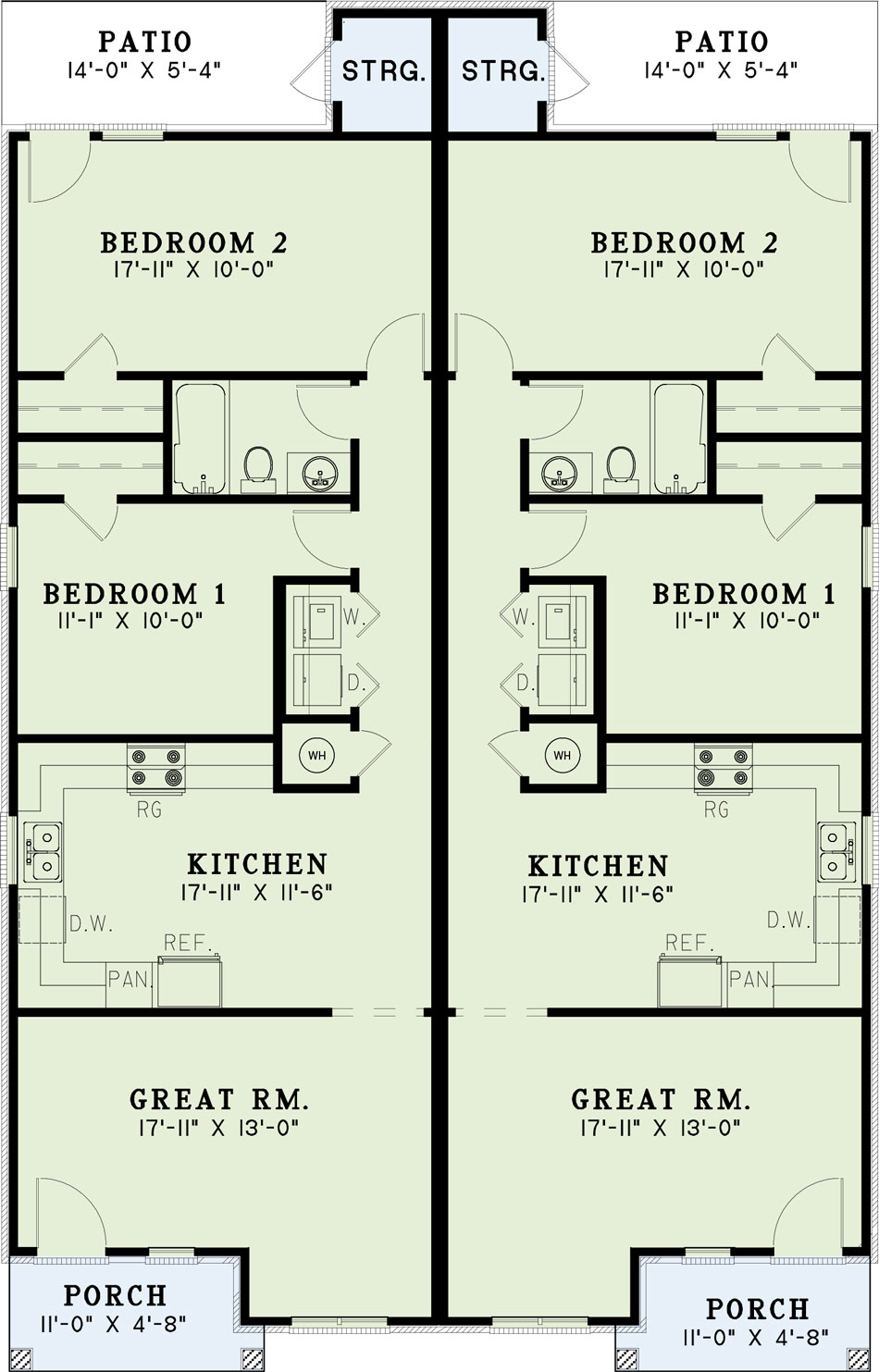

Floor plans

NDG 489

House Plan 489 Carriage Hill, Multi-Family House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 489
  • Total Living Space:927Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 37
  • Width In.: N/A
  • Depth Ft.: 56
  • Depth In.: 10

Description

This contemporary duplex plan will add class to any neighborhood. Brick columns and a hip roof enhance this two-bedroom plan complete with a large kitchen and small laundry closet. The great room is spacious and has a small sitting area by the front window. On the rear patio you'll be able to have a drink with friends and watch the sun set.

Specifications

  • Total Living Space:927Sq.Ft.
  • Main Floor: 927 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 152 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2006 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: 6:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 1
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
