House Plan 486 Willow Lane, French Classic House Plan

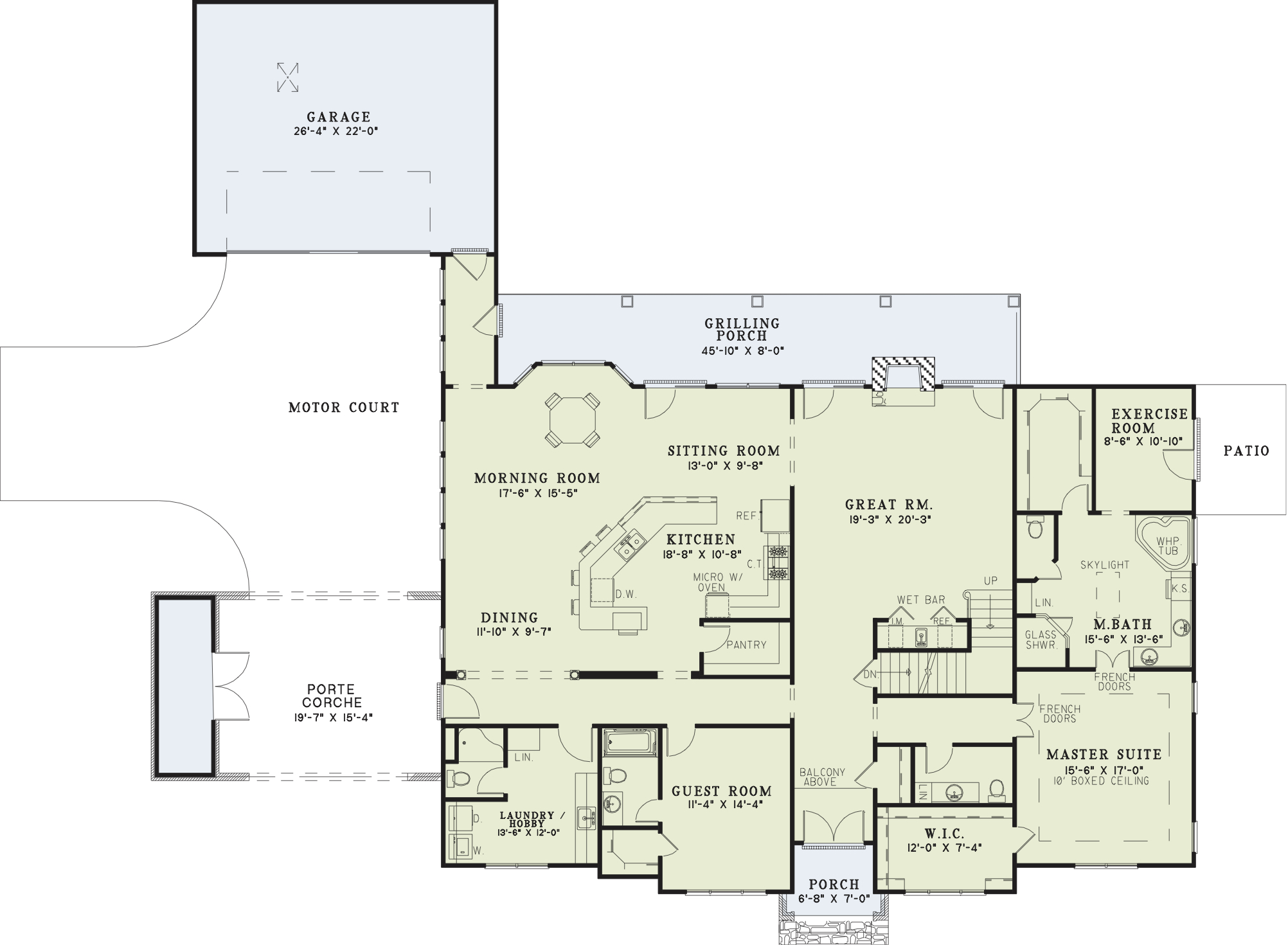

House Plan NDG 486 Main Floor
House Plan NDG 486 Upper Floor
House Plan NDG 486 Main Floor
House Plan NDG 486 Upper Floor

Floor plans

NDG 486

House Plan 486 Willow Lane, French Classic House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 486
  • Total Living Space:3818Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: 2
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 88
  • Width In.: 8
  • Depth Ft.: 81
  • Depth In.: 4

Description

From the traditional porte corchere and motor court to the eloquent and modern master suite, no detail has been overlooked in this splendid offering. The great room harbors a majestic fireplace tucked between two stylish entries to the expansive grilling porch. The functional kitchen features a large walk-in pantry and easily serves the adjoining sitting room, bright morning room with a bay window and formal dining room. Behind two lovely sets of French doors, the sky-lit master suite offers an exercise room and private patio in addition to the spacious bath.

Specifications

  • Total Living Space:3818Sq.Ft.
  • Main Floor: 2967 Sq.Ft
  • Upper Floor (Sq.Ft.): 851 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 432 Sq.Ft.
  • Garage (Sq.Ft.): 990 Sq.Ft.
  • Total Square Feet: 5240 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 32
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
