House Plan 478 Carolina Drive, Country Home House Plan

House Plan NDG 478 Main Floor
House Plan NDG 478 Upper Floor
House Plan NDG 478 Basement
>

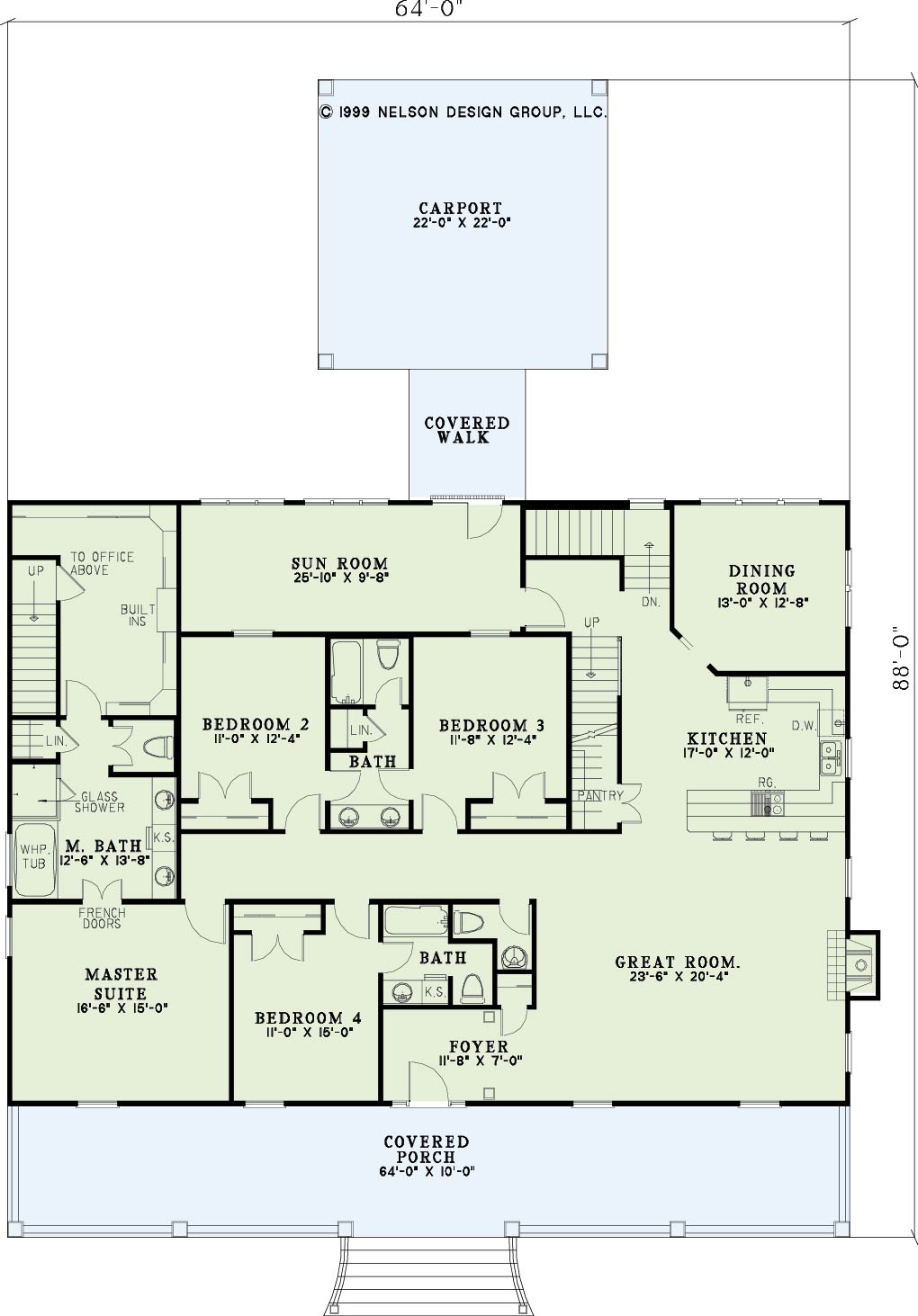

House Plan NDG 478 Main Floor

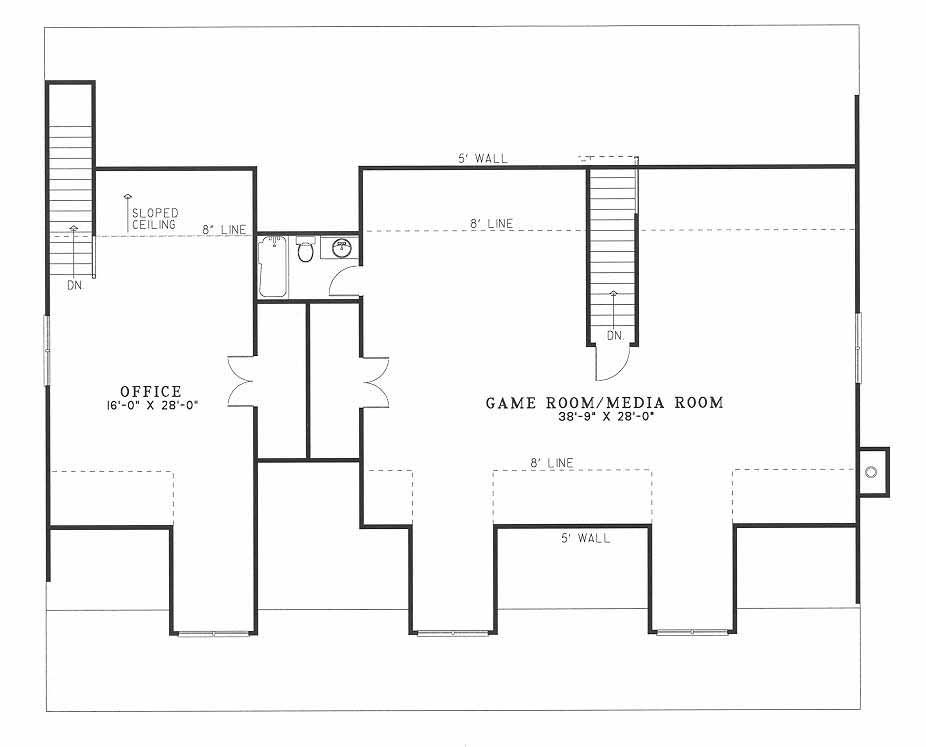

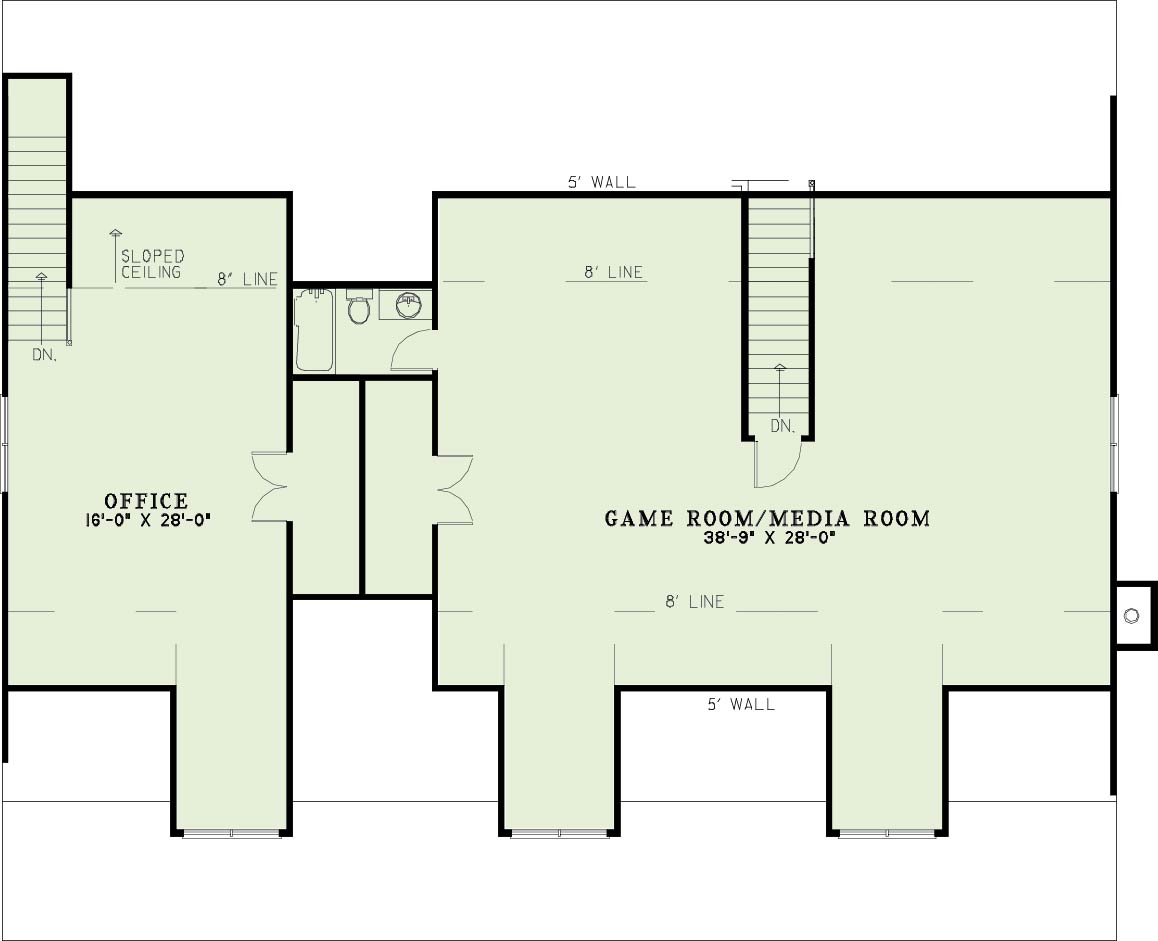

House Plan NDG 478 Upper Floor

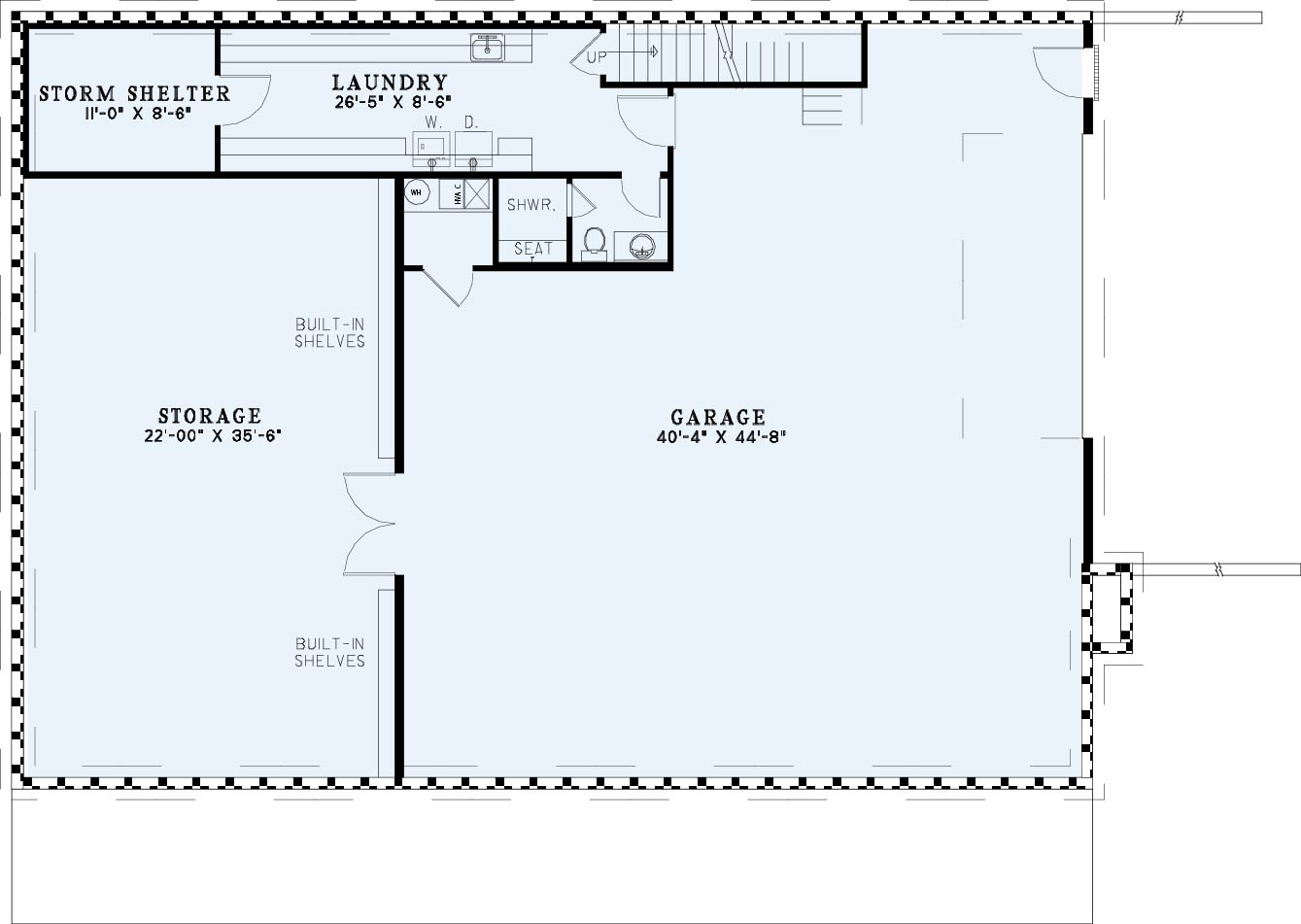

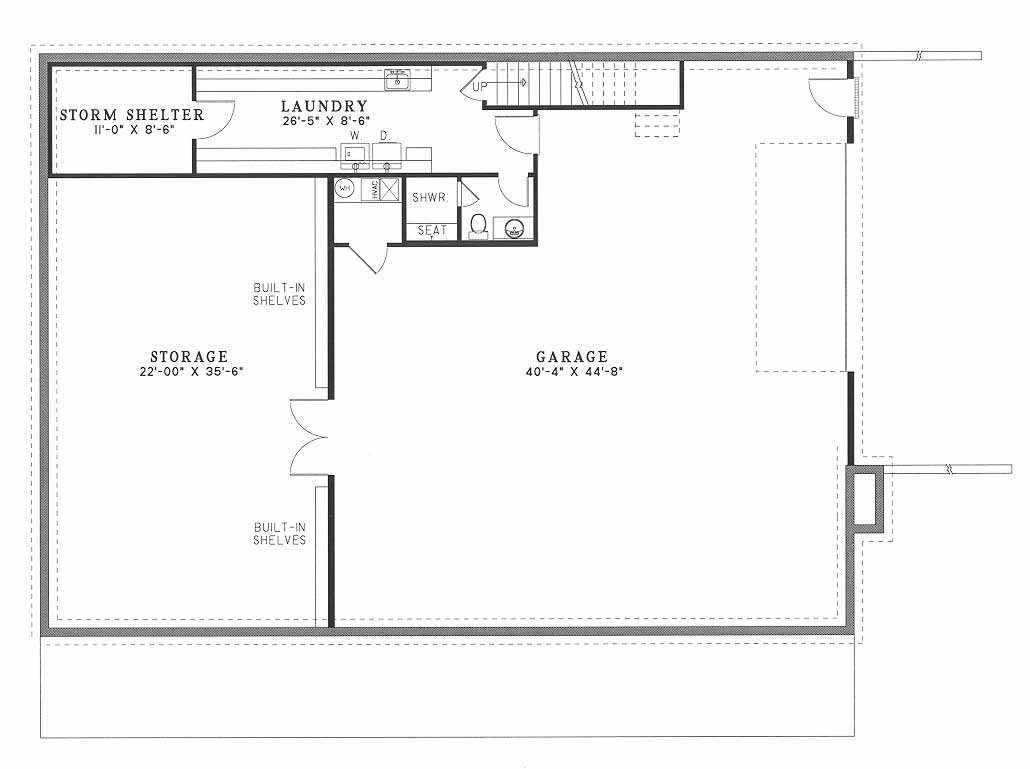

House Plan NDG 478 Basement

Floor plans

NDG 478

House Plan 478 Carolina Drive, Country Home House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 478
  • Total Living Space:4978Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 5
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: Yes
  • Carport Type: Side Load
  • Stories: 1.5
  • Width Ft.: 64
  • Width In.: N/A
  • Depth Ft.: 88
  • Depth In.: N/A

Description

The familiar exterior of this plan leaves you completely unprepared for the totally unpredictable interior. No fewer than three stairways connect the main floor with the two supplemental levels. The master suite has a private stairway to the enormous office overhead, and a convenient kitchen stairway ascends the nearly 40-foot game room that completes the second floor. The expandable lower level contains a huge garage, storage area, bath and storm shelter. The three secondary bedrooms are clustered on the main floor, with two baths.

Specifications

  • Total Living Space:4978Sq.Ft.
  • Main Floor: 2944 Sq.Ft
  • Upper Floor (Sq.Ft.): 1847 Sq.Ft.
  • Lower Floor (Sq.Ft.): 187 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1208 Sq.Ft.
  • Garage (Sq.Ft.): 2746 Sq.Ft.
  • Total Square Feet: 8932 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 10
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
