House Plan 473 Hannah Lane, Traditional House Plan

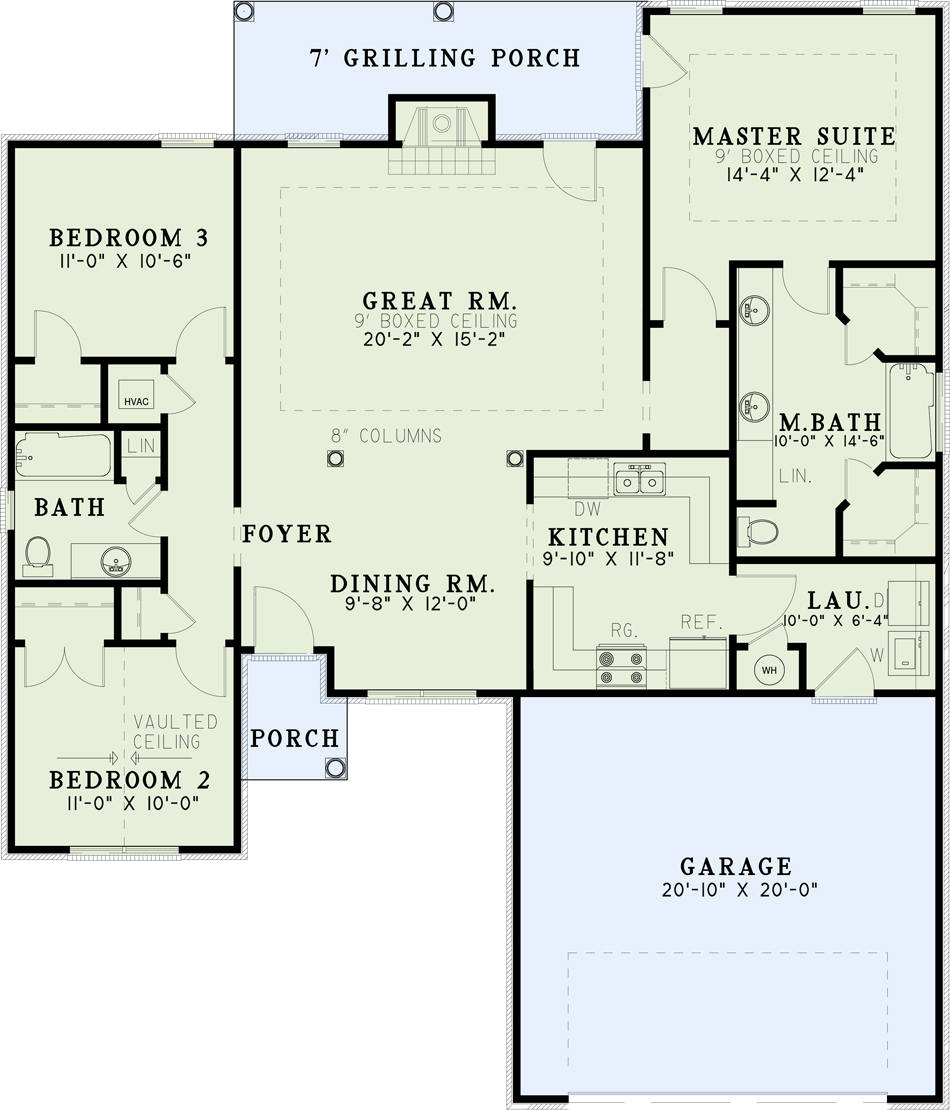

Floor plans
NDG 473
House Plan 473 Hannah Lane, Traditional House Plan
PDF: $700.00
Plan Details
- Plan Number: NDG 473
- Total Living Space:1485Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Front Load
- Carport: No
- Carport Type: N/A
- Stories: 1
- Width Ft.: 46
- Width In.: 10
- Depth Ft.: 54
- Depth In.: 10
Description
This home features a charming roundtop window focal point for great street appeal. An expansive great room combines with the formal dining room allowing for the ultimate in entertaining. A well-designed kitchen has abundant storage and a conveniently located laundry room with garage access. The master suite has private access to the rear porch and a private bathroom with his and her walk-in closets.
Specifications
- Total Living Space:1485Sq.Ft.
- Main Floor: 1485 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 166 Sq.Ft.
- Garage (Sq.Ft.): 437 Sq.Ft.
- Total Square Feet: 2088 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 8
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 8:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 18
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
