House Plan 471 Spruce Street, Traditional House Plan

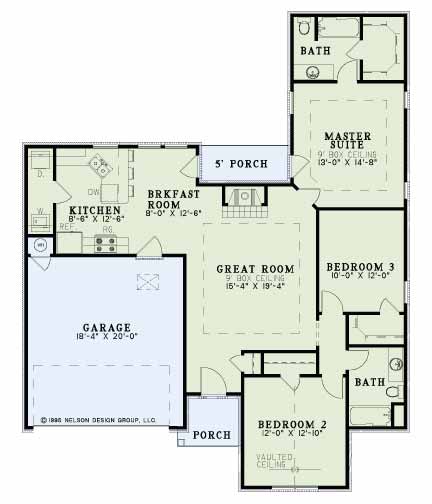

Floor plans
NDG 471
House Plan 471 Spruce Street, Traditional House Plan
Plan Details
- Plan Number: NDG 471
- Total Living Space:1344Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 45
- Width In.: N/A
- Depth Ft.: 56
- Depth In.: N/A
Description
This home has been given a traditional design that focuses on today’s active lifestyles. The plan is designed around a centralized great room that provides easy access to all sections of the home, including living and bedroom areas. A breakfast room more practical for quick family meals replaces the formal dining room for those occasions when time is at a premium. A secondary bedroom features a vaulted ceiling and a large, arched window.
Specifications
- Total Living Space:1344Sq.Ft.
- Main Floor: 1344 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 111 Sq.Ft.
- Garage (Sq.Ft.): 367 Sq.Ft.
- Total Square Feet: 1822 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 7:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 18
- Ridge Height (In.): 2
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
