House Plan 470 Cherry Street, Traditional House Plan

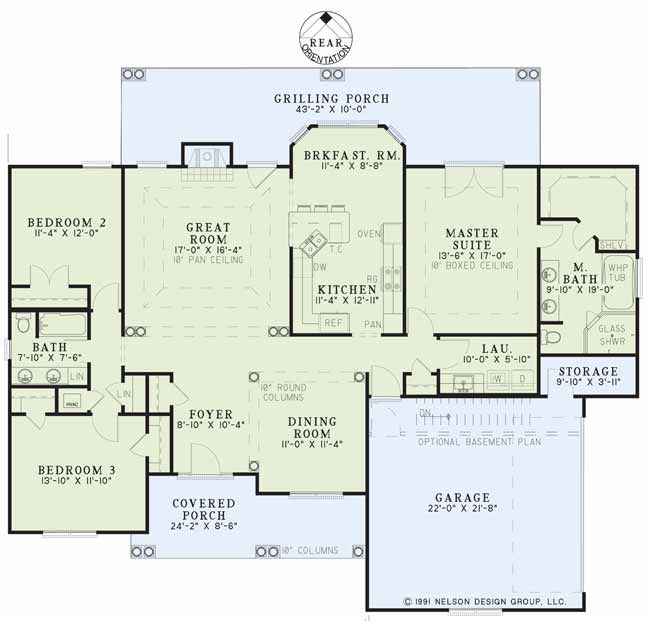

House Plan NDG 470 Main Floor
House Plan NDG 470 Main Floor

Floor plans

NDG 470

House Plan 470 Cherry Street, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 470
  • Total Living Space:1969Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 65
  • Width In.: N/A
  • Depth Ft.: 56
  • Depth In.: N/A


This attractive home plan from Nelson Design Group is sure to charm the neighborhood. The family chef will love preparing meals in this kitchen almost as much as serving them in the dining room defined by round columns. Gather your family around the fireplace on cold winter nights or treat them to a summer cookout on the large grilling porch at the rear of this home. Your family and visitors alike will certainly appreciate the privacy and convenience of this split plan design.


  • Total Living Space:1969Sq.Ft.
  • Main Floor: 1969 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 558 Sq.Ft.
  • Garage (Sq.Ft.): 538 Sq.Ft.
  • Total Square Feet: 3065 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
