House Plan 463 Spruce Street, Country House Plan

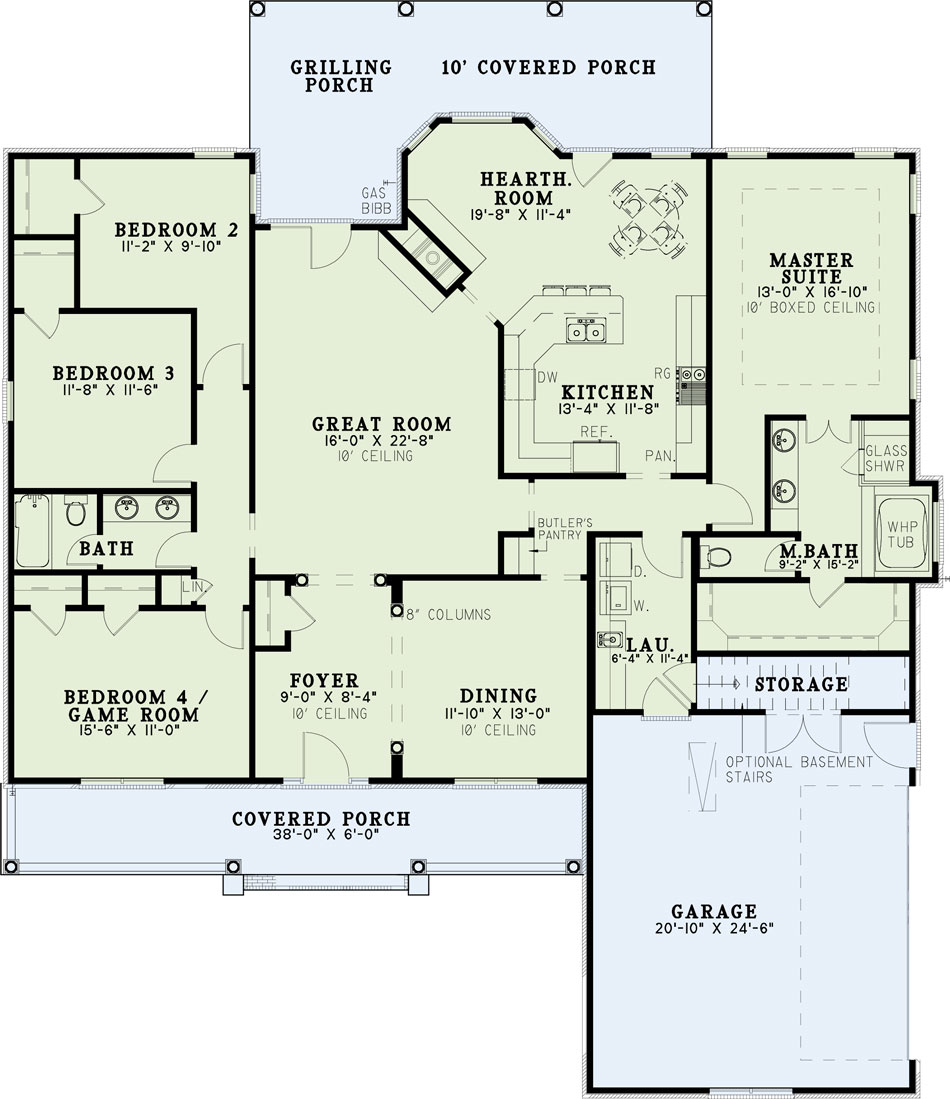

Floor plans

NDG 463

House Plan 463 Spruce Street, Country House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 463
  • Total Living Space:2286Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 61
  • Width In.: N/A
  • Depth Ft.: 71
  • Depth In.: 8


Exciting columns and ten foot ceilings add elegance to a comfortable, open floor plan, while secluded bedrooms are pleasant retreats in this home. A formal dining room features easy access to the kitchen which makes hosting dinner parties much easier. After dinner, lead your guests into the pass-through fireplace. Once the evening has ended, retreat to your master suite which is highlighted by a ten foot boxed ceiling and a spacious bath with a whirlpool bath.


  • Total Living Space:2286Sq.Ft.
  • Main Floor: 2286 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 628 Sq.Ft.
  • Garage (Sq.Ft.): 510 Sq.Ft.
  • Total Square Feet: 3424 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
