House Plan 458 Carriage Hill, Multi-Family House Plan

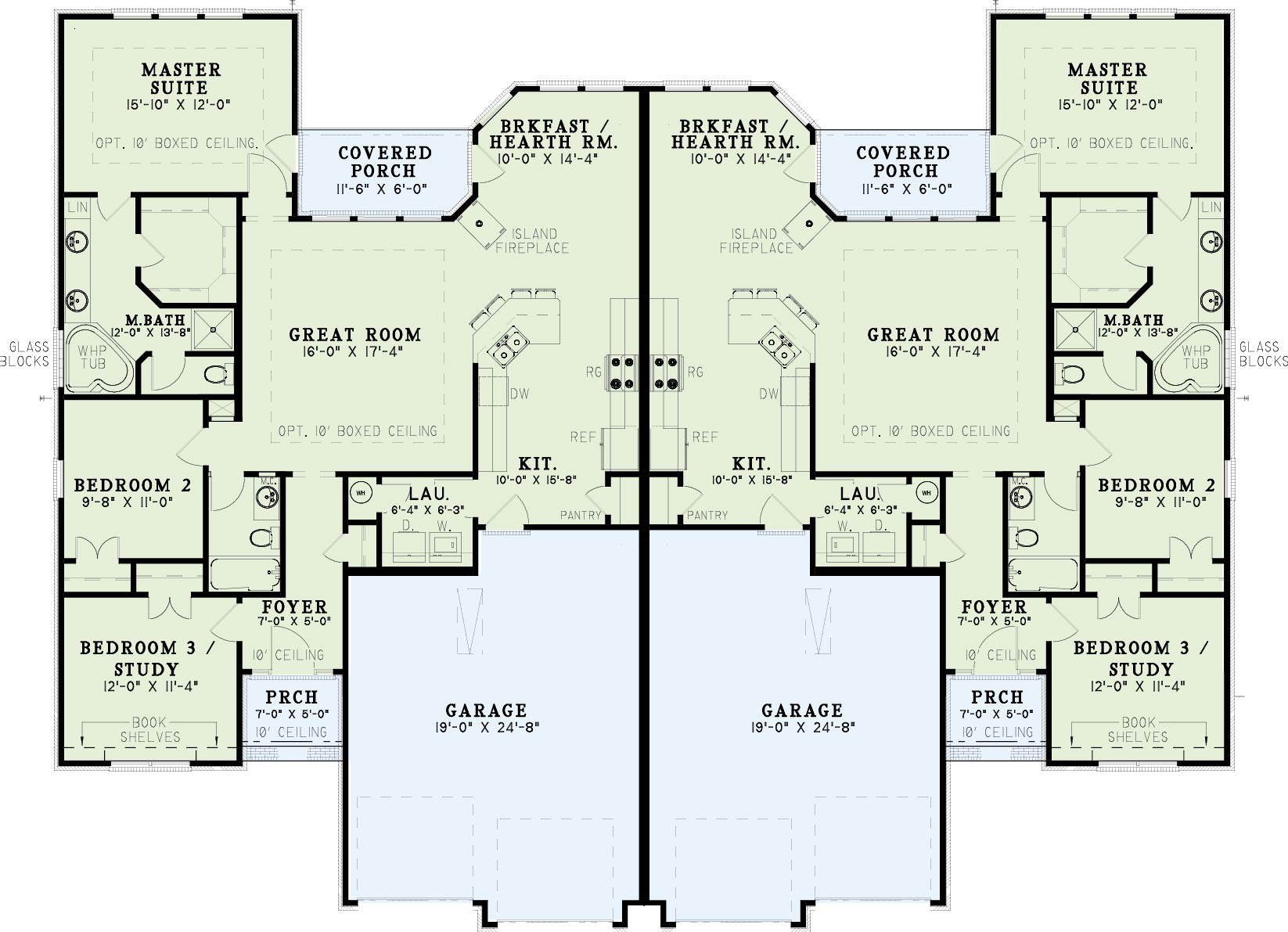

Floor plans

NDG 458

House Plan 458 Carriage Hill, Multi-Family House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 458
  • Total Living Space:1520Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 81
  • Width In.: N/A
  • Depth Ft.: 63
  • Depth In.: 2


This duplex is adorned with rock, siding and shutters giving a cozy European flair to an elegant interior. Beginning in the foyer enhanced with a ten-foot ceiling, the front bedroom includes built in bookshelves making a wonderful study or home office. The Great room and Breakfast/Hearth rooms share an island fireplace and access a grilling porch right outside perfect for family gatherings! The spacious Master Suite Bedroom is detailed with a ten foot boxed ceiling and adjoins the master bathroom featuring a corner whirlpool tub, separate shower, private toilet room and large walk in closet. A double car garage is spacious enough for additional storage.


  • Total Living Space:1520Sq.Ft.
  • Main Floor: 1520 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 324 Sq.Ft.
  • Garage (Sq.Ft.): 938 Sq.Ft.
  • Total Square Feet: 2782 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
