House Plan 454B New York Cove, Multi-Family House Plan

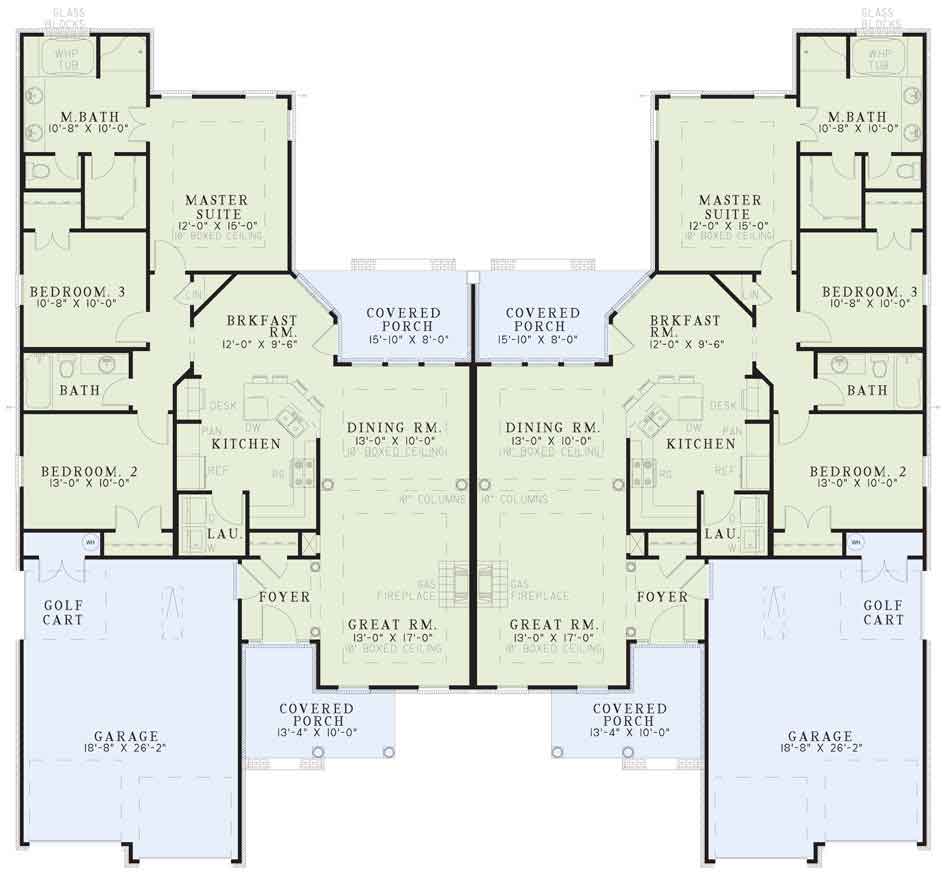

House Plan NDG 454B Main Floor
House Plan NDG 454B Main Floor

Floor plans

NDG 454B

House Plan 454B New York Cove, Multi-Family House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 454B
  • Total Living Space:1504Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 79
  • Width In.: N/A
  • Depth Ft.: 72
  • Depth In.: 5

Description

This Nelson Design Group duplex plan has the family in mind. Front and rear porches allow for outside enjoyment during the warm seasons while the great room fireplace takes the chill out of cold evenings. Ten foot-boxed ceilings are used in the formal dining room, great room and luxurious master suite for added elegance. Family time will be enjoyable in the large kitchen and breakfast room combination complete with a built in desk, bar seating and door to the grilling porch. The double garage has a golf cart bay and storage area.

Specifications

  • Total Living Space:1504Sq.Ft.
  • Main Floor: 1504 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 464 Sq.Ft.
  • Garage (Sq.Ft.): 976 Sq.Ft.
  • Total Square Feet: 2944 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
