House Plan 454 Cabe Court, Multi-Family House Plan

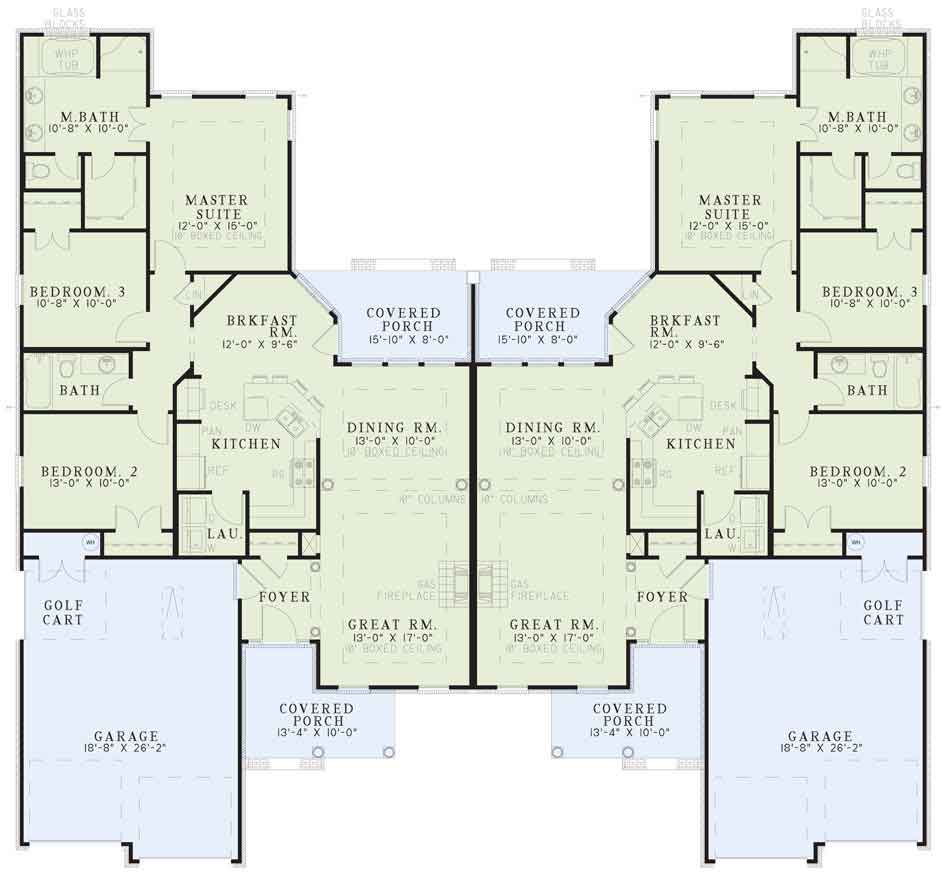

House Plan NDG 454 Main Floor

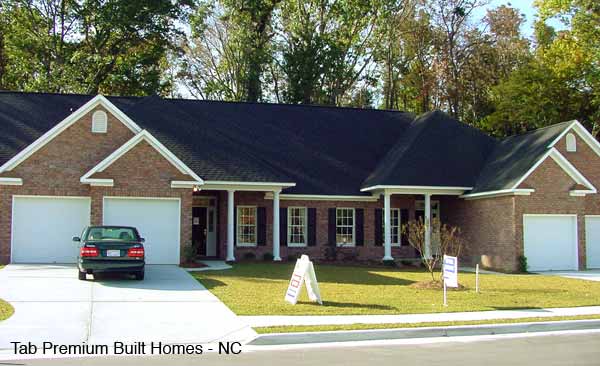

House Plan - 454 p4 Front View

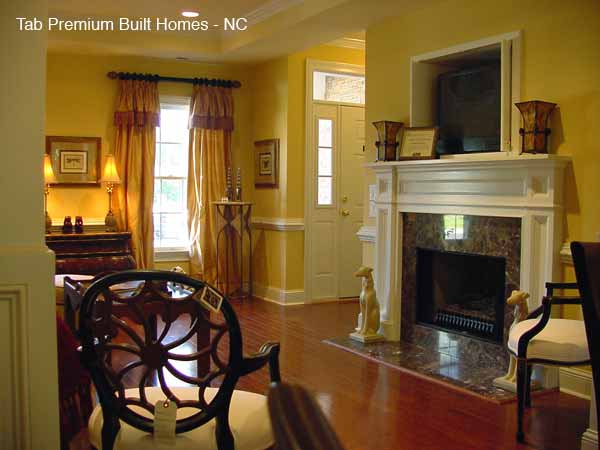

House Plan - 454 p5 Great Room

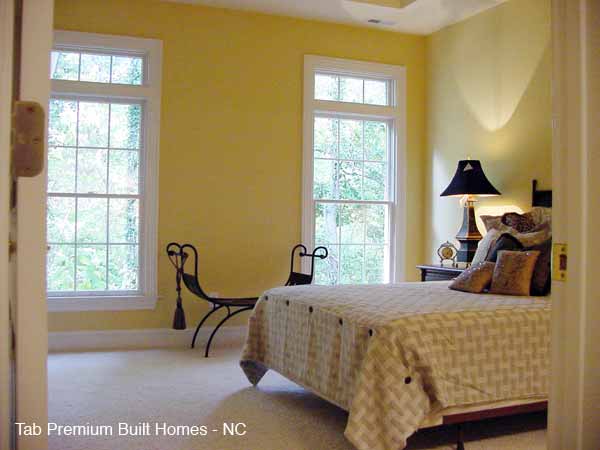

House Plan - 454 p1 Master Bedroom

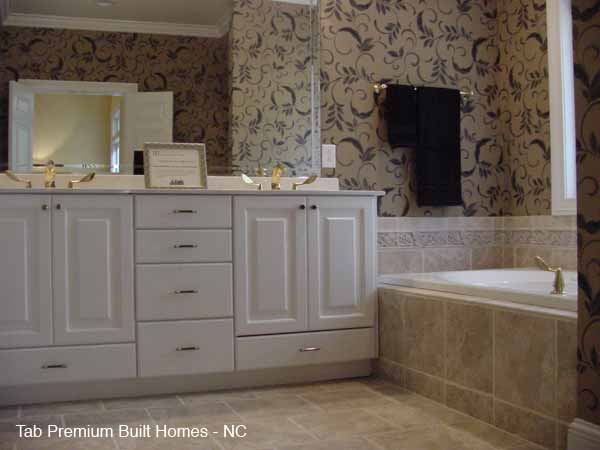

House Plan - 454 p3 Master Bathroom
House Plan NDG 454 Main Floor
House Plan - 454 p4 Front View
House Plan - 454 p5 Great Room
House Plan - 454 p1 Master Bedroom
House Plan - 454 p3 Master Bathroom

Floor plans

NDG 454

House Plan 454 Cabe Court, Multi-Family House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 454
  • Total Living Space:1504Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 79
  • Width In.: 2
  • Depth Ft.: 72
  • Depth In.: 5

Description

This duplex plan has the family in mind. Front and rear porches allow for outside enjoyment during the warm seasons while the great room fireplace takes the chill out of cold evenings. Ten foot-boxed ceilings are used in the formal dining room, great room and luxurious master suite for added elegance. Family time will be enjoyable in the large kitchen and breakfast room combination complete with a built in desk, bar seating and door to the grilling porch. The double garage has a golf cart bay and storage area. Photos courtesy of Tab Premium Built Homes, NC

Specifications

  • Total Living Space:1504Sq.Ft.
  • Main Floor: 1504 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 209 Sq.Ft.
  • Garage (Sq.Ft.): 512 Sq.Ft.
  • Total Square Feet: 2225 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
