House Plan 452 Brookshire, Multi-Family House Plan

>

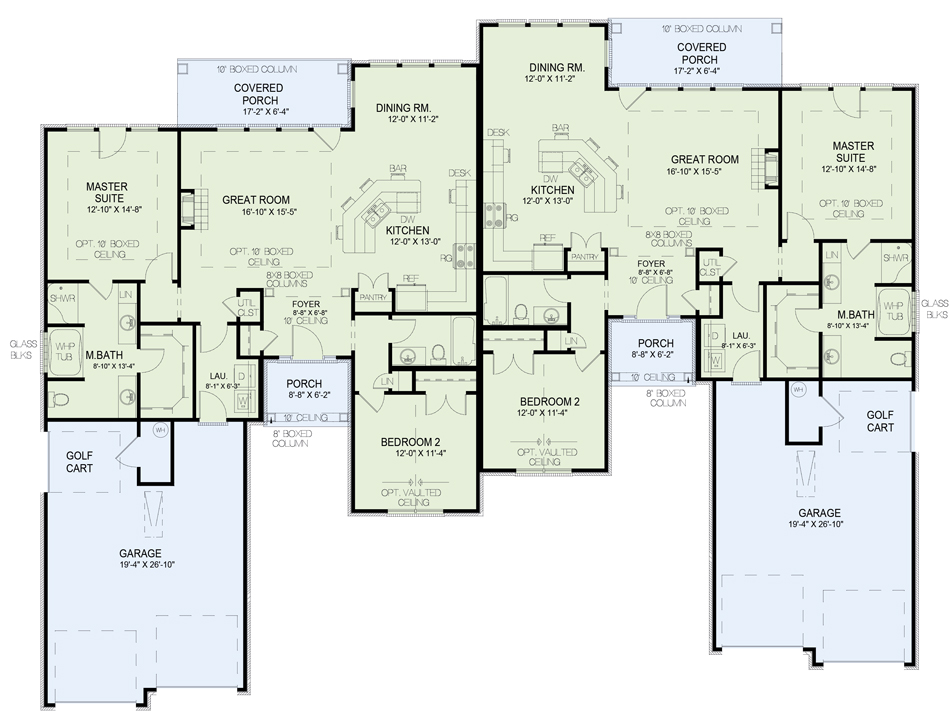

Floor plans

NDG 452

House Plan 452 Brookshire, Multi-Family House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 452
  • Total Living Space:1387Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 86
  • Width In.: N/A
  • Depth Ft.: 67
  • Depth In.: 6

Description

As you enter this lovely duplex you’ll find yourself engulfed by the grandeur. The great room stands ready for your guests beside the fireplace or transcends upon the rear-covered porch on those summer evenings. The kitchen presents an island snack bar for informal gatherings. As evening draws nigh, retreat into the master bath boasting a whirlpool tub, walk-in closet and corner shower. A secondary bedroom completes the design with optional vaulted ceiling and full bath access.

Floor Plan Specifications:
Heat/Cooled Unit #1: 1387 SQ.FT
Garage, Storage Unit #1: 549 SQ. FT
Porches Unit #1: 162 SQ. FT
Total Unit #1: 2098 SQ. FT

Heat/Cooled Unit #2: 1387 SQ.FT
Garage, Storage Unit #2: 549 SQ. FT
Porches Unit #2: 162 SQ. FT
Total Unit #2: 2098 SQ. FT

Total of both units: 4196 SQ. FT

Specifications

  • Total Living Space:1387Sq.Ft.
  • Main Floor: 1387 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 162 Sq.Ft.
  • Garage (Sq.Ft.): 549 Sq.Ft.
  • Total Square Feet: 2098 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
