House Plan 447 Maple Street, Traditional House Plan

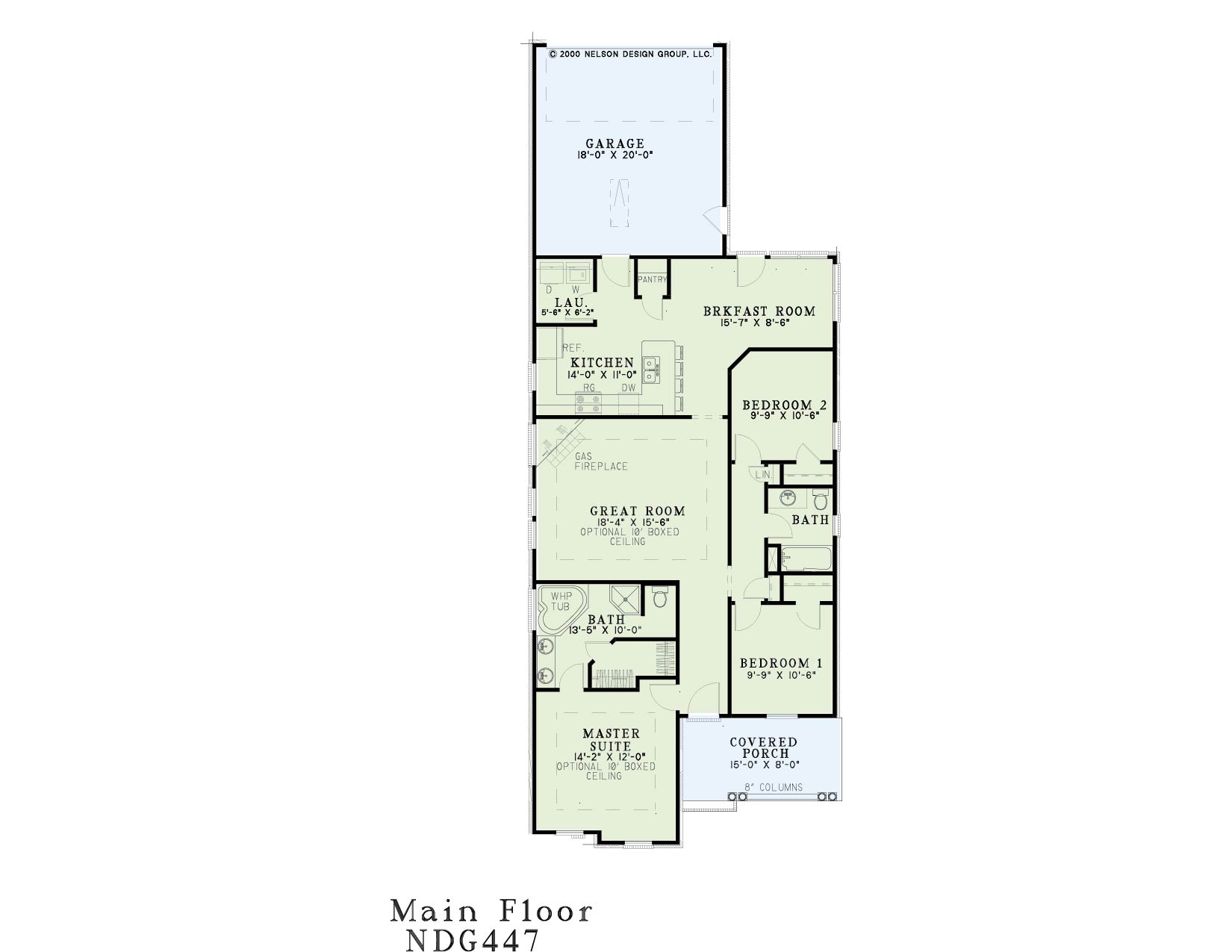

House Plan NDG 447 Main Floor
House Plan NDG 447 Main Floor

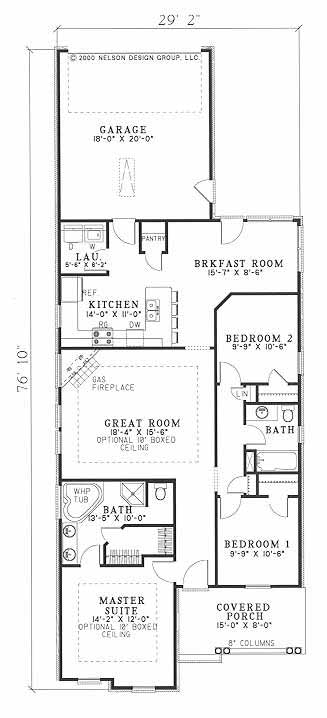

Floor plans

NDG 447

House Plan 447 Maple Street, Traditional House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 447
  • Total Living Space:1449Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 29
  • Width In.: 2
  • Depth Ft.: 76
  • Depth In.: 10

Description

Luxurious living spaces in a narrow-lot design highlight home. A covered front porch and simple layout strengthen this plan’s charming appeal. A large breakfast room joins the kitchen, allowing you to take advantage of the convenient serving bar. An incredible master bath features a dual-sink vanity and a separate whirlpool tub and shower. Two nicely sized bedroom share a full bath on the opposite side of the house.

Specifications

  • Total Living Space:1449Sq.Ft.
  • Main Floor: 1449 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 148 Sq.Ft.
  • Garage (Sq.Ft.): 360 Sq.Ft.
  • Total Square Feet: 1957 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 19
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
