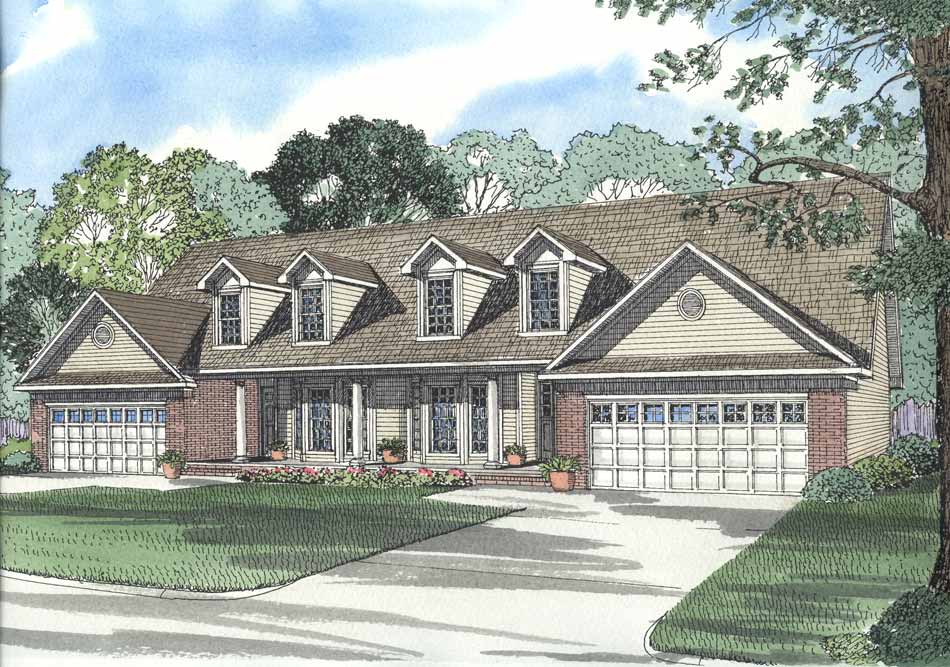

House Plan 443 Centre Grove Circle, Multi-Family House Plan

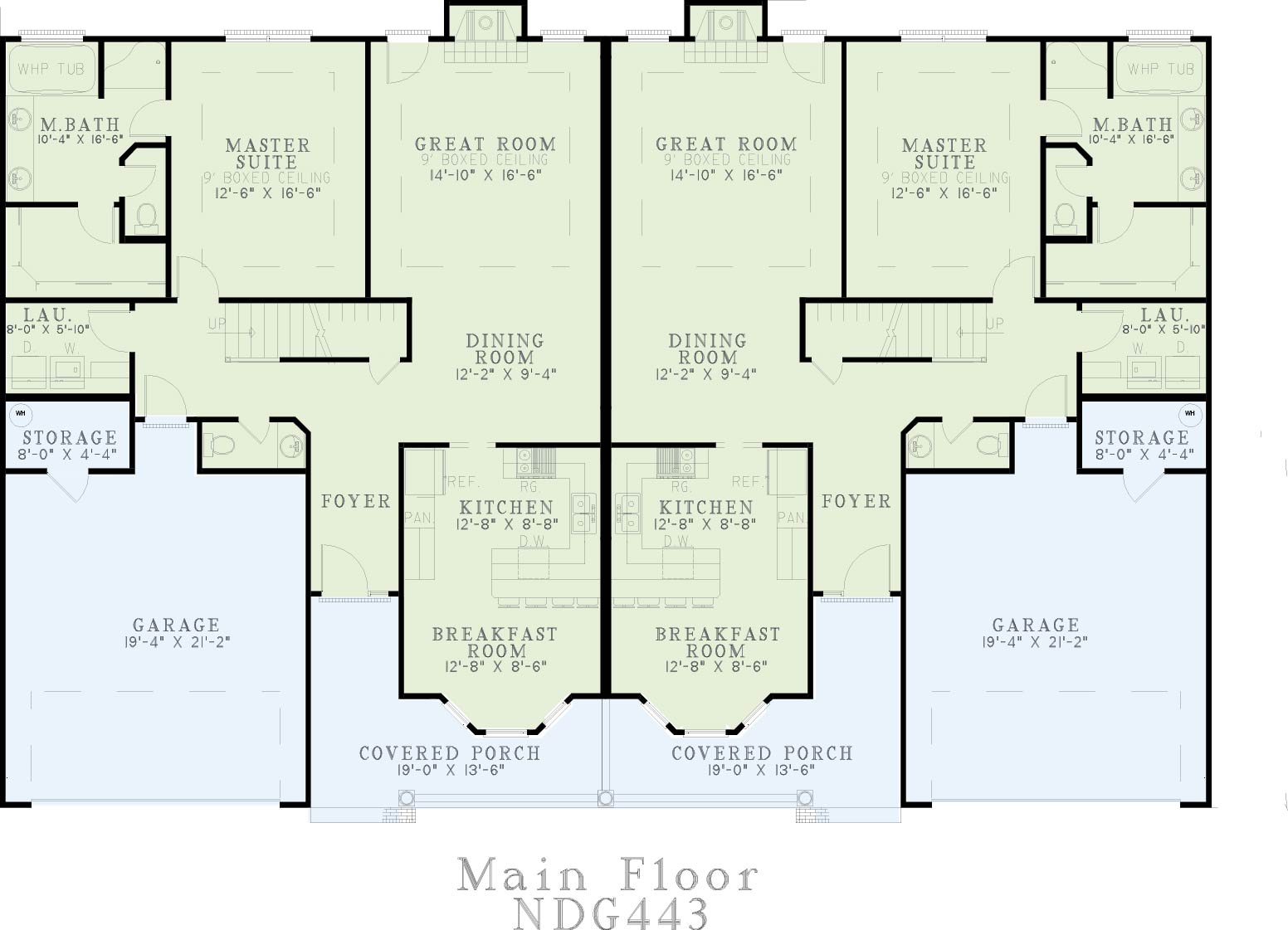

House Plan NDG 443 Main Floor

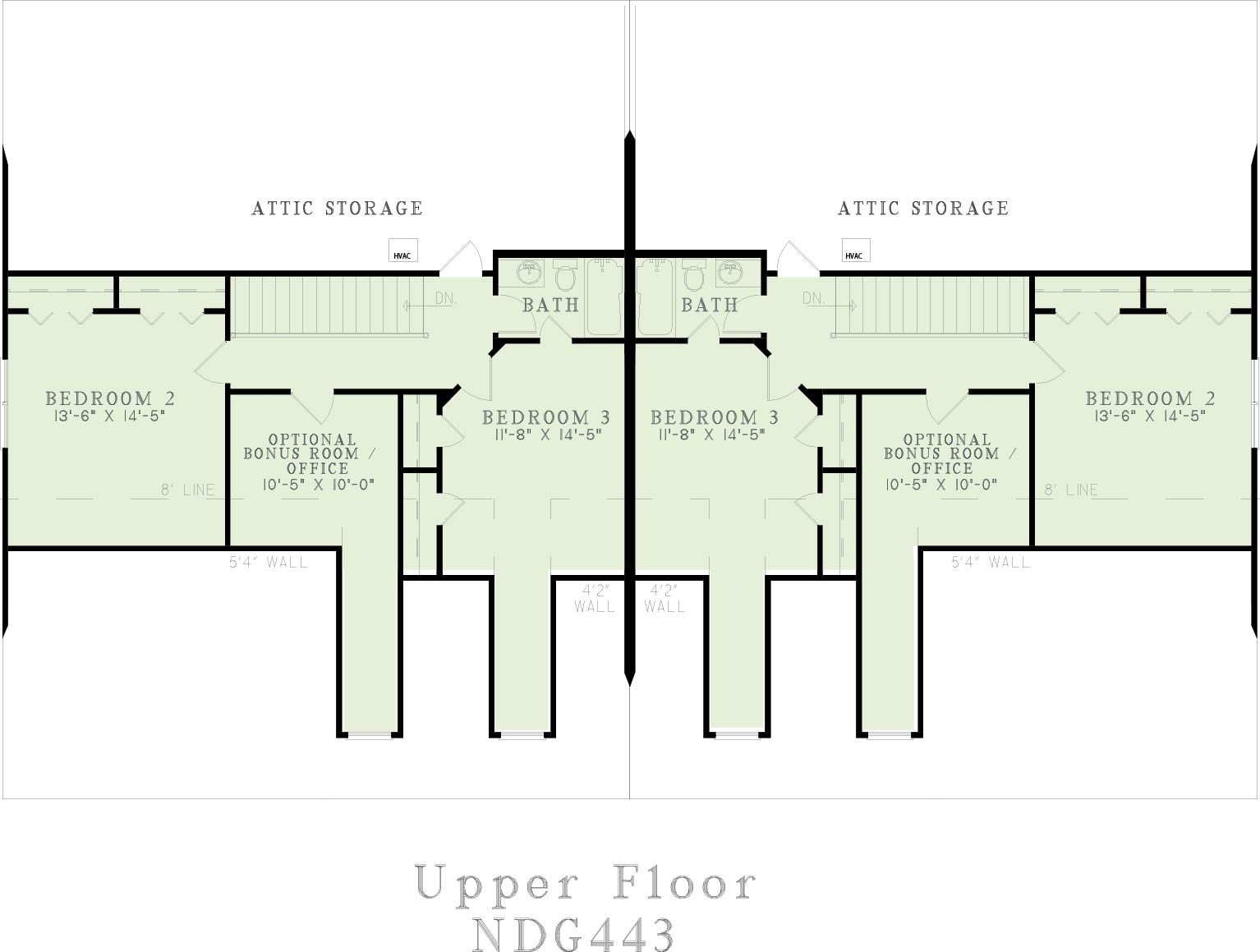

House Plan NDG 443 Upper Floor
House Plan NDG 443 Main Floor
House Plan NDG 443 Upper Floor

Floor plans

NDG 443

House Plan 443 Centre Grove Circle, Multi-Family House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 443
  • Total Living Space:1897Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 78
  • Width In.: N/A
  • Depth Ft.: 52
  • Depth In.: N/A

Description

This southern traditional home is designed with a split bedroom plan. Visit with family and friends of the front porch as the children play in the front yard. Walking through the foyer, you’ll notice the dining room, opening to the expansive great room. Preparing the family’s dinner is simple with fluid access to the dining room and a handy breakfast room. Evenings can be spent in your master suite cuddled up reading a book or in the master bath soaking in the whirlpool bath. Upstairs provides children with privacy while the optional bonus room can function as an office.

Specifications

  • Total Living Space:1897Sq.Ft.
  • Main Floor: 1299 Sq.Ft
  • Upper Floor (Sq.Ft.): 598 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 145 Sq.Ft.
  • Porch (Sq.Ft.): 462 Sq.Ft.
  • Garage (Sq.Ft.): 818 Sq.Ft.
  • Total Square Feet: 3322 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
